Audibax AWM 403 TD - 4-Channel UHF Wireless System with Headsets, IR Sync and XLR/MIX Outputs

Audibax AWM 403 TD - 4-Channel UHF Wireless System with Headsets, IR Sync and XLR/MIX Outputs

The Audibax AWM 403 TD is a professional 4-channel UHF wireless system with condenser headset microphones, designed for clear and stable voice in events, education, theater, worship, or corporate settings. The receiver employs PLL oscillation for precise and robust tuning and operates within a 640–690 MHz frequency range with a 2×32 MHz bandwidth , making it easy to find clean channels even in demanding RF environments. Infrared (IR) synchronization speeds up pairing of each beltpack, while balanced XLR outputs and a 6.3 mm jack MIX output provide flexibility for consoles, interfaces, and recording. With a 50 Hz–15 kHz frequency response , signal-to-noise ratio >105 dB(A) , and distortion <0.3% (1 kHz) , it delivers clear and consistent performance, along with a range of up to 100 m under ideal conditions.

Main features

• 4 independent UHF channels with PLL for stability and interference reduction.
• Operating range: 640–690 MHz • Bandwidth: 2×32 MHz • Compensation: ±45 kHz.
• IR synchronization for quick frequency adjustment between receiver and beltpacks.
• Audio : response 50 Hz–15 kHz, S/N >105 dB(A) , THD <0.3% .
• Receiver outputs : Balanced XLR (250 mV/600 Ω) and unbalanced MIX on 6.3 mm jack (400 mV).
• Microphones : 4 condenser headset microphones with max. SPL 130 dB , lightweight and fixed capsule.
• Bodypacks with mini-XLR connector; 2×AA power supply per transmitter.
• Range up to 100 m (ideal environment) and working temperature −10 °C to 55 °C.

Product benefits

• Simple operation : frequency search and IR link in seconds.
• Connection flexibility : balanced XLR outputs to the console and MIX output for recording or quick reinforcement.
• Clarity and intelligibility : condenser headsets designed for voice and speech with a wide dynamic range.
• RF reliability : UHF band with PLL, high S/N and low distortion for extended performances and events.

Use cases

• Plays, school musicals and rental companies.
• Places of worship, conferences, classrooms and training.
• Corporate events, presentations and streaming with multiple speakers.

Frequently Asked Questions

• How many simultaneous channels does it offer? 4 independent UHF channels.
• How are the transmitters paired? By using IR synchronization from the receiver.
• What connectors does it include? Balanced XLR outputs, MIX output on 6.3 mm jack and mini-XLR inputs on the beltpacks.
• What is the range? Up to 100 m under ideal conditions and line of sight.

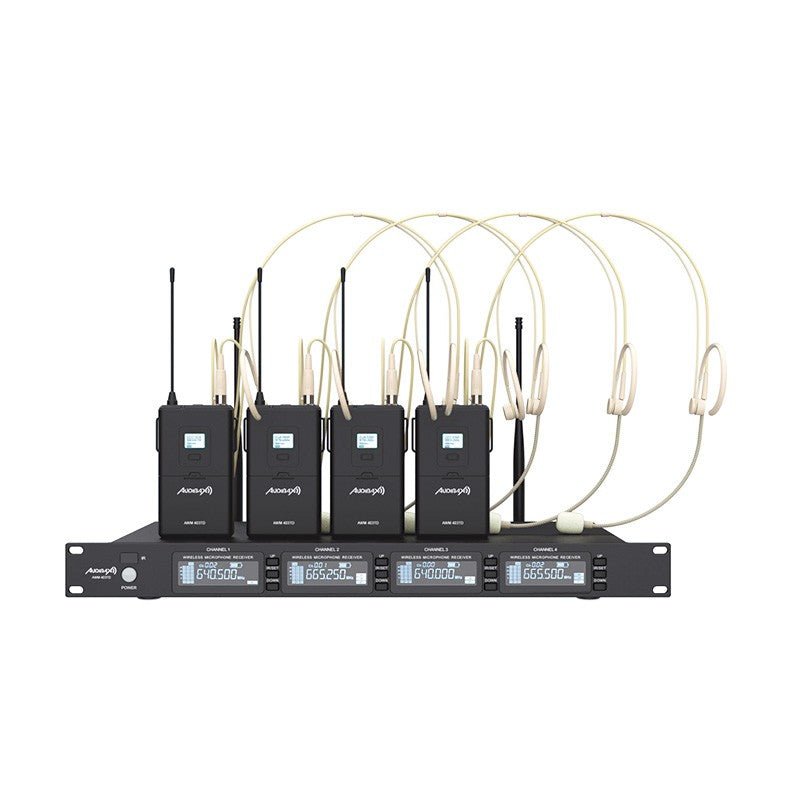

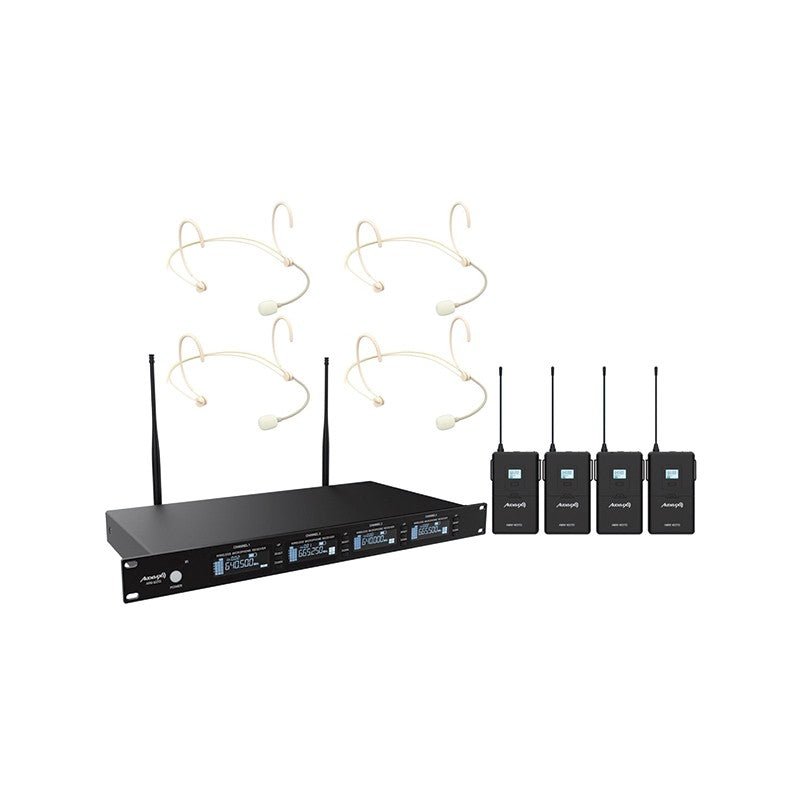

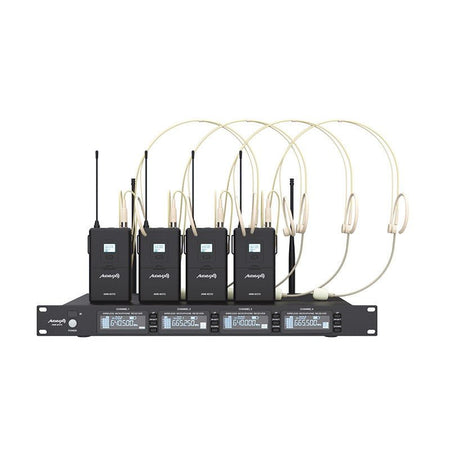

• What's in the package? Receiver + 4 beltpacks + 4 headsets and user manual.

Connections and control

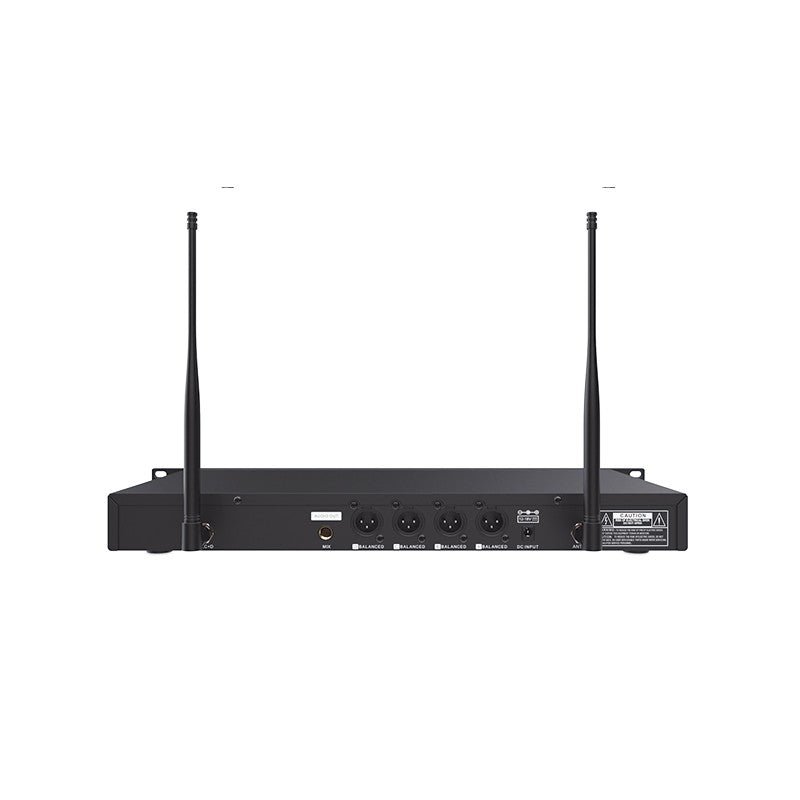

• Audio outputs : Balanced XLR (250 mV/600 Ω) and unbalanced MIX on 6.3 mm jack (400 mV).
• Receiver power supply : DC 12–16 V (≤350 mA).

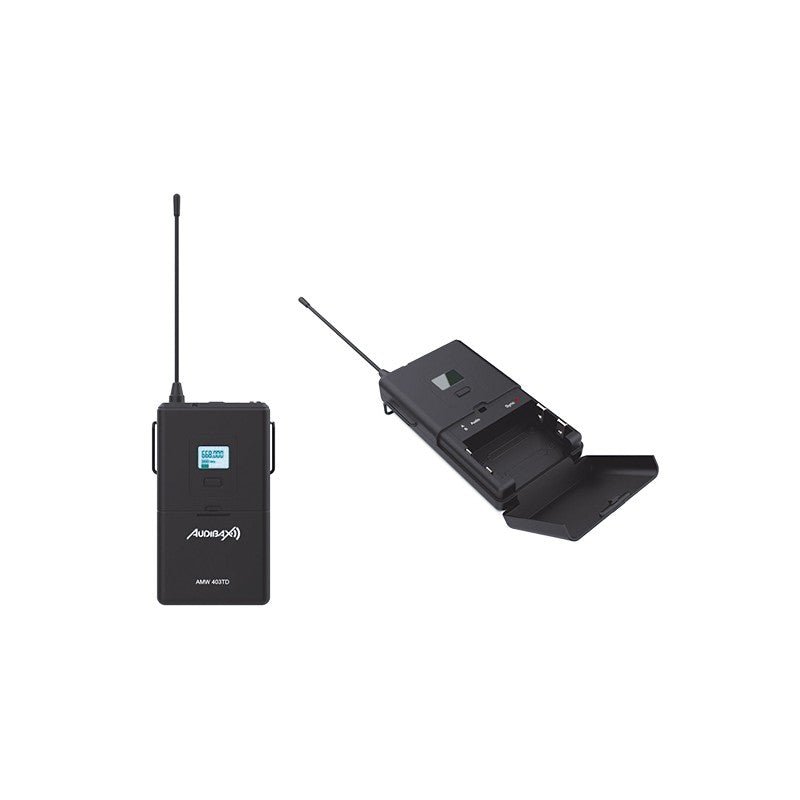

• Transmitters : 2 AA batteries (1.5V) per pack; mini-XLR connector for the headband.

Project description

Audibax AWM 403 TD 4-channel UHF wireless system with headsets; 640–690 MHz frequency range , 2×32 MHz bandwidth , IR synchronization, FM/PLL modulation; 50 Hz–15 kHz frequency response, S/N >105 dB(A) , THD <0.3% , range up to 100 m ; receiver with balanced XLR output (250 mV/600 Ω) and 6.3 mm jack MIX output (400 mV) , 12–16 V DC power supply (≤350 mA) ; beltpacks with mini-XLR connectors, max. SPL 130 dB , stability <30 ppm , 2×AA power supply. Includes receiver + 4 beltpacks + 4 headsets .
