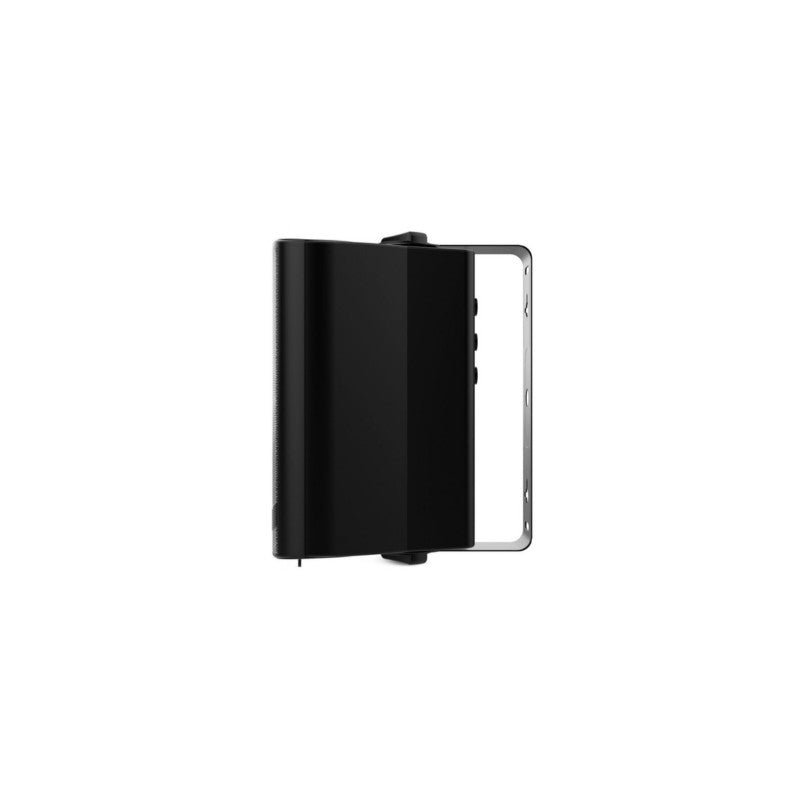

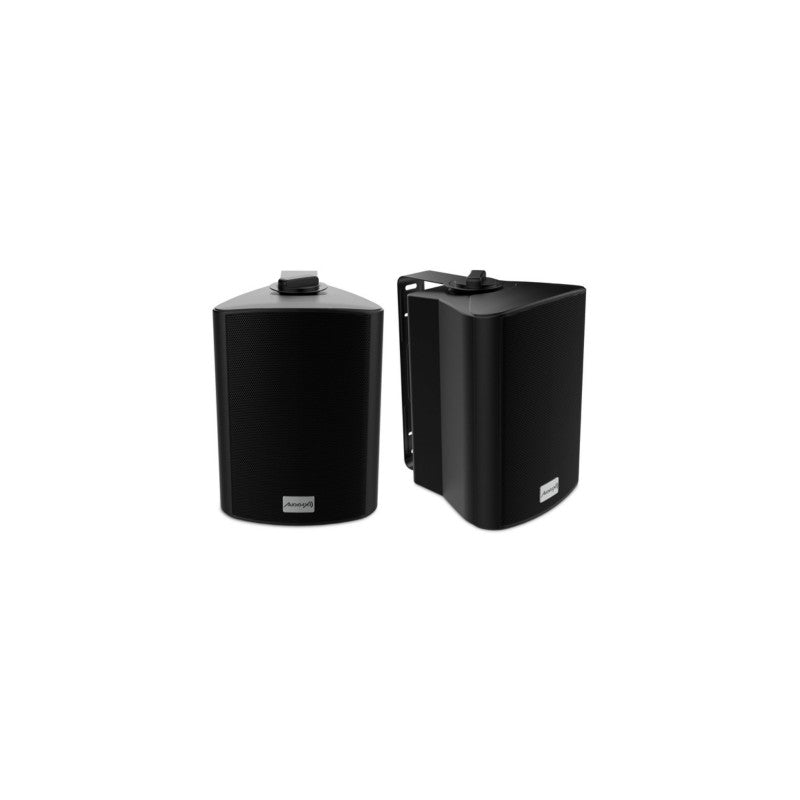

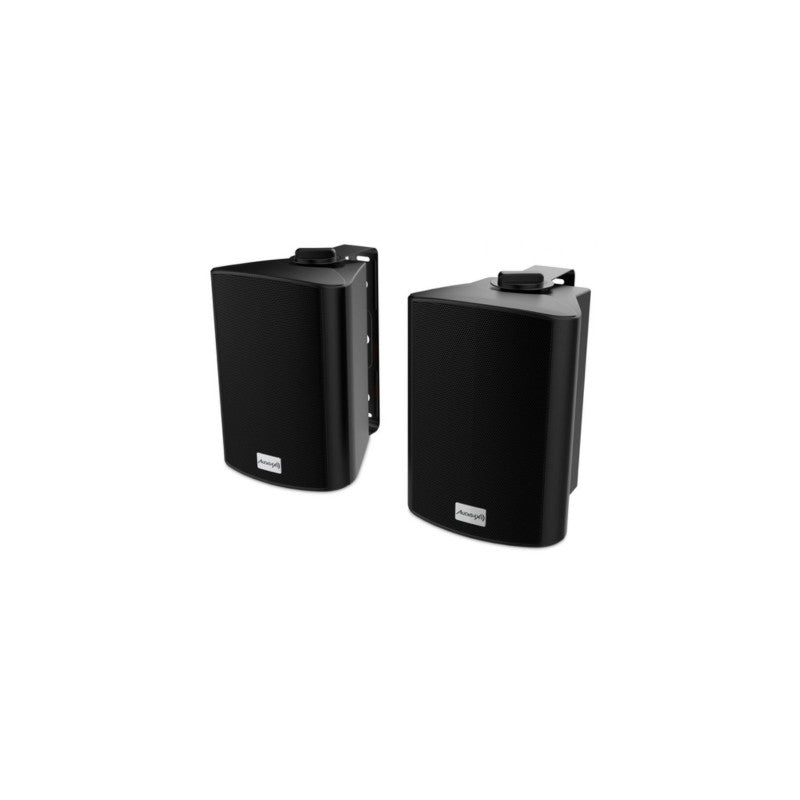

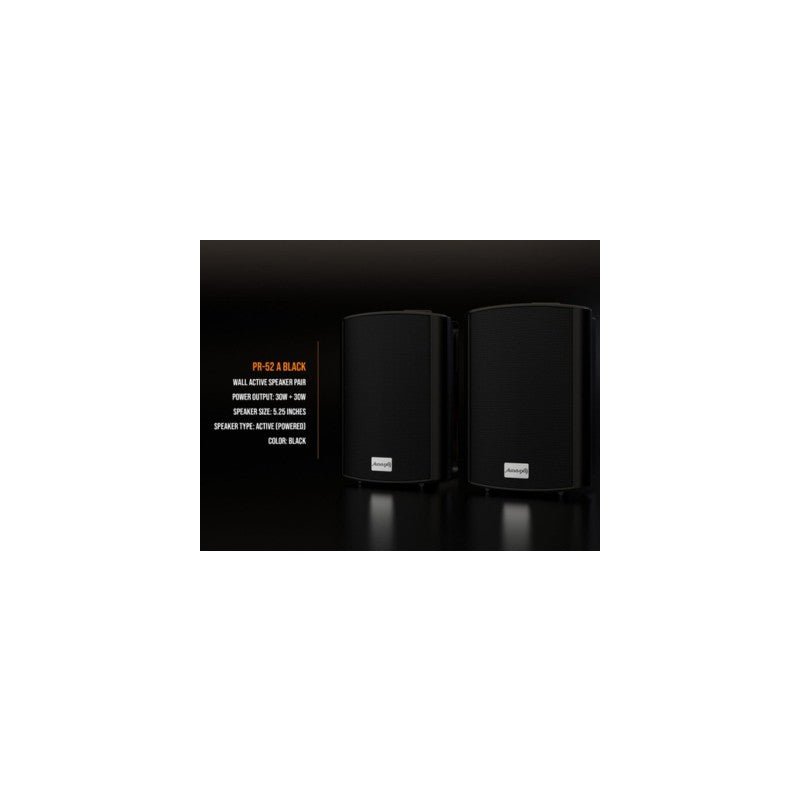

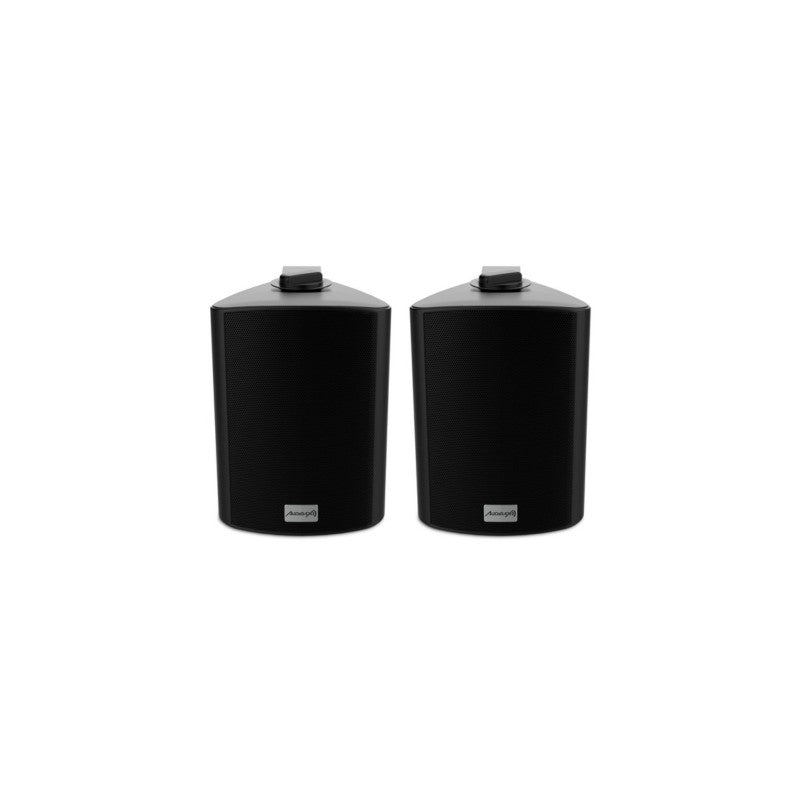

Audibax PR-52 A Black - Pair of 5.25″ active installation speakers with RCA input and passive output

Audibax PR-52 A Black - Pair of 5.25″ active installation speakers with RCA input and passive output

The Audibax PR-52 A Black are a pair of installation speakers in an active + passive configuration, designed for easy sound reinforcement in commercial spaces, hospitality venues, classrooms, and homes. The active speaker integrates 30W + 30W amplification and an auxiliary RCA input for connecting analog sources; its 8Ω output powers the second included passive speaker. The system features a 5.25″ PP cone woofer and a 0.75″ silk dome tweeter , achieving a balanced frequency response of 80 Hz to 20 kHz with clear vocals and comfortable music for hours. Its compact ABS enclosure ( 248 × 183 × 164 mm per unit) facilitates aesthetic integration into walls or shelves without sacrificing performance.

Main features

• Active + passive system : the master amplifies and sends the signal to the passive speaker via an 8 Ω output.
• Power : 30W + 30W for ambient music and voice reinforcement in small and medium-sized spaces.
• Transducers : 5.25″ (PP) woofer + 0.75″ silk dome tweeter per box.
• Frequency response : 80 Hz – 20 kHz with good intelligibility.

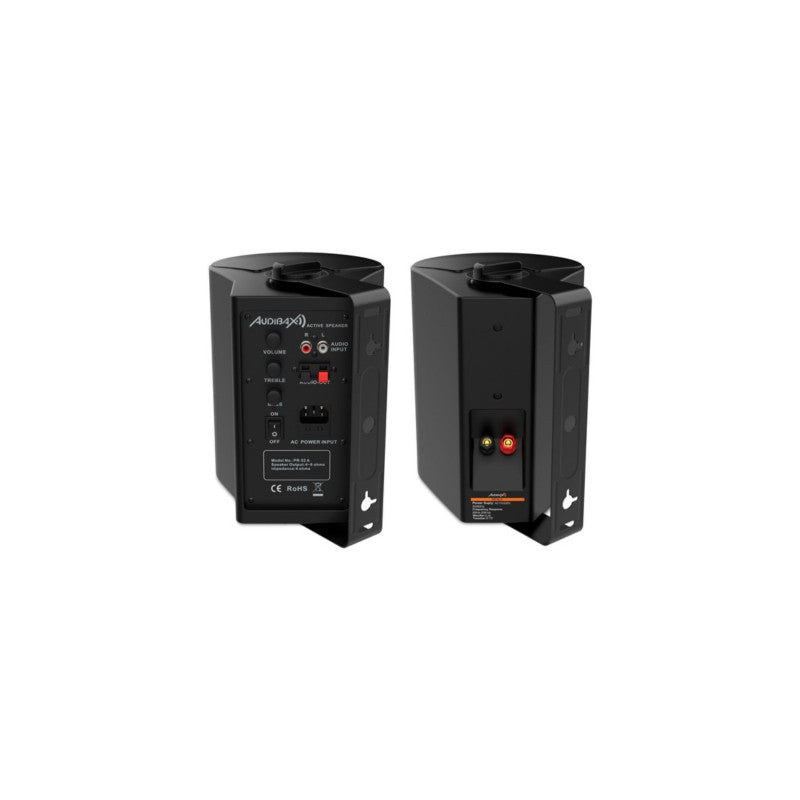

• Connectivity : Auxiliary RCA input on the active unit for players, computers, or matrices.
• Construction : High-strength ABS ; black finish.
• Dimensions per unit : 248 × 183 × 164 mm (width × height × depth).
• Power supply : 110–220 V / 50–60 Hz .

Product benefits

• Easy installation : no external stage required; simply power the active speaker and wire the passive one.
• Balanced sound : controlled bass and smooth treble thanks to the 5.25″ + 0.75″ silk dome speaker assembly.
• Versatility : RCA input for easy integration of low-complexity analog sources.
• Discreet integration : compact format and black finish for projects where aesthetics matter.

Use cases

• Retail and hospitality : background music, advertisements and atmosphere in shops, cafes and restaurants.
• Education and corporate : classrooms, meeting rooms and common areas.

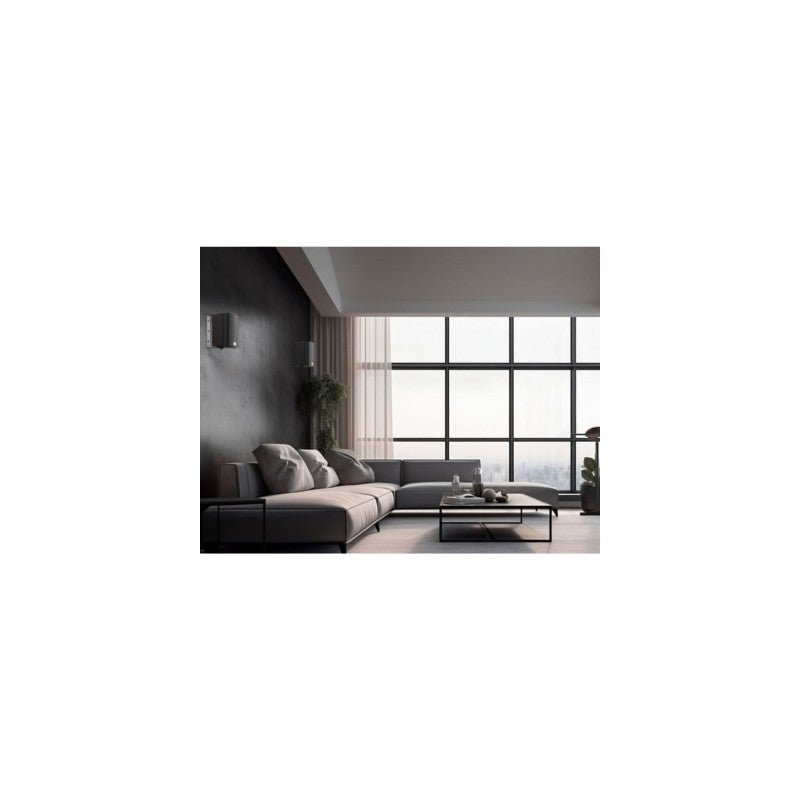

• Home : simple and organized sound in living rooms, studios and leisure spaces.

Frequently Asked Questions

• Do they come in pairs? Yes, they are supplied as an active + passive pair .
• Do I need an additional amplifier? No, the amplification is integrated into the active speaker (30W + 30W).
• What inputs do they include? Auxiliary RCA for connecting analog line sources.
• Can I add more speakers? The active system has an 8 Ω output for its included passive speaker. For more zones or higher power, you'll need an amplifier or additional system.

Installation recommendations

• Place both speakers at a uniform height and with a slight orientation towards the listening area.
• Respect the polarity (+/–) when wiring the passive component from the 8 Ω output of the active component.
• Use appropriate spacers or brackets if installing on a wall; avoid obstructing the port/acoustics of the enclosure.

Project description

Pair of active + passive installation speakers; 30 W + 30 W ; RCA input (line); 8 Ω output to passive speaker; range 80 Hz–20 kHz ; transducers per unit: 5.25″ woofer (PP) + 0.75″ silk dome tweeter ; ABS enclosure; dimensions 248 × 183 × 164 mm (per unit); power supply 110–220 V / 50–60 Hz ; color black .
