Audibax Iowa Pix 300 - 2-piece motorized zoom moving head wash kit + custom-made double flight case

Audibax Iowa Pix 300 - 2-piece motorized zoom moving head wash kit + custom-made double flight case

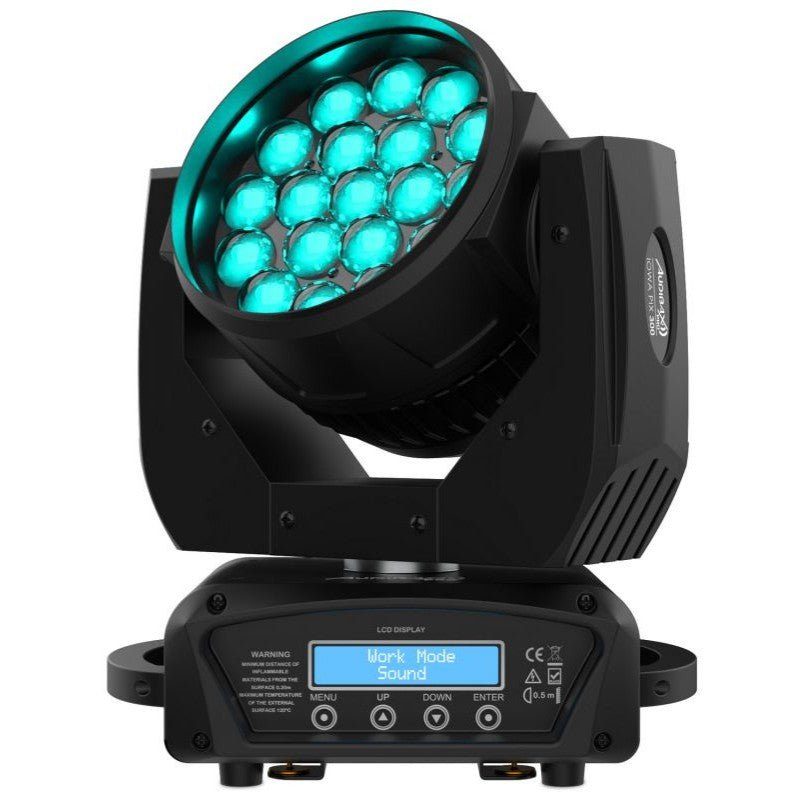

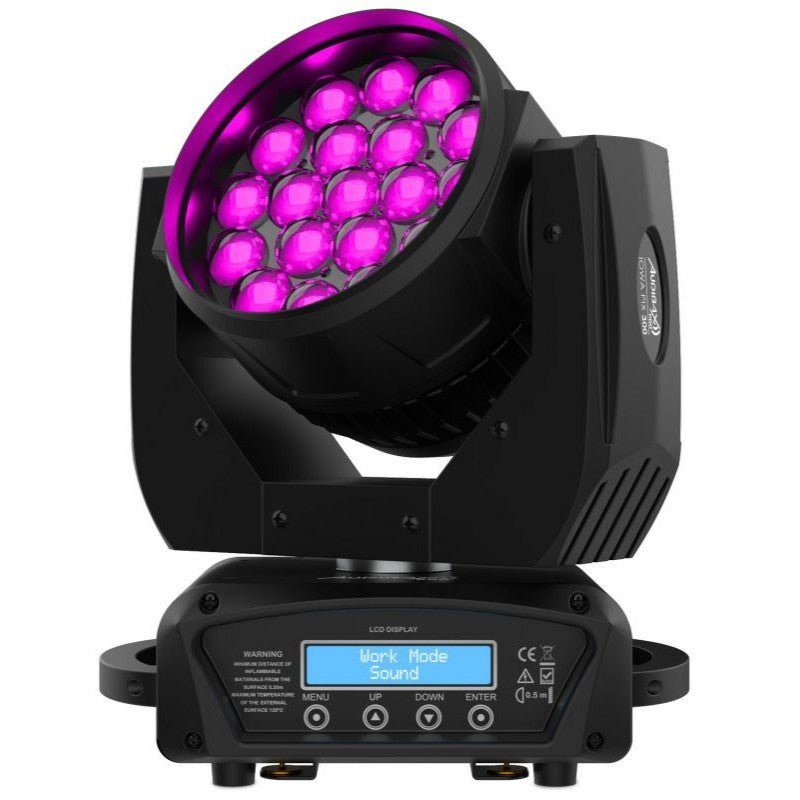

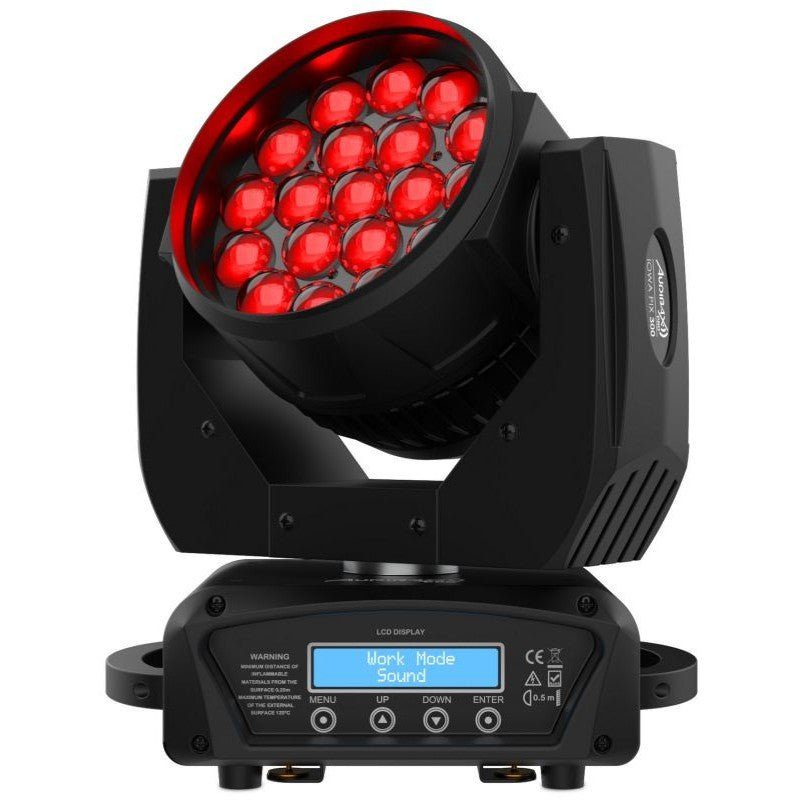

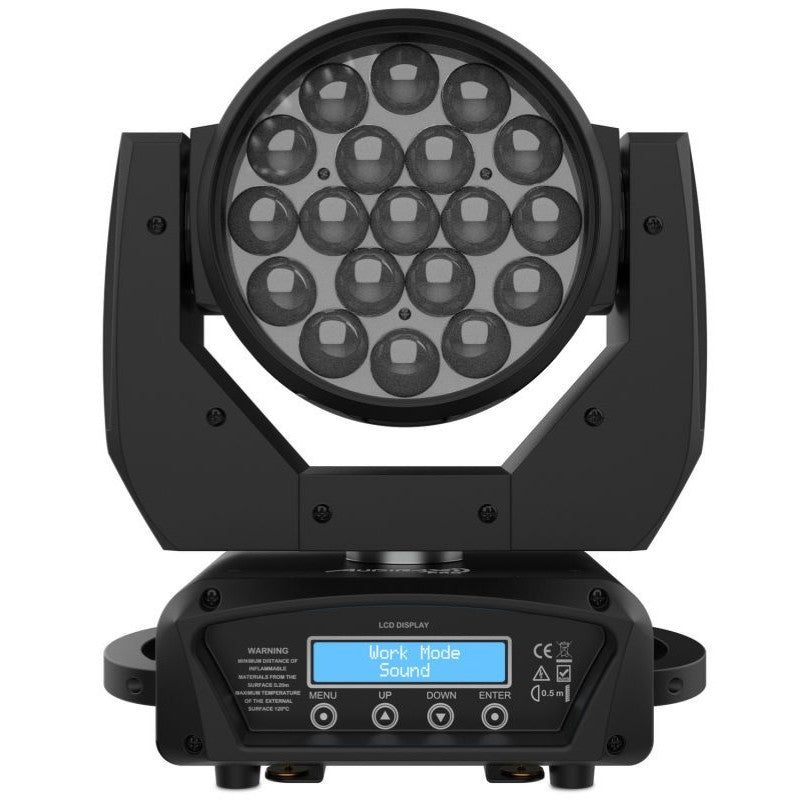

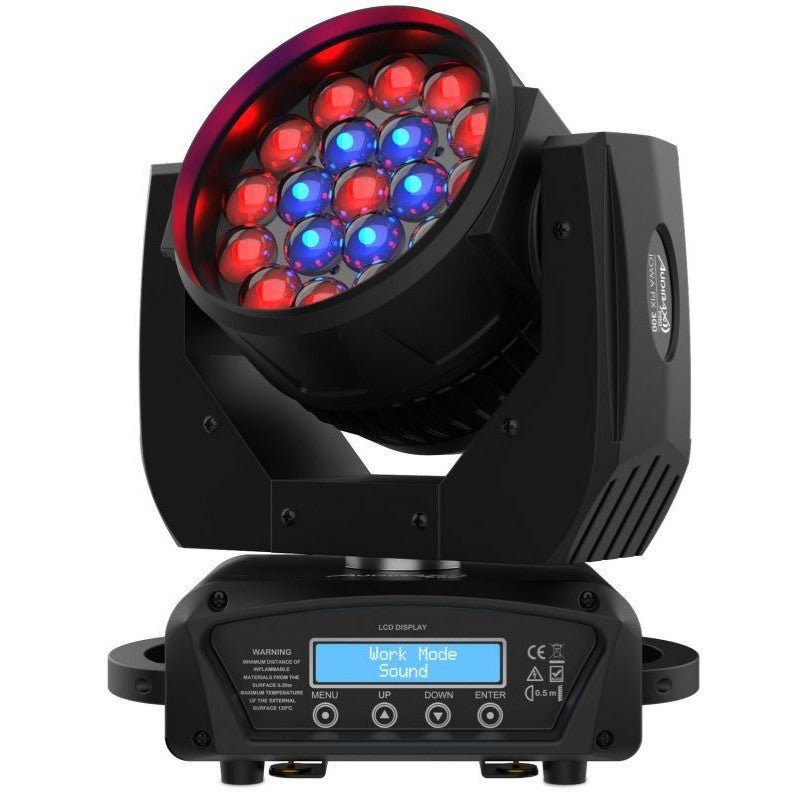

The Audibax Iowa Pix 300 kit includes two professional washing moving heads and a custom-built double flight case for safe transport and storage. Each head features 19 x 15W RGBW LEDs (Osram) with 4-in-1 mixing for solid colors and smooth transitions, plus a motorized zoom from 7° to 55° that allows switching from focused beams to wide washes of light without loss of uniformity. With 540° pan and 280° tilt , 0–100% dimming , and high-speed strobe , this setup is ready for touring, rentals, and all types of live shows or permanent installations.

The control is flexible via DMX-512 with 15 or 23 channels , plus Auto , Sound , and Master/Slave modes, simplifying setup when not using a console. Its electronics operate on a wide AC 110–260 V, 50/60 Hz range, and DMX connectivity is via 3-pin XLR . The included flight case is sized for two units, speeding up setup and protecting the equipment between events.

Main features

• Light source: 19 × 15 W RGBW 4-in-1 (Osram LED) per head, homogeneous color mixing.
• Motorized zoom: 7° – 55° to adapt the effect beam to wash.
• Movement: Pan 540° and Tilt 280° with fine control.
• Control: DMX-512 (15/23 channels), Auto, Sound, Master/Slave.
• Dimmer and strobe: linear attenuation 0–100% and fast strobe.
• Construction: black housing, indoor use (IP20), DMX connection via 3-pin XLR.
• Power supply: AC 110–260 V, 50/60 Hz.

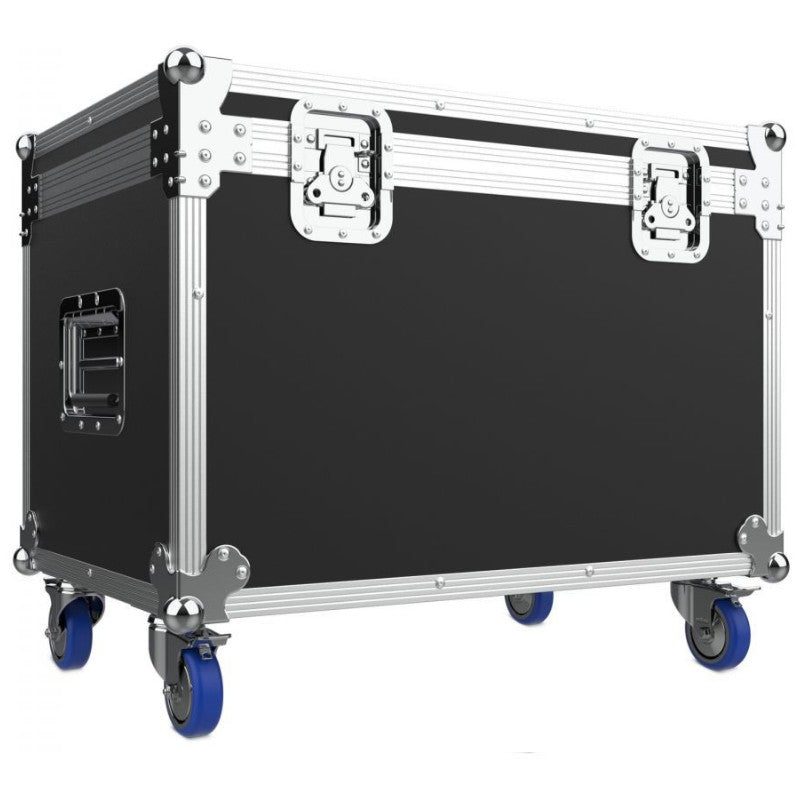

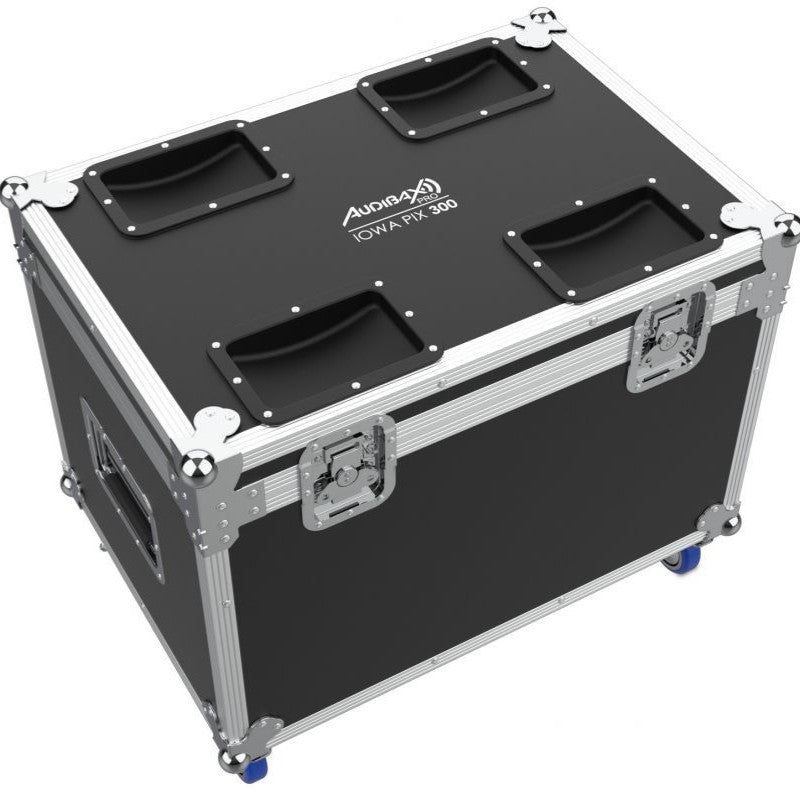

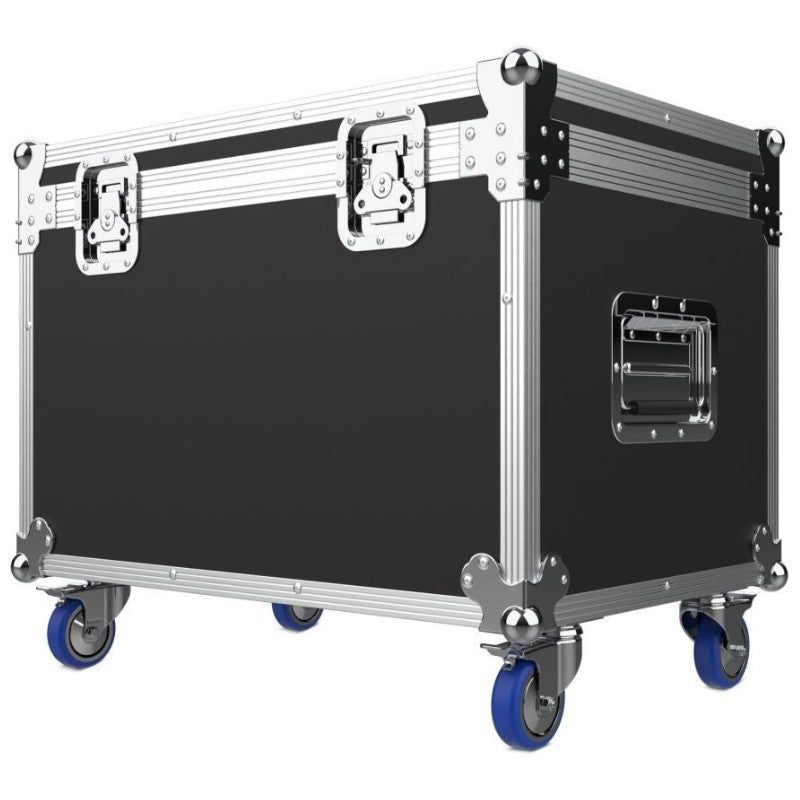

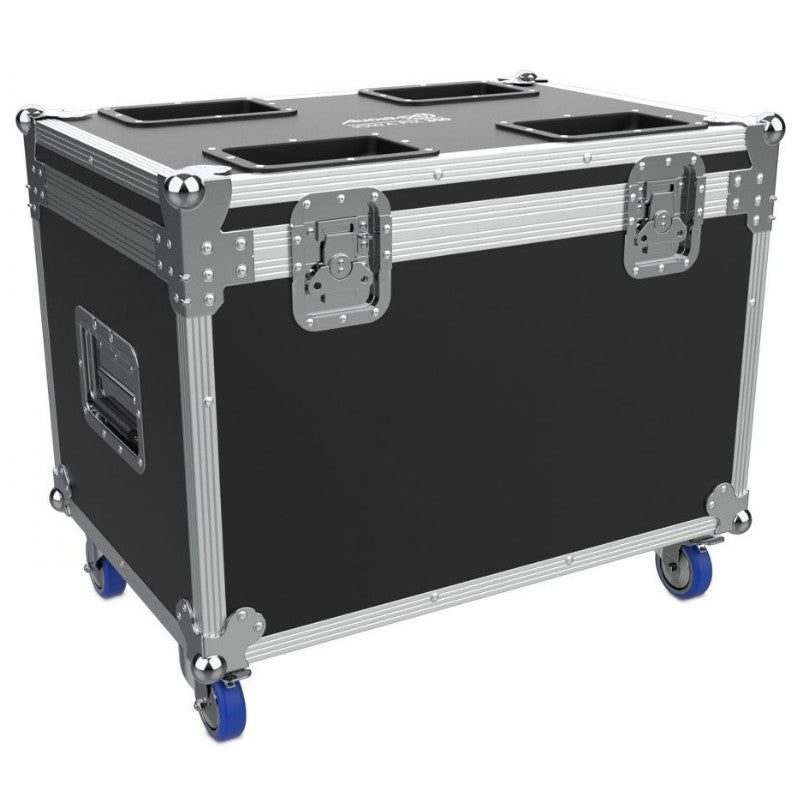

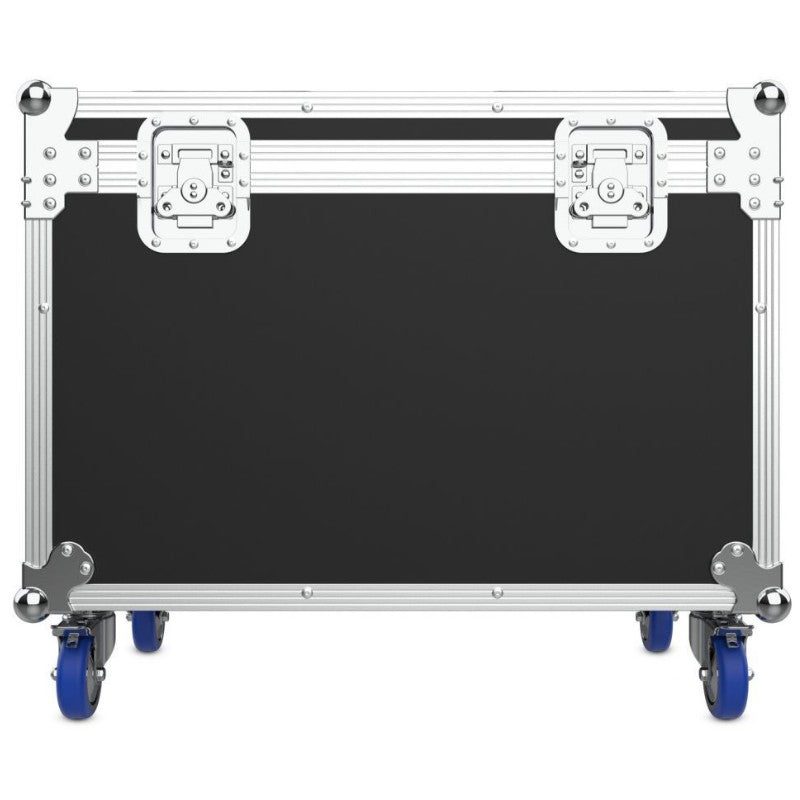

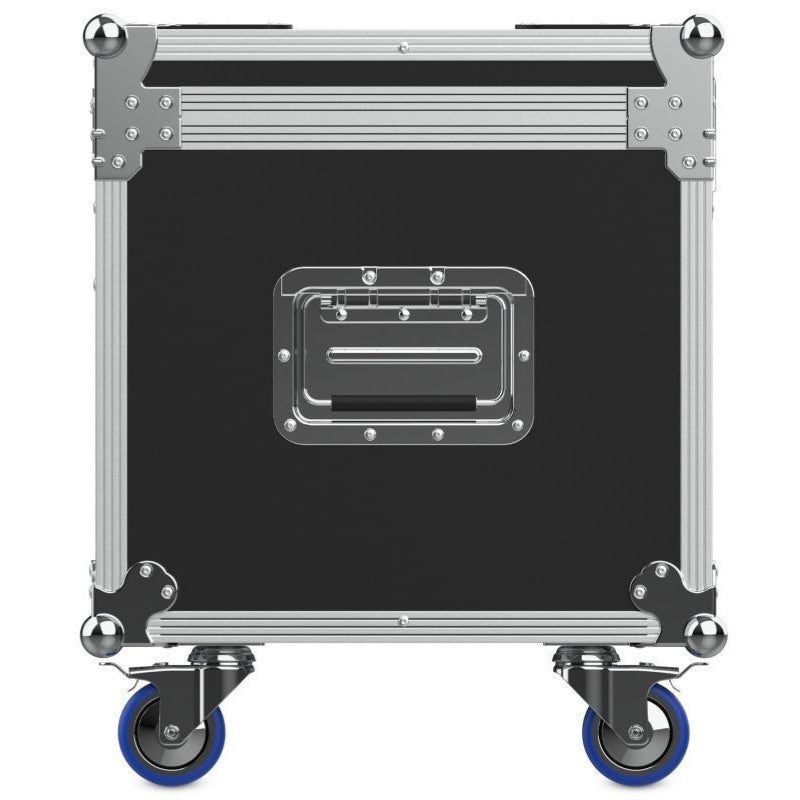

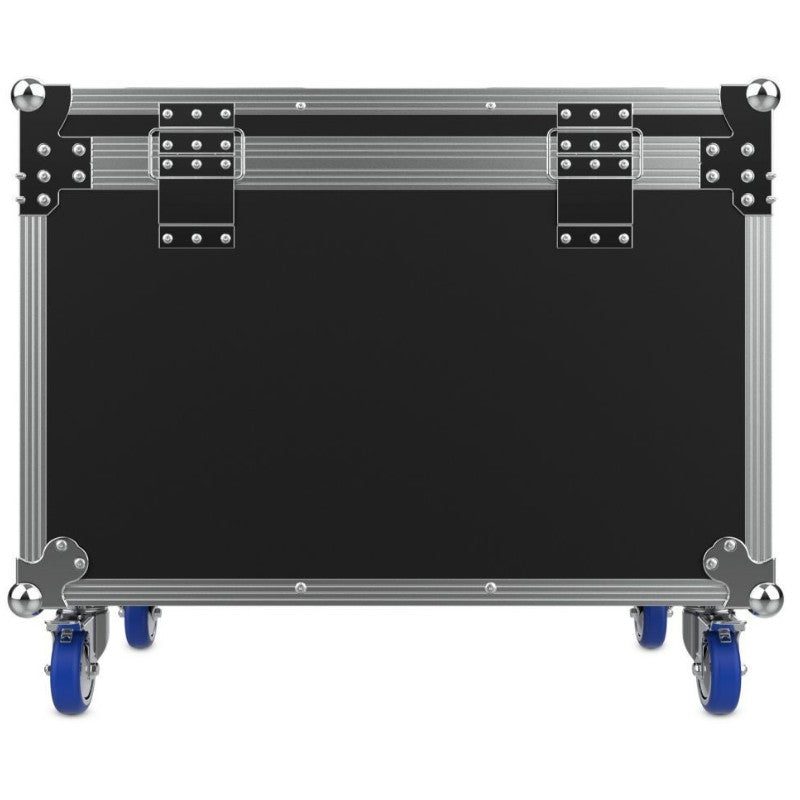

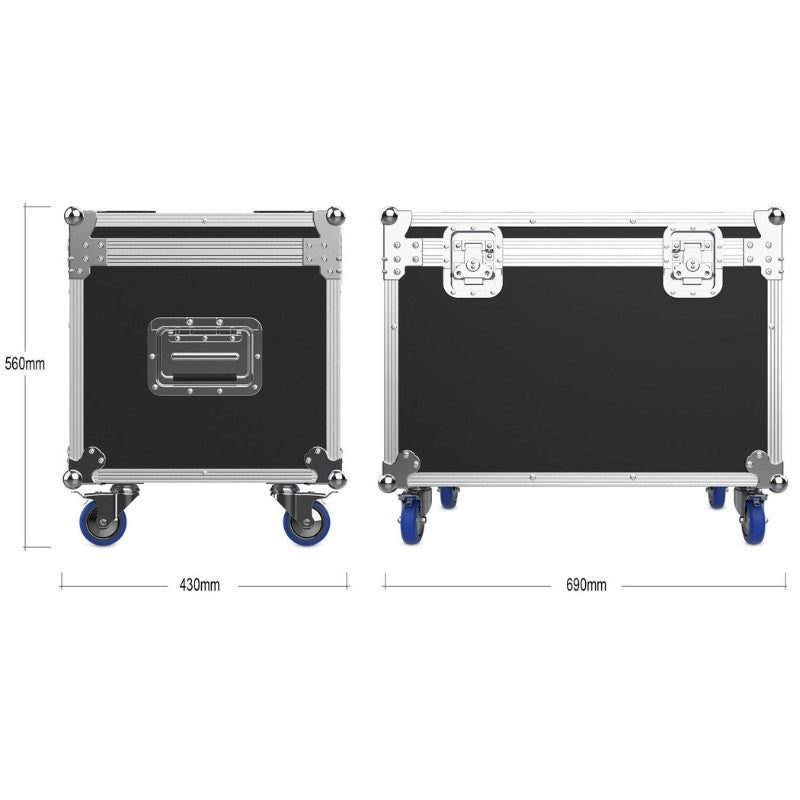

• Custom double flight case: designed for two Iowa Pix 300s, case dimensions 690 × 560 × 430 mm.

Product benefits

• Real versatility on stage: the motorized zoom turns a single spotlight into a wide coverage wash or a concentrated beam for specific effects.
• Powerful and precise colors: 15W Osram RGBW LEDs with clean mixes and useful whites.
• Agile programming: 15/23 channels to integrate into any patch and standalone modes when there is no console.
• Touring performance: The double flight case reduces loading/unloading times and protects equipment during transport.

Use cases

• Live shows, tours, festivals and gig rentals.
• Nightclubs, concert halls and music bars.
• Theaters, auditoriums, cultural centers and corporate events.
• Fixed installations in town halls, hotels, cultural centers or churches (indoor use).

Frequently Asked Questions

• Can I use them without a DMX console? Yes, they have Auto, Sound, and Master/Slave modes to synchronize them without a console.
• How many channels do they occupy? Two modes: 15 or 23 DMX channels per unit.
• What DMX connectors do they use? 3-pin XLR.

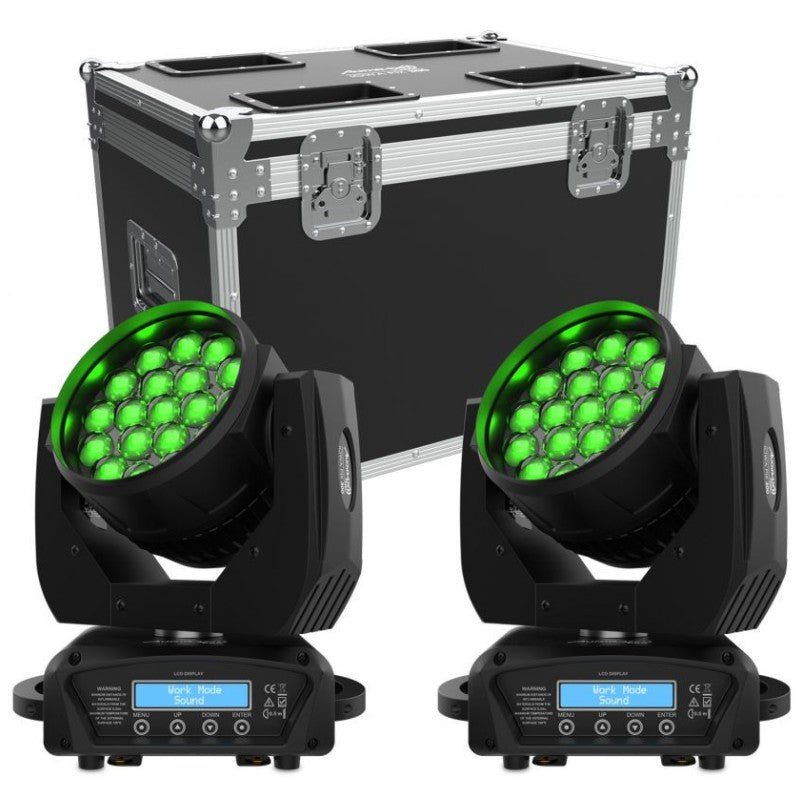

• What's included in the pack? Two Iowa Pix 300 lights, a custom double flight case, and a manual. Each light includes a power cable and a signal cable.
• Are they for outdoor use? No, IP20 protection rating (indoor use).

Installation and maintenance

• Fixing by means of clamp and additional safety to the anchor point of the equipment.
• For DMX cabling, use shielded cable and terminate the line with 120 Ω at the last piece of equipment.
• Periodic cleaning of optics and ventilation to maintain brightness and thermal stability.

Project description

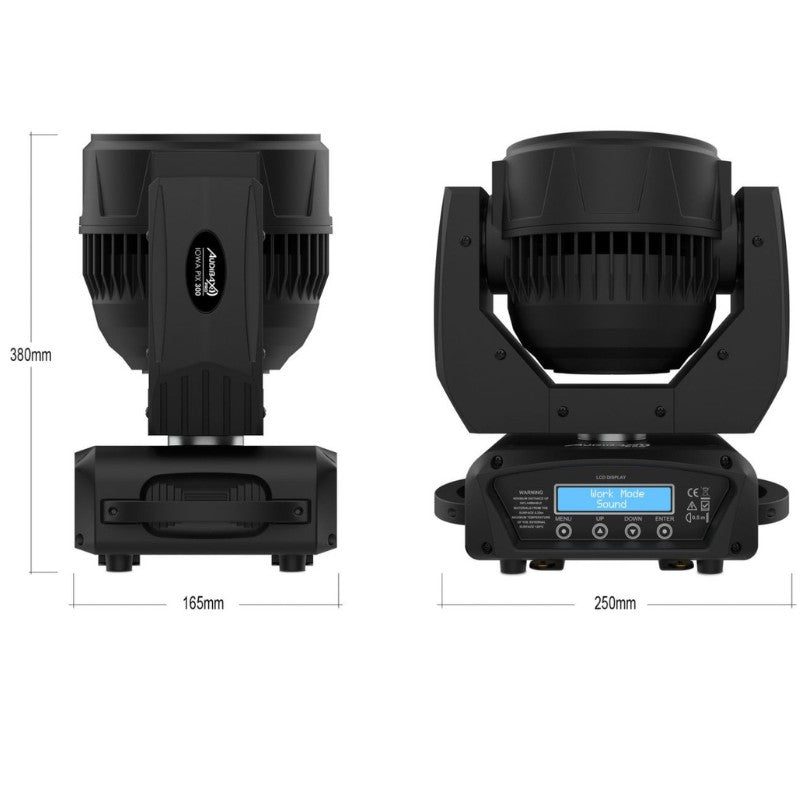

Audibax Iowa Pix 300 washing moving head with 19 × 15 W RGBW (Osram) LEDs, motorized zoom 7°–55°, pan 540°, tilt 280°, dimmer 0–100%, fast strobe, DMX-512 15/23 channel control, Auto/Sound/Master-Slave modes, 3-pin XLR DMX connectivity, AC power supply 110–260 V 50/60 Hz, IP20 indoor use. Dimensions per head (W × H × D): 165 × 380 × 250 mm; double flight case 690 × 560 × 430 mm.
