Audibax PRO10P G2 - 10" 500W passive speaker, bass-reflex and 8 Ω

Audibax PRO10P G2 - 10" 500W passive speaker, bass-reflex and 8 Ω

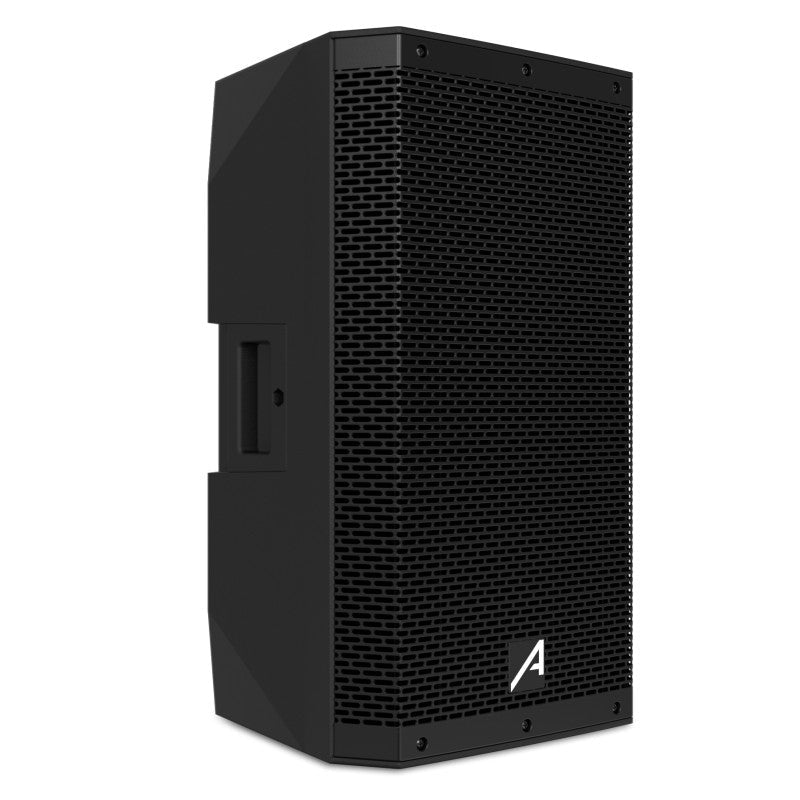

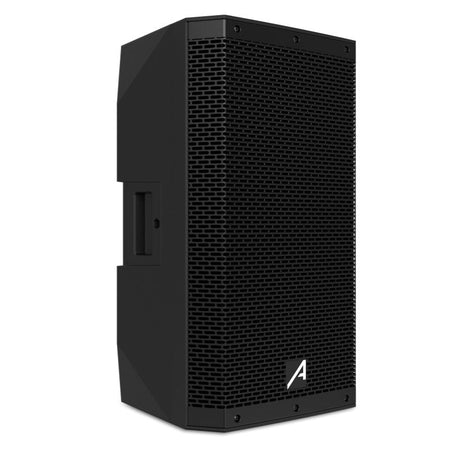

The Audibax PRO10P G2 is a passive 2-way loudspeaker with a bass-reflex enclosure optimized to deliver powerful output and defined sound in portable PA, fixed installations, and rental applications. It features a 10" woofer with a 2" voice coil and 40 oz magnet, paired with a 3.2" titanium tweeter, achieving a frequency response of 58 Hz to 18 kHz with a peak SPL of 121 dB. Operating at 8 Ω, it integrates an internal passive crossover and connects via two Speakon connectors for secure and professional integration with external power amplifiers. With compact dimensions (51 x 30 x 29 cm) and a gross weight of 9 kg, it offers an excellent size-to-performance ratio and is easy to transport and set up.

Main features

• 2-way configuration in bass-reflex enclosure for deeper, more controlled bass.
• 10" woofer (2.0" voice coil and 40 oz magnet) for stable and efficient performance.
• 3.2" titanium tweeter for clear treble and high thermal resistance.
• Frequency response : 58 Hz – 18 kHz.
• Power : 250 W RMS / 500 W max.
• Peak SPL : 121 dB.
• Impedance : 8 Ω.

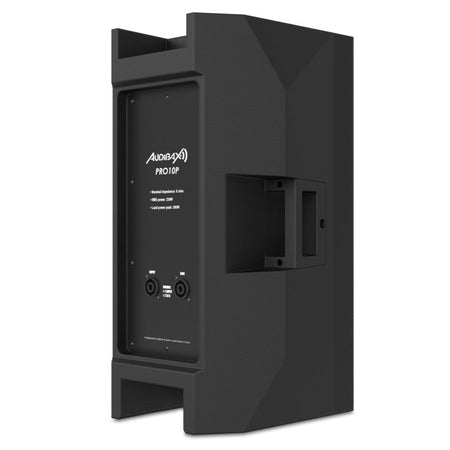

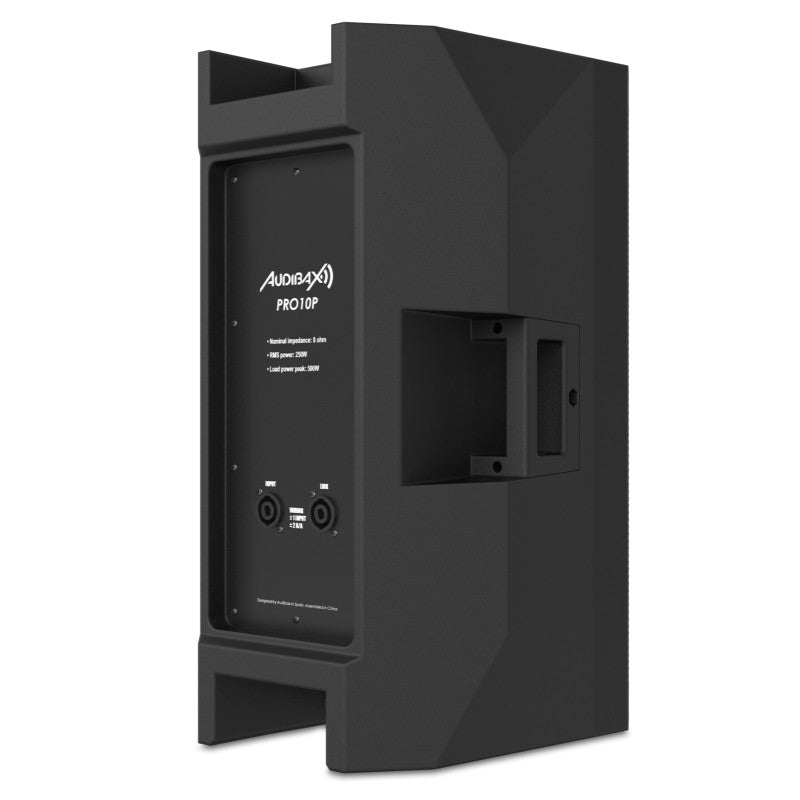

• Connections : 2 x Speakon for secure cabling on stages and racks.
• Dimensions (H x W x D): 51 x 30 x 29 cm.
• Gross weight : 9 kg.
• Finished in black and with a robust design geared towards professional use.

Product benefits

• Clarity and punch : the titanium compression motor and the 10" balance vocal intelligibility with full-bodied bass.
• Real versatility : 8 Ω impedance and dual Speakon for easy integration into existing systems, in mono or stereo.
• Efficiency and control : the bass-reflex enclosure helps extend the bass without sacrificing definition.
• Portable format : compact size and moderate weight for quick assembly and disassembly.
• Reliability : ferrite components and titanium diaphragm designed for continuous work.

Use cases

• PA reinforcement in small and medium-sized rooms: bars, restaurants, auditoriums, educational centers.
• Mobile events and rental: talks, conferences, live music, DJs.
• Fixed installations with 8 Ω stages: temples, gyms, rehearsal rooms and cultural centers.
• Extension of existing systems such as top/full-range supported by external subwoofer when more pressure is required in low frequencies.

Frequently Asked Questions

• Is it active or passive? It's a passive speaker; it requires an external amplifier/stage.

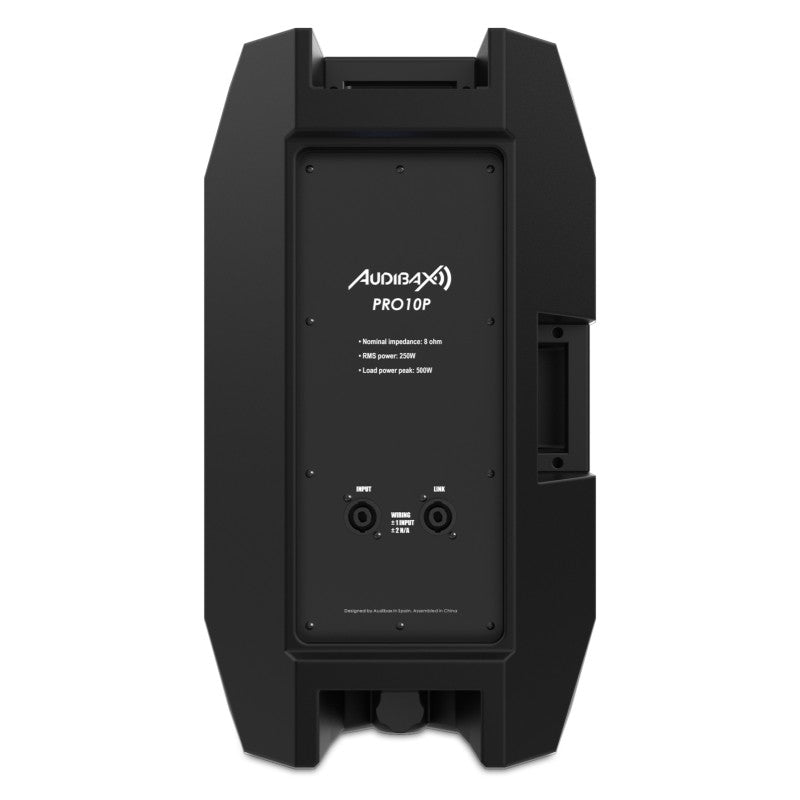

• What type of connector does it use? Two Speakon connectors (input/link) for professional cabling.
• Does it include a speaker cable? No. The package includes the speaker and the user manual.
• Does it have Bluetooth or other line inputs? No. Being passive, the signal comes from an external amplifier; it doesn't have any built-in electronics or line inputs.
• Can it be used outdoors? It can be used temporarily indoors or with protection; it is not designed for direct exposure to rain or moisture.
• Does it operate at 4 Ω? Its nominal impedance is 8 Ω . Check that the amplifier can handle the total system load based on the number of connected speakers.

Connections and compatibility

The dual Speakon connectors allow for daisy-chaining or clean wiring from the amplifier rack. Operating at 8 Ω, the PRO10P G2 integrates with most standard PA amplifiers and processors, simplifying expansions or replacements in existing installations.

Project description

2-way passive speaker with bass-reflex enclosure, 10" woofer (VC 2.0", 40 oz magnet) and 3.2" titanium tweeter; frequency response 58 Hz–18 kHz; power 250 W RMS / 500 W max; peak SPL 121 dB; impedance 8 Ω; connectivity 2 x Speakon; dimensions 51 x 30 x 29 cm; gross weight 9 kg; color black.
