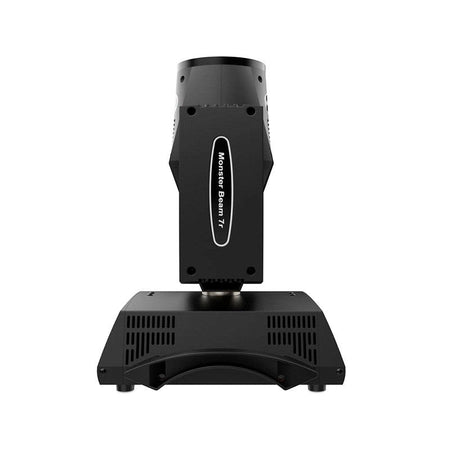

Audibax Monster Beam 7R - Moving Head 14 Colors + White 17 Fixed Gobos + White

7R BEAM Moving Head with 230W Osram Sirius Lamp | 7R Audibax Moving Head

• Audibax Monster Beam 7R 20-channel moving head with 230W OSRAM Sirius discharge lamp
• This Audibax Monster Beam 7R moving head provides the best lighting effect with different colors, gobos and movements for different types of events.
• It's designed to produce a powerful beam of light over long distances, ideal for projecting from the back of a stage toward the audience or sky. This beam can be set to either Beam or Wash , using the Frost function.

• Thanks to its new technology lamp plus its large glass lens and excellent optics , it generates a luminosity superior to a 1200W equipment

• Characteristics
  • Color: 14 colors + white
  • Gobo: 17 fixed gobo + white
  • Prism: 8-facet prism rotation, bilateral rotation, with focus
  • Lens: High-precision optical lens
  • Dimmer: Linear Dimmer 0-100%
  • Strobe: 1-12 times/s double strobe
  • Touch screen
  • Control mode: Auto / Sound / DMX / Master-slave
  • DMX: 16 or 20 channel DMX control protocol depending on the chosen mode
  • Protection class: IP20
• Ranges and movements
  • Pan Tilt
    • X-axis 540° Electrical correction
    • Y axis 270° Electrical correction
  • Automatic correction function
  • Speed ​​adjustment
  • Scanning speed: X-axis - 5 s, Y-axis - 3 s
  • Beam angle: 8° X/Y axis
  • Parallel beam: 0-3.8°

• Main functions
  • Macro functions: Reset / lamp on or off can be controlled by DMX

• Power and lamps
  • Power supply AC 100-240V / 50-60HZ
  • Nominal power 500W
  • Lamp: OSRAM 7R 230W
  • Color temperature 8000K
  • Average life 2000 hours

• Other functions
  • Thermal shutdown circuit
  • Overcurrent protection circuit
  • Excellent ventilation and cooling effect by vertical axis fan.
  • Displaying the lamp usage time
  • Built-in error analyzer
  • Input signal isolation protection

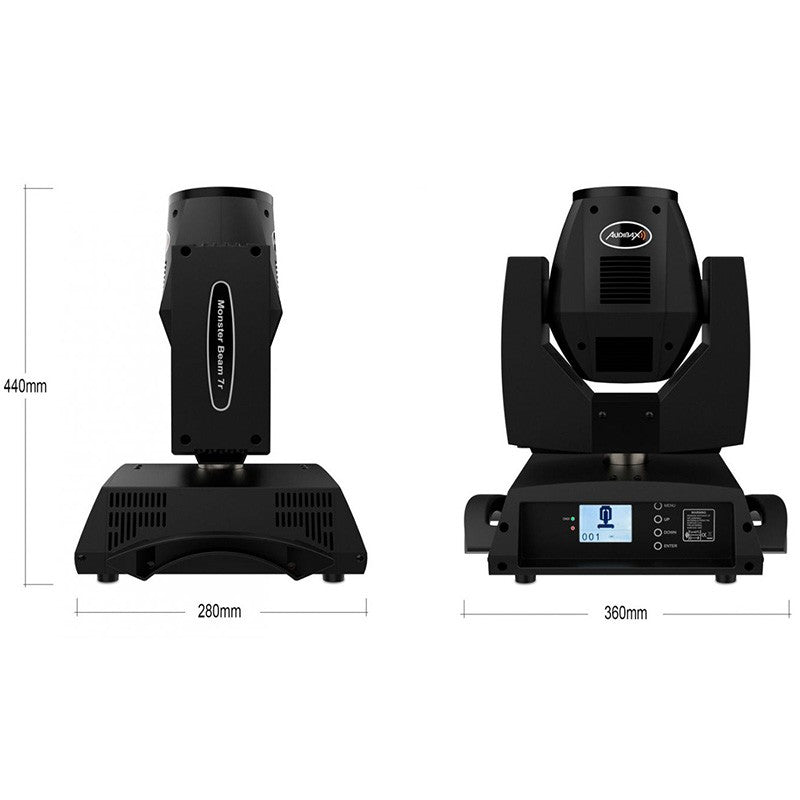

  • Size 465 x 380 x 550mm
  • NW/GW .: 17.5Kg / (with packaging 21Kg)

• Product identification
  • Brand: Audibax
  • Model: Monster Beam 7R
  • Order code: 10239727
  • EAN code: 7427244399319
