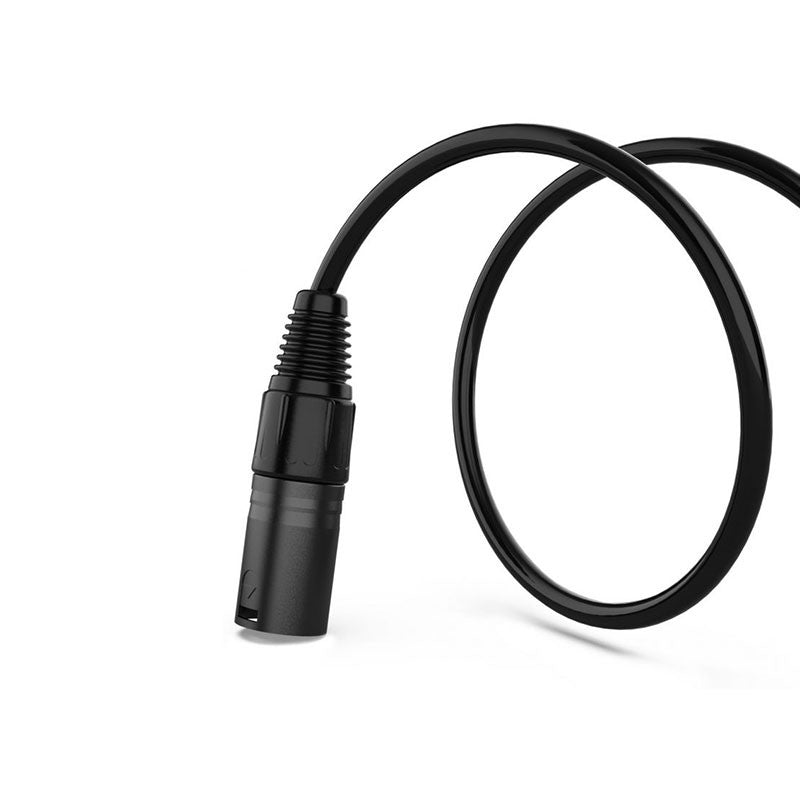

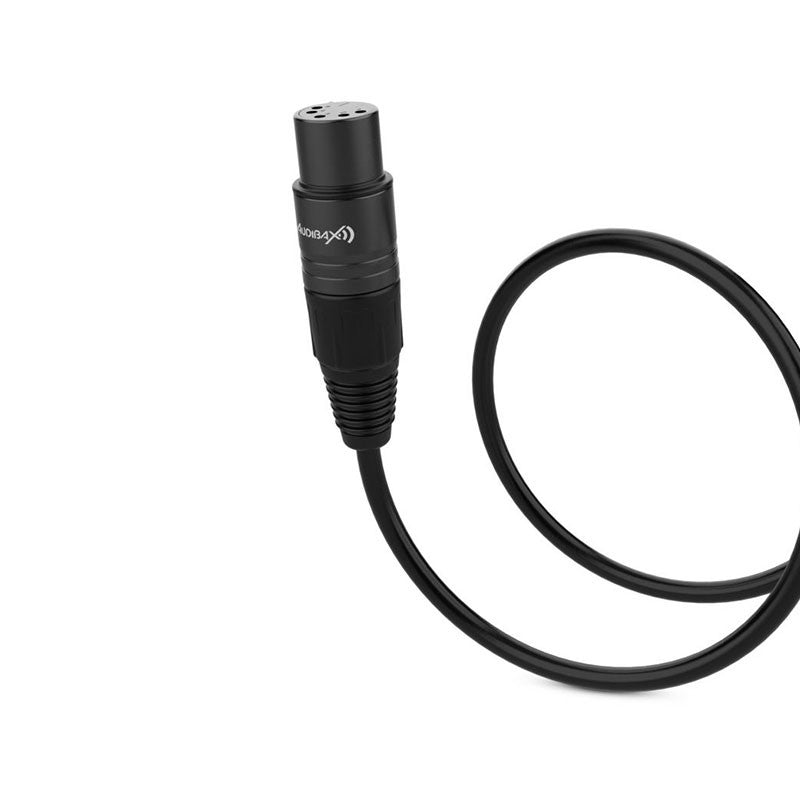

Audibax Silver Black DMX 5P 5m - Black DMX cable with 5-pin XLR and 24K gold-plated contacts

Audibax Silver Black DMX 5P 5m - Black DMX cable with 5-pin XLR and 24K gold-plated contacts

The Audibax Silver Black DMX 5P 5m is a professional DMX signal cable designed for lighting and effects networks. It features 5-pin male-to-female XLR connectors with 24K gold-plated contacts to ensure a stable and durable connection, even in intensive rental and permanent installation setups. Its PVC jacket combines flexibility and durability, while the 5.4mm diameter and the meticulous construction of the Silver Black series promote clean, low-noise data transmission, ideal for moving heads, LED bars, dimmers, and DMX controllers.

At 5 meters long, this cable is perfect for runs between spotlights and for organizing data lines in small to medium-sized venues. The 5-pin connector conforms to the DMX standard (ANSI E1.11/DMX512-A), helping to avoid confusion with audio cables and ensuring compatibility with equipment that follows industry best practices. For maximum reliability in long runs or chains of multiple devices, use a DMX terminator at the end of the line, following the standard's best practices.

Main features

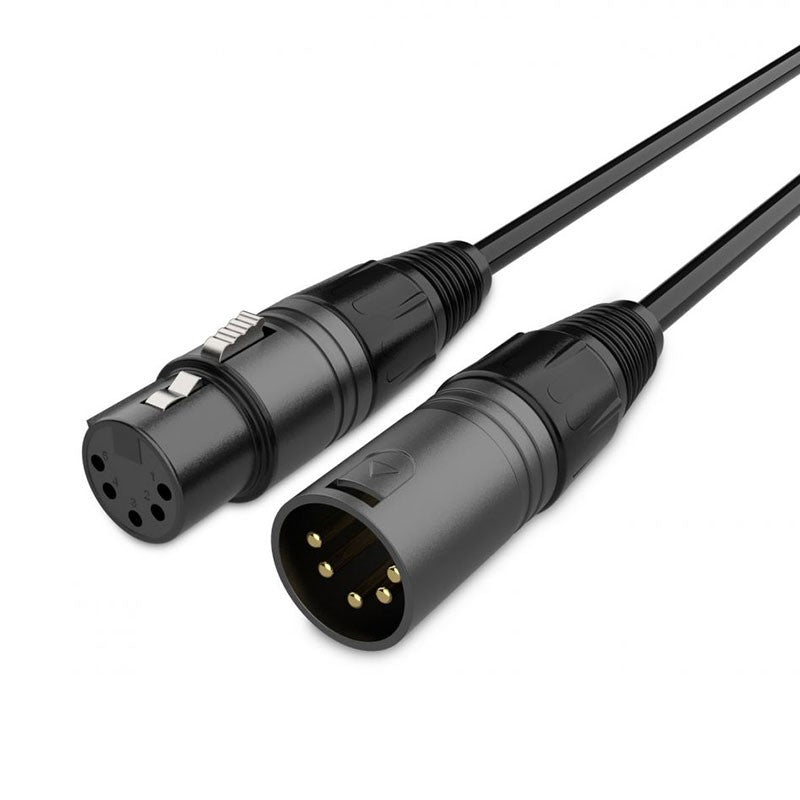

• Connectivity: 5-pin XLR DMX, male-female.
• Contacts: plated in 24K gold for lower contact resistance and better durability.
• Cable construction: 5.4 mm outer diameter with PVC coating .
• Inner conductor (XLR): 0.21 mm² cross-section (according to the series data sheet).
• Length: 5 m ; color: black .
• Series: Audibax Silver Black , focused on low noise and flexibility.

Product benefits

• Stable signal transmission: low noise design and gold-plated contacts to minimize drops and micro-cuts.
• Live reliability: robust connectors and flexible sleeve that withstand intensive use on tours and quick setups.
• Professional compatibility: XLR 5-pin format aligned with the DMX512-A standard, ideal for current stage lighting equipment.
• Value for money: professional level at a reasonable cost within the Silver Black range.

Use cases

• Interconnection of moving heads , LED bars/panels and dimmers with DMX controllers.
• Fixed installations in theaters , halls , auditoriums and studios .
• Rental and event applications where speed of assembly and reliability are prioritized.

Frequently Asked Questions

• Why 5 pins and not 3? The connector specified by the DMX standard is the 5-pin XLR ; the use of 3 pins became popular in budget equipment, but it is not part of the standard connector. To avoid confusion with audio and ensure compatibility, 5 pins are recommended.
• Can I mix this cable with audio cables? It's not recommended. Microphone (audio) cables are not designed for DMX and can cause data errors on the DMX network.
• Do I need a DMX terminator? On long lines or with many devices, yes: place a terminator at the last device to stabilize communication.

Installation tips

• Respect the daisy-chain direction (DMX OUT → IN) and avoid passive “Y”s; use splitters when you need branching.
• Clearly identify the DMX line so as not to confuse it with XLR audio cables.
• Keep DMX cables separate from power to reduce interference.

Project description

DMX signal cable, Silver Black series, 5 m length, black color; 5.4 mm diameter; PVC coating; 5-pin XLR DMX connectors (male-female) with 24K gold-plated contacts; low noise design; suitable for interconnecting DMX lighting equipment.
