Audibax Silver Black DMX Cable 5 pin 2 meters - XLR5 male-female with gold-plated contacts

Audibax Silver Black DMX Cable 5 pin 2 meters - XLR5 male-female with gold-plated contacts

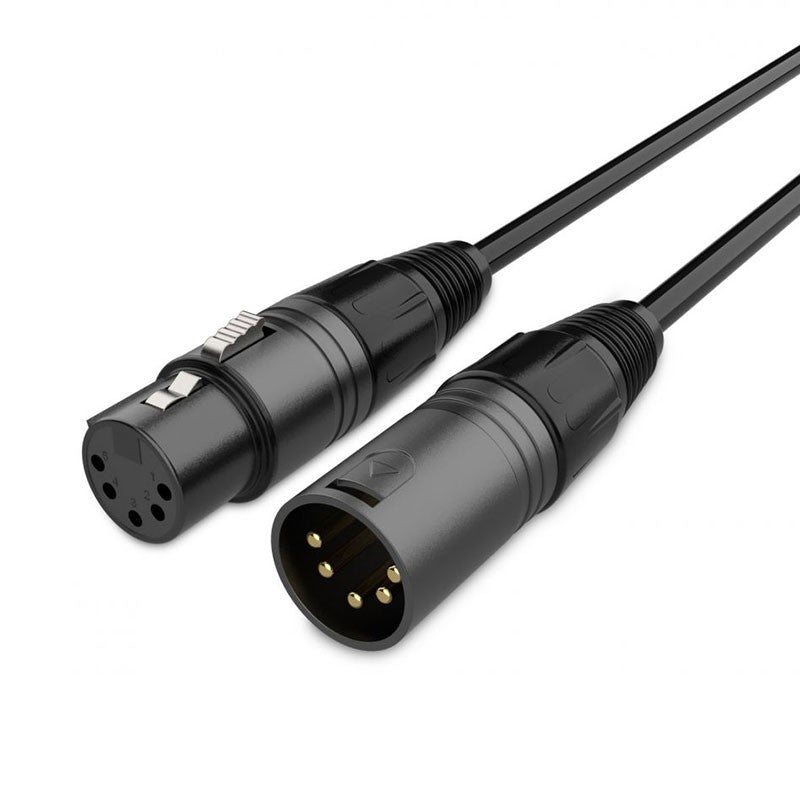

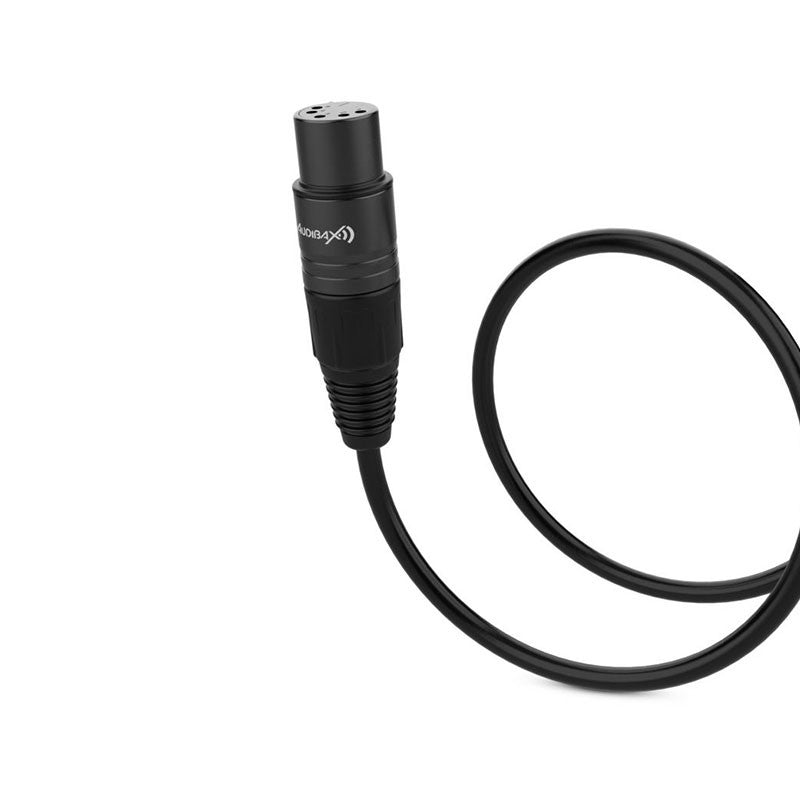

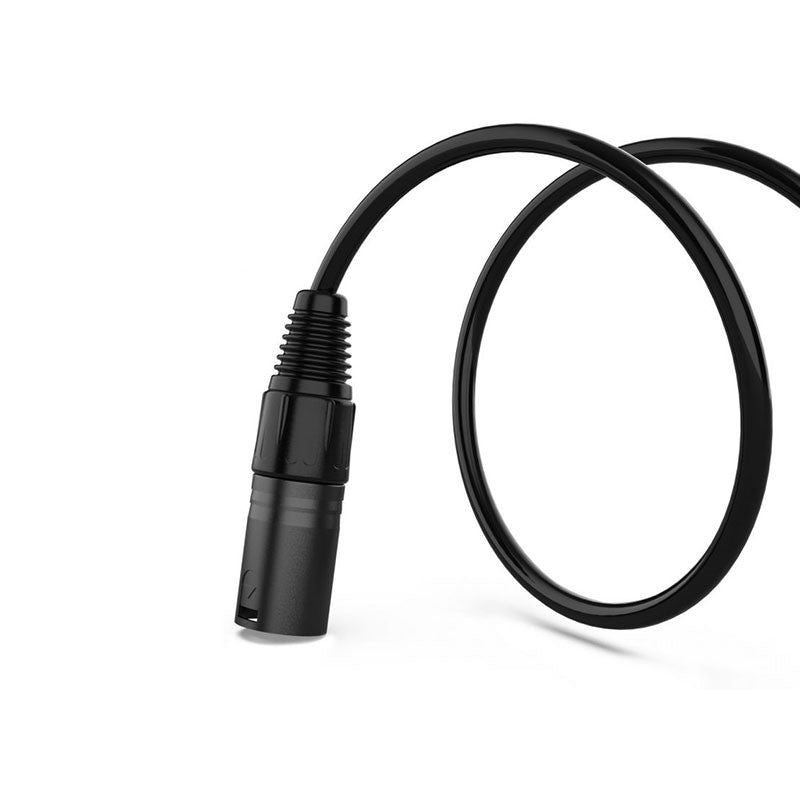

The Audibax Silver Black 5-pin DMX cable, 2 meters long , is a professional cable designed for the reliable transmission of DMX signals in stage and event lighting. Part of Audibax's Silver Black series, it features a low-noise design and high flexibility to withstand frequent setup and teardown in rental and permanent installations. It incorporates 5-pin XLR connectors (male-female) with 24k gold-plated contacts for improved conductivity and corrosion resistance, and includes a durable PVC outer jacket. Its construction, with an outer diameter of 5.4 mm and an inner conductor cross-section of 0.21 mm, ensures stable data transmission over short to medium runs, while maintaining convenient handling on stage.

Main features

• Professional format: 2-meter DMX cable with male-female XLR5 connectors.
• Silver Black Series: Low noise and high flexibility construction for heavy-duty use.
• Premium connectors: 24k gold-plated contacts that improve conductivity and reduce oxidation.
• Cover and dimensions: PVC coating ; Ø 5.4 mm with 0.21 mm inner conductor .
• Color: black, discreet on stage and set.

Product benefits

• Stable DMX data transmission: reduces artifacts and flickering when using dedicated lighting control cable.
• Long-term reliability: gold-plated connectors that better resist corrosion on tours and continuous use.
• Convenient handling: flexible cable, easy to lay and collect on stages, theaters and sets.
• Standard compatibility: 5-pin XLR connection, the connector recommended by the DMX standard for professional installations.

Use cases

• Theater and corporate events: control of projectors, spotlights and DMX dimmers.
• Concerts and clubs: link between lighting console, splitters and luminaires.
• Fixed installation: music bars, auditoriums, cultural centers and exhibition spaces.
• Broadcast and studio: synchronization of effects and lighting in filming.

Frequently Asked Questions

• Is this an audio cable? No. It's a cable designed for DMX data ; for microphones, use a balanced audio cable.
• Why 5 pins? The XLR5 connector is the recommended standard in DMX; there are devices with XLR3 for compatibility, but it is not the standard connector of the standard.
• What is the maximum recommended length for a DMX line? As a general guideline, a DMX run should not exceed 300 m or 32 devices per string; for longer distances or more equipment, use splitters /repeaters and 120 Ω termination at the end.
• Does it include a DMX terminator? No; it is recommended to use a 120 Ω terminator on the last device in the chain.

Usage recommendations

• Avoid running the cable parallel to power lines and EMI sources; cross it at 90° when unavoidable.
• Keep the connectors clean; the gold plating helps, but it's best to protect and cover them during transport.
• Respect good DMX practices: daisy- chain topology, 120 Ω termination , and do not exceed 32 units per universe without a splitter .

Package contents

• 1 × DMX cable 5 pin, 2 m

Project description

2m DMX control cable; 5-pin male-female XLR connectors with 24k gold-plated contacts; 5.4mm outer diameter ; 0.21mm inner conductor cross-section ; PVC sheath ; black color; Silver Black series.
