Audibax Ovo 6 White - Pair of 6" IP65 passive wall-mounted speakers for 100V / 8 Ω line

Audibax Ovo 6 White - Pair of 6" IP65 passive wall-mounted speakers for 100V / 8 Ω line

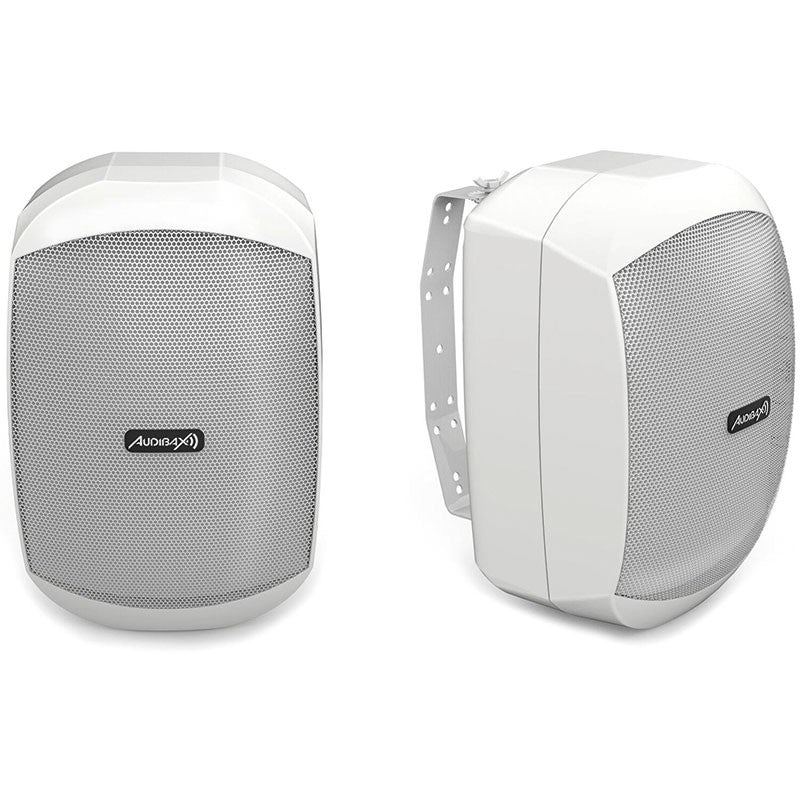

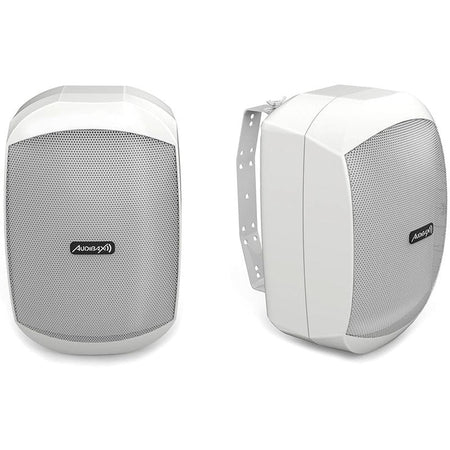

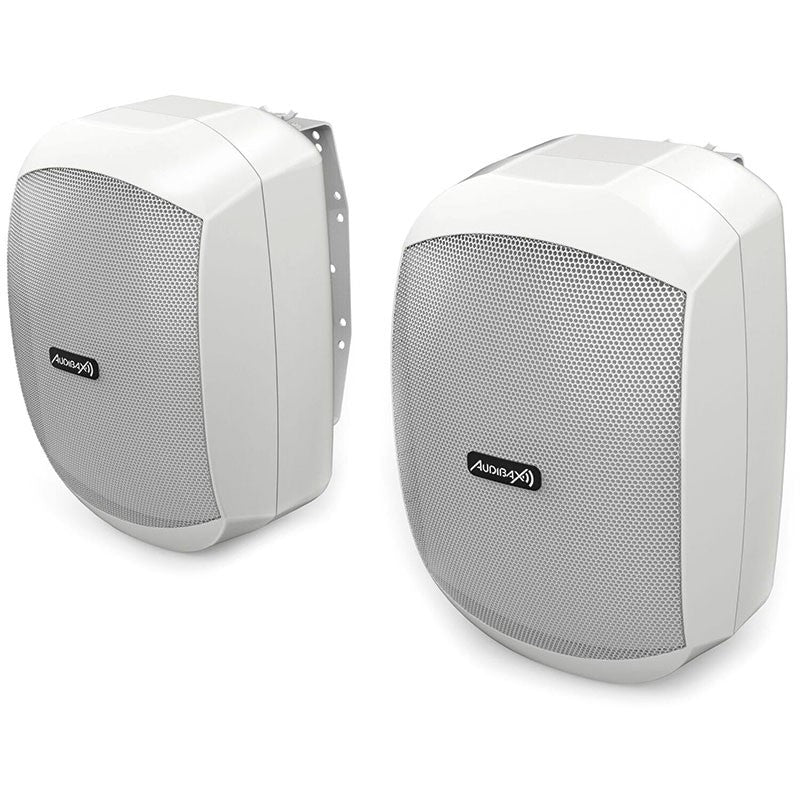

The Audibax Ovo 6 White pair is a professional installation solution for background music and voice announcements in indoor and protected outdoor environments. Each speaker integrates a 166 mm (6.5") woofer and a 25 mm (1") tweeter , with a frequency response of 45 Hz – 20 kHz , sensitivity of 89 dB (1W/1 m) , and a maximum SPL of 94 dB . Its dual connection options allow operation in both low impedance (8 Ω) and 70/100 V line configurations with selectable 10/20/40 W taps, facilitating adaptation to different topologies and cable lengths. The ABS enclosure with a steel grille and IP65 certification ensures dust and water resistance, ideal for permanent installations. It includes a horizontal/vertical U-shaped mounting bracket and screw terminals under a weatherproof cover for quick and secure installation.

Main features

• Installation format: passive 2-way wall speaker, supplied in pairs .
• Transducers: 6.5" woofer (1.2" voice coil) + 1" tweeter
• Performance: 45 Hz – 20 kHz, 89 dB (1W/1 m), max. SPL 94 dB, 120° x 120° dispersion for wide and uniform coverage.
• Power and modes: low impedance 8 Ω ( RMS 40 W , peak 160 W) or 70/100 V line with 10/20/40 W taps.

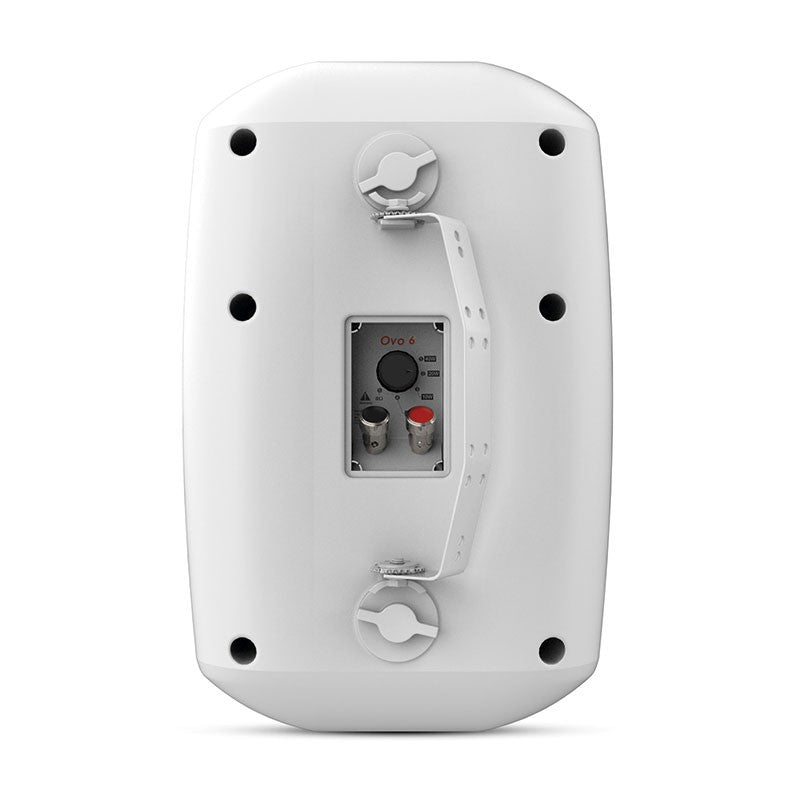

• Construction: ABS enclosure, steel grid, IP65 , screw terminal connection under waterproof cover.

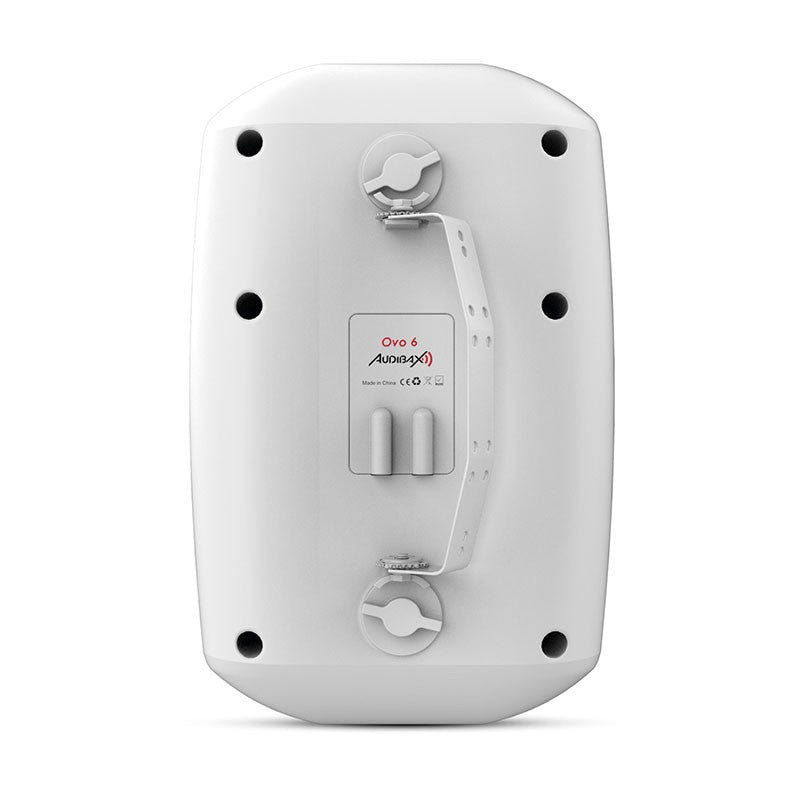

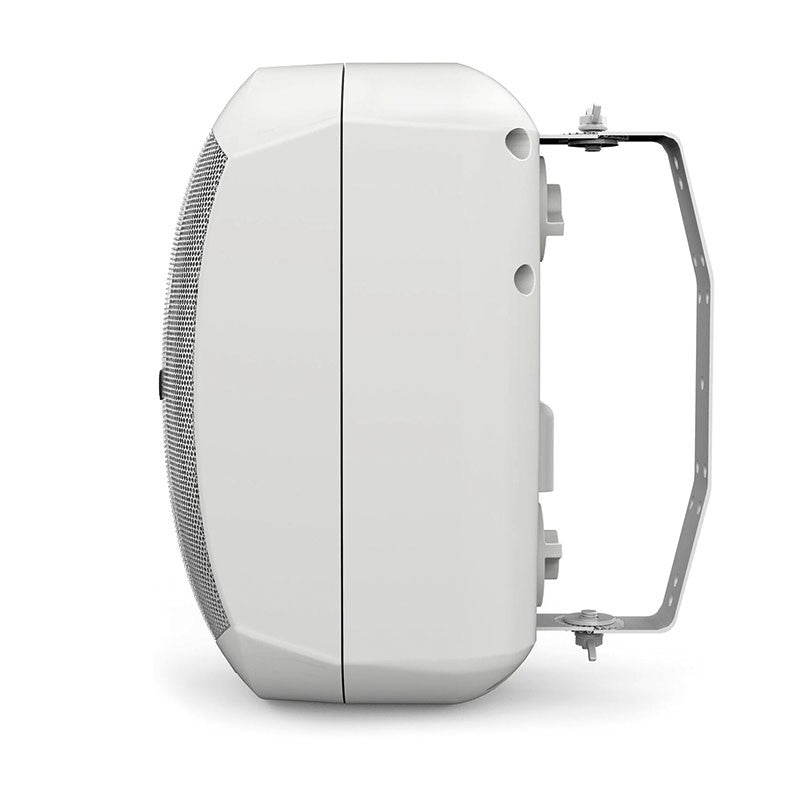

• Mounting: U-shaped metal bracket included, adjustable orientation.
• Dimensions and weight (unit): 32.8 × 18.2 × 20.5 cm (width × height × depth), 2.7 kg .
• Color: White.

Product benefits

• Total system flexibility: the 8 Ω or 70/100 V mode allows for the integration of a few units with a conventional amplifier or long lines of speakers with constant voltage amplification.
• Homogeneous coverage: The 120° × 120° dispersion facilitates fewer installation points for the same area, with clear voice and balanced ambient music.
• Quick and clean installation: U-shaped bracket and accessible terminals under a watertight cover for long and safe wiring.
• Outdoor reliability: IP65 design in ABS and steel grille for covered terraces, porches, walkways and retail.
• Discreet aesthetics: white finish and soft shapes that integrate into hotels, restaurants, education and shops.

Use cases

• Retail and hospitality: background music and advertisements in shops, cafes and restaurants.
• Sports and wellness centers: fitness rooms, spas and indoor swimming pools (areas not exposed to direct jets).
• Education and offices: hallways, classrooms, receptions and common areas.
• Terraces and protected outdoor areas: covered patios, porches and waiting areas.

Frequently Asked Questions

• Should I operate at 8 Ω or 100 V? For small installations or standalone areas, use 8 Ω (40 W RMS). For long lines with multiple speakers, use 70/100 V and select the 10/20/40 W tap according to the amplifier's available power and the number of units.
• What cable cross-section should I use? For long runs at 100 V, cross-sections of 1.5–2.5 mm² reduce losses. At 8 Ω, prioritize 2.5 mm² if the run exceeds 10–15 m.
• Can I install them outdoors? Yes, they have an IP65 rating. Install on firm surfaces, with the connection cover properly closed, and avoid direct and continuous exposure to water jets.
• Does it include a stand? Yes, a U-shaped metal stand with screws, ready to be oriented horizontally or vertically.
• Are they supplied individually or in pairs? They are supplied in pairs .

Setup tips

• For 100V lines, add up the taps of all the speakers and choose an amplifier with a margin of 20% above.
• For greater speech intelligibility, use the 20W tap; for ambient music with dynamic range, 40W.
• Point the speakers towards the listening area to take advantage of the 120° × 120° dispersion and minimize reflections.

Project description

Two-way passive wall speaker (pair), IP65, 6.5" (166 mm, 1.2") woofer, 1" tweeter, 45 Hz–20 kHz frequency response, 89 dB sensitivity (1W/1 m), 94 dB max SPL, 120° × 120° dispersion, low 8 Ω impedance (40 W RMS, 160 W peak) or 70/100 V line input with 10/20/40 W taps. ABS enclosure with steel grille, screw terminal connection under waterproof cover, U-bracket included. Unit dimensions: 32.8 × 18.2 × 20.5 cm; weight: 2.7 kg; color: white.
