Audibax Ground 5T - Pair of 5" 30W RMS outdoor speakers, IP66 and 70/100V lines

Audibax Ground 5T - Pair of 5" 30W RMS outdoor speakers, IP66 and 70/100V lines

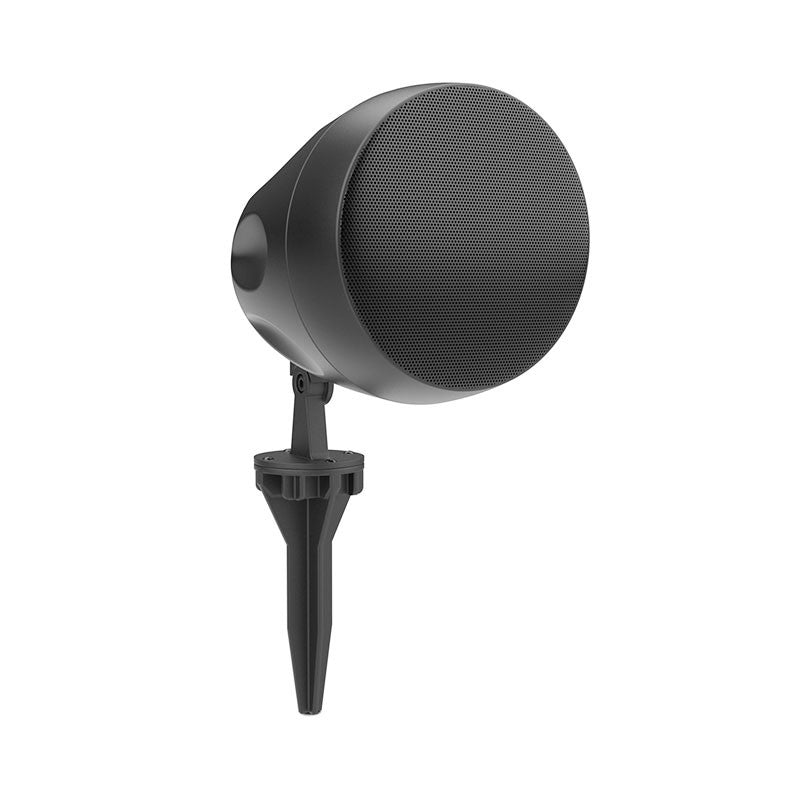

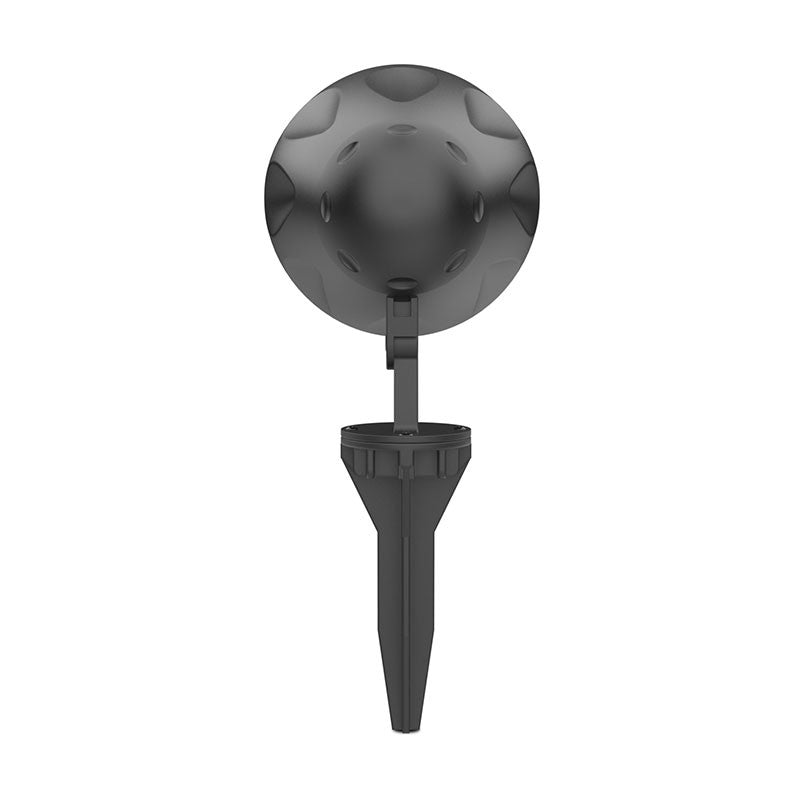

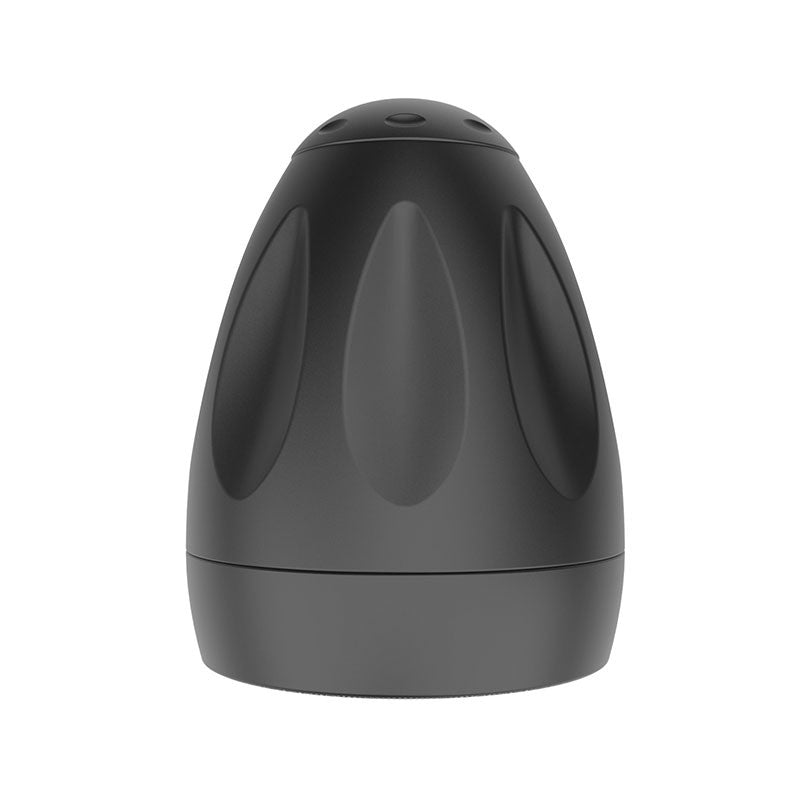

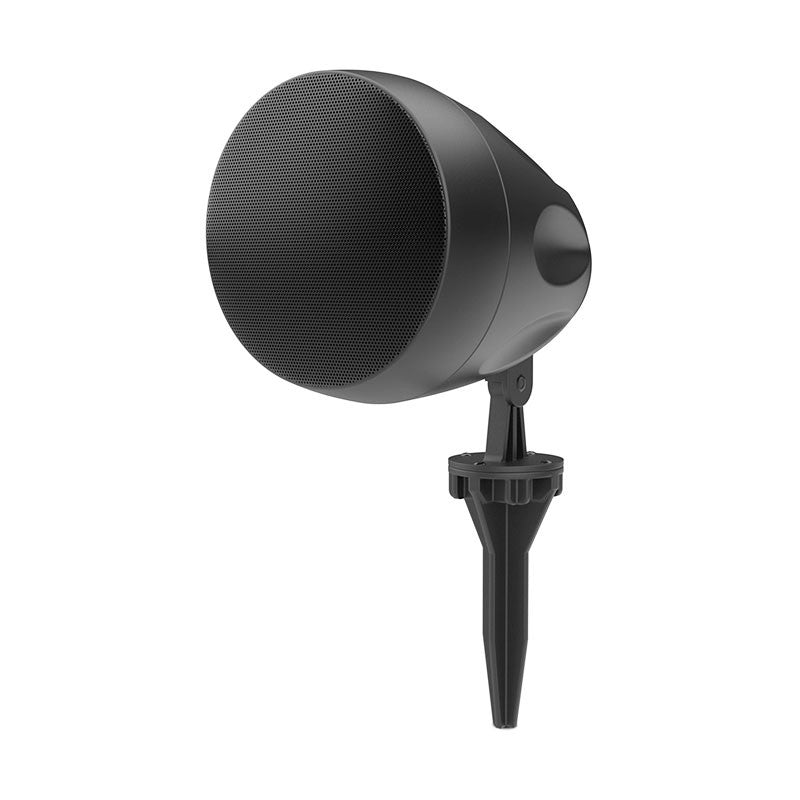

The Audibax Ground 5T pair combines compact size with professional performance for outdoor background music projects. Each unit integrates a 5.25" polypropylene woofer and a 1" silk dome tweeter , achieving clear and balanced sound reproduction in terraces, gardens, patios, and common areas. It offers 30 W RMS , a frequency response of 110 Hz to 20 kHz , and a sensitivity of 84 dB , with an 8 Ω impedance and an integrated 70/100 V transformer for installation on both low-impedance and constant-voltage lines . Its IP66 rating (wall or floor mounting only) ensures resistance to dust and water jets, making it ideal for high-humidity environments. With a compact size of 170 x 170 x 240 mm , it is easy to integrate visually into the landscape or mount on a wall with the appropriate hardware.

Main features

• Pair of 2-way passive outdoor speakers (2 units per box).
• Transducers: 5.25" PP woofer and 1" silk tweeter for a natural timbre.
• Power: 30 W RMS.
• Frequency response: 110 Hz – 20 kHz.
• Sensitivity: 84 dB (1 W/1 m).
• Nominal impedance: 8 Ω.
• Integrated 70/100 V transformer with taps:
  • 70 V: 1.87 W / 3.75 W / 7.5 W / 15 W / NC & 8 Ω
  • 100 V: 3.75 W / 7.5 W / 15 W / 30 W / NC & 8 Ω
• Protection level: IP66 (wall or floor mounting only).
• Dimensions (H x W x D): 170 x 170 x 240 mm.
• Color: black.

Product benefits

• Installation versatility: option to operate at 8 Ω for short runs or 70/100 V for long runs with multiple speakers.
• Outdoor resistance: IP66 rating for use in wet and dusty environments (wall or floor mounting).
• Balanced sound thanks to polypropylene woofer and silk tweeter: clear vocals and pleasant music without fatigue.
• Aesthetic integration: compact format that blends into landscaped perimeters, porches or facades.
• Efficiency in projects: multiple taps at 70/100 V to adjust the level by zone without the need for active attenuators.

Use cases

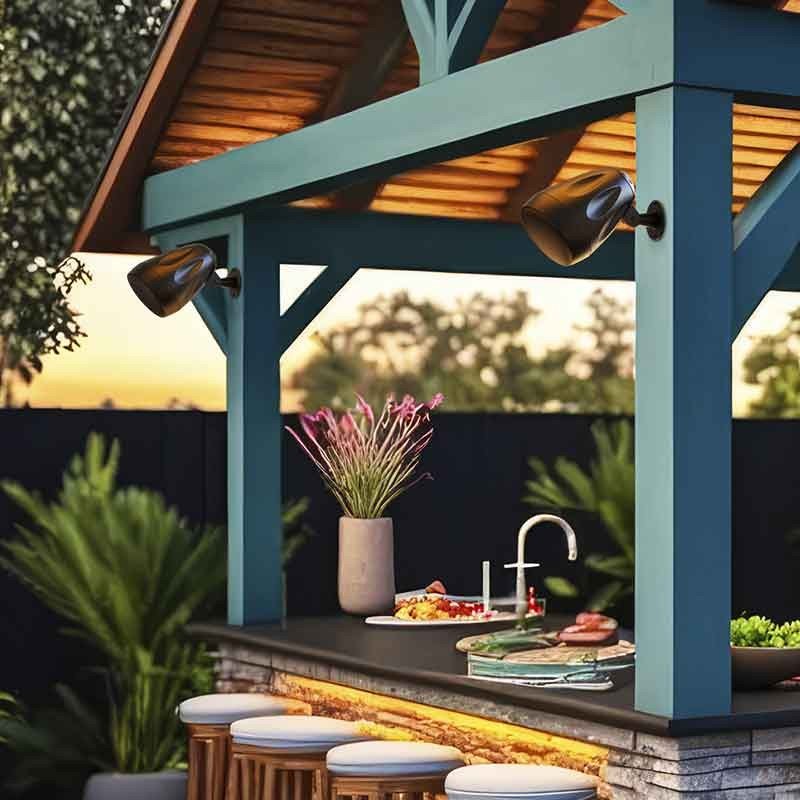

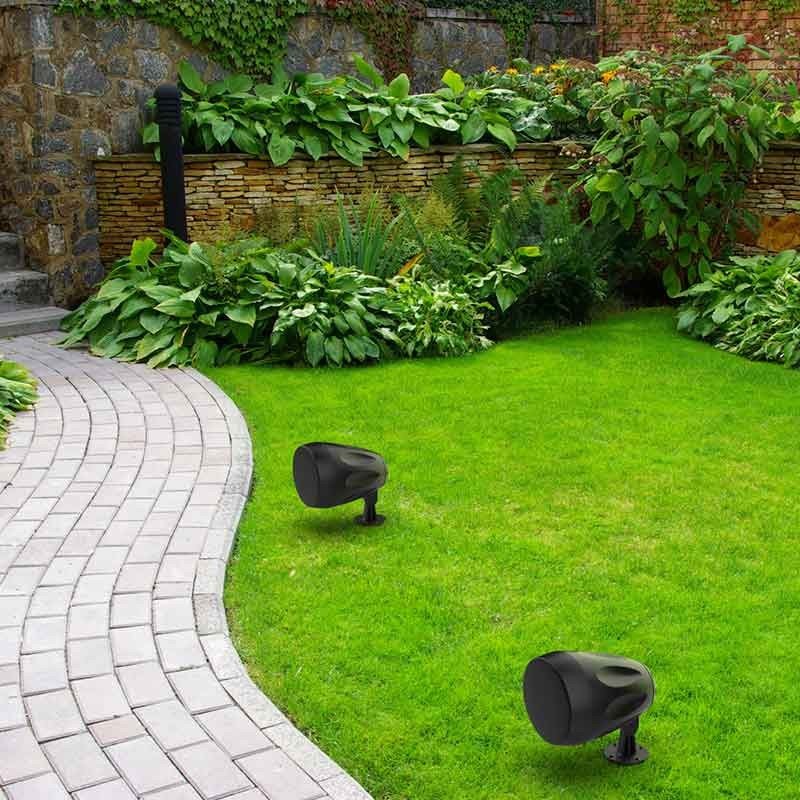

• Gardens, patios and terraces in homes, pool houses and chill-out areas.
• Hospitality : restaurants, hotels, beach clubs , cafes and covered terraces.
• Retail and corporate : exterior corridors, interior courtyards, access points and canopies.
• Distributed installations at 70/100 V in complexes with several zones and long cable runs.

Frequently Asked Questions

• Is it an active system? No. They are passive speakers; they require external amplification.
• Can I use them at 8 Ω? Yes. In addition to the 70/100 V transformer, they have an 8 Ω mode for low impedance connection.

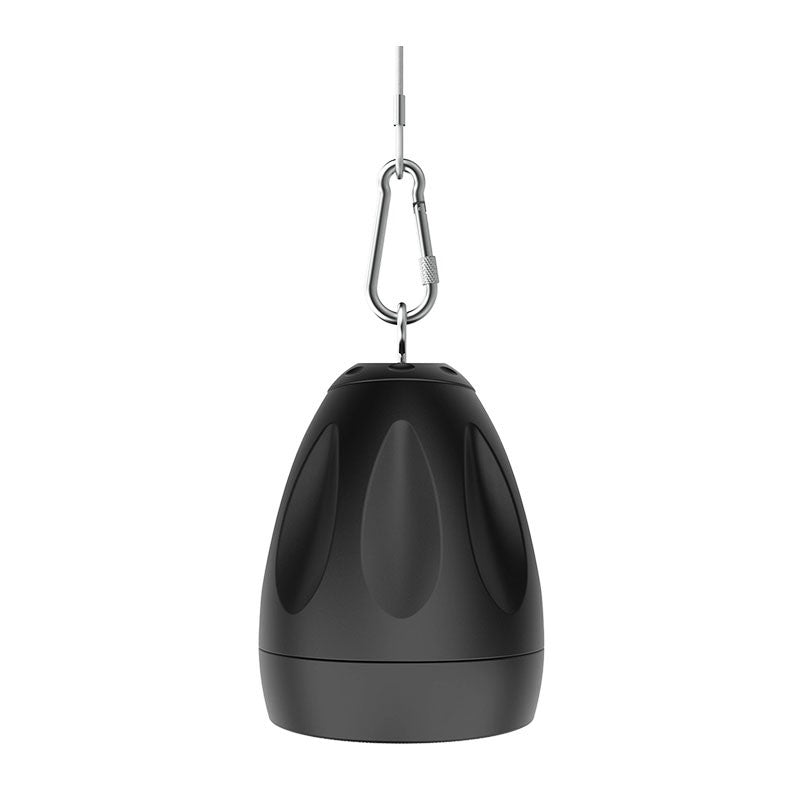

• Can they be hung from the ceiling outdoors? No. The IP66 rating applies to wall or floor mounting . Outdoor suspension is not recommended.
• Do you need a subwoofer? It's not required. For enhanced bass in music, you can add a compatible external subwoofer from the Ground series.
• What cable to use? Installation audio cabling; at 70/100 V it accepts smaller cross-sections over long distances compared to 8 Ω.

Installation recommendations

• Point the speakers towards the listening area and avoid direct water jets onto the connectors.
• On 70/100 V lines, select the appropriate tap per zone to balance levels and amplifier consumption.
• Use weatherproof hardware and screws and ensure proper sealing of cable glands.

Project description

Pair of passive outdoor 2-way speakers; 5.25" PP + 1" silk dome; 30 W RMS; 110 Hz–20 kHz; 84 dB (1 W/1 m); 8 Ω; 70/100 V transformer with taps 1.87/3.75/7.5/15 W (70 V) and 3.75/7.5/15/30 W (100 V); IP66 wall or floor only; dimensions 170 x 170 x 240 mm; black color.
