Audibax Detroit 1000 DSP - Active column PA system with 10" subwoofer, DSP and Bluetooth (1,000 W peak)

Audibax Detroit 1000 DSP - Active column PA system with 10" subwoofer, DSP and Bluetooth (1,000 W peak)

The Audibax Detroit 1000 DSP is a compact PA system consisting of an active column speaker with a 4 x 2.75" array and a 10" active subwoofer in a bass-reflex enclosure. Its Class D amplification delivers 60 W RMS to the satellite speaker and 400 W RMS to the subwoofer, with 96 kHz/24-bit DSP management and Monitor, DJ, and Live presets for immediate response adjustment. It features integrated Bluetooth with TWS mode for wireless streaming and stereo pairing. Designed for live sound, corporate events, and mobile installations, it offers controlled coverage, professional connectivity, and a highly portable and easy-to-set-up format.

Main features

• Configuration : active column + 10" active subwoofer ( bass-reflex ).
• Power : 60 W RMS (satellite) + 400 W RMS (subwoofer); 1,000 W peak .
• Processing : 96 kHz / 24-bit DSP with Monitor , DJ and Live modes.
• Transducers : 4 × 2.75" array (neodymium, 1" voice coil) and 10" sub (1.5" voice coil).
• Frequency response : satellite 200 Hz–21 kHz; subwoofer 47 Hz–200 Hz (47 Hz–21 kHz system).
• Max SPL (1 m, free space): 109 dB (satellite) and 117 dB (subwoofer).
• Satellite dispersion : 120° (H) × 30° (V) for wide lateral coverage and vertical control.
• Bluetooth + TWS for wireless playback and stereo link.
• Audio connectivity : 2 balanced XLR inputs (L/R), XLR Thru output and Speakon output to the satellite.
• Construction : subwoofer in 15 mm MDF with “raindrop” paint; satellite in PP ; 1.0 mm metal grille.
• Mounting : M20 socket and 36mm flange for mast/support included.
• Power supply : 100–230 V~ 50/60 Hz; max. consumption approx. 486 W.

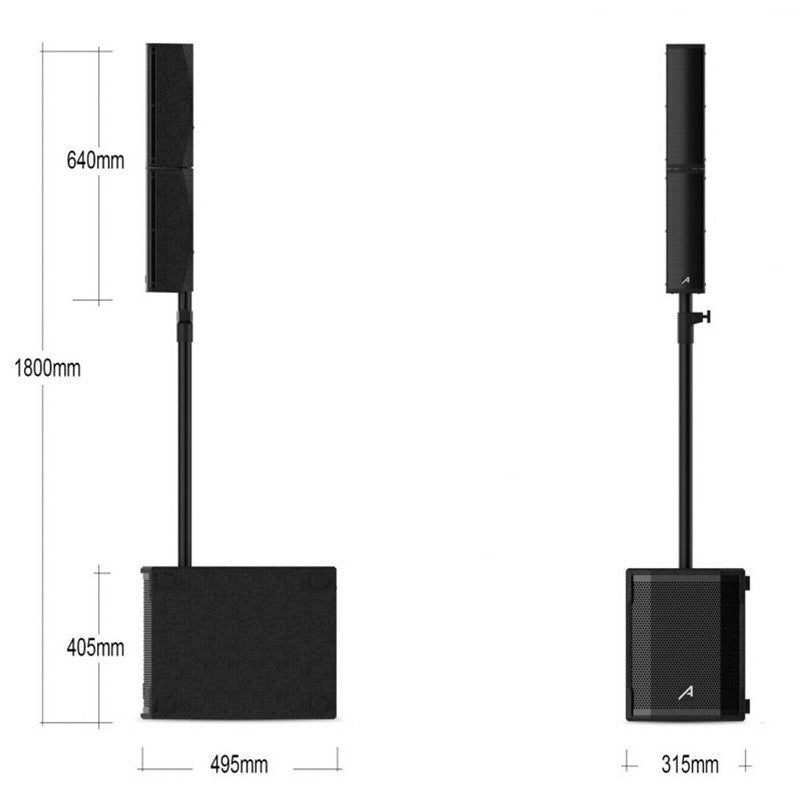

• Dimensions : satellite 12 × 10 × 32 cm; subwoofer 49.5 × 31.5 × 40.5 cm.

Product benefits

• Defined and punchy sound : deep bass from the 10" and homogeneous mids/highs from the 4 × 2.75" array
• Instant adaptation with three DSP presets for vocals, live music, or DJ sessions.
• Real portability : column and compact sub format with included mast for quick setup.
• Professional connection via balanced XLR and Speakon output to the satellite; independent control of satellite and sub levels.
• Versatility : Bluetooth playback and TWS option for wireless stereo when using two units.

Use cases

• Mobile events and rental : conferences, corporate events, presentations, DJ sets.
• Live music in bars, covered terraces and small/medium-sized venues.
• PA reinforcement as a compact main system or side fill .
• Temporary installations where quick assembly/disassembly with good performance is required.

Frequently Asked Questions

• Is it an active or passive system? Active: the subwoofer and column integrate Class D amplification and DSP.
• Does it include a mast/stand? Yes, it comes with a stand , network cable, and speaker cable.
• Can I connect a microphone directly? Yes; there is a Mic/Line selector on the subwoofer module.
• Is it suitable for outdoor use? It has an IP50 rating. It is designed for indoor or protected outdoor use (without direct exposure to rain).
• Can it be paired wirelessly in stereo? Yes, via TWS with two Detroit 1000 DSP units.

Controls, connections, and signal flow

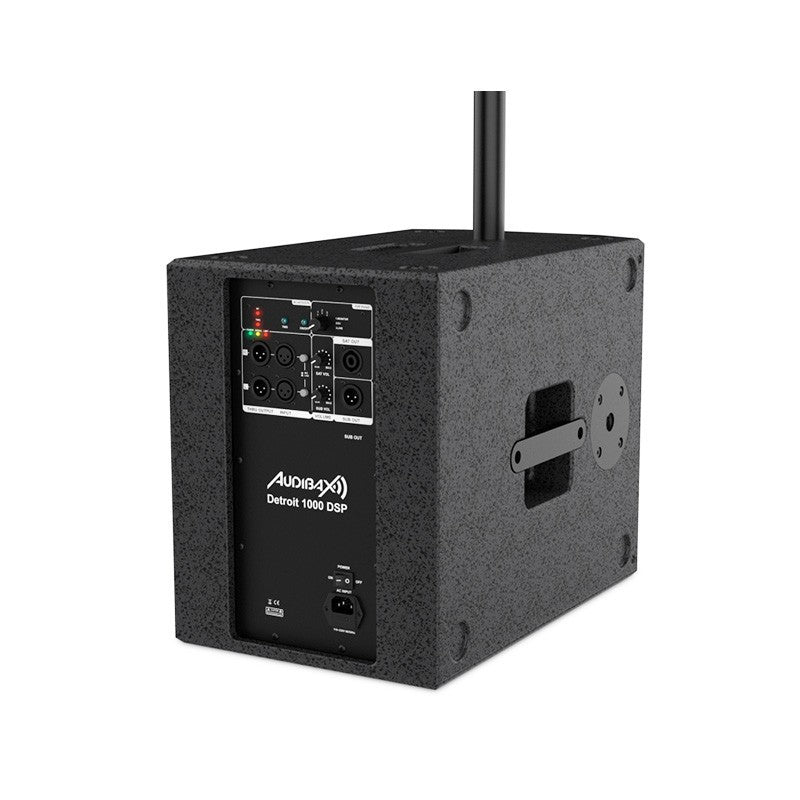

On the subwoofer's panel, you'll find volume controls for both the satellite and sub speakers , a Mic/Line selector, Bluetooth and TWS buttons, and indicators for power , signal, and limit . The balanced XLR inputs (L/R) allow you to receive signals from mixers or players ; the XLR Thru output makes it easy to daisy-chain another unit; and the Speakon output powers the satellite speaker. The system mounts on a mast with an M20 socket , optimizing coverage thanks to the satellite speaker's 120° × 30° dispersion.

Project description

Active column PA system: satellite with 4 × 2.75" array (neodymium, 1" voice coil) and 10" bass-reflex subwoofer (1.5" voice coil); Class D amplification 60 W RMS (satellite) + 400 W RMS (sub); 96 kHz/24-bit DSP with Monitor/DJ/Live presets; frequency response satellite 200 Hz–21 kHz, sub 47–200 Hz; max. SPL 109 dB (satellite) and 117 dB (sub); dispersion 120° × 30°; balanced XLR L/R inputs, XLR Thru output, Speakon output to satellite; power supply 100–230 V~ 50/60 Hz; power consumption 486 W; subwoofer enclosure in 15 mm MDF and satellite in PP; 1.0 mm grille; mounting with M20 socket (36 mm flange); Bluetooth with TWS; Satellite dimensions 12 × 10 × 32 cm and sub 49.5 × 31.5 × 40.5 cm; IP50; black color.
