Audibax DMX Event 5 - Portable DMX Controller with Battery, 2.4G Wireless and OLED Display (30 Channels)

Audibax DMX Event 5 - Portable DMX Controller with Battery, 2.4G Wireless and OLED Display (30 Channels)

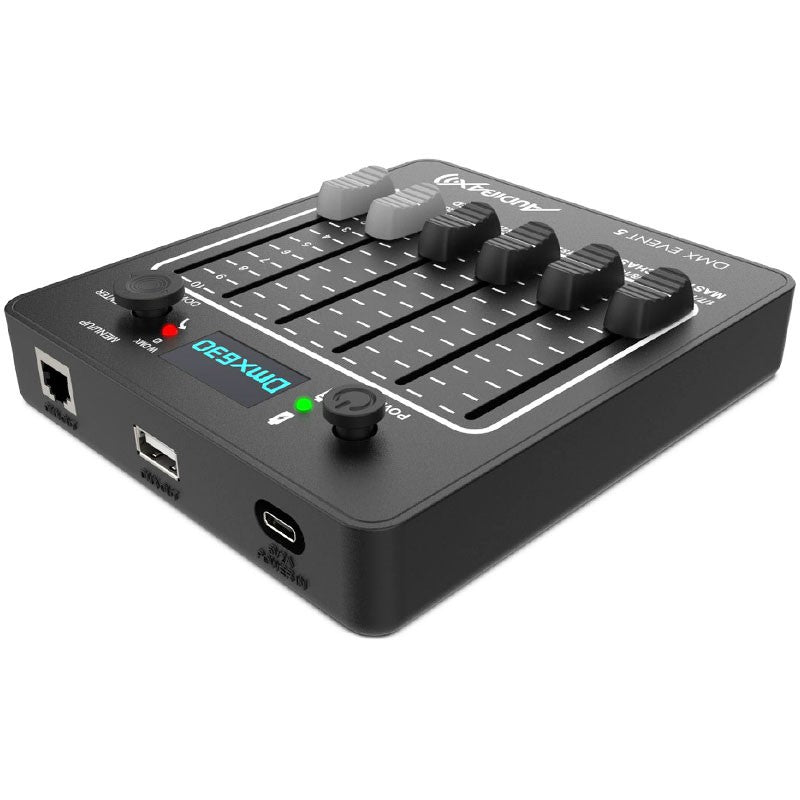

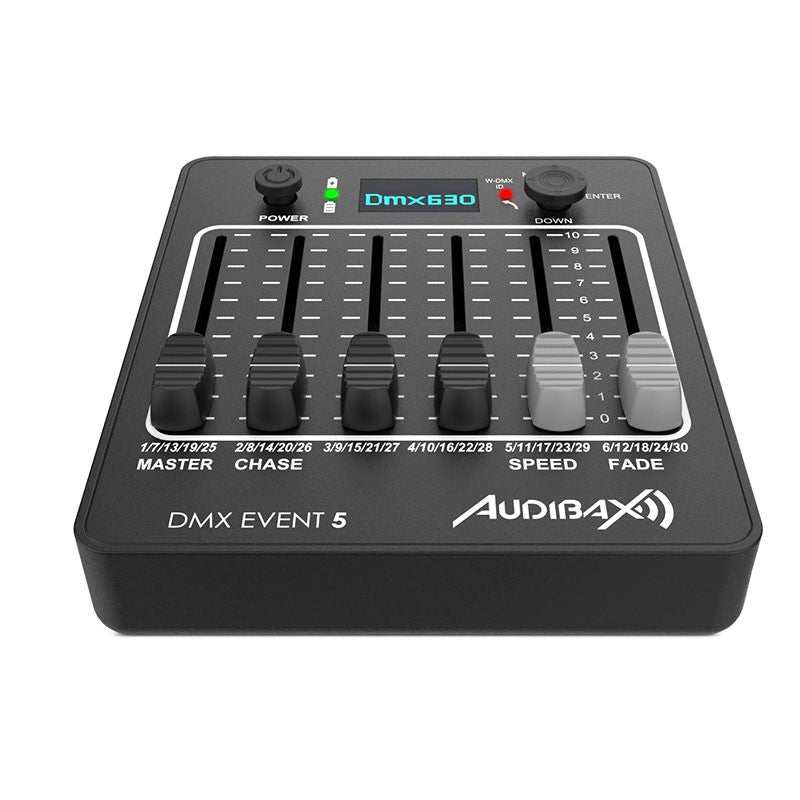

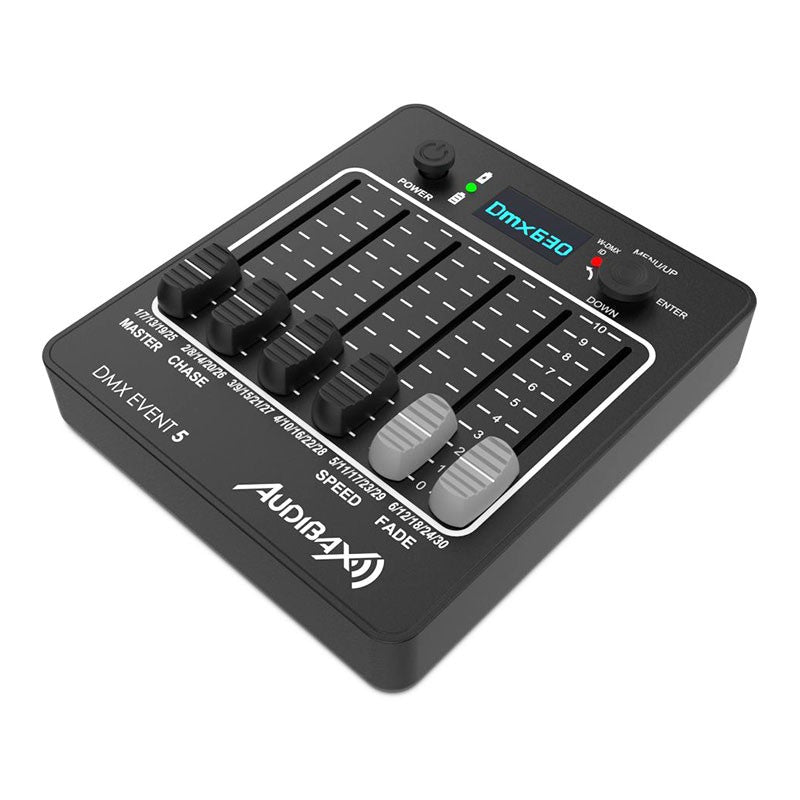

The Audibax DMX Event 5 is a standalone DMX controller designed for events, rentals, and permanent installations requiring complete mobility. Powered by a Li-ion battery , it offers 2.4G wireless DMX , direct control of up to 30 DMX channels , an OLED display , and quick chase editing directly from the panel. Its wireless mode allows connection to compatible lights/receivers, and it also features a wired DMX512 input/output for integrating conventional equipment. Professional features include password protection , an on/off timer , battery calibration , and automatic power-off , ensuring long and reliable sessions even without access to mains power.

Main features

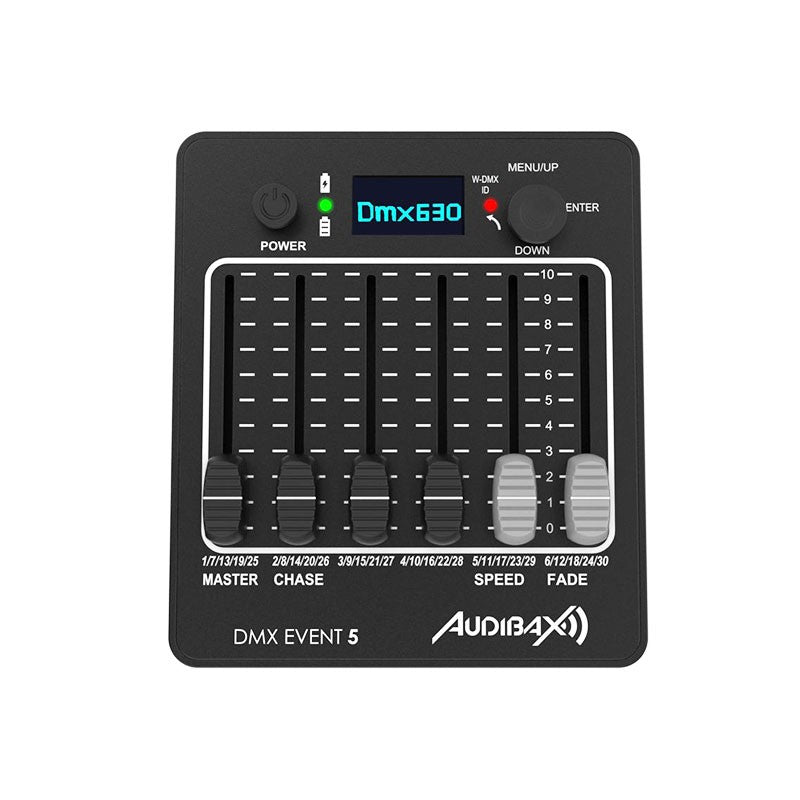

• 30 DMX channels with faders and front-panel chase editing.
• 2.4 GHz wireless DMX with ID selection (1–7) and quick pairing.

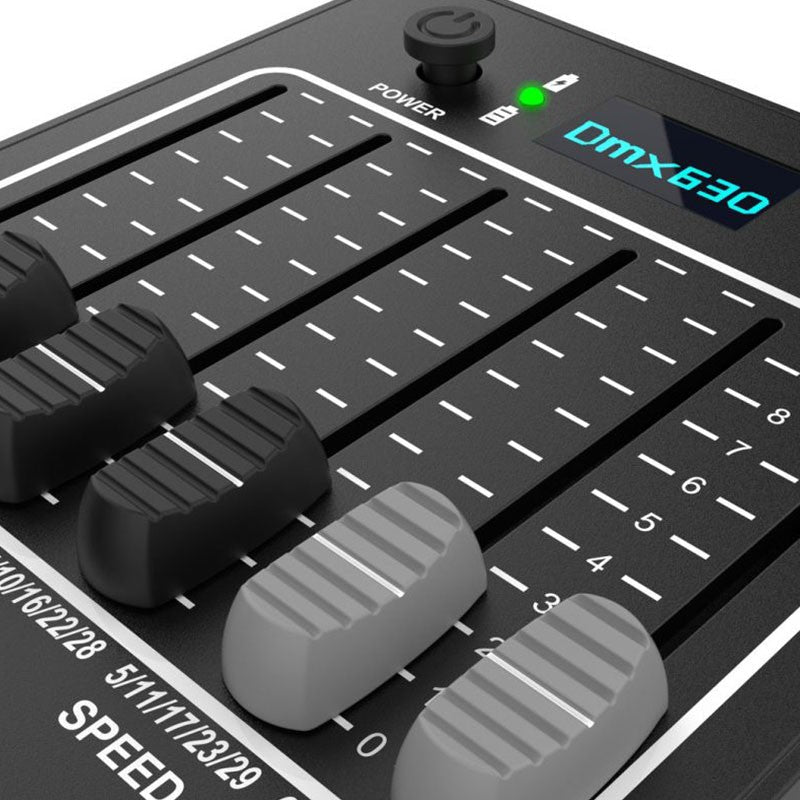

• OLED type screen for clear menu navigation and status.
• 2600 mAh 18650 type rechargeable Li-ion battery and integrated power management (calibration and reserve level).
• Autonomy of up to 100 hours according to the commercial specifications.

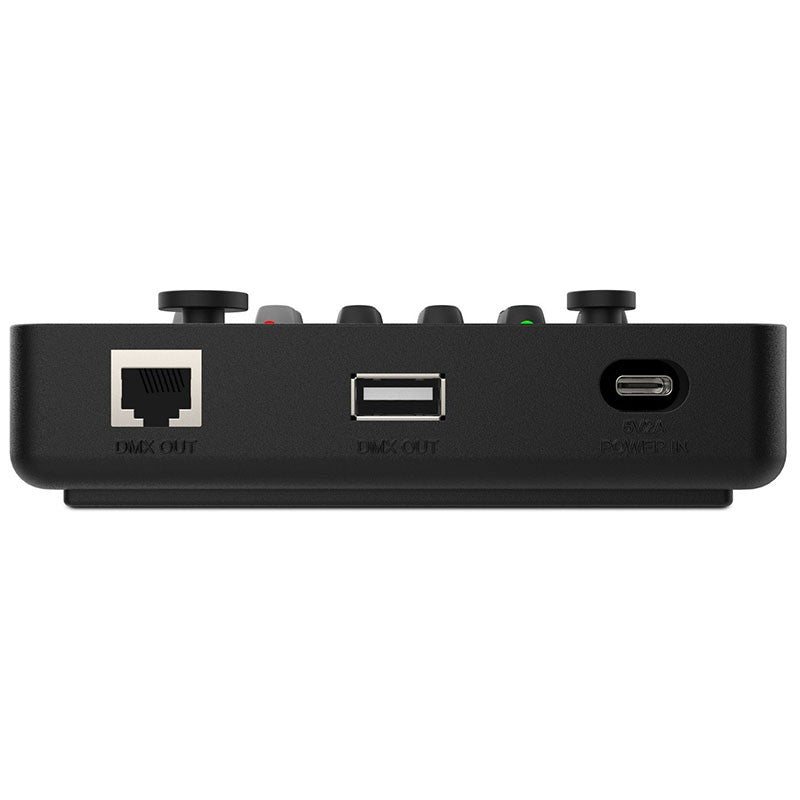

• Wired DMX : DMX512 input and output for universal compatibility.
• Programming : program memories (chase IDs), playback, speed and fade .

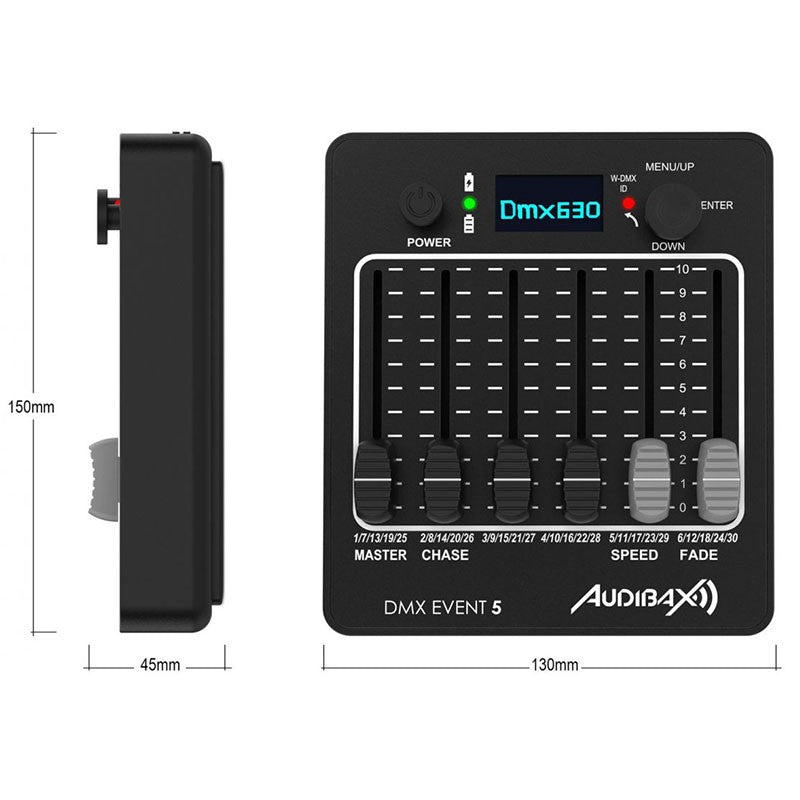

• Portable format : approx. 150 × 130 × 45 mm (manual: 130 × 150 × 40 mm) and 0.5 kg in weight.
• External power supply via DC 5 V (5 V load, 1–3 A).
• Black chassis , IP20 for indoor use.

Product benefits

• Freedom from cabling : 2.4G wireless mode to reduce DMX runs in live performances and temporary installations.
• Express assembly : editing and playback of chases from the controller itself, without a PC.
• Extended operation : Li-ion battery with backup management and scheduled shutdown to maximize autonomy.
• Security in public environments : password protection to prevent unauthorized changes.
• Total versatility : with and without cables, integrates wireless spotlights and standard DMX lines.

Use cases

• Corporate events and roadshows : discreet control without using DMX per room.
• Shows and theaters : chases and memories ready for mobile performances or in small venues.
• Temporary installations : stands, catwalks, presentations and covered outdoor areas (indoor control).
• Clubs and venues : support as an auxiliary controller for specific zones or effects.

Frequently Asked Questions

How many DMX channels does it control? Up to 30 channels (max.).

How do I pair the wireless DMX? Select the wireless ID (1–7) in Event 5 and on the devices to be controlled; when they match, the controller will send the wireless signal.

Does it have wired DMX? Yes, it has rear DMX512 input and output for traditional connection.

How much battery life does it offer? Up to 100 hours according to the product specifications; the actual duration depends on radio usage, screen brightness, and transmission frequency.

Can I protect my schedule? Yes, you can enable a password and set up scheduled on/off times.

Instructions for use

• In wireless installations, maintain line of sight and a reasonable distance from the receivers for a stable link.
• For cabling, use DMX512 cables with a terminator at the end of the chain.
• Calibrate the battery from the menu after the first few cycles for an accurate level indication.

Project description

Standalone DMX controller with Li-ion battery (18650 cell 2600 mAh), 2.4 GHz wireless DMX and DMX512 I/O; control of up to 30 channels; OLED display; on/off timer, password lock and chase editing/play functions (IDs 0–7); DC 5V power supply/charging (5V 1–3A); dimensions approx. 130 × 150 × 40 mm; weight 0.5 kg; color black; IP20.
