Audibax Horn 10T - 5" 10W Unidirectional Projector Speaker for 100V Line

Audibax Horn 10T - 5" 10W Unidirectional Projector Speaker for 100V Line

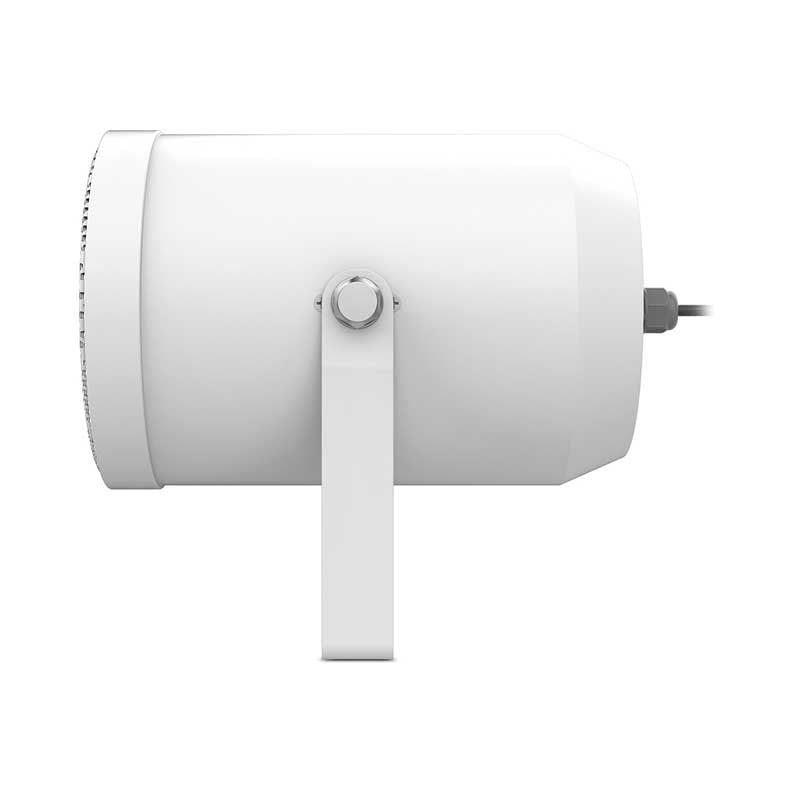

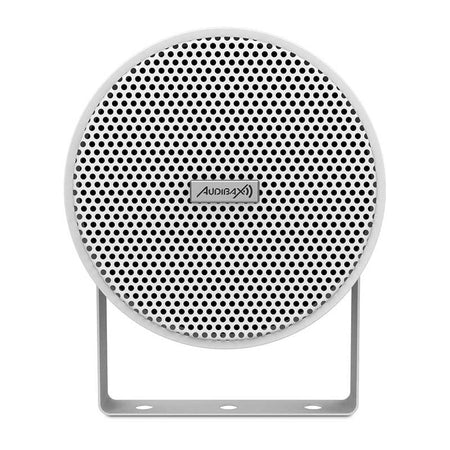

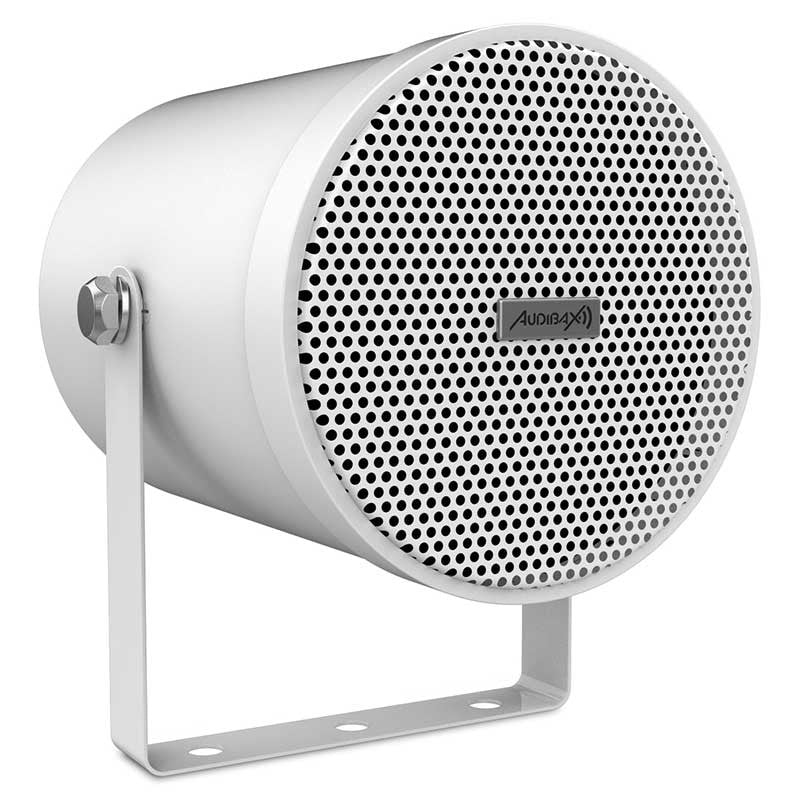

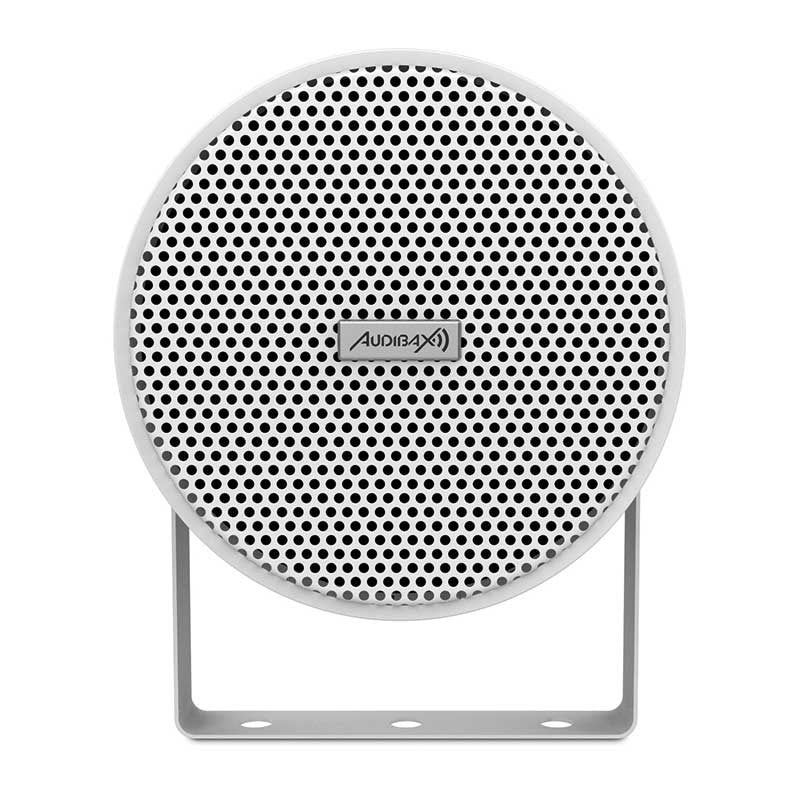

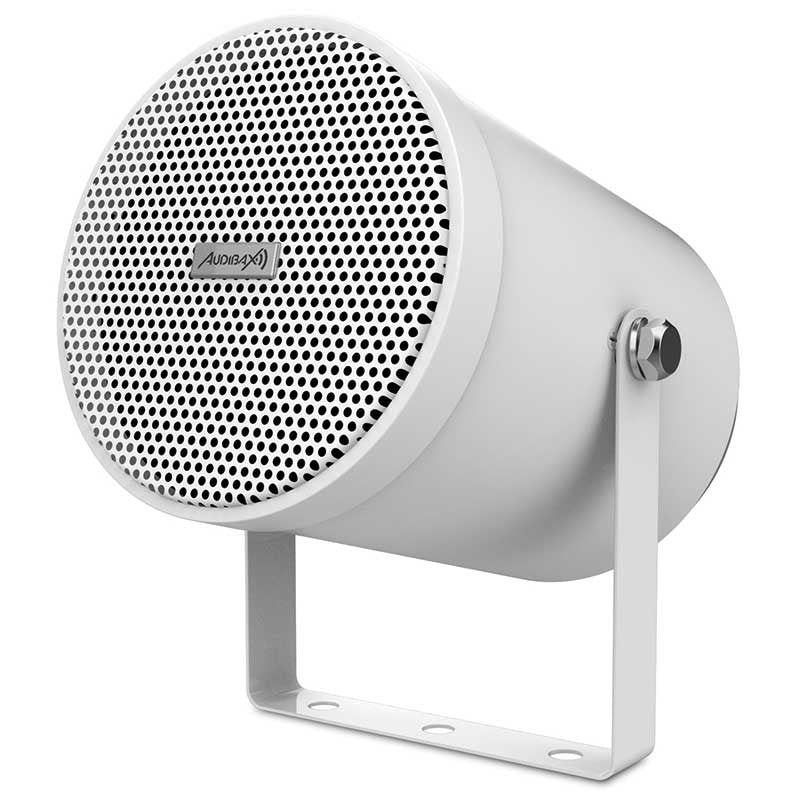

The Audibax Horn 10T is a 5-inch exponential loudspeaker designed for 100V in-line public address systems. With a maximum power output of 10W and selectable 2.5/5/10W inputs , it delivers clear, focused sound projection, optimized for voice announcements and alerts in spaces such as supermarkets , parking lots , and other high-traffic areas. Its frequency range of 130Hz to 17kHz and a sound pressure level of 90dB (1W/1m) ensure excellent intelligibility, even at moderate levels and with ambient noise.

Operating at high impedance (100 V), this unidirectional projector simplifies system design: it allows for long cable runs with reduced losses and facilitates the connection of multiple speakers in parallel, simply adding the power of each outlet to determine the amplifier size. Its white housing and compact dimensions ( 138 mm in diameter and 200 mm in depth ) allow for discreet integration into fixed indoor installations.

Main features

• Format: exponential loudspeaker (unidirectional projector) for focused coverage and voice intelligibility.
• Transducer: 5" (127 mm).
• Maximum power: 10 W on a 100 V line.

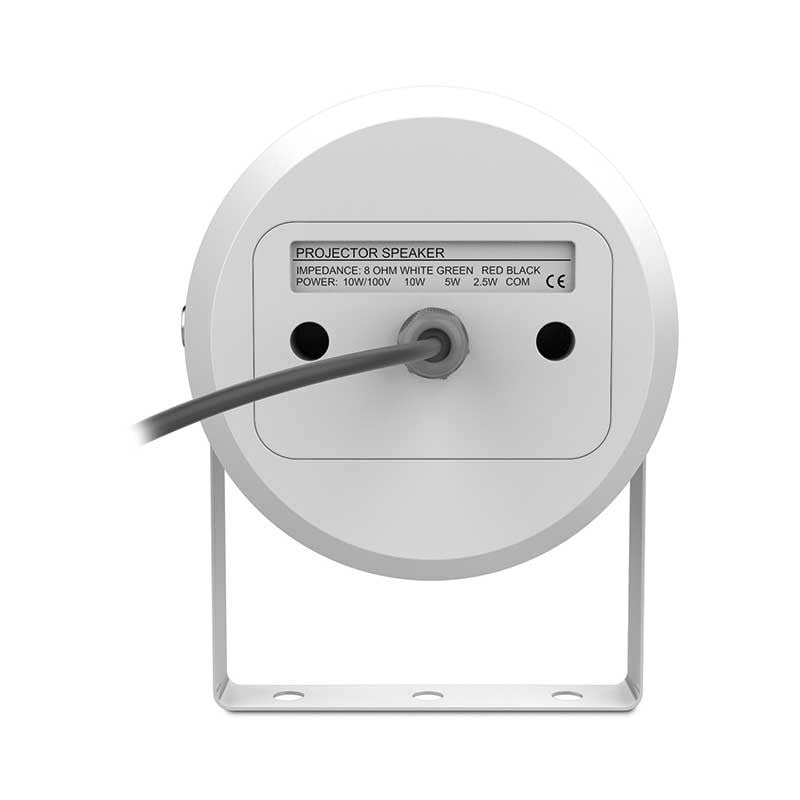

• Selectable power (taps): 2.5 / 5 / 10 W.
• Frequency range: 130 Hz – 17 kHz.
• NPS (SPL @1 W/1 m): 90 dB.
• System: high impedance / 100V line.
• Color: white.

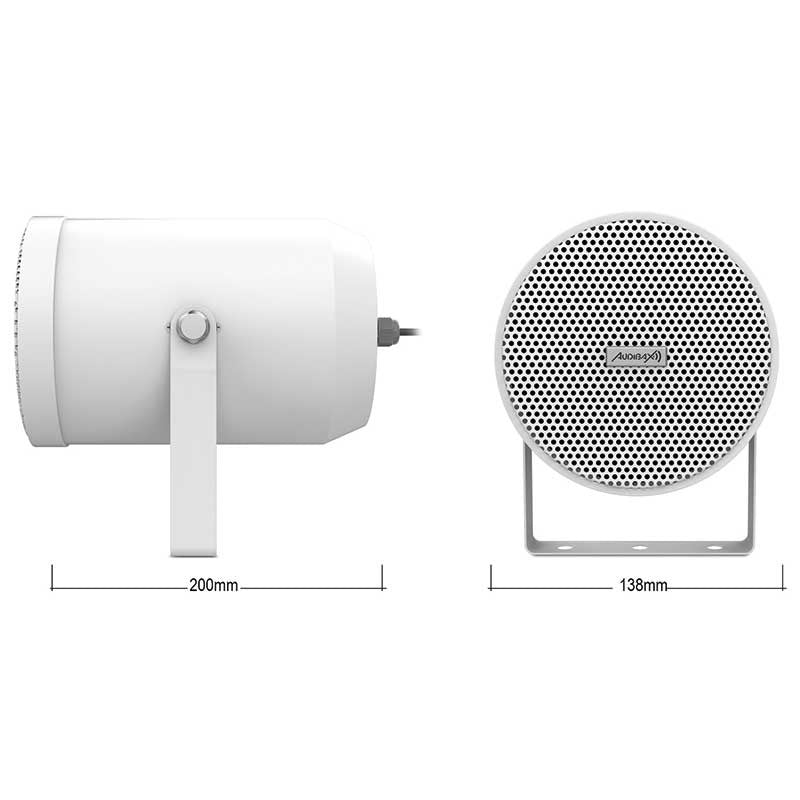

• Dimensions: 138 mm (diameter) × 200 mm (depth).
• Package contents: unidirectional projector speaker and user manual.

Product benefits

• Priority intelligibility: exponential geometry concentrates energy in the useful area, improving message clarity in noisy environments.
• Easy scalability at 100V: add or remove speakers without complex impedance calculations; simply add up the power of the selected taps to size stages and zones.
• Long cabling with less loss: ideal for large buildings and cable runs of tens or hundreds of meters.
• Efficiency in installations: parallel or daisy-chain cabling that reduces laying time and cost.
• Versatile adjustment: three power outlets to balance coverage and level by zone without the need for external attenuators.

Use cases

• Public address systems in retail and large distribution: operational announcements and messages to the public in supermarkets.

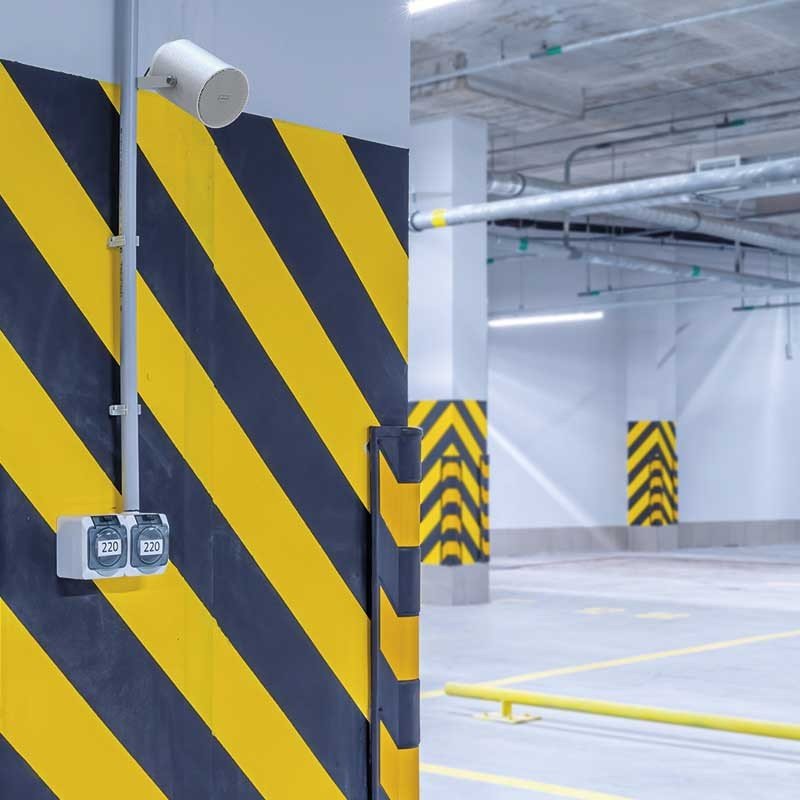

• Parking and access: safety and orientation signs in parking lots and transit corridors.
• Public and educational buildings: acoustic signage and zone calls.
• Warehouses and storage facilities: work instructions and notices in environments with moderate background noise.

Frequently Asked Questions

• Do you need a 100V amplifier? Yes. The Horn 10T is designed for constant voltage (100V) systems. It allows you to connect multiple speakers in parallel and run them long distances with less signal loss.
• How do I choose the power output (2.5 / 5 / 10 W)? Select 2.5 W for small areas or for boosting signal strength, 5 W for standard zones, and 10 W when higher levels or greater distance are required. Always adjust the power output considering speech intelligibility and the total power output of the system.
• How many speakers can I connect to the same amplifier? Add up the power ratings of the chosen jacks on each speaker and keep the total below the usable power of the amplification channel (a margin of 10–20% is recommended).
• Is it suitable for background music? It's suitable for voiceovers and low-level ambient music. For foreground music or high-fidelity sound, a low-impedance speaker or a wider frequency response model is preferable.
• Does it include mounting hardware? The package includes the speaker and the manual. The mounting hardware and accessories conform to the manufacturer's specifications in their documentation; please check mounting compatibility for your project.

Installation and best practices

• System sizing: Add up the power ratings of all selected outlets and choose a 100V amplifier with extra headroom.
• Wiring: parallel/daisy-chain connection on the 100V line, respecting polarities and local installation standards.
• Location: orient the projector towards the audience area seeking uniform coverage and minimal direct reverberation.

Project description

5" unidirectional exponential speaker for 100V line; maximum power 10W with selectable 2.5/5/10W taps; frequency range 130Hz–17kHz; SPL 90dB (1W/1m); high impedance system (100V); white color; dimensions 138mm (diameter) × 200mm (depth); contents: speaker and manual.
