Audibax Memphis 30 USB - 30W Bluetooth Amplifier with USB/TF Player, FM Radio and Remote Control

Audibax Memphis 30 USB - 30W Bluetooth Amplifier with USB/TF Player, FM Radio and Remote Control

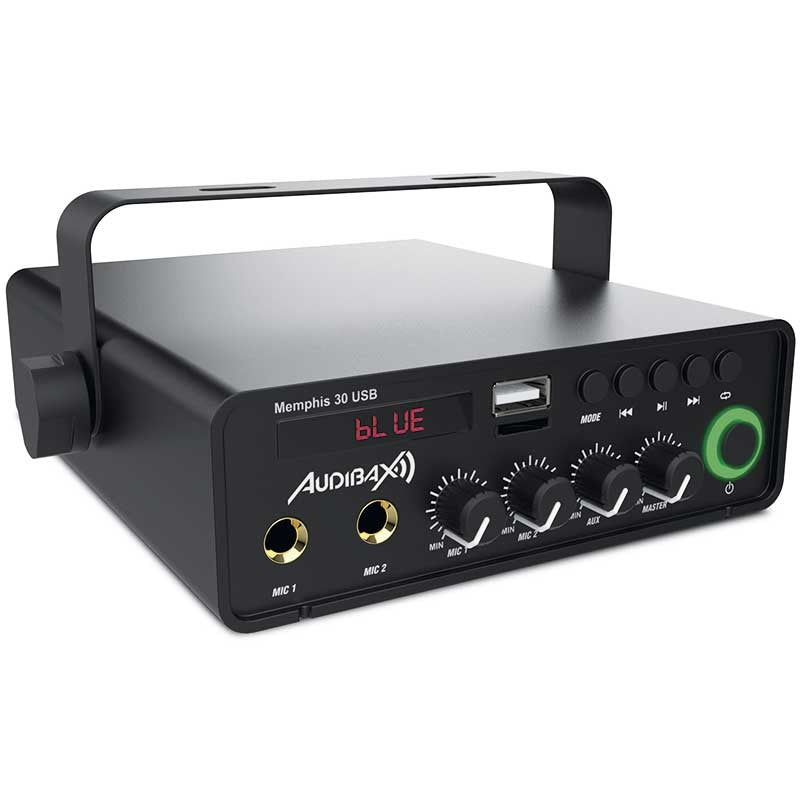

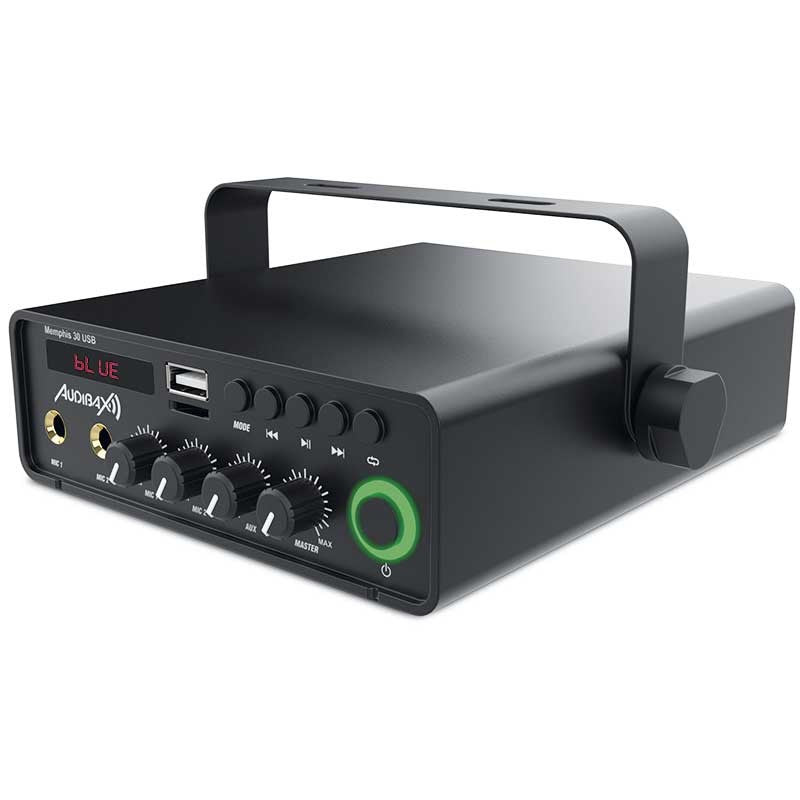

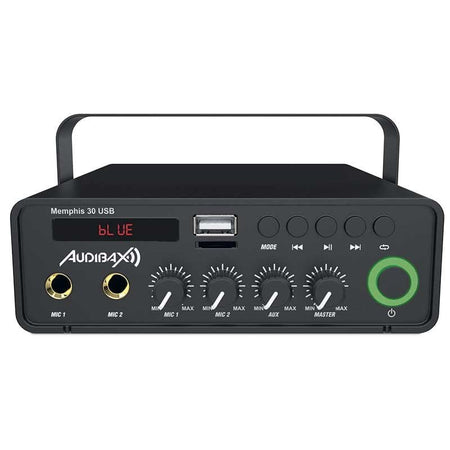

The Audibax Memphis 30 USB is a compact amplifier-mixer designed for public address and sound reinforcement systems in commercial and educational spaces. It offers up to 2 × 15 W output into 4–8 Ω, Bluetooth connectivity (2.4 GHz) for wireless playback, and an integrated MP3 player with USB and TF card ports. It features two microphone inputs, one line input, and a pair of RCA input/output connectors, as well as priority and mute functions to emphasize voice announcements. Its lightweight design (150 × 52 × 190 mm, 1 kg) makes it easy to install in counters, control booths, or shallow racks.

It is designed to operate both on mains power (110–230 V~ 50/60 Hz) and a DC power supply (12–16 V), enabling mobile use or power redundancy. For greater reliability in fixed installations, it features a 2 A fuse and protection systems against short circuits, overheating, and overload. Audio quality is supported by a wide frequency response (microphone 100 Hz–20 kHz; line 30 Hz–20 kHz), total harmonic distortion of less than 1% (1 kHz), and a signal-to-noise ratio of >70 dB for microphone and >80 dB for line.

Main features

• Output power: up to 2 × 15 W (4–8 Ω) for low impedance speakers.
• Connectivity: Bluetooth (2.4 GHz) for playback from smartphones and tablets.
• Integrated player: MP3 via USB and TF card, with FM radio.

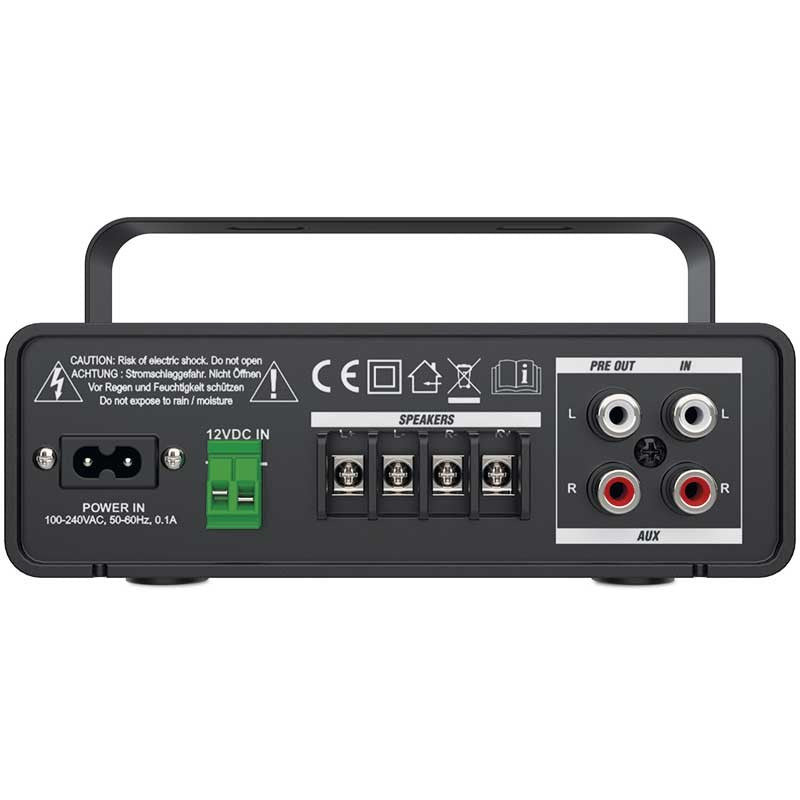

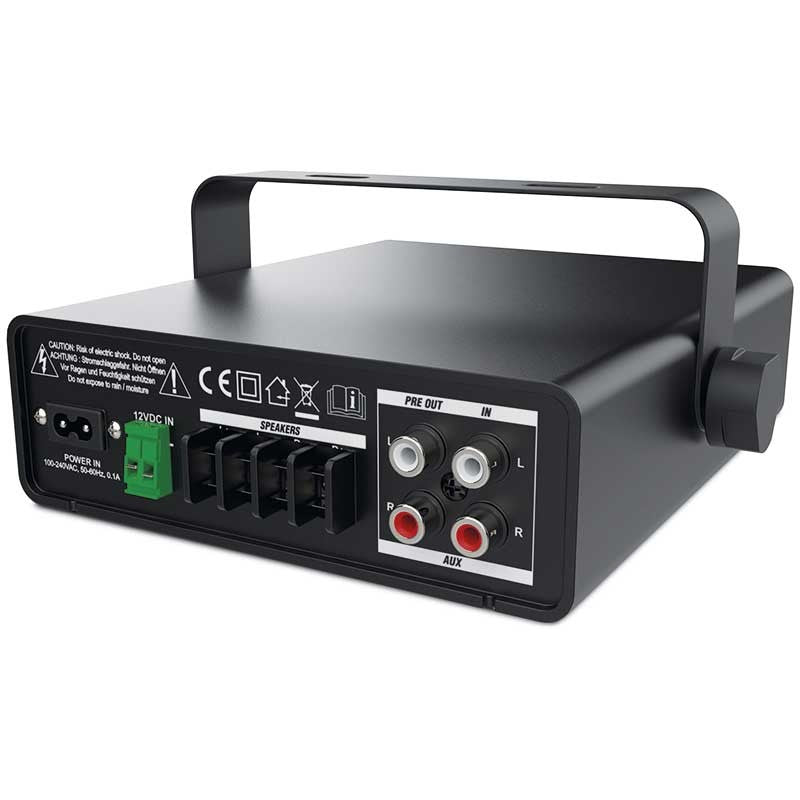

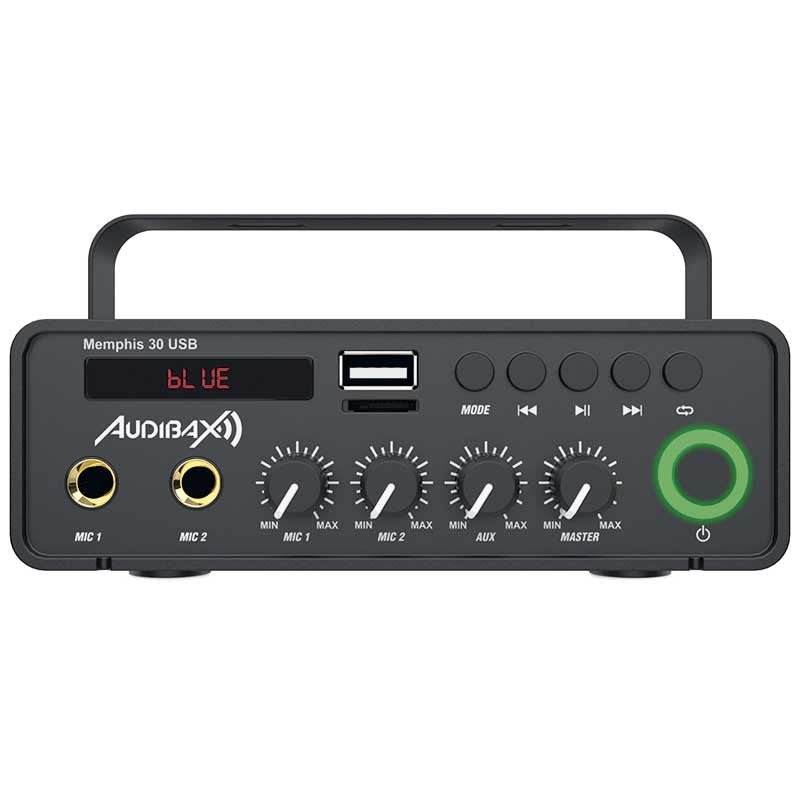

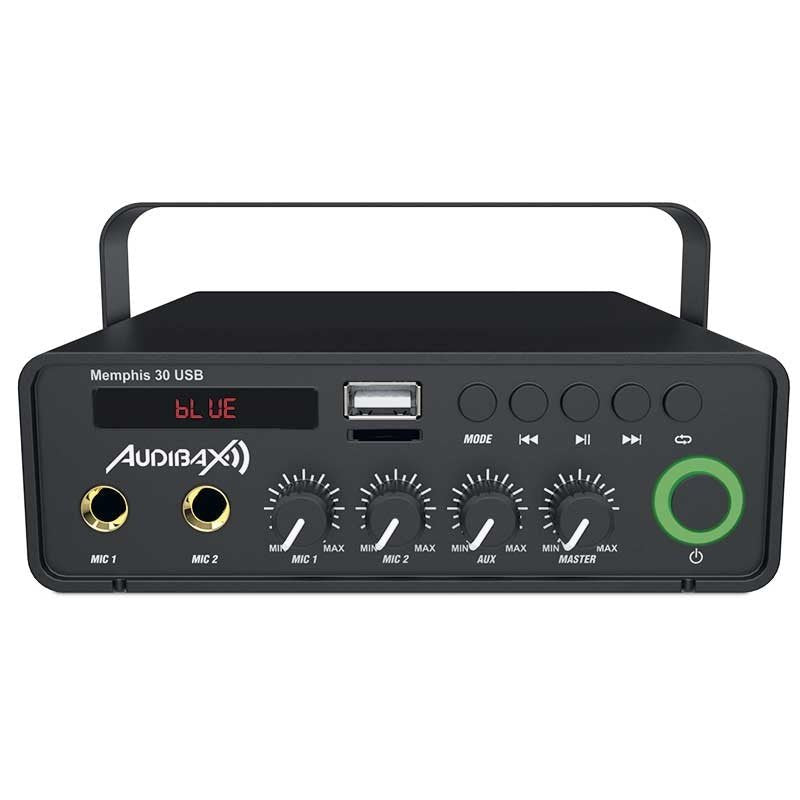

• Inputs: 2 microphone and 1 line; RCA input/output pair.
• Control functions: priority (ducking) and mute for announcements and notices.
• Protections: against short circuits, overheating and overloads.
• Dual power supply: 110–230 V~ (50/60 Hz) or 12–16 V DC.

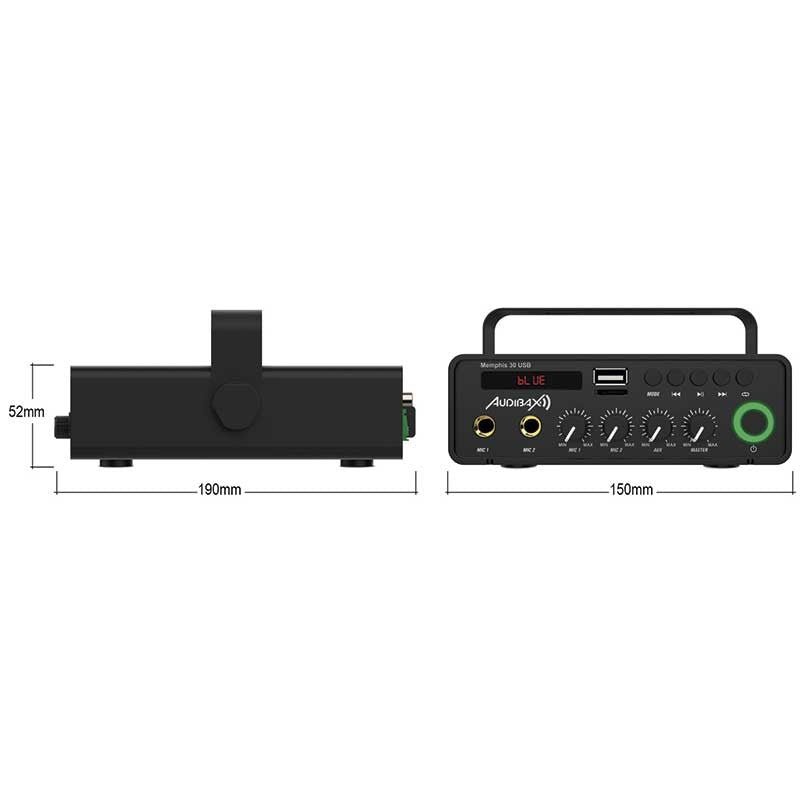

• Compact and lightweight design: 150 × 52 × 190 mm; 1.0 kg.
• Remote control included (3V CR2032 battery).

Product benefits

• Easy installation : small size and 4/8 Ω speaker terminals simplify wiring in shops, offices and classrooms.
• Source flexibility : Plays music via Bluetooth, USB/TF or FM radio without additional equipment.
• Clear messaging : the priority function automatically lowers the music when speaking into the microphone so that announcements can be understood.
• Reliability : electrical protections and a 2A fuse for safe operation in continuous service.
• Versatile operation : use with AC mains or with 12–16 V DC in mobile applications or with UPS.

Use cases

• Background music and announcements in shops, cafes and restaurants .
• Public address systems in schools, academies and libraries .
• Sound systems for reception areas, waiting rooms and offices .
• Religious centers and multipurpose rooms requiring background music and voice messages.

Frequently Asked Questions

• Can I connect 4 Ω or 8 Ω speakers? Yes, the amplifier supports 4–8 Ω loads. It is not a 70/100 V line amplifier.
• Does it have tone controls (bass/treble)? No, this model does not incorporate tone equalization.
• Does it work with 12V? Yes, it supports 12–16V DC power as well as 110–230V~.
• Is it compatible with microphones? Yes, it has 2 dedicated microphone inputs with priority.
• Does it include a remote control? Yes, it includes a remote control with a CR2032 battery.

Installation and recommendations

• Respect the total impedance of the speakers (4–8 Ω) and the appropriate wiring; in series the impedance adds up and in parallel it divides.
• Place the amplifier in a well-ventilated and unobstructed location to avoid overheating.
• Use stable power supplies and the specified 2A fuse protection.

Project description

Amplifier-mixer with 2 × 15 W (4–8 Ω) output power; inputs: 2 × microphone, 1 × line, 1 × RCA input/output; USB/TF MP3 player with FM radio and Bluetooth (2.4 GHz); priority and mute functions; THD <1% (1 kHz); SNR mic >70 dB, line >80 dB; frequency response mic 100 Hz–20 kHz, line 30 Hz–20 kHz; power supply 110–230 V~ 50/60 Hz or 12–16 V DC; 2 A fuse; dimensions 150 × 52 × 190 mm; weight 1.0 kg; color black; remote control included.
