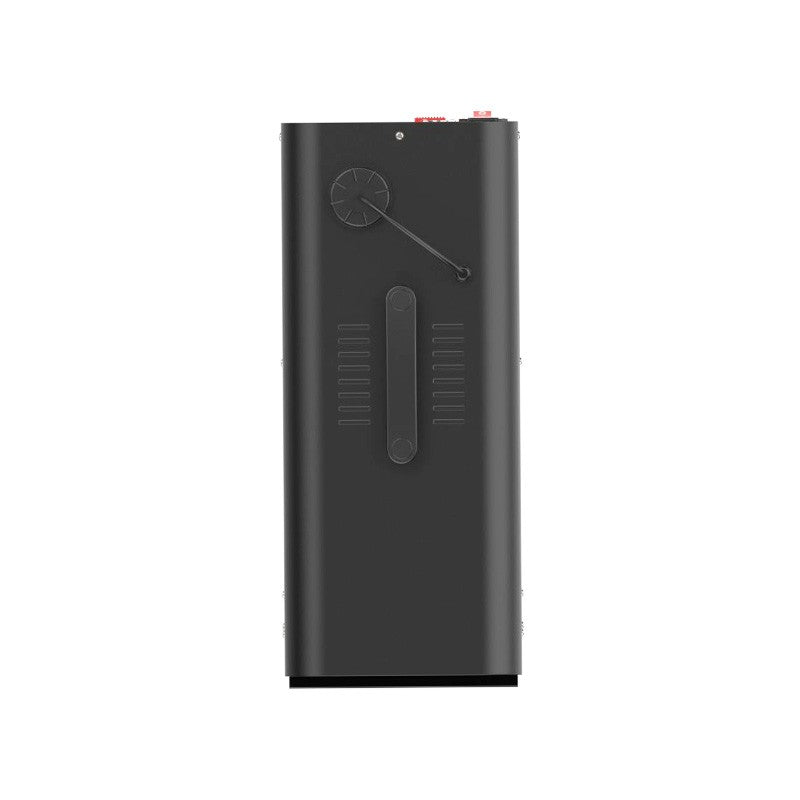

Audibax Haze 1200 - 1200W Haze Smoke Machine with 1.2L Tank and DMX/IR Control

Audibax Haze 1200 - 1200W Haze Smoke Machine with 1.2L Tank and DMX/IR Control

The Audibax Haze 1200 is a haze (fazer) fog machine designed to create a fine, homogeneous fog that enhances light beams without saturating the space. It incorporates a 1200W heating element and an internal turbine that optimizes the effect's distribution in rooms of varying sizes. With an approximate warm-up time of 3 minutes , a 1.2-liter tank , and DMX control (2 channels), automatic mode, and an IR remote with timer , it offers quick and versatile setup for both fixed installations and mobile events. Its compact black chassis (535 × 210 × 230 mm) and light weight facilitate transport and integration into DJ booths, theaters, studios, auditoriums, or rental spaces.

The unit is compatible with water-based haze fluids and is designed for indoor use (IP20) . It features DIP addressing and a 3-pin XLR connector for DMX, as well as a remote control with interval, duration, and volume settings, ideal for maintaining a consistent fog curtain throughout the show. Maintenance is simple thanks to the manufacturer's recommended cleaning procedure.

Main features

• Power: 1200 W.
• Warm-up time: ~3 min.
• Tank capacity: 1.2 L (water-based haze liquid).
• Control modes: DMX (2 channels), AUTO and IR remote control with timer.

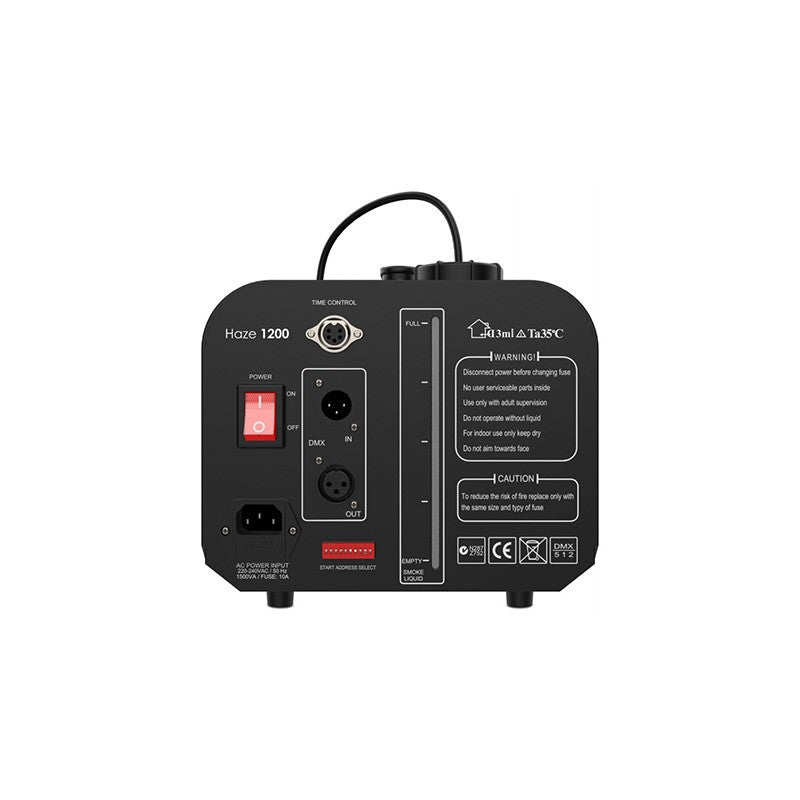

• DMX connectivity: XLR 3 pins, DIP addressing.
• Power supply voltage: AC 110–240 V, 50/60 Hz.
• Indicative performance: ~150 m³/min (fine and constant mist).
• Indoor use: IP20 rating; CE certified.

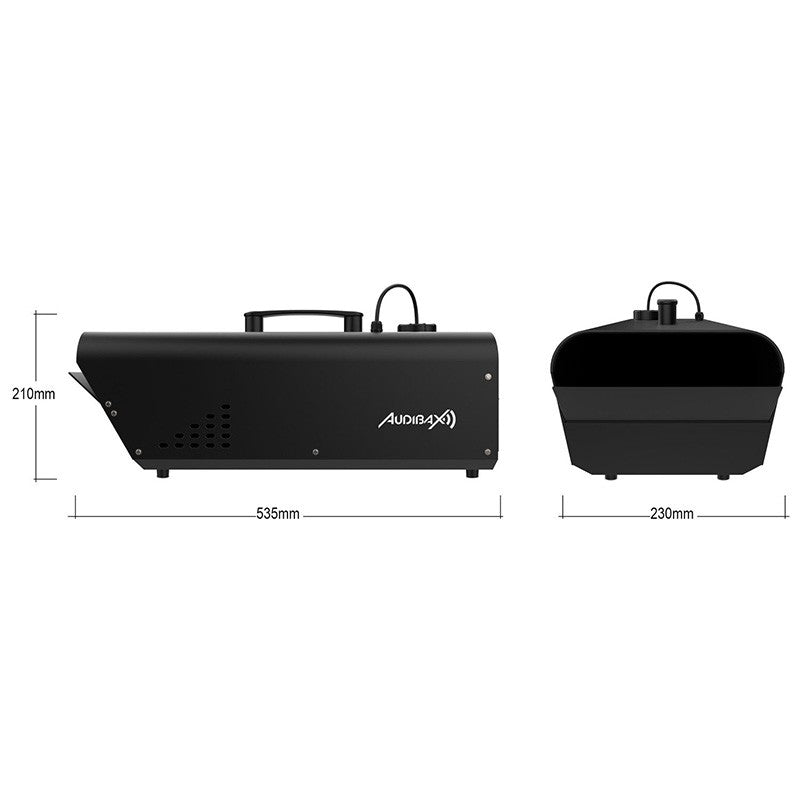

• Dimensions and weight: 535 × 210 × 230 mm; approx. 6.15 kg.

Product benefits

• Professional and controlled effect: uniform haze that defines beams and gobos without obscuring the scene.
• Flexible configuration: 2 DMX channels plus standalone mode and IR to adapt the output to each moment.
• Quick setup: ready in about 3 minutes for testing and shows with programming changes.
• Optimized consumption: 1.2 L tank and interval/duration control that maintain a stable curtain with lower fluid consumption.
• Easy installation: compact format, easy to place on platforms, trusses or booths.

Use cases

• Discos, bars and clubs with moving or laser lighting.
• Theatre and dance, where fine fog is required without loss of visibility.
• Corporate events, weddings and trade fairs with scene-based programming.
• Studios and streaming to highlight beams without overloading the frame.
• Rental companies that need a reliable and easy-to-operate hazer.

Frequently Asked Questions

What fluid should I use? Water-based haze fluids recommended by the manufacturer. Avoid oil-based or other unspecified fluids.

Do I need a DMX controller? Not necessarily. You can use the Haze 1200 in AUTO mode or with the IR remote (timer). With DMX (2 channels) you'll have control from a console.

What functions does the timer control have? It allows you to adjust the interval (e.g., 10–200 s), cycle duration , and emission volume (0–100%), useful for maintaining a constant mist.

Is it for indoor use? Yes, for indoor use (IP20). Keep a minimum distance of 1 m from flammable materials and ensure proper ventilation.

Fluid recommendations? Hazer Audibax HF-5 and Triton Blue (Hydra 832-1062) are compatible options.

Installation and maintenance

• Universal AC 110–240 V power supply. Always use a grounded outlet.
• Connect DMX via XLR 3 pins and set the address via DIP, preventing channel overlap.
• For a stable haze, program short intervals with pauses according to ambient temperature.
• Maintenance: Periodically perform the cleaning procedure with the appropriate solution to prevent blockages in the pump and boiler.
• Do not operate the machine without fluid. After use, flush with cleaning fluid if it will be stored.

Project description

1200W Haze (Fazer) type smoke machine; warm-up time ~3 min; 1.2 L tank; 2-channel DMX control, AUTO mode and IR remote with timer; AC 110–240 V 50/60 Hz power supply; 3-pin XLR DMX connectivity with DIP addressing; output approx. 150 m³/min; IP20 indoor use; CE certified; dimensions 535 × 210 × 230 mm; weight ~6.15 kg; black color.
