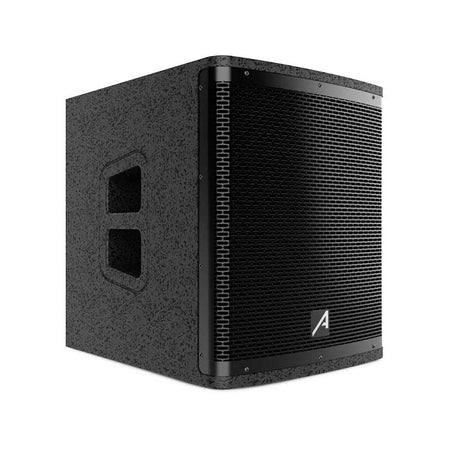

The Audibax DSP15s is a professional 15" active subwoofer that integrates a high-performance Class D amplifier and an internal DSP to adapt the system's response to each application. Through its playback modes ( Music, Live, DJ, Speech ) and three-band equalization, you can optimize the bass quickly and precisely. Its 18mm MDF enclosure with a black acrylic lacquer finish ensures robustness, while the balanced connections allow for seamless integration into live sound, DJ, and installed systems.

With a frequency range of 26–800 Hz , 500 W RMS power, and sound pressure levels up to 130 dB (peak) , the DSP15s delivers punch and control on dance floors, stages, and multipurpose rooms. It features balanced L/R XLR inputs , a Jack/XLR line input , and balanced XLR outputs , with selectable output modes for Full Range or High-Pass operation directly from the subwoofer, depending on the system configuration.

Main features

• 15" woofer with 70 oz magnet (V.C75-5 mm coil) for deep, controlled bass.
• Class D amplifier + DSP with Music / Live / DJ / Speech presets and 3-band EQ .
• Frequency range: 26–800 Hz; SPL: 124 dB (constant) / 130 dB (peak).

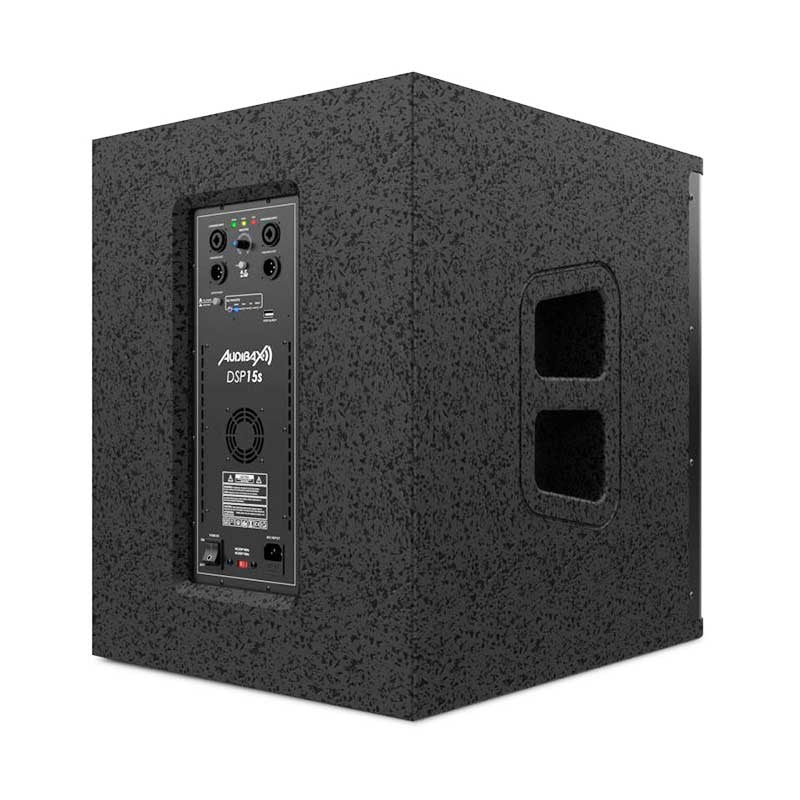

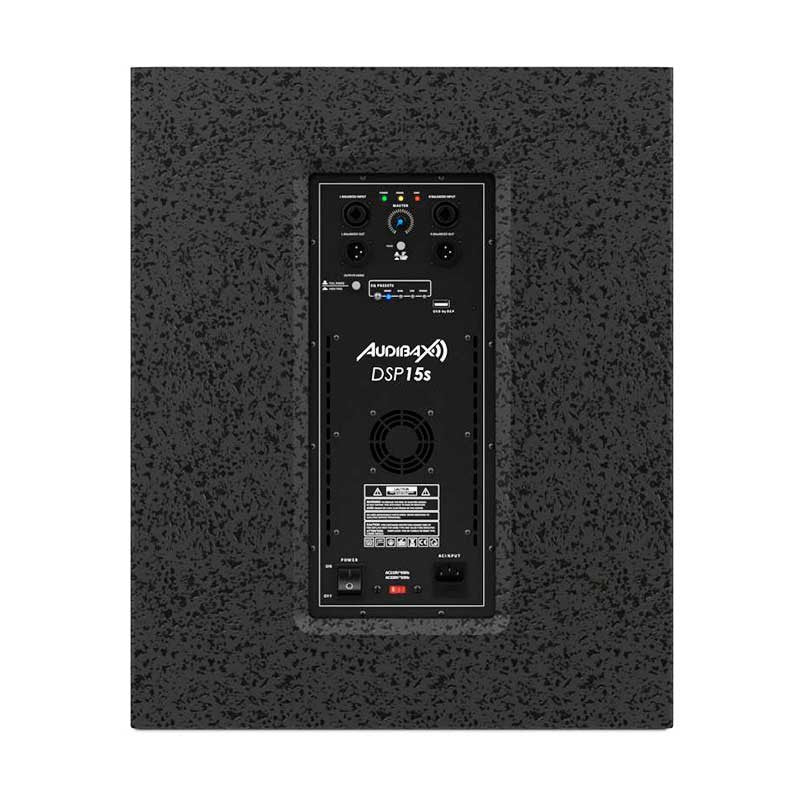

• Professional connectivity: 2× balanced XLR inputs (L/R), Jack/XLR line input and XLR outputs.
• Selectable output mode: Full Range or High-Pass from the DSP panel.
• Universal power supply: AC 110–240 V, 50/60 Hz; IP20 indoor use.
• Robust enclosure: 18mm MDF with black acrylic lacquer finish, designed for rental and installation.

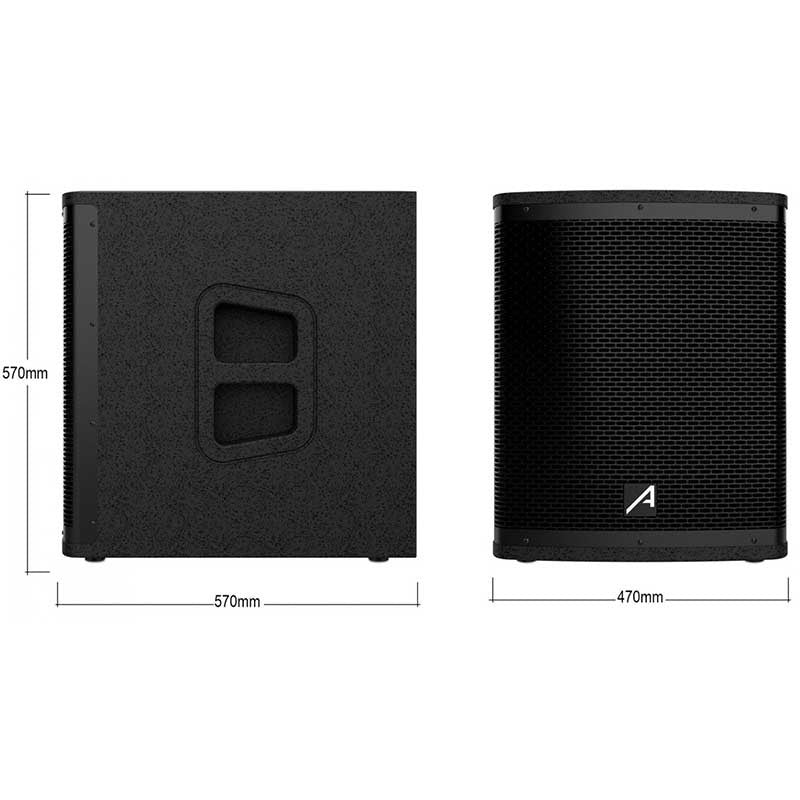

• Dimensions and weight: 570 × 470 × 570 mm; 30 kg.

Product benefits

• Powerful and configurable bass: the DSP with presets and EQ allows you to adjust the character of the sub in seconds.
• Simple integration: balanced inputs/outputs and High-Pass mode on the outputs to link satellites without external processors.
• Efficiency and reliability: Class D stage with low consumption and high power/weight ratio for daily use.
• Professional construction: 18mm MDF enclosure prepared for the wear and tear of touring and rental.

Use cases

• Events and live performances: low frequency reinforcement for bands, DJs and sound companies.
• Fixed installations: halls, bars, clubs and multipurpose spaces that require solid bass with DSP control.
• Modular reinforcement: combination with 12"/15" active boxes for 2.1 systems or multi-sub arrays.

Frequently Asked Questions

What presets does the DSP include?
Music, Live, DJ and Speech modes, plus three-band equalization, to adjust the system's response according to usage.

Can I filter the satellite outputs?
Yes. From the panel you can select the Full Range or High-Pass output mode on the XLR outputs, making it easier to connect to higher-end speakers without external processing.

How does it differ from the DSP15s G2?
There is a G2 version with different specifications (e.g., power and frequency response). This datasheet corresponds to the DSP15s (500 W, 26–800 Hz) .

Integration Notes

• Use balanced XLR cabling to minimize noise and hum over long runs.
• Adjust the DSP preset to the music program and working volume to maximize punch and clarity.
• For arrangements with multiple subs, position them symmetrically and check the polarity to sum in phase.

Project description

15" active subwoofer with Class D amplification and integrated DSP; Music/Live/DJ/Speech playback modes and 3-band EQ; frequency range 26–800 Hz; RMS power 500 W; SPL 124 dB (constant) / 130 dB (peak); balanced inputs 2×XLR, line input Jack/XLR and XLR outputs with Full Range / High-Pass output mode; AC power supply 110–240 V 50/60 Hz; 18 mm MDF enclosure with black acrylic lacquer finish; dimensions 570 × 470 × 570 mm; weight 30 kg; IP20.
