Audibax Neo 20 White - Speaker wall mount with 35mm socket, steel, 35kg load

Audibax Neo 20 White - Speaker wall mount with 35mm socket, steel, 35kg load

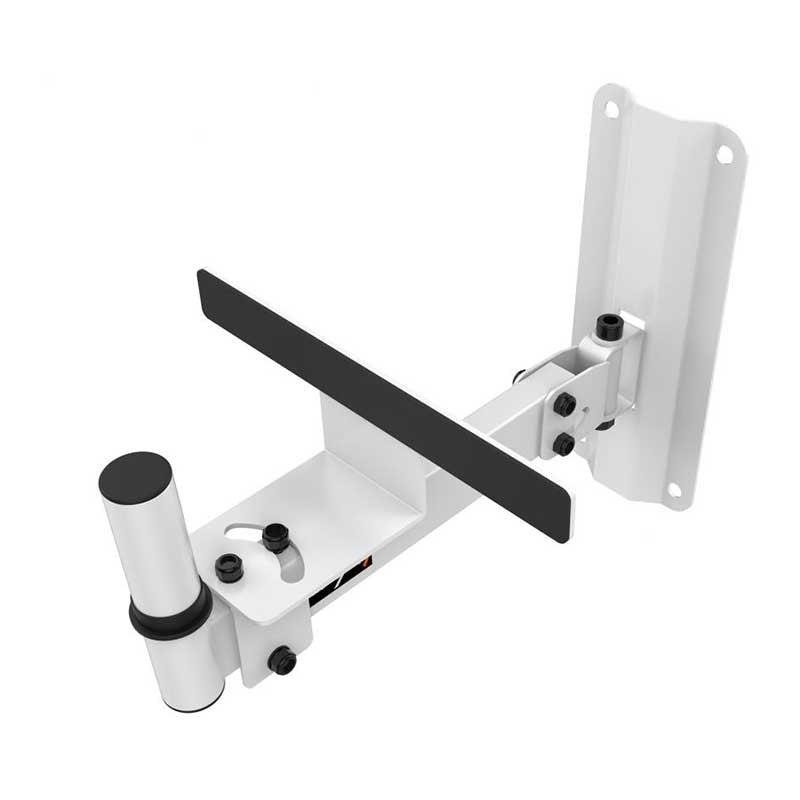

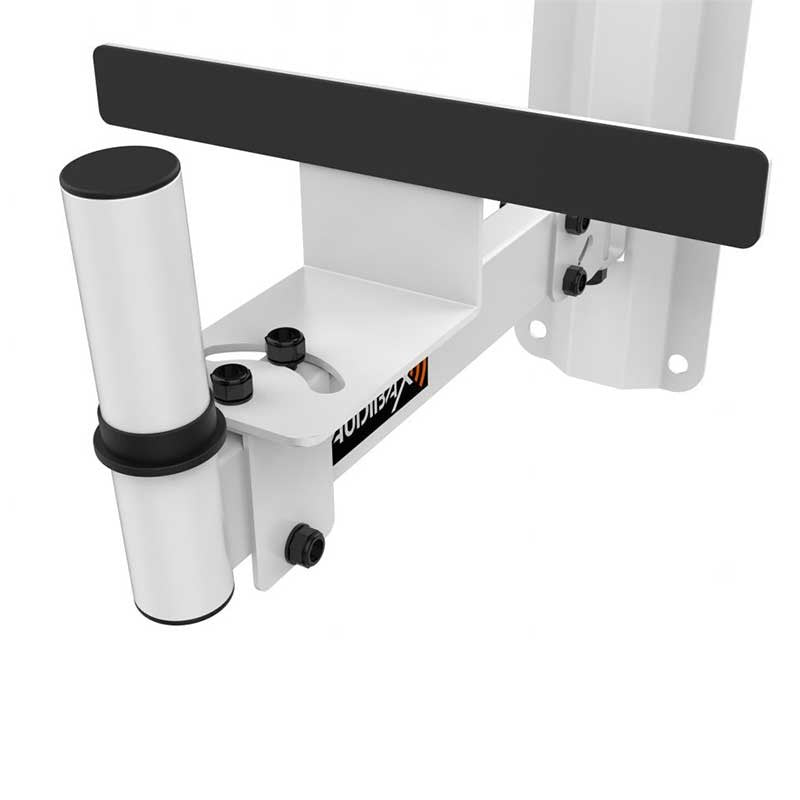

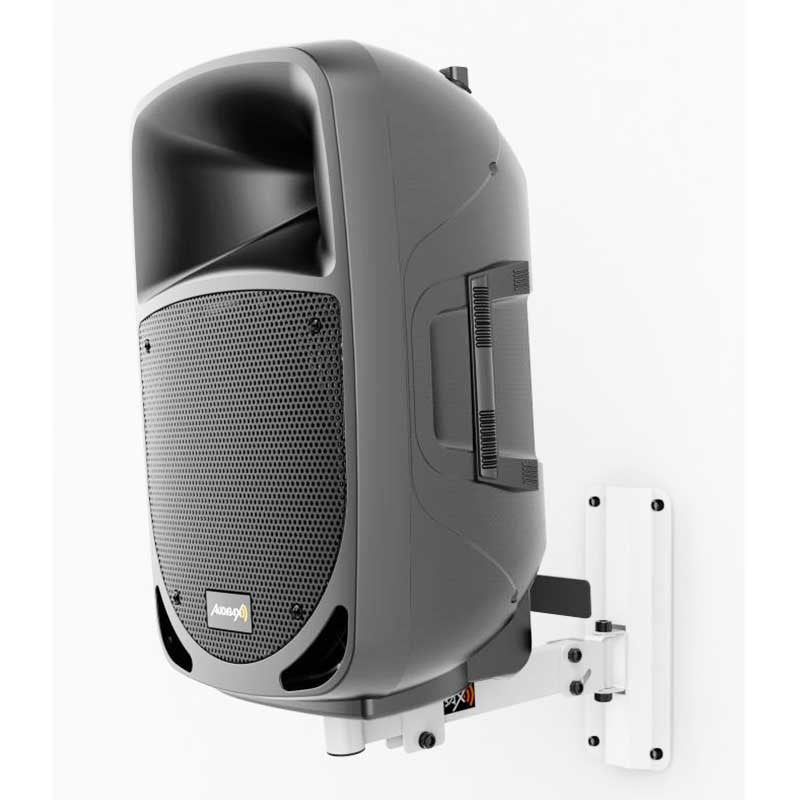

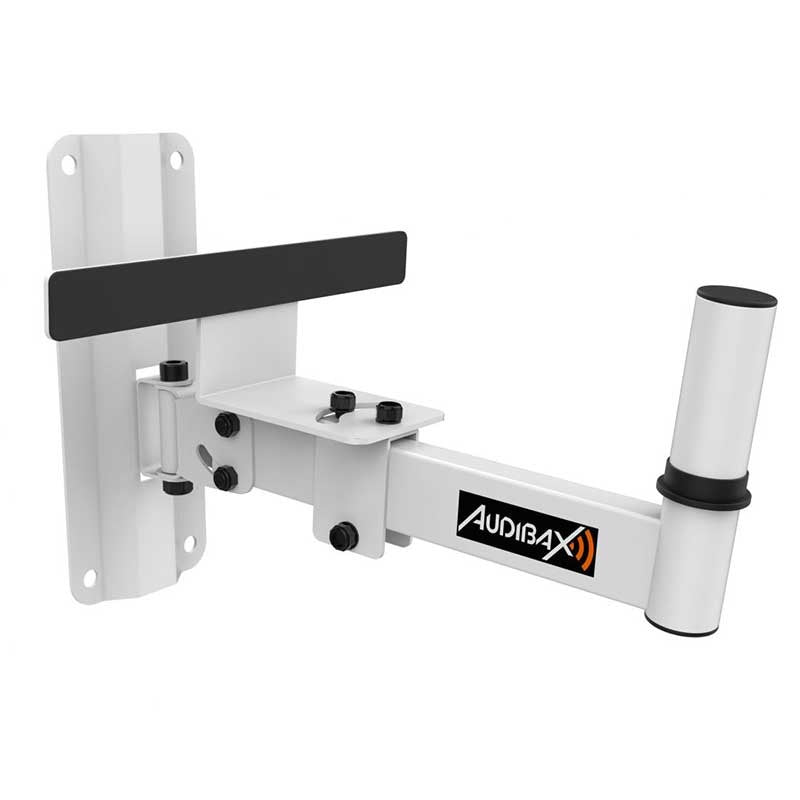

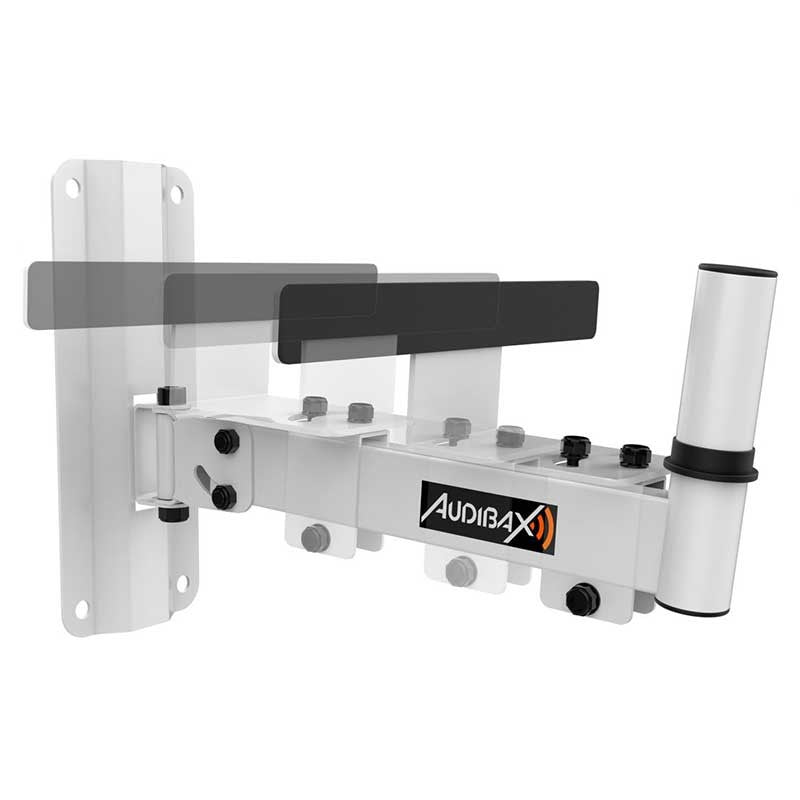

The Audibax Neo 20 White is a professional wall mount for speakers with a standard 35mm pole . Made of steel and finished in white , it offers a load capacity of 35 kg per mount and a complete orientation system that facilitates fine-tuning the coverage. Its design includes adjustable tilt and swivel , as well as a wide mounting plate that distributes the load and a 33 cm distance from the wall to properly separate the speaker from the wall and prevent feedback. It is a robust and discreet solution for permanent installations in halls, bars, gyms, places of worship, classrooms, and event spaces.

Main features

• Universal 35mm compatibility : suitable for speakers with 35mm pole mount.
• Steel construction with a white finish to blend into visible installations.
• Load capacity: 35 kg per support (professional use in fixed installation).

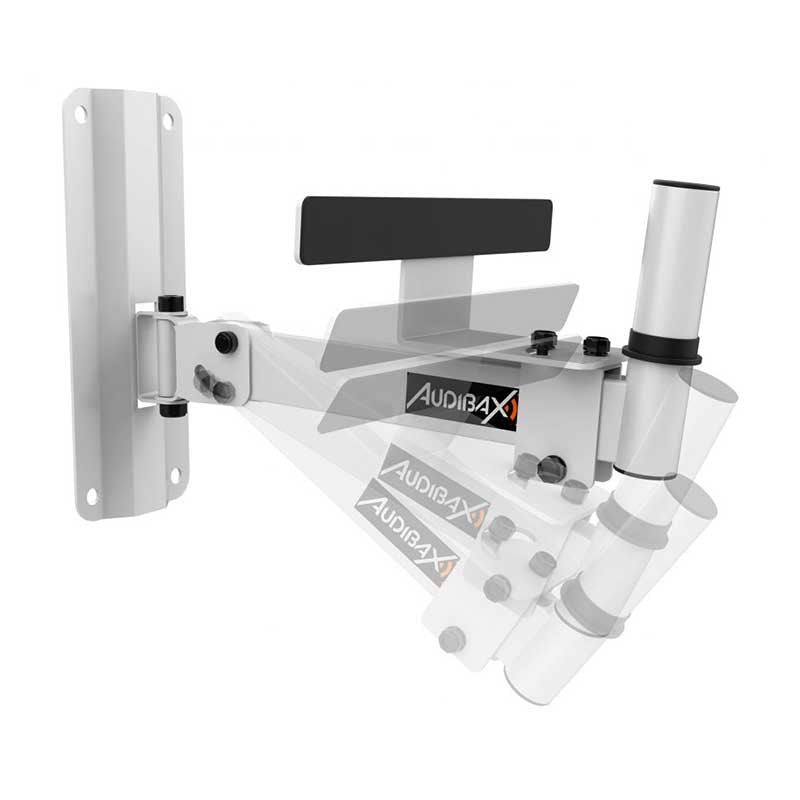

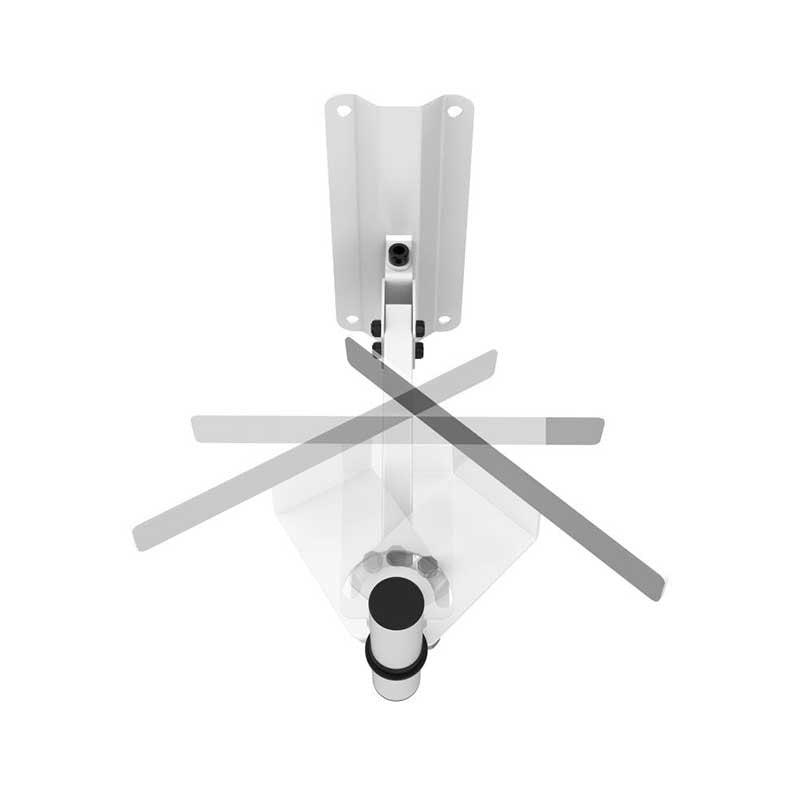

• Movement : Adjustable tilt from 90º to 125º and lateral rotation ±70º to direct the sound where needed.
• Mounting dimensions : 25 × 12.1 cm wall plate and 33 cm distance to wall .
• Price per unit (simple assembly and minimal maintenance).

Product benefits

• Precise coverage orientation : corrects dead spots and minimizes unwanted reflections.
• Clean installation : its white finish and compact design blend into corporate and residential environments.
• Safety and stability thanks to the wide plate and the 33 cm separation that reduces interaction with the wall.
• Versatility : suitable for passive or self-powered speakers that incorporate a 35 mm cone.

Use cases

• Fixed installation in bars, restaurants, hotels, gyms, auditoriums, rehearsal rooms and educational centers.
• Churches and cultural centers need to direct the PA towards the audience without invading the space.
• Multipurpose rooms where quick adjustments of angle and coverage are required.

Frequently Asked Questions

• Does it work for any speaker? Yes, as long as the speaker has a 35mm socket and its weight does not exceed 35 kg .
• Does it include screws and wall plugs? The fixing method depends on the type of wall (brick, concrete, plasterboard). Use anchors certified for the load capacity and consult local regulations.
• Can I point the speaker to the side? Yes, the stand allows ±70º rotation and 90–125º tilt to optimize coverage.
• How far is it from the wall? 33 cm , which helps minimize reflections and facilitates wiring.

Installation recommendations

• Check the actual weight of the speaker and do not exceed the nominal load of 35 kg.
• Use anchors appropriate for the type of wall and tighten the screws to the torque recommended by the fastener manufacturer.
• Adjust the angle with the speaker already installed and perform a static load test after assembly.

Project description

Wall mount for speaker with 35mm steel tube, white finish, 35kg load capacity , 90–125º tilt , ±70º lateral swivel , 25 × 12.1 cm mounting plate , 33 cm distance from wall . For professional use in fixed installations. Price per unit.
