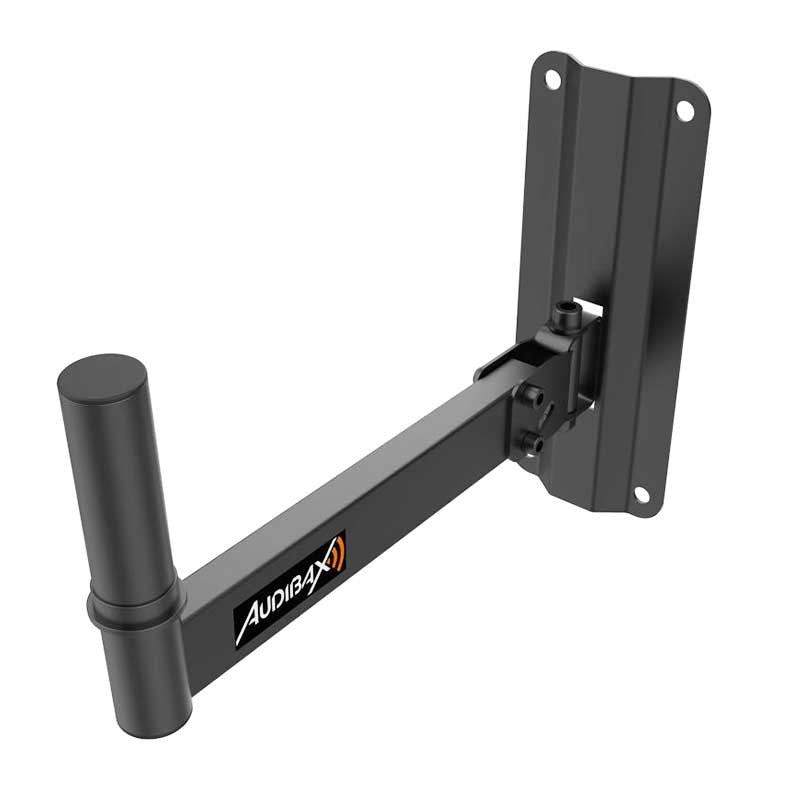

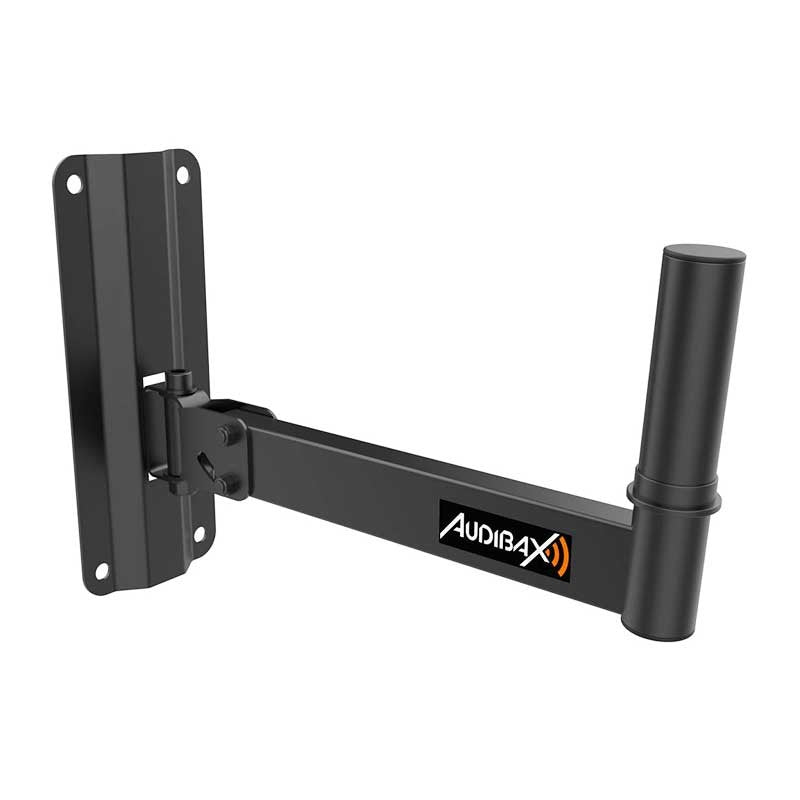

Audibax Neo 40 - Wall Mount Speaker Bracket with 35mm Socket, Tiltable (Pair)

Audibax Neo 40 - Wall Mount Speaker Bracket with 35mm Socket, Tiltable (Pair)

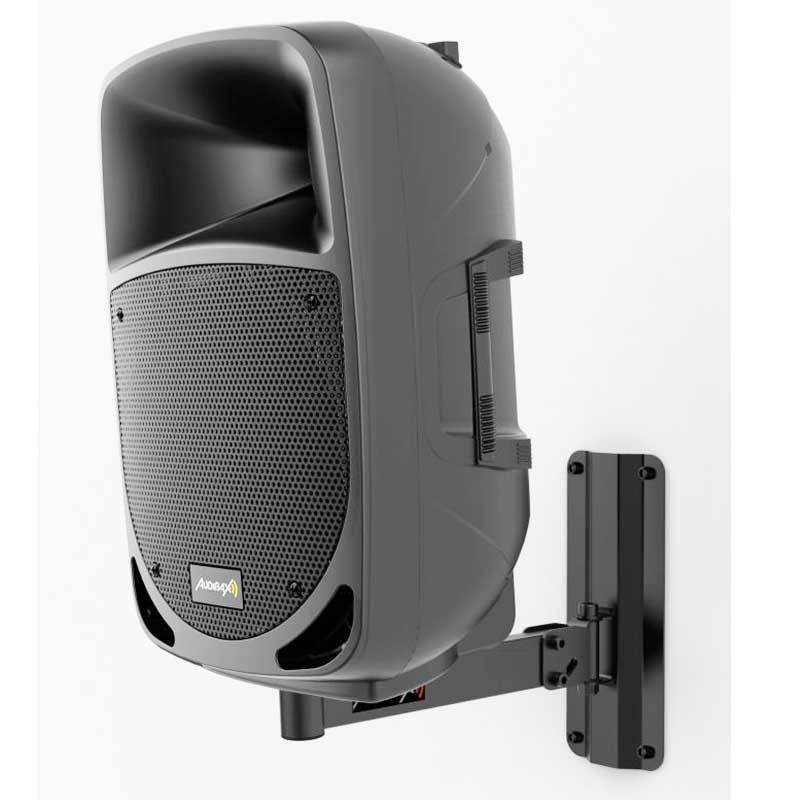

The Audibax Neo 40 is a professional wall mount for speakers with a standard 35mm pole and a steel frame , designed for permanent installations in rehearsal rooms, academies, venues, and rental spaces. It offers a load capacity of 35 kg and a tilt range of 90° to 125° to precisely direct the speaker towards the audience. The 25 cm wall platform and 31 cm distance from the wall ensure a secure fit and a comfortable working angle. It is supplied in pairs to mount two speakers with the same 35mm pole.

Main features

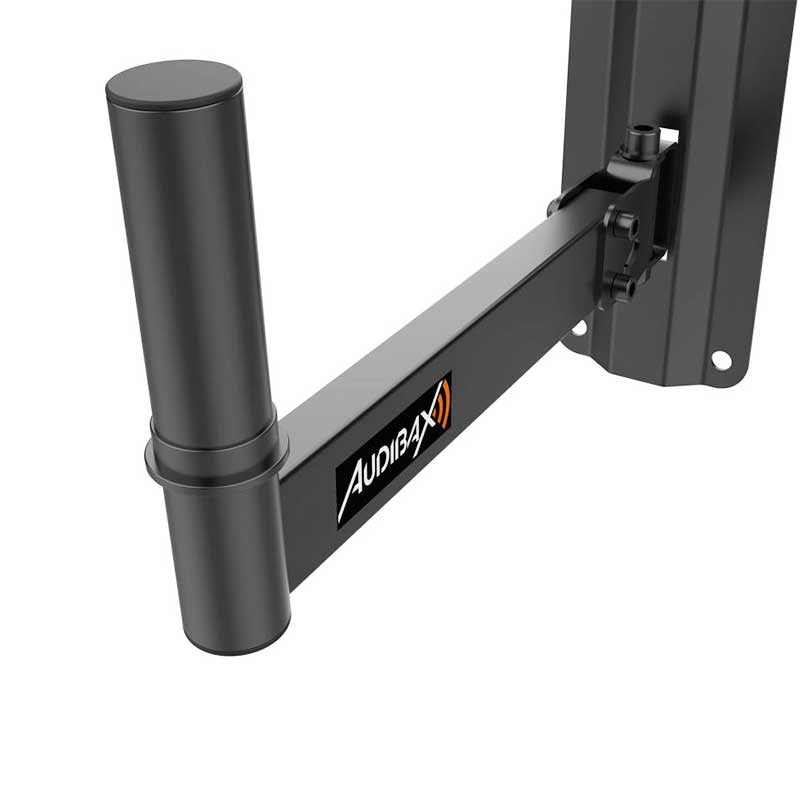

• Universal 35mm socket compatible with most speakers equipped with a "top-hat".
• Steel frame with black finish for maximum rigidity and durability.

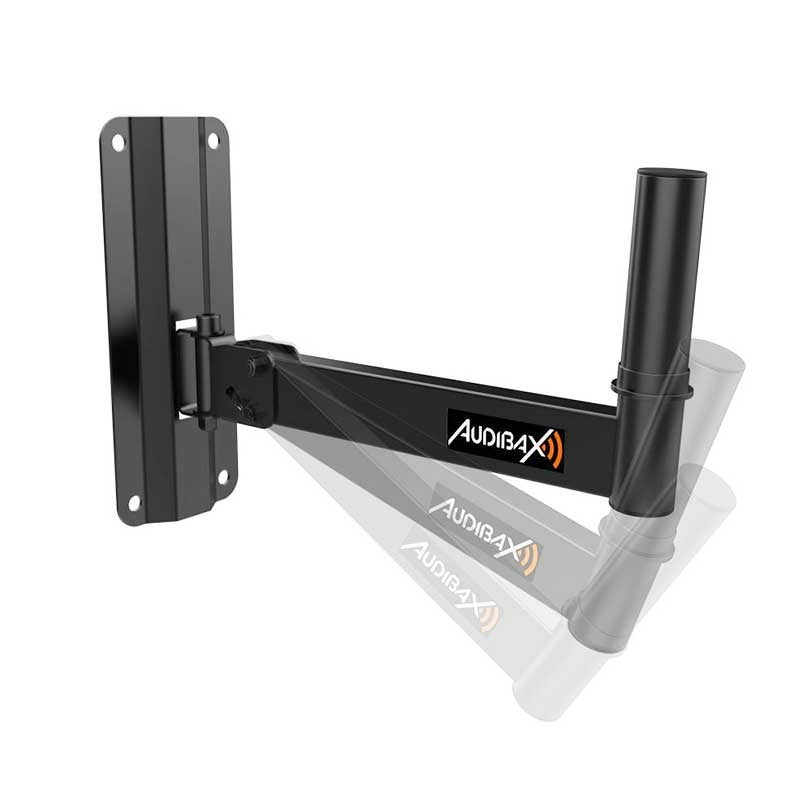

• Adjustable tilt 90°–125° to direct the sound where needed.
• Nominal load capacity 35 kg for passive or active speaker boxes within that weight.
• Wall plate 25 cm and distance to wall 31 cm that optimize anchoring and projection.

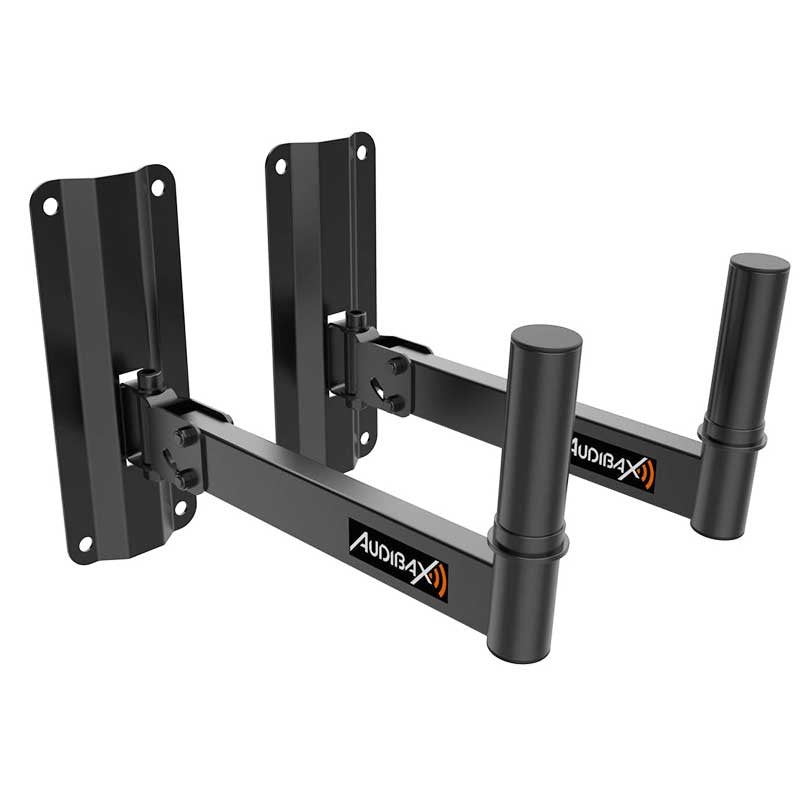

• Sold in pairs for stereo installations or multiple reinforcement points.

Product benefits

• Clean and safe installation : frees up floor space and reduces risks in passage areas.
• Precise orientation : angle adjustment improves coverage and intelligibility in rooms of different geometries.
• Immediate compatibility : the 35mm socket is the most widespread standard in professional speakers.
• Long service life : steel construction and finish resistant to heavy use.

Use cases

• Fixed installations in music bars, academies and gyms.
• Rehearsal rooms and music schools that require stable and adjustable mounting.
• Sound reinforcement in classrooms, conferences and multipurpose spaces.

Frequently Asked Questions

Is it compatible with my speaker?
Yes, provided the speaker has a 35mm socket at the base.

Does it include screws and wall plugs?
The screws and anchors used may vary depending on the type of wall. Use approved screws and anchors suitable for your material (brick, concrete, panel, etc.) and respect the load capacity .

Can I turn it sideways?
The Neo 40 model is designed with adjustable tilt . Lateral rotation is not specified in the technical specifications.

Is it suitable for roofing?
No. It's a wall mount ; it's not intended for ceiling installations.

Installation and recommendations

• Verify that the wall can support the expected load and comply with local regulations.
• Mark the fixing points of the 25 cm plate , drill and anchor with the appropriate screws.
• Mount the speaker in the 35mm socket and adjust the tilt between 90° and 125° .
• Periodically check the tightness and condition of the anchors, especially in high-traffic environments.

Project description

Wall mount for speaker with 35 mm socket; material: steel; color: black; load capacity: 35 kg; adjustable tilt: 90°–125°; wall platform: 25 cm; distance from wall: 31 cm; supply: pair.
