Audibax BAR 252 - 252 x 10mm RGB LED Bar with 8 Segments and DMX Control (36W)

Audibax BAR 252 - 252 x 10mm RGB LED Bar with 8 Segments and DMX Control (36W)

The Audibax BAR 252 is a high-performance RGB LED bar designed to bathe stages, clubs, bars, and event spaces in color. It features 252 10mm LEDs (84 red, 84 green, and 84 blue) distributed across 8 independent segments , enabling dynamic effects and precise transitions. With a 40° beam angle , integrated microphone for music mode, and included IR remote , it offers multiple control options: internal programs, fixed color, and DMX with six channel configurations. Its lightweight yet durable black aluminum chassis incorporates an LED display for quick operation and professional 3-pin XLR DMX and IEC network input/output connections for linking equipment. All of this is housed in a compact 101.5 × 6 × 6 cm form factor and weighing only 1.69 kg , making it ideal for truss mounting, wall installation, or mobile indoor applications.

Main features

• Light source: 252 10mm LEDs (84R/84G/84B) with high uniformity RGB mixing.
• Segmentation: 8 controllable segments for chases, strobes, and simple mappings.
• Control: DMX with 6 modes (2/3/4/7/14/26 channels), automatic programs, active music , static color and IR remote control .
• Optics: 40° aperture for stage wash and backgrounds.

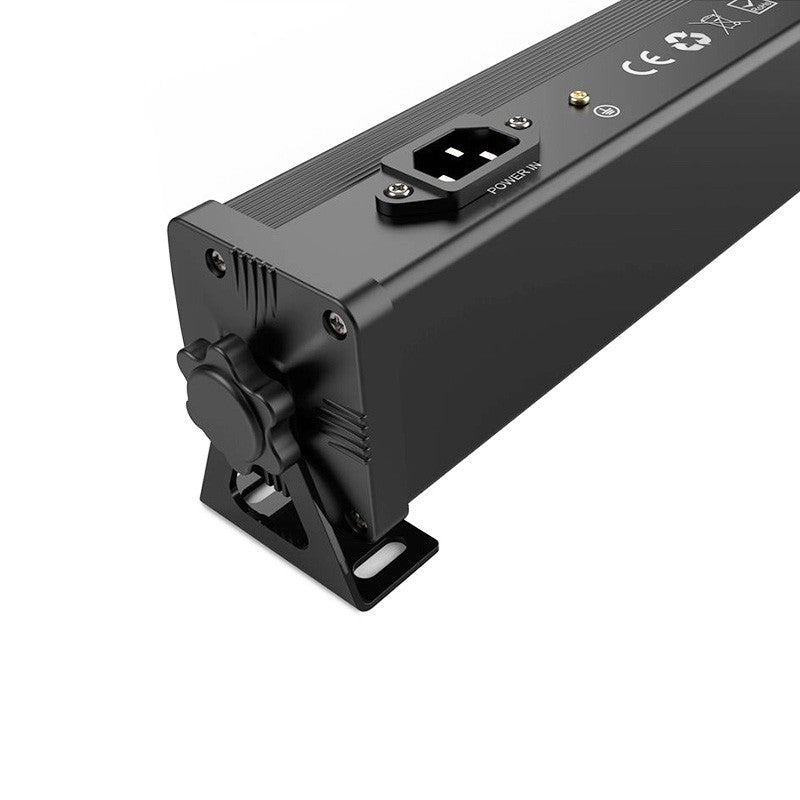

• Professional interface: DMX IN/OUT XLR 3 pin ; IEC IN/OUT for power link.

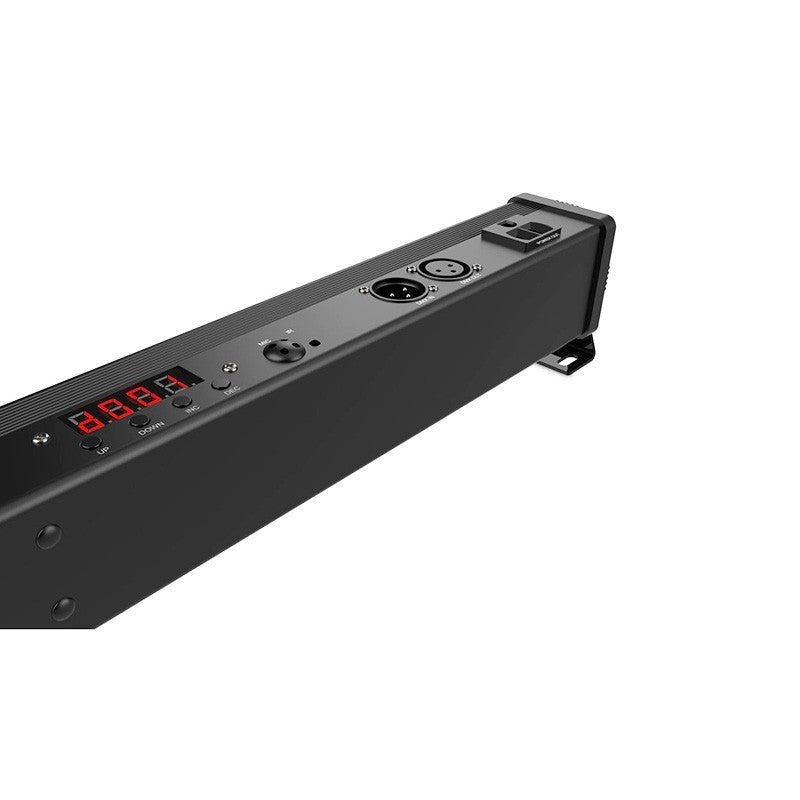

• Simple operation: LED display and keys for addressing and mode selection.
• Construction: black aluminum, lightweight ( 1.69 kg ) and compact ( 101.5 × 6 × 6 cm ).
• Power consumption: 36 W max.; power supply 230 V~ 50/60 Hz .
• Environment: indoor use ( IP20 ), working temperature -20 °C to 45 °C , humidity 0–90%.

Product benefits

• Creative versatility: the 8 independent segments open up possibilities for rhythm effects, sweeps and accents without the need for complex mappings.
• Fast workflow: internal programs, microphone-to-rhythm sound and IR control enable immediate results without a console.
• Professional integration: six DMX modes (up to 26 channels) for integration into programmed and synchronized shows .
• Easy installation: narrow form factor, low weight and network/DMX link that facilitates cabling and in-line grouping.
• Homogeneous lighting: uniform RGB mix and 40° beam ideal for backgrounds, cycloramas, bar counters and wall washers.

Use cases

• Stages and rooms: background wash, soft side blinds, rhythmic effects on truss.
• Clubs and bars: dynamic lines on perimeters, bars, columns or walls.
• Mobile events: quick setups at weddings, trade fairs and corporate events with IR or music control.
• Fixed installations: interior architectural ambiance with reduced consumption (36 W).

Frequently Asked Questions

• Can I control it via DMX? Yes, it has DMX with 2, 3, 4, 7, 14 and 26 channel modes.

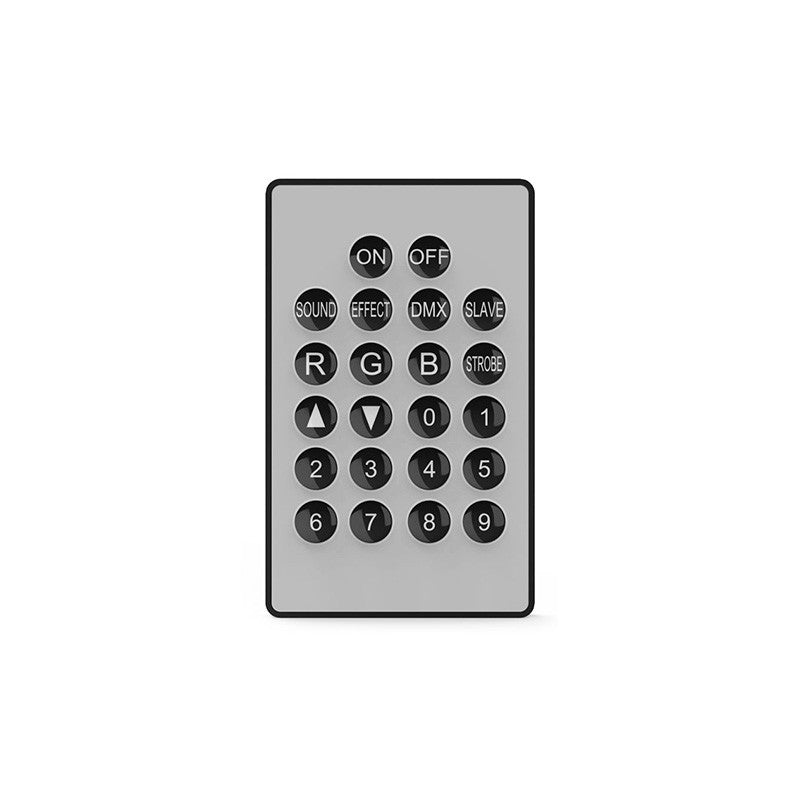

• Does it include a remote control? Yes, an IR remote control is included for basic operation.
• Does it work to the rhythm of the music? Yes, it has a built-in microphone and music mode.
• Is it suitable for outdoor use? No, it's IP20 for indoor use.
• Can multiple units be daisy-chained? Yes, it has DMX IN/OUT and IEC IN/OUT for signal link and power.

Installation and usage tips

• Assign the DMX address from the LED screen and choose the channel mode according to your console and needs.
• For musical effects, adjust the microphone sensitivity according to the sound level of the room.
• Connect power via IEC OUT respecting good online charging practices.
• Use appropriate fastenings (approved clamps/supports) and ensure ventilation during continuous use.

Project description

IP20 indoor RGB LED bar with 252 x 10mm LEDs (84R/84G/84B), 8 segments , 40° beam angle, 36W , DMX 512 control (2/3/4/7/14/26 channel modes), internal programs, music mode, fixed color, IR remote , integrated microphone , DMX XLR 3-pin IN/OUT , IEC IN/OUT , LED display , 230V~ 50/60Hz power supply; dimensions 101.5 × 6 × 6 cm , weight 1.69 kg , operating range -20°C to 45°C , humidity 0–90%; black aluminum finish.
