Audibax 1002 FX USB - 8-Channel Analog Mixing Console with Effects DSP and USB Interface

Audibax 1002 FX USB - 8-Channel Analog Mixing Console with Effects DSP and USB Interface

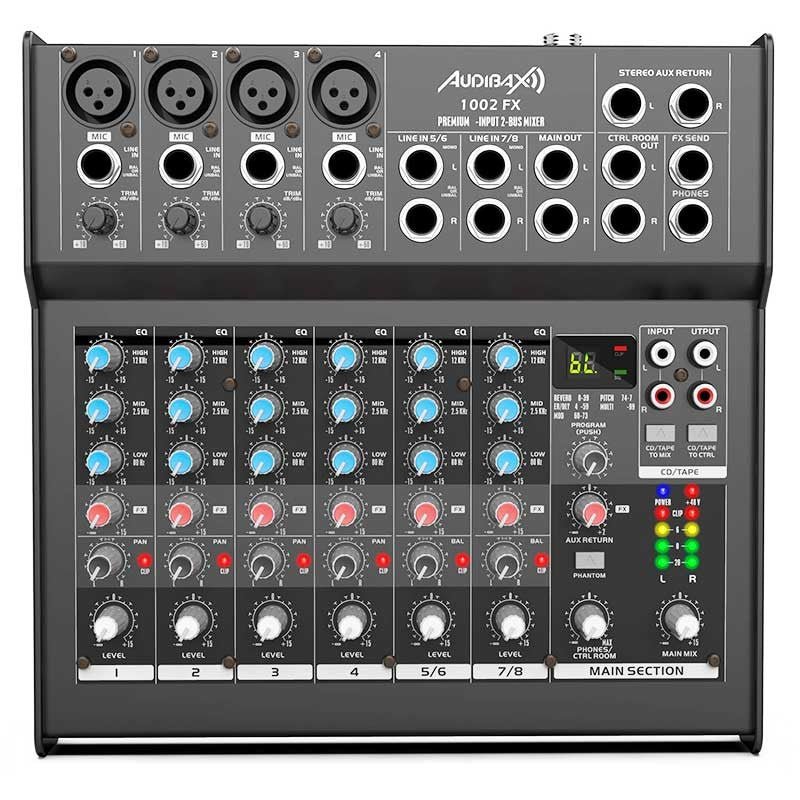

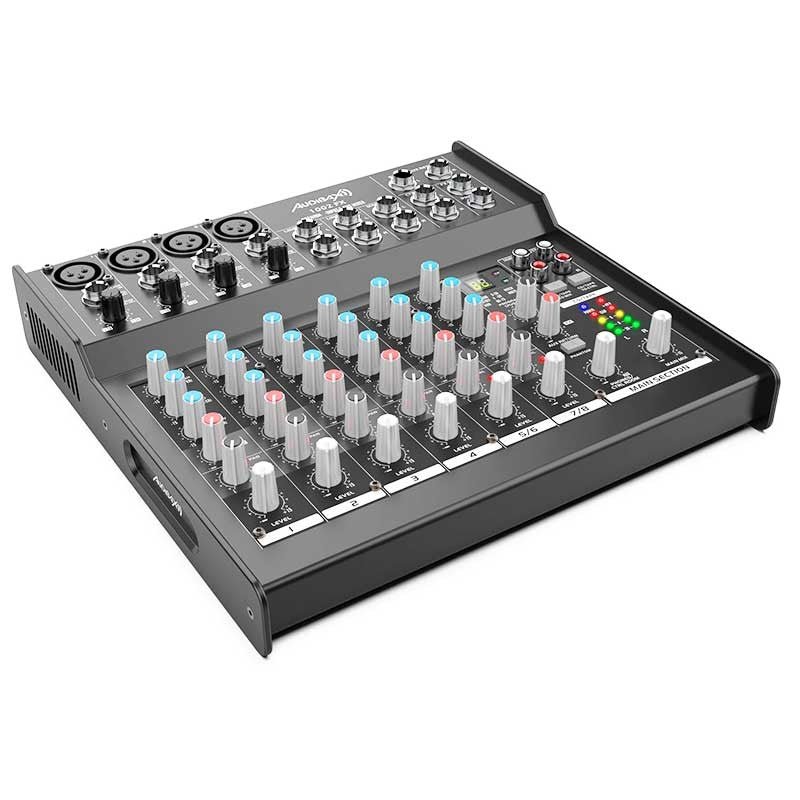

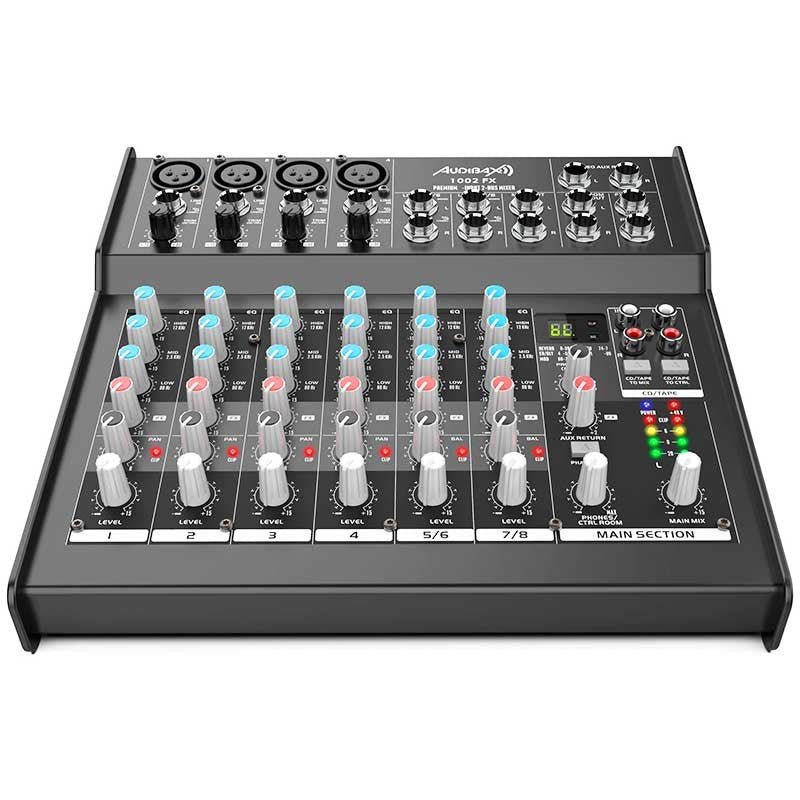

The Audibax 1002 FX USB is a compact analog mixer designed for sound reinforcement, live sound, and content creation. It offers 8 simultaneous channels (4 mono with microphone preamp and switchable 48V phantom power + 2 stereo), an internal 16-effects processor , and a USB interface for sending digital audio to or from a computer. It features 3-band EQ on mono channels and 2-band EQ on stereo channels, AUX and FX sends, PFL function per channel, and main outputs on balanced XLR and 6.35 mm jacks , as well as a Control Room output, RCA REC OUT , and a headphone output.

Main features

• Channels : 8 inputs (4 mono MIC/LINE with low-cut filter + 2 stereo).
• Effects processor : 16 presets ( hall /room/plate/spring reverbs, delay , chorus , flanger , phaser , gated reverb , vocal echo …).

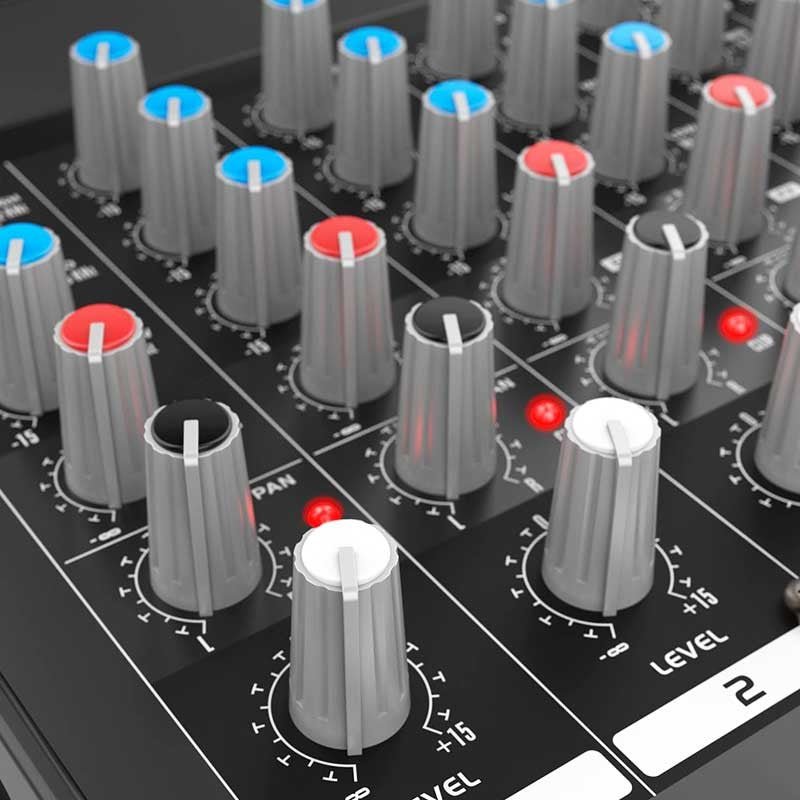

• EQ : 3 bands and panning in mono; 2 bands and balance in stereo.
• USB interface : digital input/output; the send to computer is the sum unaffected by the master faders .
• Connectivity : Main Out L/R in 2 × XLR and 2 × 6.35 mm jack ; Control Room Out L/R; Stereo Phones ; REC IN/OUT via RCA.
• Sends : 1 × AUX per channel (switchable PRE/POST ) and 1 × FX per channel; AUX SEND and FX SEND outputs.
• PFL with LED per channel for pre-listening and gain adjustment.
• +48V global phantom power for condenser microphones.
• Connector for pedal (not included) that allows you to activate/deactivate the internal effects.

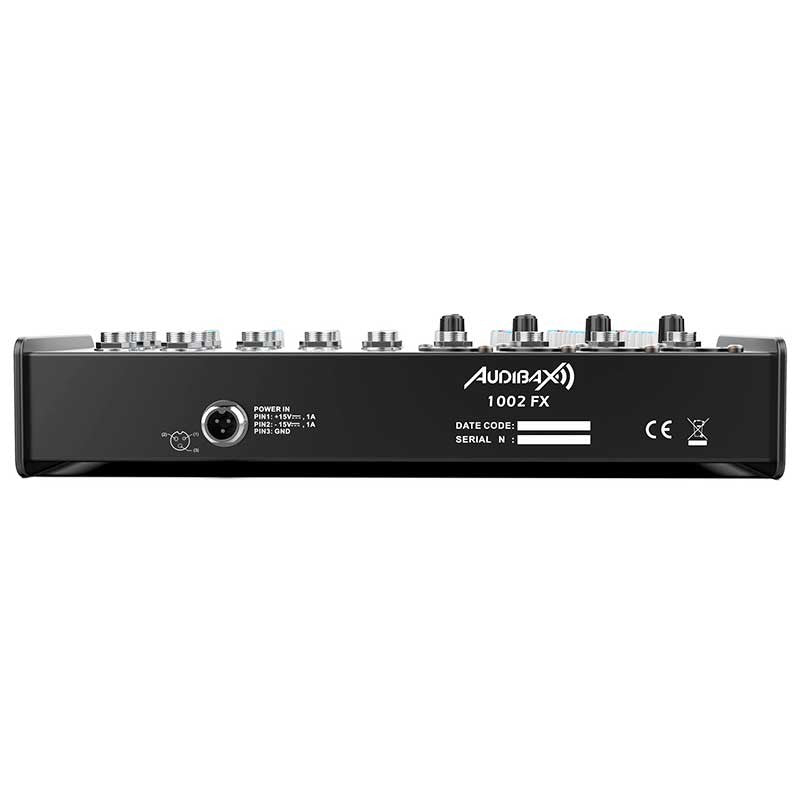

• Integrated power supply ; approx. 40W consumption.
• Dimensions : 265 × 100 × 340 mm; weight : 3.85 kg.

Product benefits

• All-in-one : analog mixer with sends, effects and USB for recording or streaming without additional equipment.
• Agile workflow : Per-channel PFL, dedicated meters and EQ for quick level and tone adjustments.
• Full connectivity : main outputs on XLR/Jack, independent Control Room and 2-Track RCA for playback/recording.
• Versatility : from a small gig to classrooms, churches, rehearsals, mobile DJ or podcasts with multiple microphones.

Use cases

• Direct and sound reinforcement with 2-4 microphones plus keyboards, backing tracks or RCA/USB player.
• Corporate and educational events : voice microphones + background music with easy control from the Control Room.
• Streaming and light recording : USB transmission of the master sum to the computer for broadcasting or capturing audio.

Frequently Asked Questions

• Is it an 8-channel or a 10-channel mixer? The official manual defines the 1002 FX USB as an 8-channel mixer (4 mono + 2 stereo). Some listings refer to it as "10 channels" because they count the USB/2-Track return as an additional stereo channel, but functionally it has 8 simultaneous inputs.
• Is the USB output affected by the master faders? No; the digital send corresponds to the sum not affected by the master faders .
• What effects does it include? 16 presets including reverbs, delays and modulations, with parameter control and return to mix .
• Does it have phantom power? Yes, +48V globally switchable on the microphone channels.

Featured connections

• Inputs : 4 × MIC/LINE (XLR/6.35 mm Jack) and 2 × stereo via 6.35 mm Jack; 2-Track via RCA; LINE/USB selection on stereo channel.
• Outputs : Main Out L/R on XLR and Jack ; Control Room Out L/R; REC OUT via RCA; Stereo Phones .

Project description

8-channel analog mixer (4 mono MIC/LINE with low-cut + 2 stereo), EQ: 3 bands in mono and 2 bands in stereo; 1 AUX and 1 FX per channel (AUX switchable PRE/POST); internal 16-effects processor; PFL per channel; Main L/R outputs in 2 × XLR and 2 × 6.35 mm Jack; Control Room L/R; REC IN/OUT RCA; USB I/O (sum unaffected by master); global +48 V phantom power; FX on/off pedal input; internal power supply; dimensions 265 × 100 × 340 mm; weight 3.85 kg.
