Audibax BSAP10 - Parallel Speaker Cable 1.5 mm² OFC (Silver Series, transparent, 20 m)

Audibax BSAP10 - Parallel Speaker Cable 1.5 mm² OFC (Silver Series, transparent, 20 m)

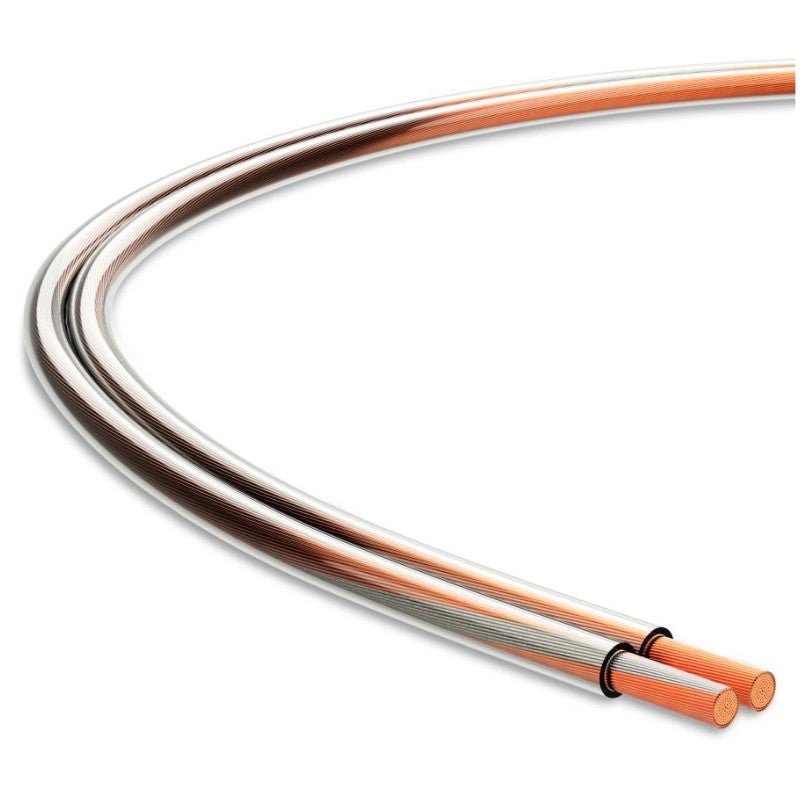

The Audibax BSAP10 belongs to the Silver Series of high-conductivity parallel speaker cables. It is made with oxygen-free copper (OFC) and has a cross-section of 1.5 mm² per conductor to minimize losses and maintain clean transmission between the amplifier and speaker. Its PVC jacket is flexible and durable, with a total diameter of 7.0 mm (two parallel conductors) and a transparent finish for easy wire identification. A useful feature is that one of the conductors incorporates tinned wires to differentiate polarity during assembly.
Note: the model is sold by lengths; this sheet is written according to the characteristics provided for the 20 m coil (commercial equivalent BSAP20 ), with the same electrical and construction specifications as the 10 m version.

Main features

• OFC 1.5 mm² construction: oxygen-free copper for low resistance and higher fidelity in typical installation paths.
• Braided structure 140 × 0.12 mm: high flexibility and durability when coiled, passing through channels or mobile racks.

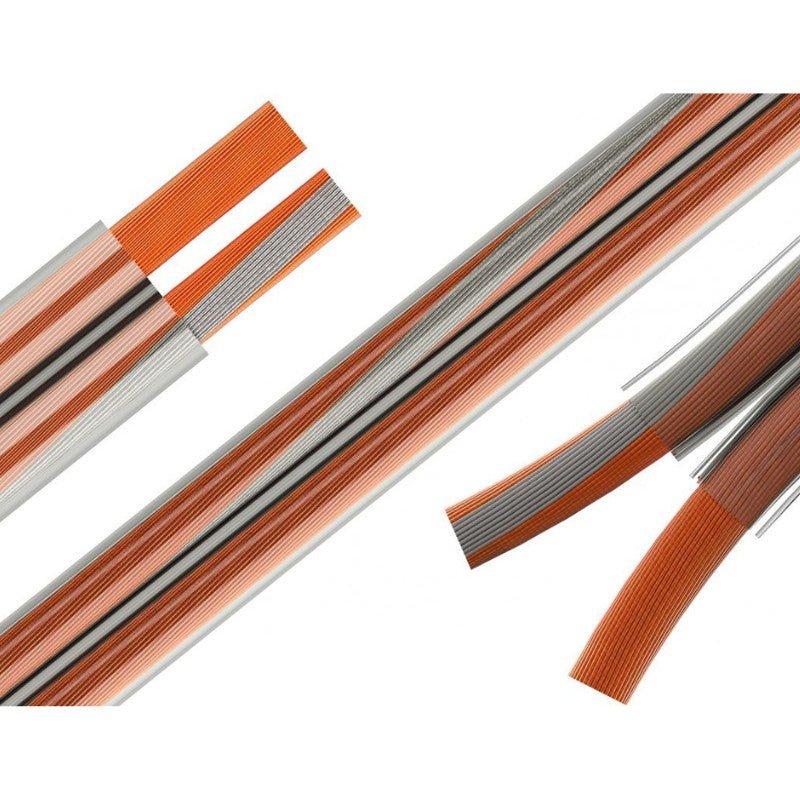

• Quick polarity identification: one of the wires integrates tinned wires to distinguish +/− instantly.
• 2-conductor parallel format: universal mounting in speaker cabinets, power amplifiers and PA systems.
• Flexible PVC cover: easy handling and reduced bending radius; suitable for -20°C to +70°C .
• Transparent finish Silver Series: visual verification of the braiding and neutral aesthetics for discreet installations.
• Total diameter 7.0 mm: balance between robustness and ease of laying.

Product benefits

• Consistent sound: the 1.5 mm² section helps reduce voltage drops and maintains system response.
• Faster and safer installation: polarity differentiation by tinned wire to avoid phase errors.
• Long service life: fine braiding and durable PVC that withstand intensive use in rental and frequent assembly/disassembly.
• Versatility: suitable for backline , fixed installations in bars/clubs, event halls, schools and small PA systems.

Use cases

• Amplifier-speaker connection in passive two-way systems and stage monitors.
• Discreet installations in channels or wall penetrations where visual identification of wires is required.
• Rental services with cables that need to be wound up and unwound daily.

Frequently Asked Questions

• Does it work for any passive speaker? Yes, it's a 2-conductor parallel speaker wire.
• Can I use it for a microphone or balanced signal? No, it's a speaker cable ; for microphone or line input, use specific balanced cables.
• How do I identify the polarity? The conductor with tinned wires serves as a reference to mark the same pole at both ends.
• Is it suitable for indoor use? Yes, the PVC cover is flexible and withstands temperatures from -20°C to +70°C .

Project description

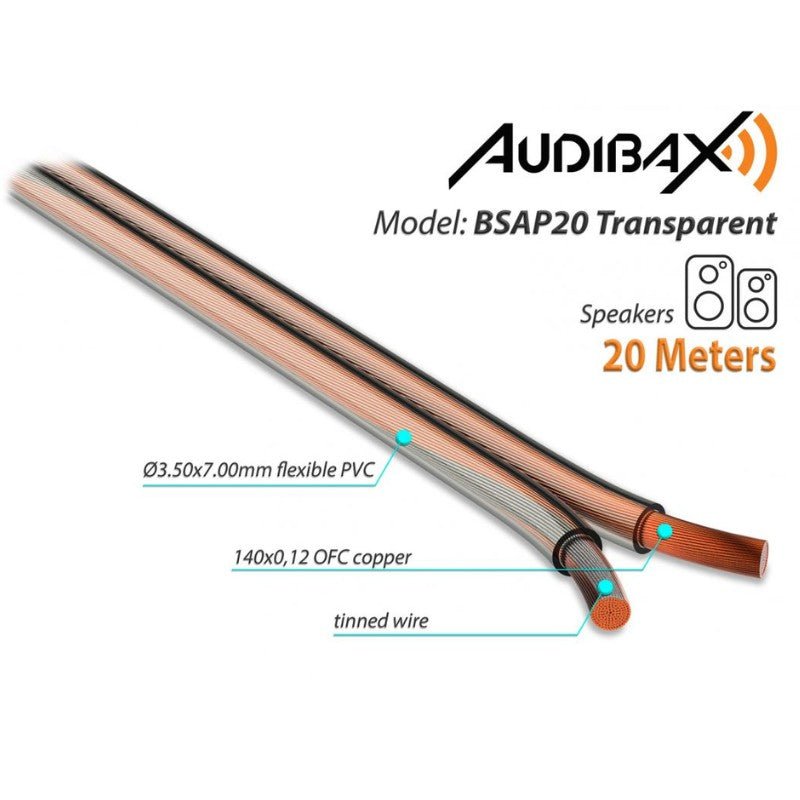

Silver Series parallel speaker cable with 2 OFC copper conductors, 1.5 mm² cross-section per conductor, 140 × 0.12 mm braiding, 20 m length , 7.0 mm total diameter , polarity identification by means of tinned wires , flexible PVC cover , working temperature -20 ºC to +70 ºC , transparent finish.
