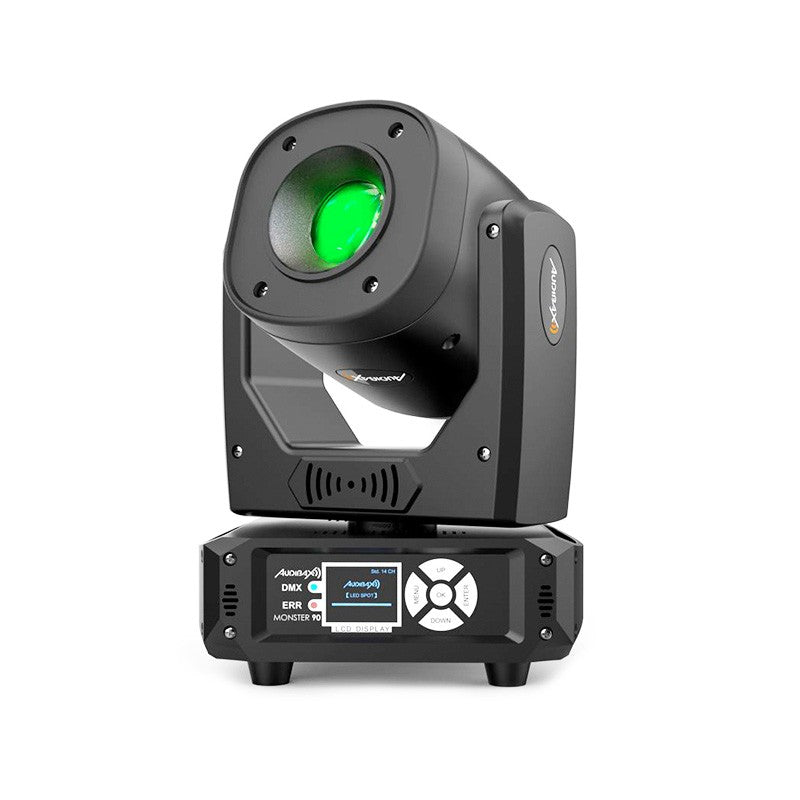

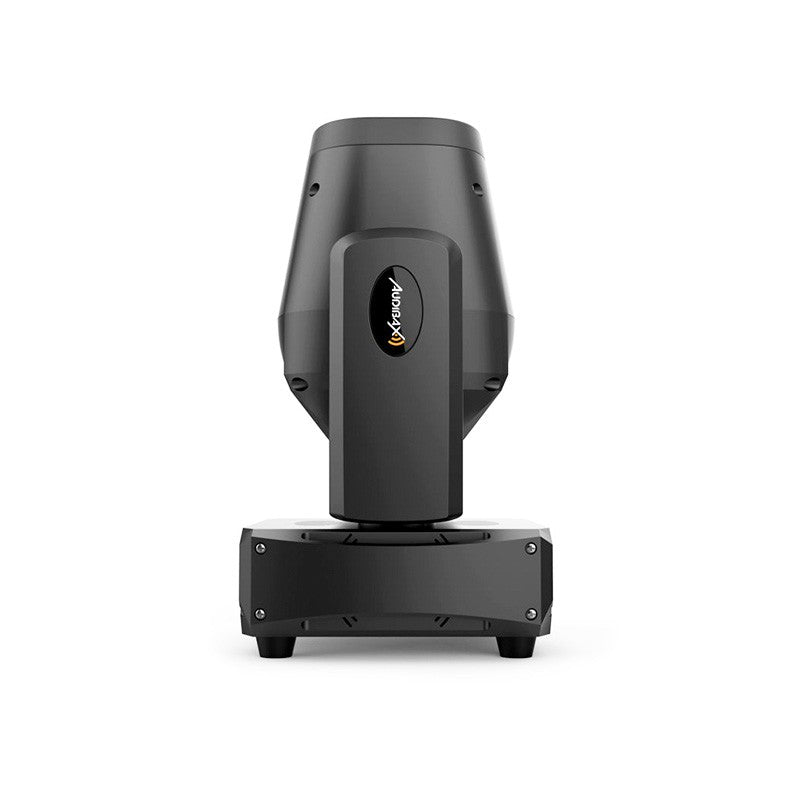

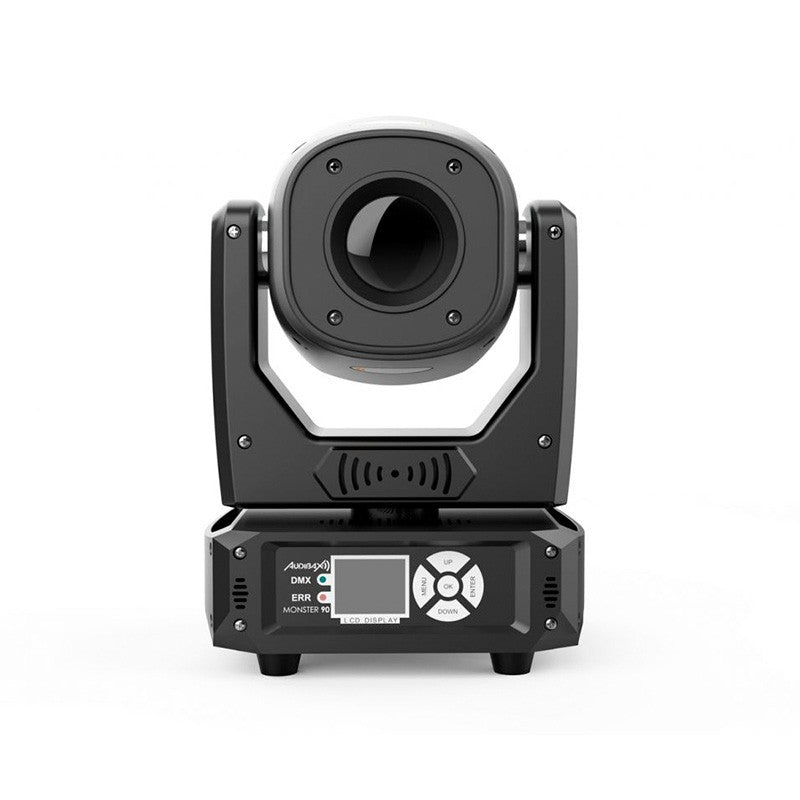

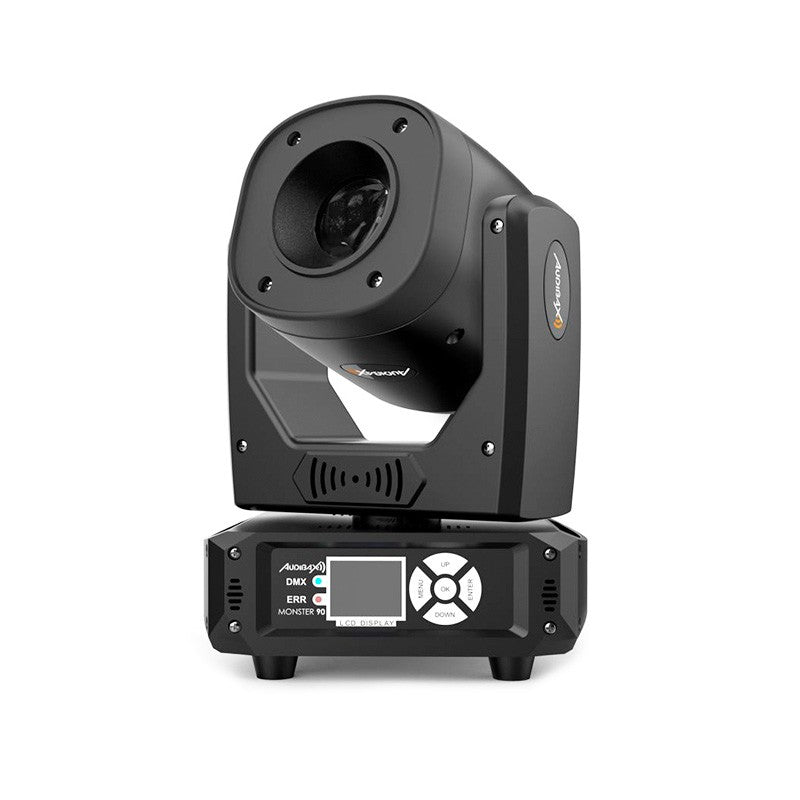

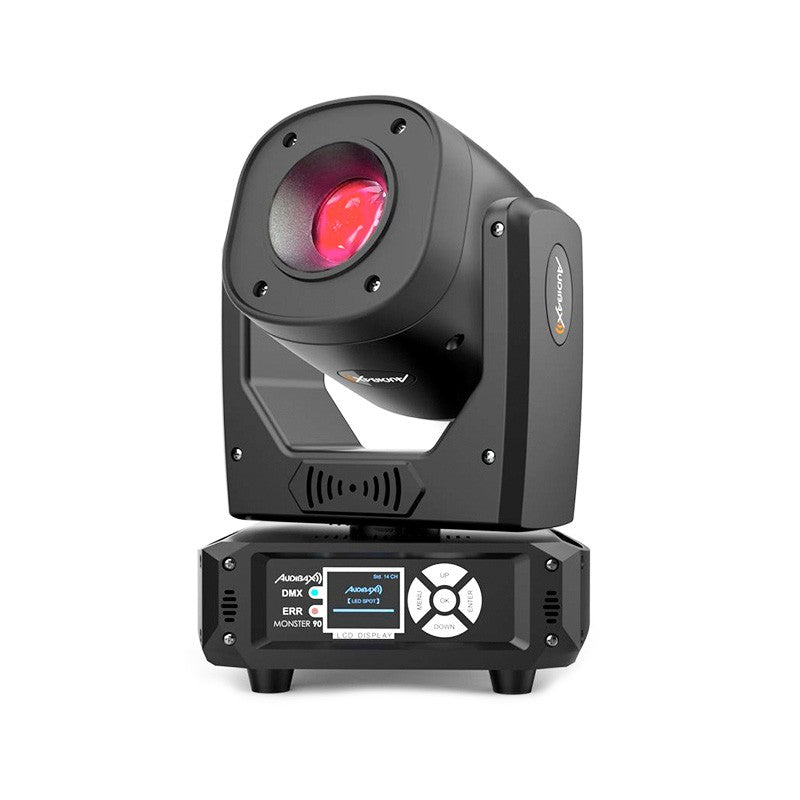

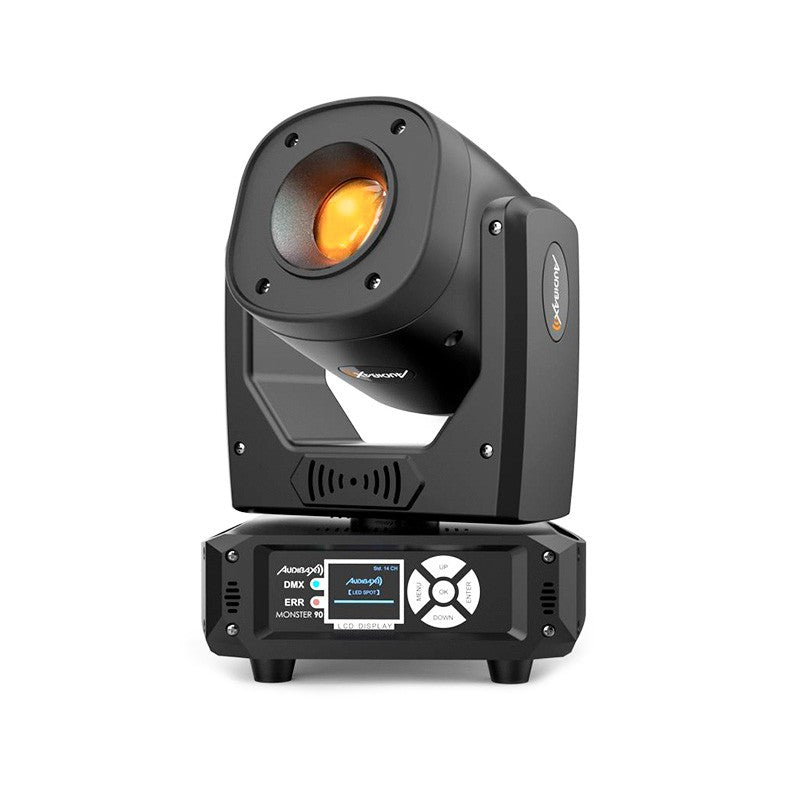

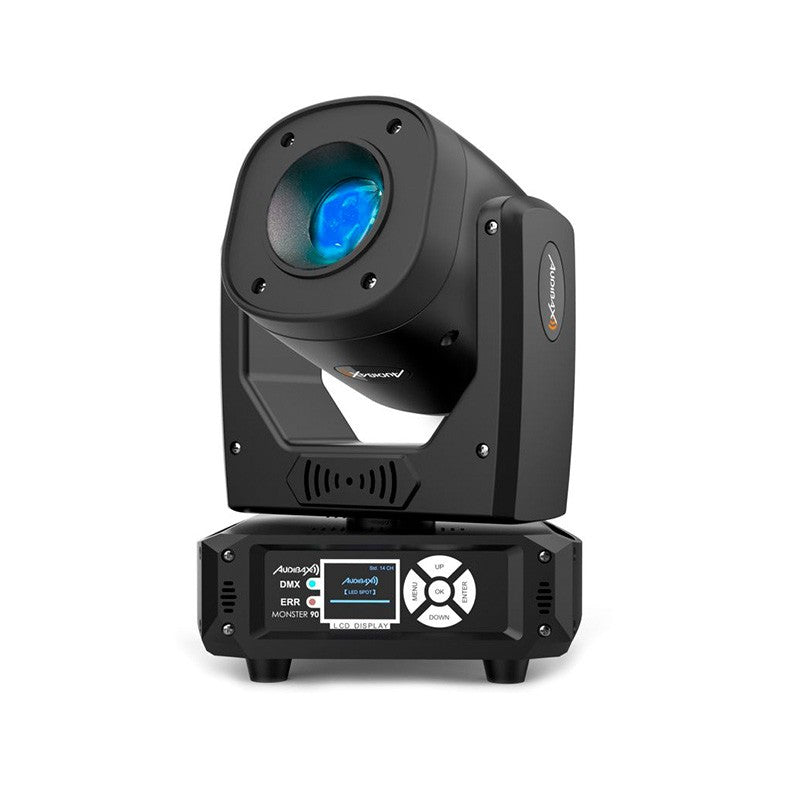

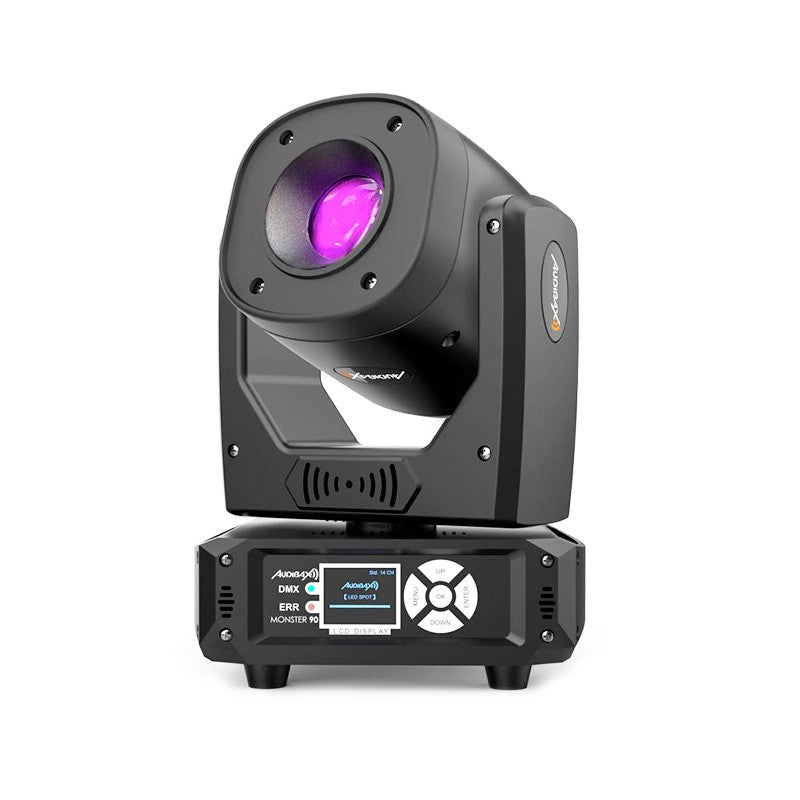

Audibax Monster 90 - 80W LED Moving Head Spot with Motorized Zoom, Rotating Gobos and 3-Sided Prism

Audibax Monster 90 - 80W LED Moving Head Spot with Motorized Zoom, Rotating Gobos and 3-Sided Prism

The Audibax Monster 90 is a high-performance 80W LED moving head spotlight designed for professional events and rentals. It combines a 20°–25° motorized zoom with motorized focus , two gobo wheels (one fixed and one rotating and indexable), and a 3-sided circular prism to multiply effects. Its color wheel offers 8 colors plus white , and the LED color temperature is approximately 6500K , resulting in sharp and bright projections.

For control, it features DMX-512 with 14 channels (dimmer, strobe, pan/tilt with fine adjustment, color, gobos, gobo rotation, prism, spotlight, control/reset, and movement speed), as well as Auto , Sound , and Master-Slave modes. Movement is fast and precise with 540° pan/270° tilt and 8/16-bit resolution. Connectivity is via 3-pin XLR , and its maximum power consumption is 200W , with AC 90–240V, 50/60Hz . In a compact and lightweight format (35 × 24 × 20 cm; 5.8 kg), it is ideal for weddings, pubs, mobile discos, stages, and corporate events .

Main features

• Light source: 80W white LED (≈ 6500K) with intense and sharp projection.
• Optics: 20º–25º motorized zoom and motorized focus for sharpness at different distances.
• Effects: two gobo wheels (7 fixed + open; 6 rotating/indexable + open) and 3-sided circular prism with rotation .
• Color: wheel with 8 colors + white for color transitions and divisions.
• Movement: Pan 540° / Tilt 270° with 8/16 bit resolution for fast and precise sweeps.
• Control: 14-channel DMX-512, Auto, Sound and Master-Slave.

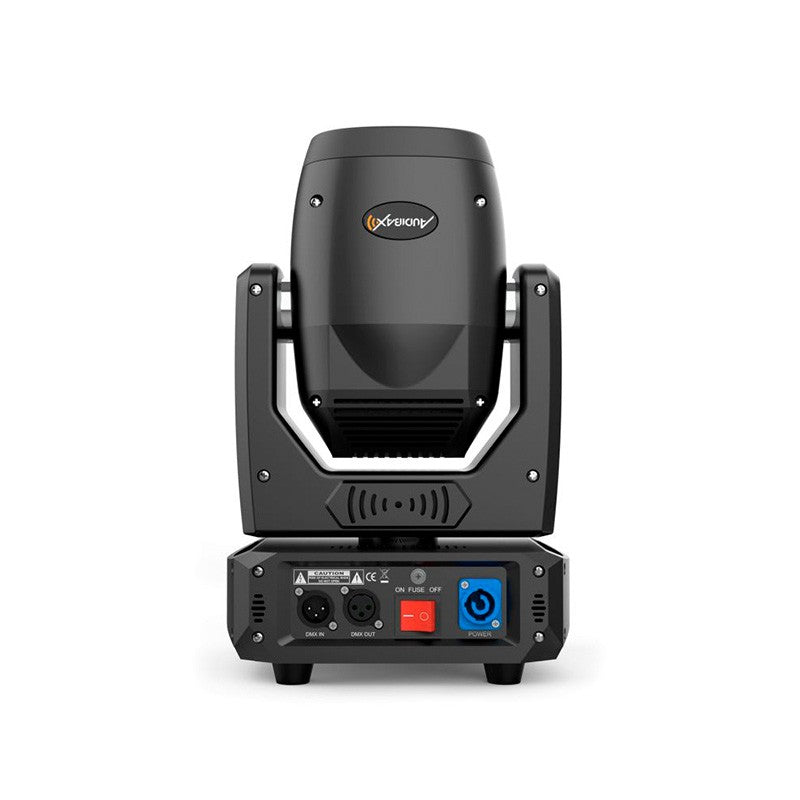

• Connectivity: 3-pin XLR for DMX signal.
• Power supply: AC 90–240 V, 50/60 Hz; max. consumption 200 W.
• Construction: black casing with compact format (35 × 24 × 20 cm) and 5.8 kg .
• Indoor use: IP20 commercial rating.

Product benefits

• Creativity without limits: combination of fixed, rotating and indexable gobos with 3-sided prism for textures and multiple beams.
• Quick setup: Auto/Sound and Master-Slave modes for console-free operation; 14-channel DMX-512 for detailed programming.
• Consistent projection: motorized focus and zoom that keep gobos defined at different distances.
• Professional movements: 540°/270° pan/tilt with 8/16 bit for smooth and precise effects in shows and dance floors.
• Portability: compact dimensions and low weight for quick transport and assembly.

Use cases

• Weddings and social events: defined beams with prisms and gobos that enhance dance floors and stages.
• Clubs and pubs: intense colorimetry and rapid changes to the rhythm of the music.
• Rental and production companies: versatile head for mobile lighting packs.
• Corporate events and light theater: smooth transitions, precise focus and controlled coverage.

Frequently Asked Questions

• How many DMX channels does it have? 14 channels with control of dimmer, strobe, pan/tilt (and fine adjustment), color, gobos, gobo rotation, prism, focus and control/reset functions.
• What is the range of motion? Pan 540° and Tilt 270° with 8/16 bit resolution.
• Does it include a DMX cable? Yes, the package contents specify a signal cable along with the power cable and user manual.
• LED color temperature? Approximately 6500 K (cool white).
• Can it be used outdoors? No, it's for indoor use (IP20).

DMX Modes and Control

It features DMX-512 with 14 channels . Typical assignment: CH1 Dimmer , CH2 Strobe , CH3 Pan , CH4 Tilt , CH5 Pan/Tilt Speed , CH6 Color Wheel , CH7 Fixed Gobo , CH8 Rotating Gobo , CH9 Gobo Rotation , CH10 Prism , CH11 Spotlight , CH12 Fine Pan , CH13 Fine Tilt , CH14 Control/Reset .

Package contents

• 1 × Audibax Monster 90 Moving Head
• 1 × Power cable
• 1 × Signal cable (DMX)
• 1 × User Manual

Project description

80W LED moving head spotlight for indoor use; color temperature ≈ 6500K; motorized zoom 20º–25º; motorized focus; 1 color wheel (8 colors + white); 2 gobo wheels (7 fixed + open; 6 rotating/indexable + open); 3-sided rotating circular prism; Pan 540° / Tilt 270° movement (8/16 bit resolution); DMX-512 control (14 channels) and Auto/Sound/Master-Slave modes; 3-pin XLR connectivity; AC power supply 90–240V 50/60Hz; power consumption 200W; dimensions 35 × 24 × 20 cm; weight 5.8 kg; IP20.
