Audibax KA08 - 8" 70W 2-way 8Ω White Recessed Ceiling Speaker

Audibax KA08 - 8" 70W 2-way 8Ω White Recessed Ceiling Speaker

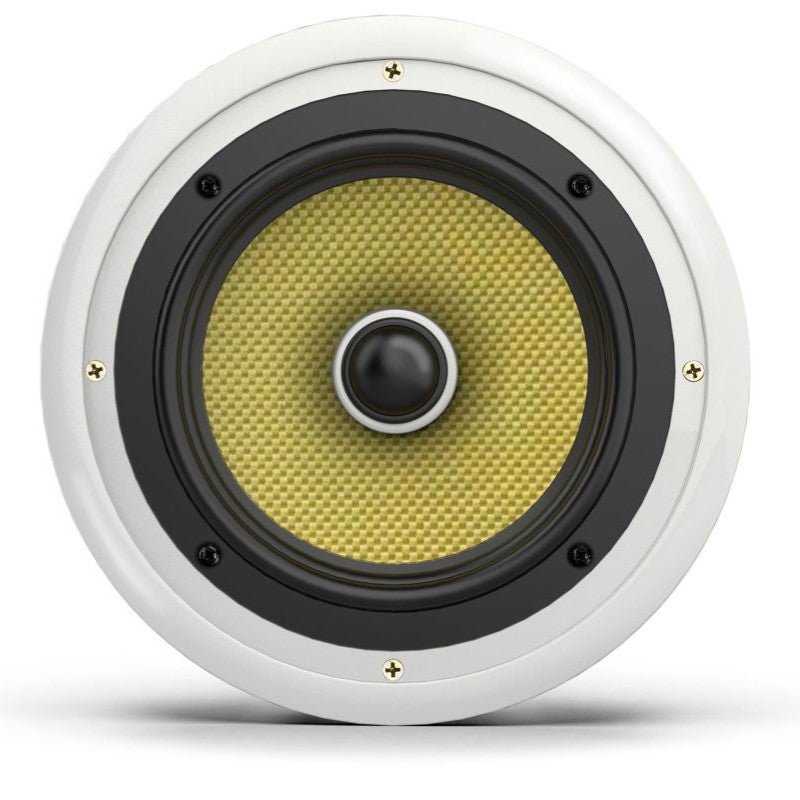

The Audibax KA08 is a round, recessed, passive ceiling speaker that combines an 8-inch woofer with a 2.5 cm tweeter to deliver a balanced and reliable 2-way system for ambient audio installations. Its 8 Ω impedance makes it compatible with most low-impedance amplifiers for commercial or residential installations. With an outer diameter of 28 cm , a cutout diameter of 25 cm , and a depth of 9.2 cm , it fits easily into standard suspended ceilings. The white-finished metal grille blends discreetly into restaurants, hotels, classrooms, shops, or meeting rooms.

The ABS construction with a metal grille prioritizes durability and a clean aesthetic, while its nominal sensitivity of 88 dB and frequency response of 50 Hz–20 kHz ensure clear sound for background music and speech. Its quick assembly and straightforward setup simplify retail , hospitality, and home audio projects, reducing installation and maintenance time.

Main features

• 2-way format: 8" woofer + 2.5cm tweeter for balanced music and voice reproduction.
• Easy recessed installation: 25 cm cutout and 9.2 cm depth; discreet design with white grille.
• Wide compatibility: 8 Ω , 70 W passive speaker for low impedance amplifiers commonly found in installations.
• Robust construction: ABS body and metal grid for greater resistance in daily use.
• Consistent performance: 88 dB sensitivity and 50 Hz–20 kHz bandwidth for ambient music and announcements.
• Aesthetic integration: white finish and low profile that blends in with ceilings in offices, shops and homes.
• Indoor use: IP20 protection rating suitable for dry indoor spaces.

Benefits for the user

• Homogeneous sound: the 8" cone offers body in bass and the tweeter provides definition in the voice, ideal for clear messages and pleasant music.
• Less construction time: standardized dimensions and recessed fixing speed up serial installation.
• Discreet aesthetics: a white grille that goes unnoticed and maintains the visual uniformity of the ceiling.
• Versatility of application: suitable for retail , hospitality, classrooms, offices, waiting rooms and homes.

Use cases

• Background music and announcements in restaurants, cafes and hotels.
• Voice reinforcement and multimedia content in classrooms and meeting rooms.
• Sound distributed in shops, galleries and common areas of buildings.
• Residential multi-room ceiling audio installations.

Frequently Asked Questions

• Does it need a power amplifier? Yes, it's an 8 Ω passive speaker; it must be connected to a suitable low-impedance amplifier.
• Is it suitable for outdoor or humid areas? No, its IP20 rating makes it suitable for dry indoor use.
• Is it compatible with 100V lines? This model is designed for 8 Ω. For 70/100V systems, it's best to use models with a transformer.

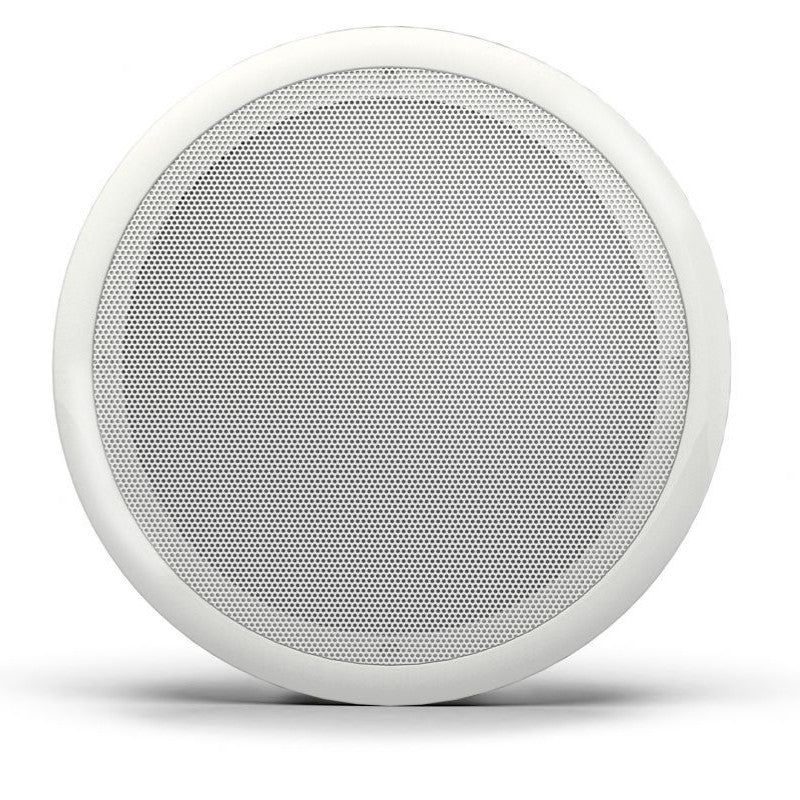

• Does it include a grille? Yes, it integrates a white metal grille for a discreet aesthetic.

Installation recommendations

• Make the ø25 cm cut and check the 9.2 cm deep clearance before assembly.
• Distribute several units for even coverage; regular spacing helps avoid dead zones.
• Use wiring of a cross-section appropriate to the length of the run and the expected power.

Project description

2-way passive recessed ceiling speaker; 8" woofer and 2.5 cm tweeter; 8 Ω impedance; 70 W power; 88 dB sensitivity; 50 Hz–20 kHz frequency response; ABS body; metal grille; white color; 28 cm outer diameter; 25 cm cutout diameter; 9.2 cm depth; IP20 indoor use.
