Audibax KA06 - 6.5” (16.5 cm) Recessed Ceiling Speaker, 60 W, Kevlar Cone, White

Audibax KA06 - 6.5” (16.5 cm) Recessed Ceiling Speaker, 60 W, Kevlar Cone, White

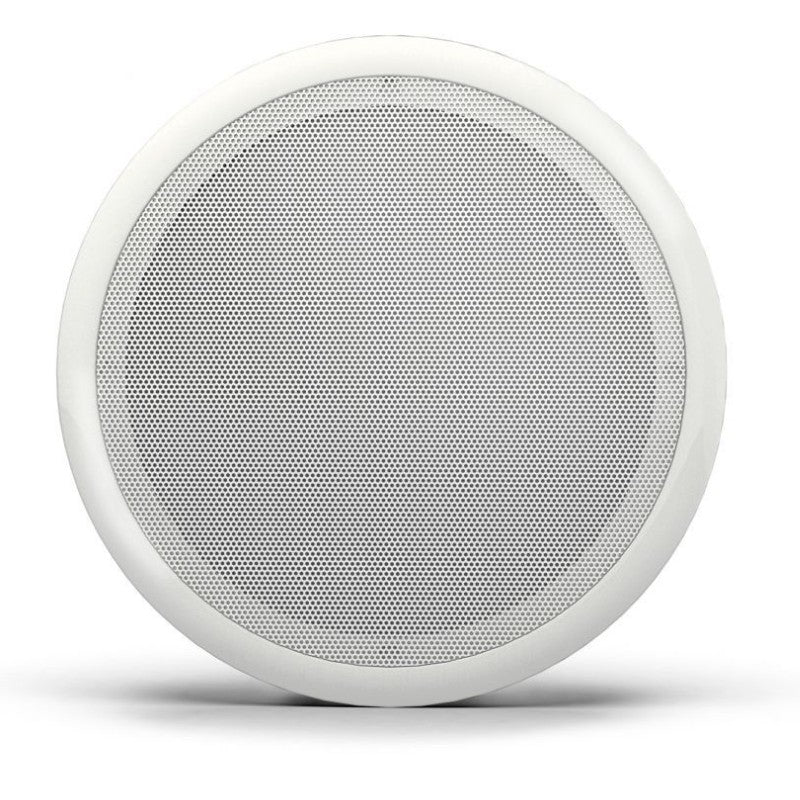

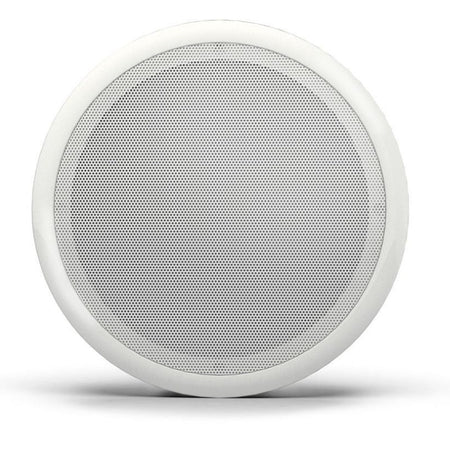

The Audibax KA06 is a passive, in-ceiling (recessed) 2-way speaker that combines a 16.5 cm Kevlar cone woofer and a 2.5 cm tweeter , delivering clear and balanced sound for background music and speech. Its discreet white design, metal grille , and ABS housing allow for seamless integration into restaurants, hotels, classrooms, shops, offices, or theaters. With 60 W of nominal power, 8 Ω impedance , 88 dB sensitivity (1 W/1 m), and a frequency response of 80 Hz–20 kHz , the KA06 is quick and easy to install thanks to its 20.5 cm cutout diameter , 24 cm outer diameter , and 8.3 cm depth . It is IP20 rated for indoor use.

Main features

• Configuration: 2-way passive ceiling speaker (recessed).

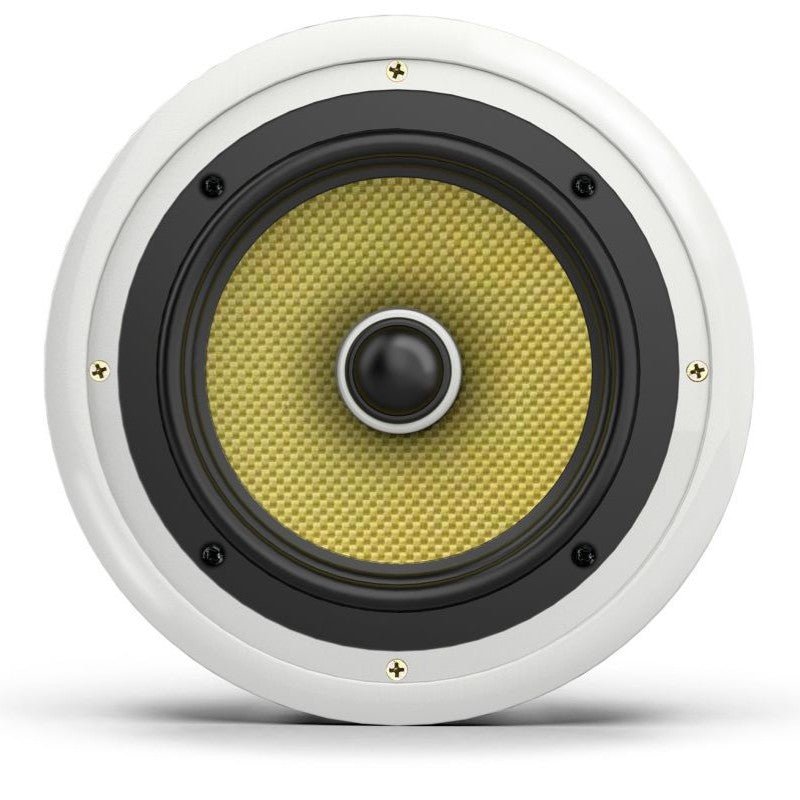

• Transducers: 16.5 cm woofer with Kevlar cone + 2.5 cm tweeter.
• Nominal power: 60 W.
• Impedance: 8 Ω.
• Sensitivity: 88 dB (1 W/1 m).
• Frequency response: 80 Hz – 20 kHz.
• Materials: ABS body and white lacquered metal grille.
• Dimensions: Outer diameter 24 cm; Cutting diameter 20.5 cm; Depth 8.3 cm.
• Color: white.
• Protection rating: IP20 (indoor use).

Product benefits

• Consistent sound quality : the Kevlar cone provides rigidity and control, improving the definition of bass and midrange in ambient music and speech.
• Easy integration : standard dimensions and low depth (8.3 cm) that facilitate mounting in common false ceilings.
• Discreet aesthetics : white metal mesh and uniform design that blend in with the ceiling.
• Wide compatibility : Works with low impedance (8 Ω) amplifiers common in commercial installations.
• Reliability : ABS construction and metal mesh for everyday indoor use (IP20).

Use cases

• Hospitality and retail : background music and announcements in restaurants, cafes and shops.
• Education and businesses : classrooms, hallways, meeting rooms and common areas.
• Cultural spaces : theaters, civic centers and auxiliary auditoriums.
• Fixed installation or rental : permanent systems or temporary setups for indoor events.

Frequently Asked Questions

• Does it need an amplifier? Yes. It's an 8 Ω passive speaker and requires a compatible low-impedance amplifier.
• Is it suitable for 100V lines? No, it is not included as standard. The KA06 does not include a 100V transformer; for 100V line systems, use specific models or a suitable external transformer.
• Is it suitable for outdoor use? No. It has an IP20 rating, which is suitable for dry indoor use.
• Is it sold individually or in pairs? Individually .
• What is the cutout diameter? 20.5 cm mounting diameter. Also check the available depth of 8.3 cm .

Installation tips

• Plan the distribution for even coverage and respect the Ø cut 20.5 cm .
• Check a minimum free depth of 8.3 cm and use wiring of appropriate cross-section for the distance and power.
• Perform phase and level tests to balance music and voice in the venue.

Project description

Passive 2-way in-ceiling speaker, 8 Ω, 60 W, sensitivity 88 dB (1 W/1 m), frequency response 80 Hz–20 kHz. 16.5 cm woofer with Kevlar cone and 2.5 cm tweeter. ABS housing with white metal grille. Dimensions: Outer diameter 24 cm; cutout diameter 20.5 cm; depth 8.3 cm. IP20 rating. Unit.
