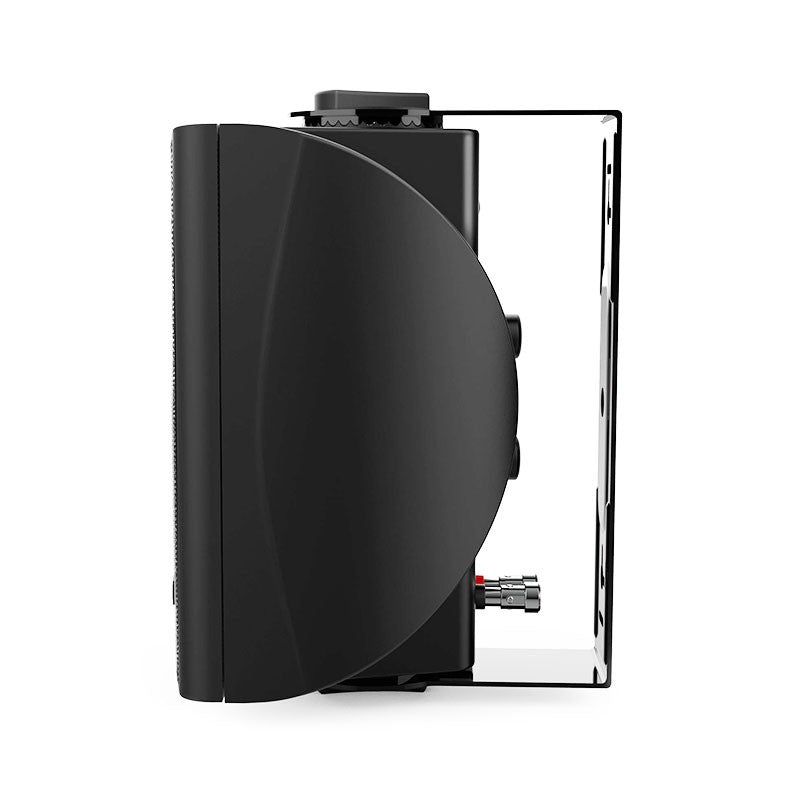

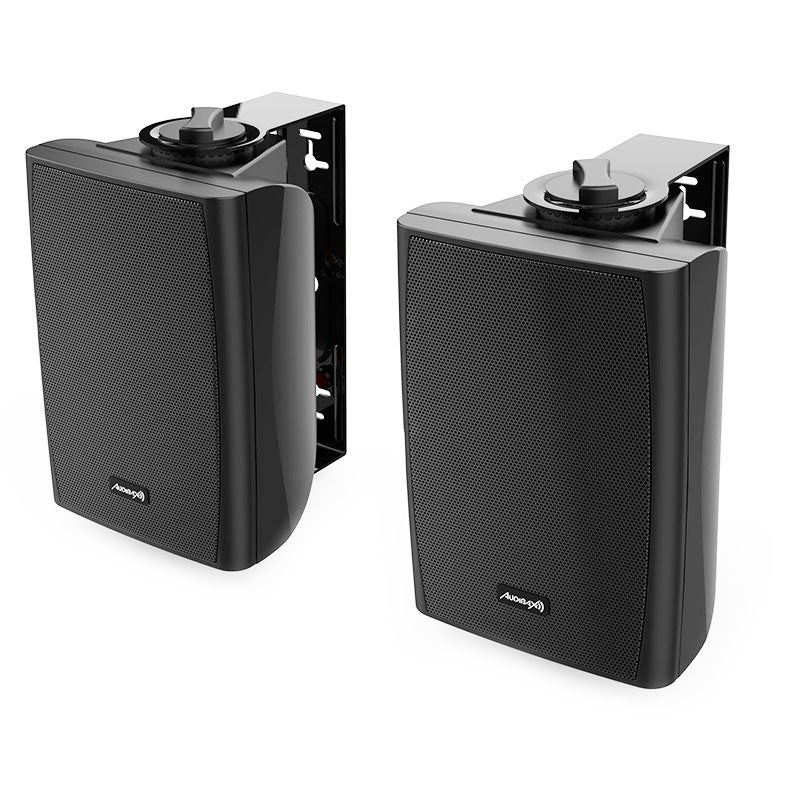

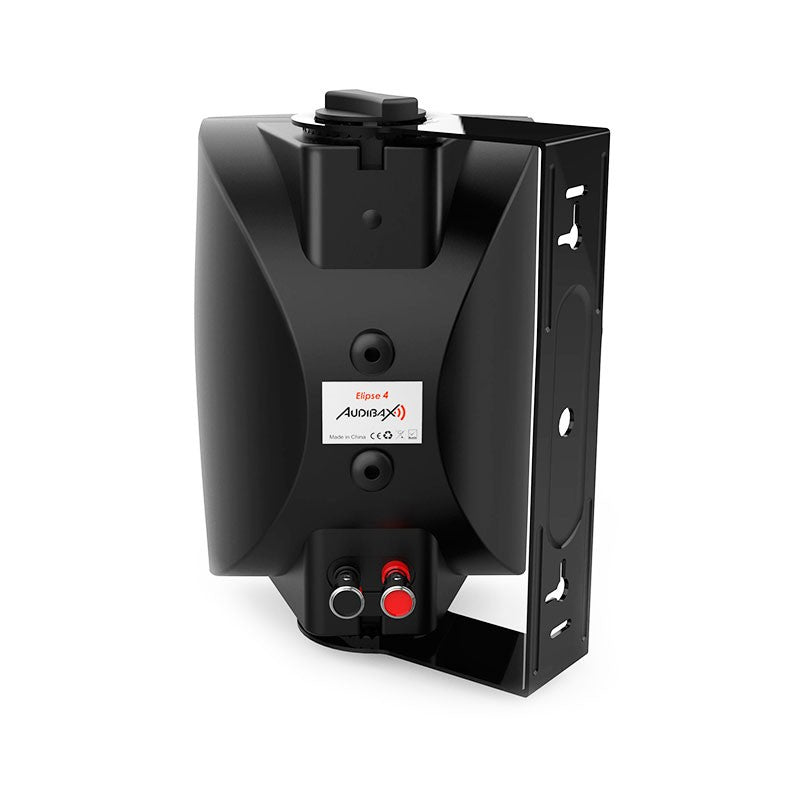

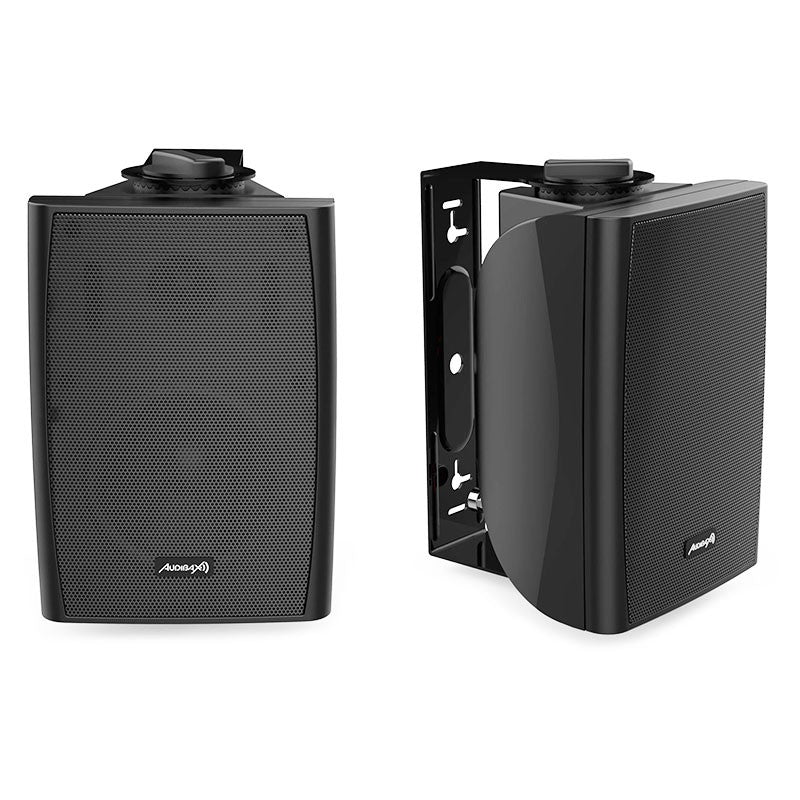

Audibax Elipse 4 - Pair of 4” 2-way wall-mounted speakers, 20 W RMS (black)

Audibax Elipse 4 - Pair of 4” 2-way wall-mounted speakers, 20 W RMS (black)

The Audibax Elipse 4 are a pair of passive, two-way wall-mounted speakers that combine a very compact size with a sleek aesthetic and durable materials for indoor installations. Each unit integrates a 103 mm (4") woofer and a 13 mm tweeter , achieving a balanced sound with good intelligibility and a frequency response suitable for background music and announcements in commercial and educational environments. With an impedance of 8 Ω and 20 W RMS per speaker , they connect to any conventional low-impedance stereo amplifier or stage. Their ABS enclosure and steel grille ensure durability and a discreet appearance; the wall bracket allows for quick and secure mounting while maintaining minimal visual impact. Dimensions per unit: 15 × 21 × 12.5 cm ; weight 1.79 kg ; IP20 rating for indoor use.

Main features

• Passive 2-way pair: 4” (103 mm) woofer + 13 mm tweeter.
• Power at 8 Ω: 20 W RMS per unit (low impedance).
• Frequency response and level: 90 Hz – 18 kHz; sensitivity 86 dB (1 W/1 m).
• Construction for installation: ABS enclosure and black metal grille.
• Compact format: 15 × 21 × 12.5 cm per box; 1.79 kg per speaker.
• Wall mounting: bracket included for quick and stable fixing.
• Indoor use: IP20 rating.

Product benefits

• Clear sound in small and medium-sized spaces: high intelligibility for voice and background music.
• Easy installation: compact design, wall mount and accessible connection terminals.
• Aesthetic integration: black finish and low-profile grille that blends in with the surroundings.
• Wide compatibility: They work with standard 8 Ω stereo amplifiers.
• Durability in professional use: resistant materials designed for continuous indoor operation.

Use cases

• Hospitality and retail: restaurants, bars, shops and showrooms with background music and messages.
• Offices and education: meeting rooms, reception, classrooms and libraries.
• Care and wellness centers: waiting rooms, gyms and common areas.
• Housing: living rooms, studios or multipurpose indoor spaces.

Installation and connection

1. Fix the wall bracket to a solid, level surface, following the recommended screw pattern.
2. Connect each speaker to the 8 Ω amplifier respecting the polarity (+/−) with cable of appropriate cross-section for the distance.
3. Orientation: Adjust the angle of the speaker on the stand to evenly cover the listening area.
4. Try it with music and voice and adjust equalization and balance if necessary.

Frequently Asked Questions

Are they sold individually or in pairs?
The Elipse 4 model is supplied in pairs (2 speakers).

Do they need an amplifier?
Yes. They are 8 Ω passive speakers and require a compatible stereo amplifier.

Are they suitable for outdoor use?
No. They are designed for indoor use (IP20).

Can I install them horizontally or vertically?
The wall mount allows for stable mounting; choose the orientation that best suits the room and coverage area.

Project description

Pair of passive 2-way wall-mounted speakers; transducers: 103 mm (4”) woofer + 13 mm tweeter; impedance 8 Ω; power 20 W RMS per unit; sensitivity 86 dB (1 W/1 m); frequency response 90 Hz–18 kHz; ABS enclosure with steel grille; dimensions per speaker 15 × 21 × 12.5 cm; unit weight 1.79 kg; color black; wall mounting via bracket; IP20 indoor use.
