Audibax Silver Black DMX 3P 10m - DMX XLR 3-pin black cable with gold-plated contacts

Audibax Silver Black DMX 3P 10m - DMX XLR 3-pin black cable with gold-plated contacts

The 10-meter Audibax Silver Black DMX 3P cable is a lighting control cable designed to provide a stable and clean connection between DMX consoles, dimmers, and lighting fixtures such as moving heads or LED PARs. It belongs to Audibax's Silver Black series , known for its low-noise design and meticulous termination. It features 3-pin XLR connectors (male-female) with 24-karat gold-plated contacts to minimize contact resistance and corrosion, and a PVC jacket for durability and flexibility during setup and transport. Its 5.4 mm outer diameter facilitates routing in racks, trusses, or plinths, and the 0.21 mm inner conductor cross-section meets the typical requirements of DMX lines in live performances, rentals, and permanent installations.

Main features

• Usable length: 10 meters for medium sections on stage and in halls.

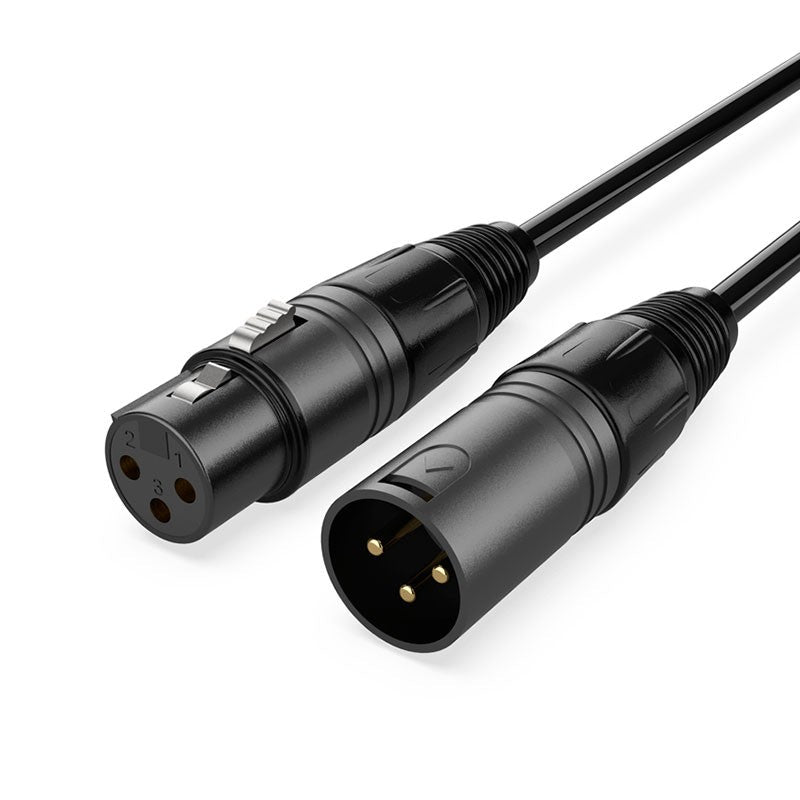

• Connection: 3-pin XLR DMX, male to female.
• Contacts: 24k gold plated for reliable and stable transmission.
• Cover: High-strength flexible PVC, black finish.
• Cable diameter: 5.4 mm (comfortable handling and good resistance to footsteps and common bends).
• Inner conductor: 0.21 mm cross-section (according to the manufacturer's specification).
• Silver Black Series: Low-noise design geared towards professional use.

Benefits for the user

• Stable DMX signal in professional lighting setups, avoiding flickering and false triggers due to poor contacts or degraded connectors.
• Reinforced connectors with 24k gold plating that improve conductivity and reduce maintenance.
• Easy assembly thanks to its flexible PVC cover and balanced diameter for cable glands, guides and truss.
• Versatility : suitable for live performances, events, nightclubs, theaters, rentals and fixed installations.

Use cases

• DMX controller connection to the first luminaire of a daisy-chain .
• Intermediate sections between moving heads, bars and LED PARs in medium-sized stages.
• Trussed structures, technical walkways and lighting racks .
• Fixed installations in multipurpose rooms, auditoriums and clubs .

Frequently Asked Questions

Is this cable suitable for audio?
It's not a microphone cable; it's a cable specifically designed for DMX signals . Although it shares the XLR connector format, its recommended use is for lighting control.

Do I need a DMX terminator?
In daisy- chain DMX runs, it is recommended to terminate the line with a 120 Ω terminator at the last device to avoid reflections and ensure signal integrity.

What about 5-pin connectors?
The DMX standard specifies a 5-pin XLR connector , but the 3-pin connector is widely used by many manufacturers. If you need to change from 3 to 5 pins (or vice versa), use appropriate adapters.

What is the weight?
Approximate weight provided by the customer for this length: 0.567 kg .

Installation recommendations

• Daisy-chain layout without star branches. To branch, use splitters or opto-splitters .
• Avoid parallel routes close to power lines to minimize noise coupling.
• Place a 120 Ω terminator on the last piece of equipment in the chain.

Project description

10m DMX cable, Silver Black series, 3-pin male-female XLR DMX connectors with 24k gold-plated contacts, black, 5.4mm cable diameter, PVC jacket, 0.21mm inner conductor cross-section. Intended use: DMX signal transmission between lighting equipment.
