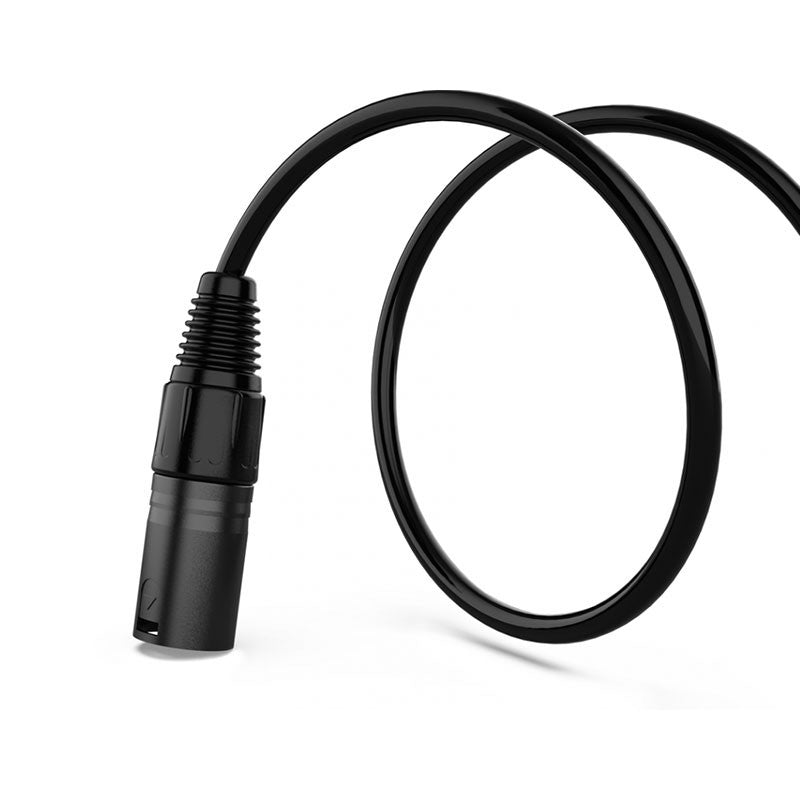

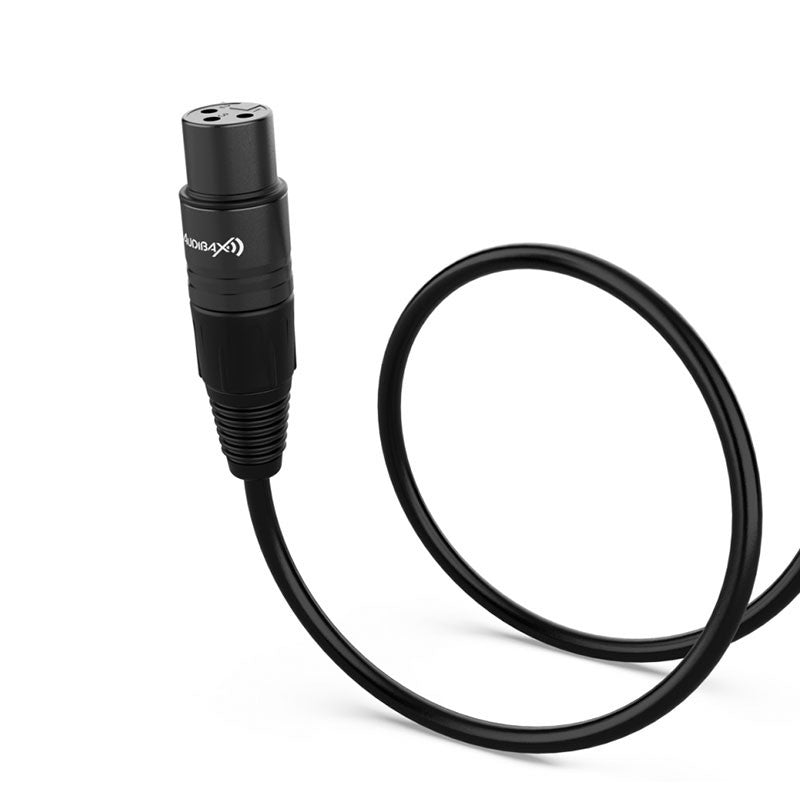

Audibax Silver Black 3 Pin 2 m - Black DMX cable with 3-pin male-female XLR connectors

Audibax Silver Black 3 Pin 2 m - Black DMX cable with 3-pin male-female XLR connectors

The Audibax Silver Black 3-Pin 2m cable is designed to provide stable and quiet data transmission in professional lighting installations and live broadcasts. Its construction prioritizes signal purity and noise reduction thanks to 0.21mm inner conductors , a highly flexible PVC jacket , and 3-pin XLR connectors with 24k gold-plated contacts , which improve conductivity and corrosion resistance. With an outer diameter of 5.4mm and a black finish, it is a robust and manageable cable, especially suited for everyday rental applications and fixed installations where reliability is essential.

Main features

• Type: DMX cable for lighting control.
• Series: Silver Black.
• Length: 2 m.
• Color: black.
• Cable diameter: 5.4 mm.
• Inner conductor: 0.21 mm cross-section.
• Coating: High-durability flexible PVC.

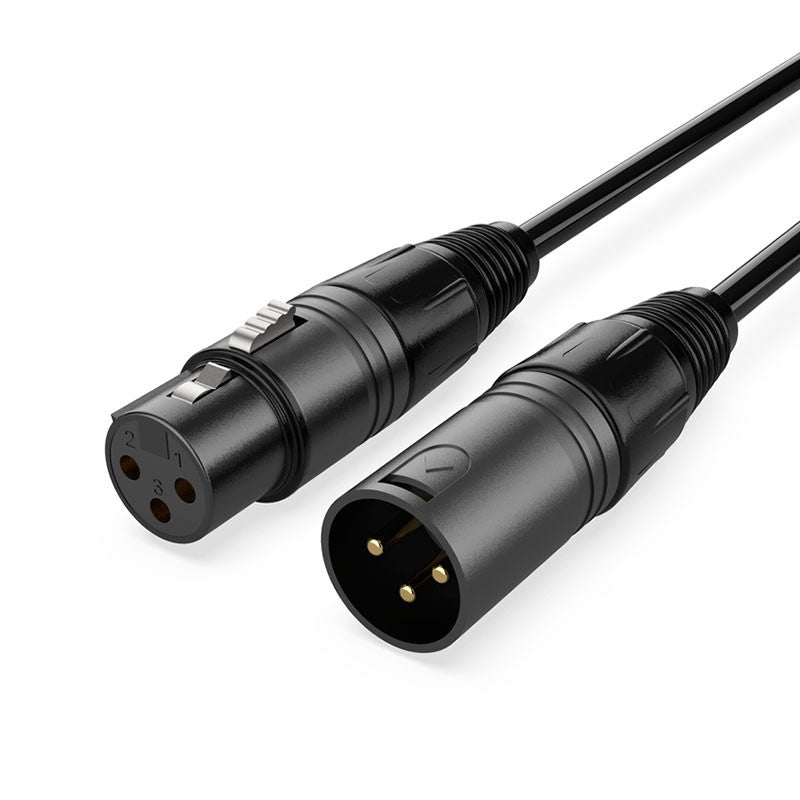

• Connectors: XLR 3 pin male (A) to XLR 3 pin female (B).
• Connector contacts: 24k gold plated.
• Low-noise construction with clean and stable signal reproduction.

Product benefits

• Reliable connections in DMX networks thanks to stable transmission and reduced interference.
• Longer lifespan of the connectors due to the 24k gold plating, which improves conductivity and resists corrosion.
• Easy handling during assembly and disassembly thanks to its flexible PVC jacket.
• Professional finish (black) that blends discreetly into stages, trusses and racks.
• Versatile for rental and fixed installation in theaters, nightclubs, auditoriums, studios and events.

Use cases

• Connecting DMX control consoles/software with dimmers, moving lights, LED bars and effects.
• Link sections between fixtures in daisy chain topologies.
• Patch panels in signal racks and technical gateways requiring flexible and durable cable.
• Traveling events where quick setup and reliable equipment are required.

Frequently Asked Questions

• Do I need termination at the end of the line? Yes. In a DMX chain, it is recommended to place a 120 Ω terminator at the last device to prevent reflections and data errors.
• Is it compatible with 3-pin equipment? Yes. This cable uses 3-pin XLR connectors, which are very common in the industry. Please note that although the DMX512-A standard defines the use of 5 pins, much of the market routinely uses 3 pins.
• Can I use it as a microphone cable? It's not recommended. This cable is optimized for DMX data ; for audio, it's preferable to use a dedicated microphone/balanced cable.

Installation tips and best practices

• Maintain the daisy chain topology (input → output) and avoid “star splits” without a DMX splitter.
• Use a 120 Ω terminator on the last device in the bus.
• Avoid running the cable parallel to power lines to reduce potential interference.
• Roll up gently and store in a dry place to prolong the life of the PVC and connectors.

Project description

2m Silver Black series DMX cable, black, 5.4mm diameter, 0.21mm inner conductor, PVC jacket. 3-pin male-female XLR connectors with 24k gold-plated contacts. Low-noise, high-flexibility design for lighting control.
