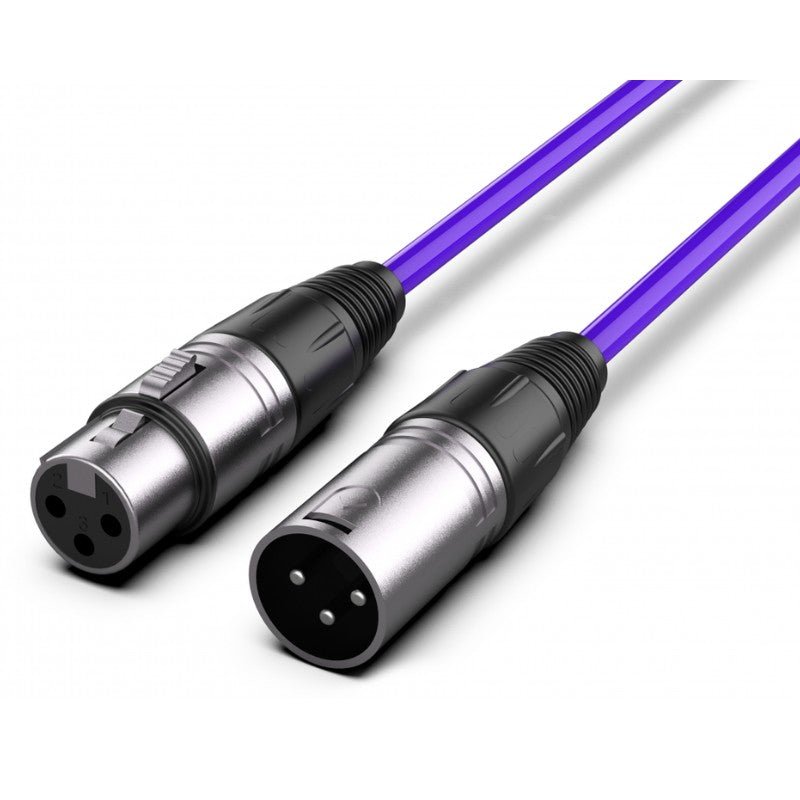

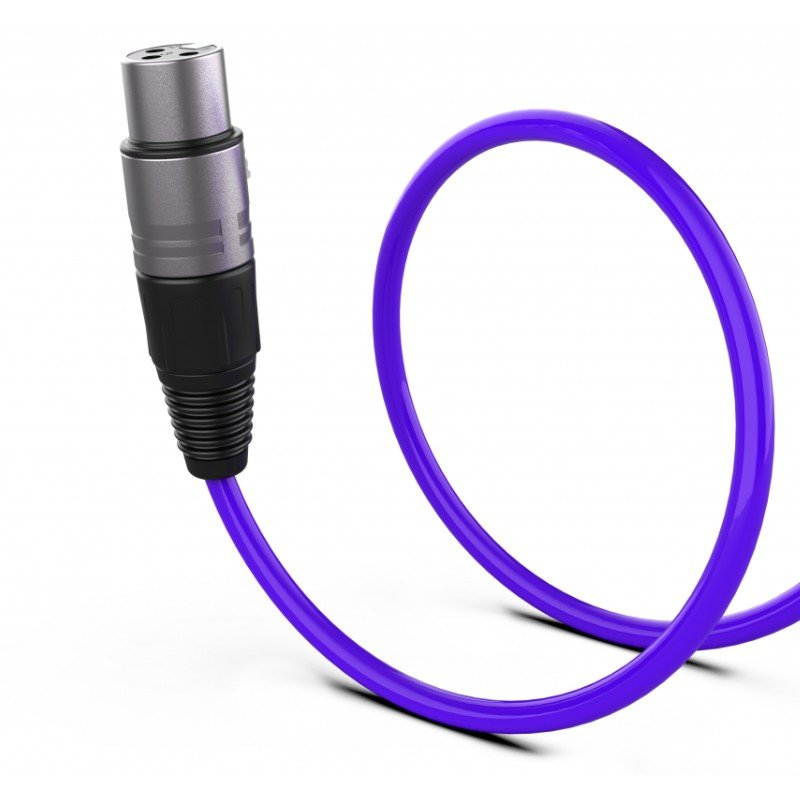

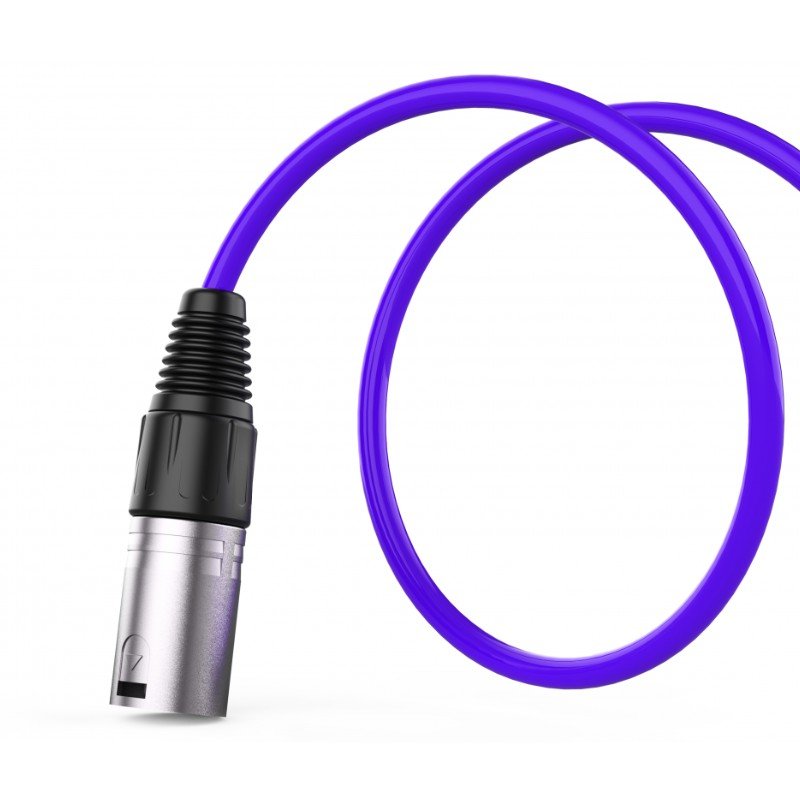

Audibax 10145055 - XLR Male to XLR Female Cable 6m Purple (Silver Series, Balanced Audio)

Audibax 10145055 - XLR Male to XLR Female Cable 6m Purple (Silver Series, Balanced Audio)

The Audibax 10145055 belongs to the Silver Series , a range designed for the everyday needs of musicians, technicians, and rental companies who require reliability and good sound at an affordable price. It's a 6-meter balanced XLR male-to-XLR female cable with oxygen-free copper (OFC) spiral shielding to reduce interference and hum on stages and in studios. It features a durable PVC jacket , a 6 mm outer diameter for comfortable and long-lasting handling, and silver-plated contacts on both 3-pin connectors. The OFC inner conductor (0.24 mm) and low-noise construction ensure stable and clean signal transfer, and it's compatible with phantom power when required by the system.

Main features

• Connection: XLR male (3 pins) to XLR female (3 pins).
• Signal type: Balanced (pin 1 ground, pin 2 hot, pin 3 cold).
• Length: 6 m.
• Cable diameter: 6 mm.
• Conductor: OFC with an inner section of 0.24 mm.
• Shielding: OFC spiral for EMI/RFI rejection.
• Enclosure: highly durable PVC cover.
• Contacts: silver-plated on both connectors.
• Color: purple.
• Series: Audibax Silver.

Product benefits

• Reduced noise and stable signal thanks to the balanced design and OFC spiral shielding.
• Reliability in intensive use : PVC cover resistant to twisting and trampling, ideal for tours, stages and racks.
• Professional compatibility with mixers, preamps, interfaces and power amps that use balanced XLR; allows phantom power to pass through when used with compatible equipment.
• Comfortable handling due to its 6 mm diameter and suitable flexibility for live installations or fixed installations.

Use cases

• Connecting dynamic or condenser microphones to preamps/consoles with balanced XLR.
• Interconnection between XLR outputs and inputs of PA equipment, processors and audio interfaces.
• Installation and rental : medium runs in stages, churches, auditoriums, rehearsal rooms and studios.

Frequently Asked Questions

• Is it a balanced cable? Yes. 3-pin XLR–XLR cable with balanced signal (pin 1 ground, pin 2 hot, pin 3 cold).
• Does it support phantom power? Yes, balanced XLR cables allow phantom power (e.g., P48) to pass from the mixer or preamp to the microphone that requires it.
• Is it suitable for DMX lighting? It's not recommended. Although some systems use 3-pin XLR, the DMX512 standard specifies different connectors; mixing audio lines (with possible phantom power) and DMX can be problematic.
• What's the difference compared to an unbalanced cable? Balanced cables use two conductors for signal and ground, which improves noise rejection and allows for longer runs with less interference.

Technical Notes

• Typical XLR pinout: pin 1 ground/screen; pin 2 positive signal (hot); pin 3 negative signal (cold).
• Compatibility: Professional audio equipment with 3-pin XLR connectors and balanced signals.
• Maintenance: Roll up without closed folds and avoid tension on the connectors to prolong its useful life.

Project description

Balanced audio cable XLR male to XLR female , length 6 m , diameter 6 mm , OFC conductor 0.24 mm , OFC spiral shielding , silver contacts , PVC cover , purple color , Silver Series , standard pinout (1 ground, 2 hot, 3 cold).
