Audibax Sidney 1250 B - Dual UHF Wireless System with 2 Handheld Microphones (Frequency B 570.3–640.7 MHz)

Audibax Sidney 1250 B - Dual UHF Wireless System with 2 Handheld Microphones (Frequency B 570.3–640.7 MHz)

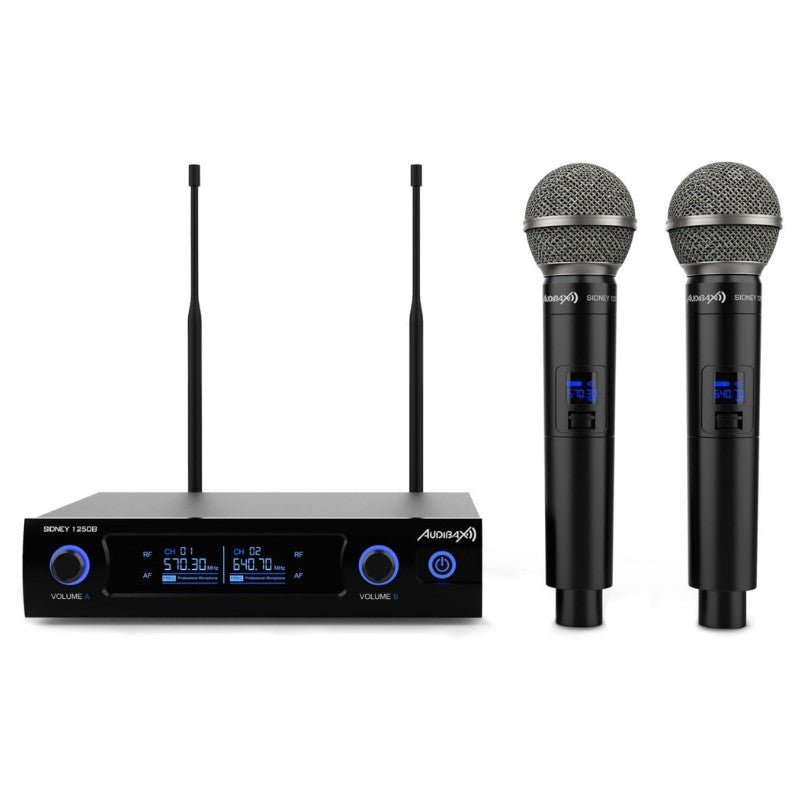

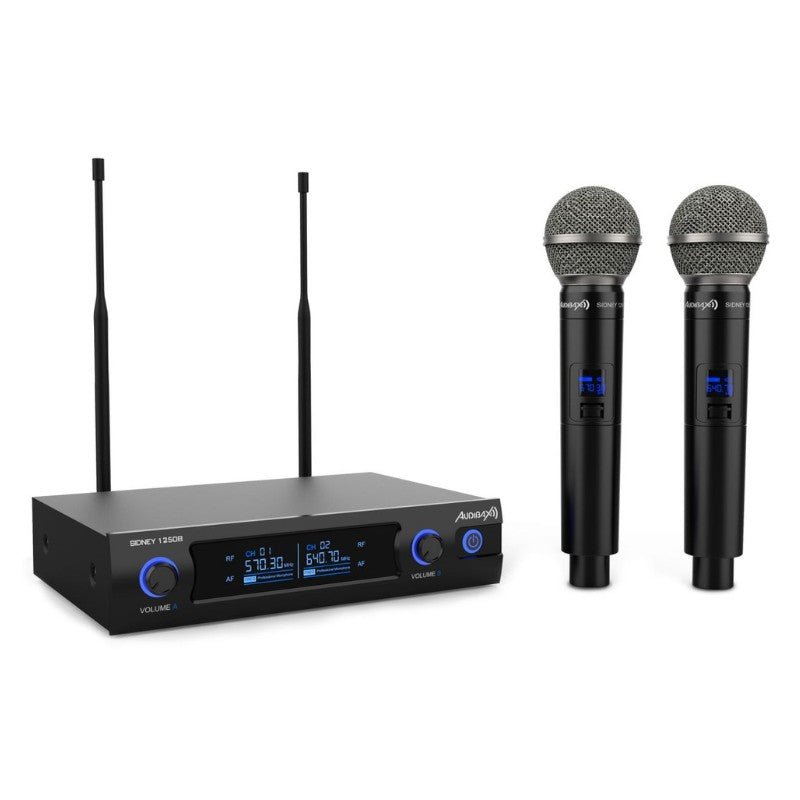

The Audibax Sidney 1250 B is a dual UHF wireless microphone system that includes two handheld microphones with cardioid dynamic capsules and a dual receiver with RF/AF displays and indicators. Designed for live performances, corporate events, educational institutions, and rental/installation, it combines diversity antennas for stable pickup, independent volume control per channel, and a clear audio path with a frequency response of 40 Hz–18 kHz , a signal-to-noise ratio >103 dB (1 kHz), and distortion <0.5% . It operates in the B frequency band (570.3–640.7 MHz) with ±0.0005% stability and RF power <10 mW , offering an approximate range of 80 m . The receiver features two balanced XLR outputs (one per channel) and one 6.35 mm mixed output jack for sending a combined stereo/mono mix if required. Each microphone is powered by AA batteries with an approximate autonomy of 8 hours and has an on/off switch and a display with low battery warning.

Main features

• Configuration: Dual UHF system with 2 handheld microphones and dual receiver.
• Capsule: cardioid dynamic (each microphone).
• Operating band: Frequency B 570.3–640.7 MHz ; stability ±0.0005% .
• Audio: Frequency response 40 Hz–18 kHz ; SNR >103 dB (1 kHz); THD <0.5% .
• Radio frequency: output power <10 mW; system sensitivity -105 dB (according to datasheet).
• Reception: diversity antennas for greater signal stability.
• Receiver outputs: 2× balanced XLR (independent channels) + 1× 6.35 mm combo jack .
• Controls: independent volumes per microphone; RF/AF indicators on receiver; display on each microphone with low battery warning.
• Power supply: microphones with AA batteries (≈8 h); receiver at 230 V AC .
• Range: ≈80 m under optimal conditions.
• Includes: ABS case, 220V power supply, jack-to-jack cable and user manual.

Product benefits

• Wireless stability thanks to diversity reception and the UHF band, reducing dropouts and artifacts.
• Clear and consistent sound : dynamic cardioid capsules with low distortion and high signal-to-noise ratio.
• Simple operation : displays, RF/AF indicators and on/off switch make operation intuitive even for non-technical personnel.
• Flexible connectivity : independent XLR outputs for per-channel mixing or combined 6.35 mm jack output for quick solutions.
• Ready for tours and installation : robust construction and ABS carrying case for transport and storage.

Use cases

• Live : lead vocals and choirs on small and medium-sized stages.
• Events : presentations, conventions, worship and institutional acts.
• Education : auditoriums, lecture halls and multipurpose rooms with two simultaneous users.
• Rental and installation : economical and reliable solution with balanced outputs for integration into PA systems.

Frequently Asked Questions

• Can both microphones be used at the same time? Yes, the system is dual and allows both channels to be operated simultaneously with independent volume controls.

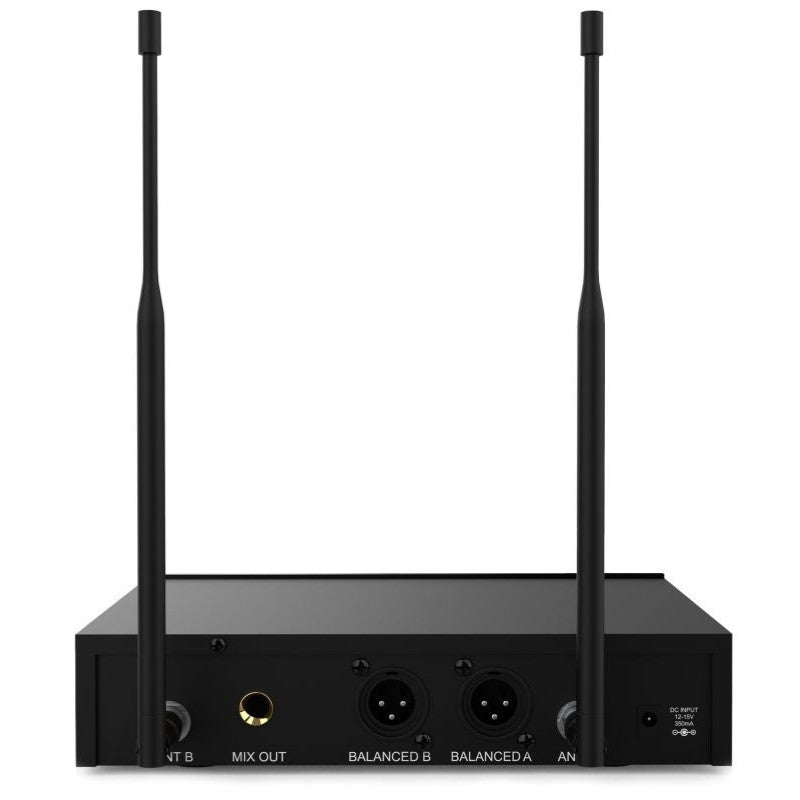

• What connections does the receiver offer? 2× balanced XLR (independent channels) and 1× 6.35 mm combined jack .
• How long does the battery last? Approximately 8 hours with AA batteries, depending on usage conditions.
• What actual coverage can I expect? Up to ≈80 m in line of sight and clear environment.

Connections and compatibility

• Connect the XLR outputs to mixing consoles, interfaces, or matrices for individual per-channel processing.
• Use the 6.35 mm combo jack output when you need a quick connection to powered speakers or line-level inputs.

Package contents

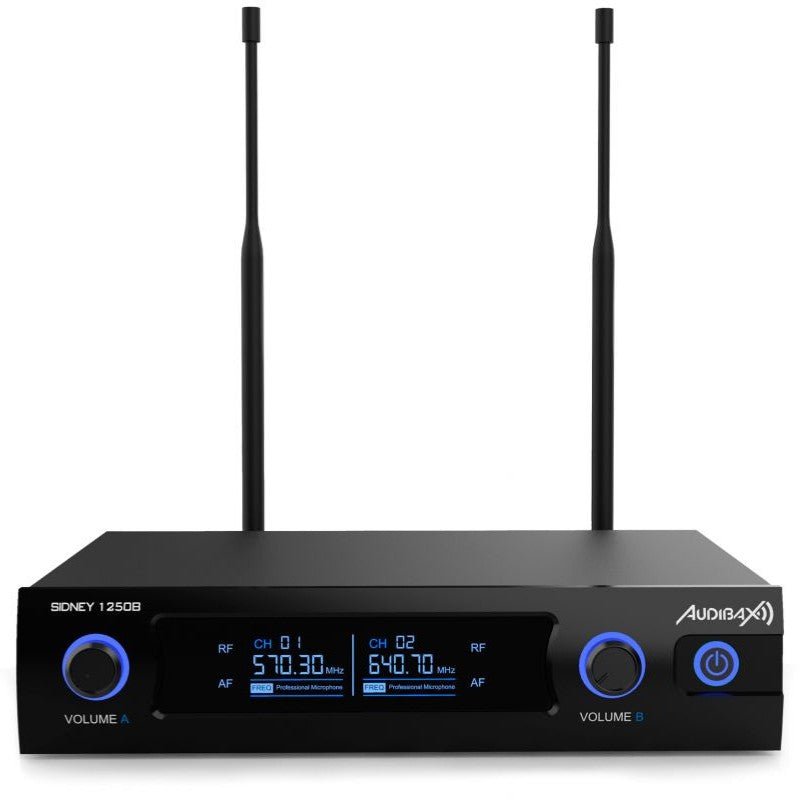

• 1 dual receiver with display and RF/AF indicators

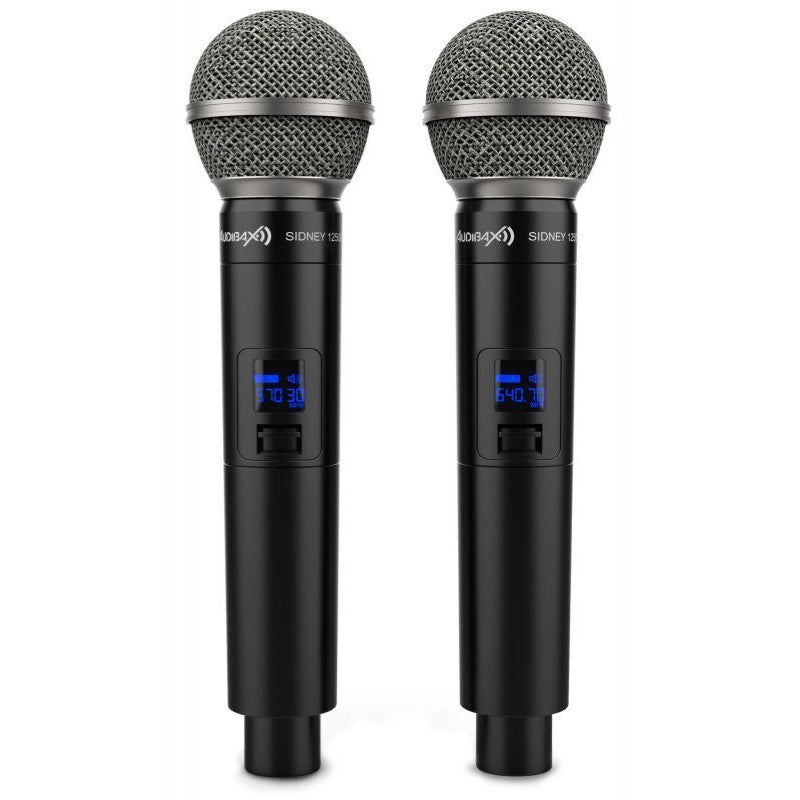

• 2 handheld microphones with display (cardioid dynamic capsule)
• 1 220V power supply for the receiver
• 1 jack-to-jack cable

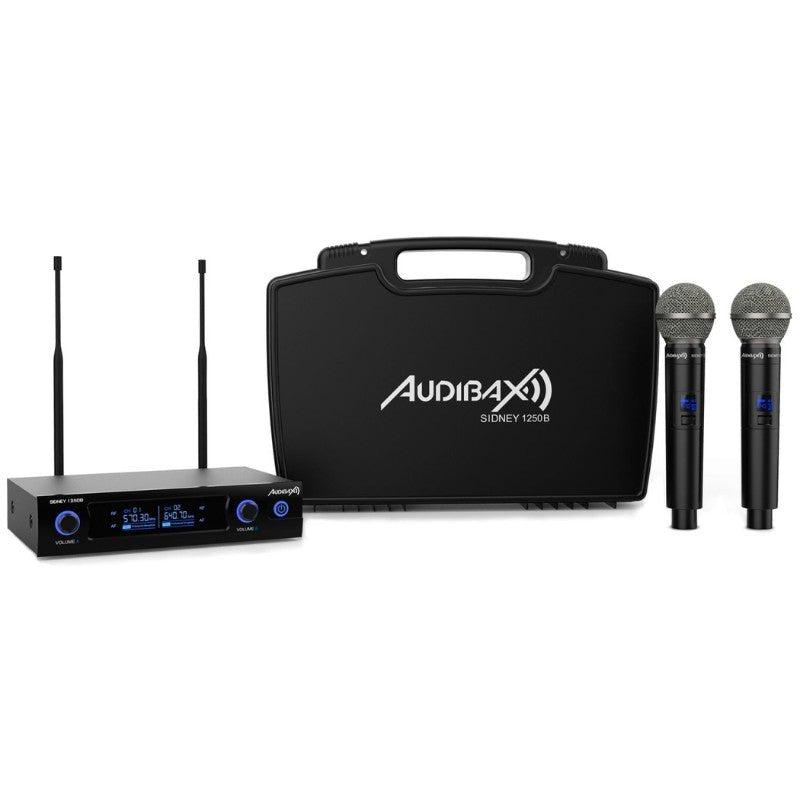

• 1 ABS carrying case
• 1 user manual

Project description

Audibax Sidney 1250 B Dual UHF Wireless System (B Frequency 570.3–640.7 MHz ), two cardioid dynamic handheld microphones , dual receiver with diversity antennas , 40 Hz–18 kHz response , SNR >103 dB (1 kHz), THD <0.5% , RF power <10 mW , sensitivity -105 dB , 2× balanced XLR outputs + 1× combined 6.35 mm jack output , range ≈80 m , microphone power AA , receiver 230 V AC , independent volumes and RF/AF indicators .
