Audibax CM508L-BT - Bluetooth Ceiling Speakers 2-way (13.3 cm) 2×20 W, Recessed Pair White

Audibax CM508L-BT - Bluetooth Ceiling Speakers 2-way (13.3 cm) 2×20 W, Recessed Pair White

The Audibax CM508L-BT are a pair of in-ceiling Bluetooth speakers designed to easily provide sound in homes, businesses, and entertainment venues without the need for an external amplifier. The system integrates an active speaker (with amplification and Bluetooth receiver) and a passive speaker that connects to the first, delivering a combined 2 x 20 W RMS in stereo . Their 2-way design combines a 13.3 cm (5.25") 8 Ω woofer with a 13 mm (1/2") mylar tweeter for a clear frequency response of 100 Hz–20 kHz and a sound pressure level of 88 dB (1 W/1 m) . The ABS construction with a metal grille ensures a clean and discreet ceiling installation.

Power is supplied via a power adapter ( 220–240 V AC, 50/60 Hz input and 12 V DC output to the active speaker), and installation is quick: Ø 166 mm cutout, recommended depth 75 mm (body depth 68 mm), and a tab-based mounting system. Important: Due to Bluetooth protocol limitations, it is not possible to use two or more pairs of this model simultaneously in the same listening space.

Main features

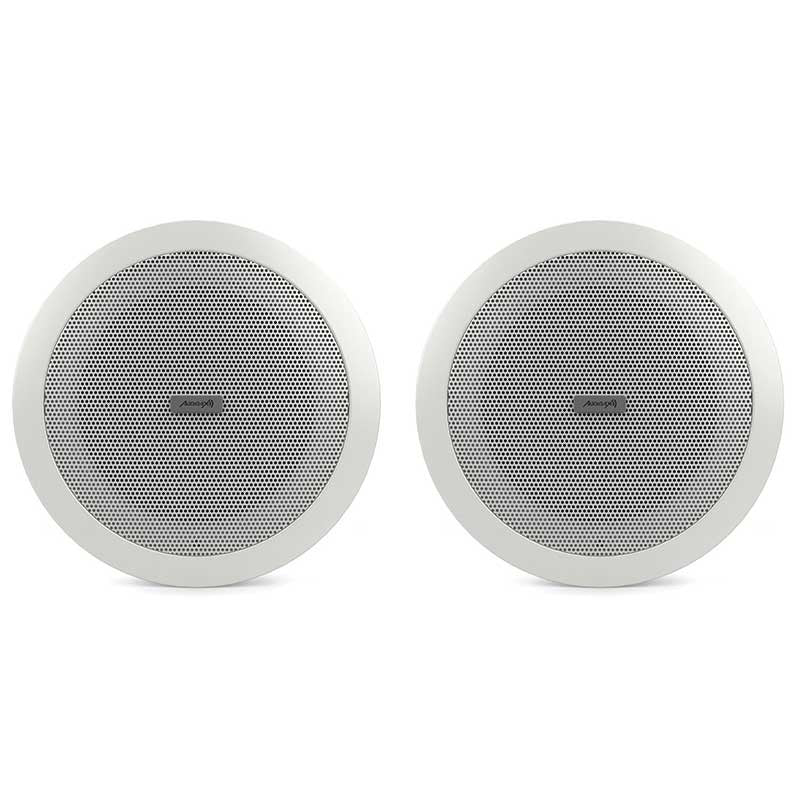

• Format: Pair of recessed ceiling speakers with Bluetooth and integrated amplifier (active + passive).
• Ways / Transducers: 2-way with 13.3 cm (5.25”) 8 Ω woofer and 13 mm (½” mylar) tweeter .
• RMS power: 2×20 W (stereo).
• Frequency response: 100 Hz – 20 kHz ; SPL (1 W/1 m): 88 dB .

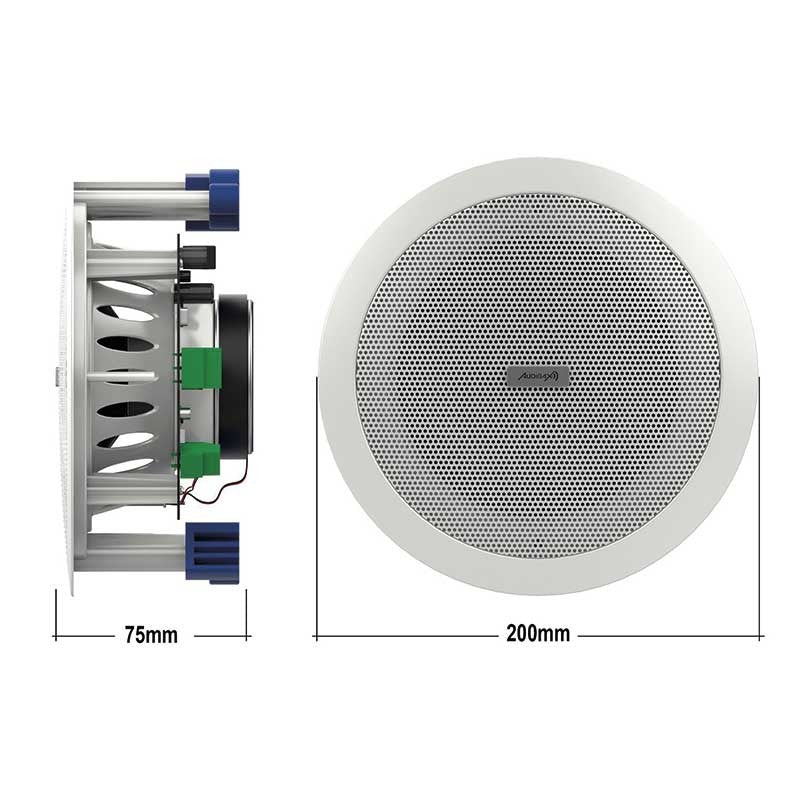

• Installation: cut Ø 166 mm ; minimum recommended depth 75 mm (body 68 mm); outer diameter 202 mm .

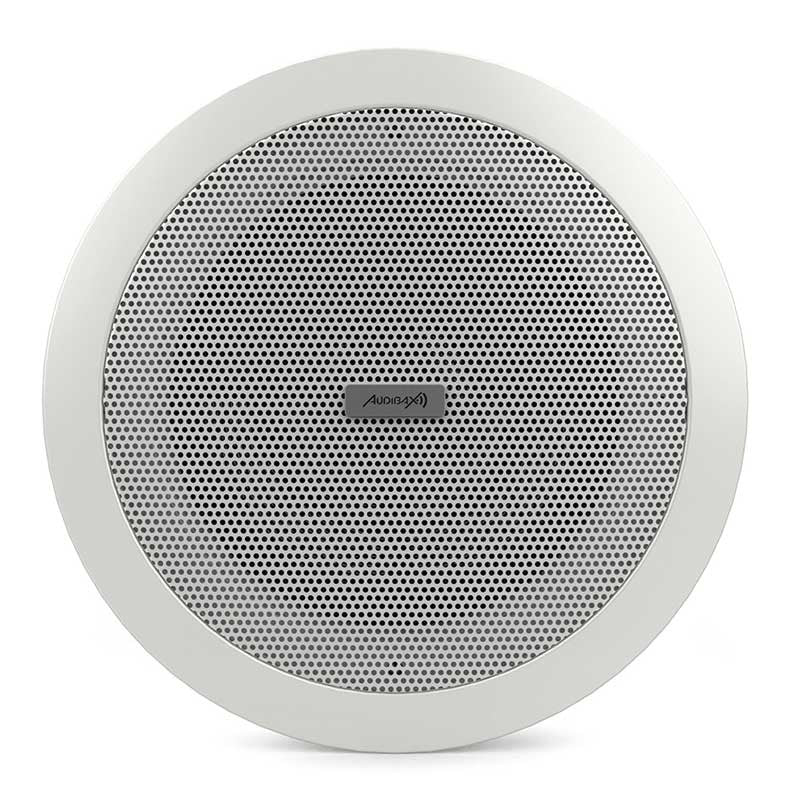

• Materials: ABS body and white painted metal grille .
• Power supply: 12V DC via mains adapter ( 220–240V AC input); typical consumption 30W.
• Color: white.

Product benefits

• Total simplicity : direct wireless playback from mobile phone or tablet, without additional amplifier or complex wiring.
• Clean installation : cutting template and tab fixing, low-profile metal mesh for a discreet finish.
• Balanced sound for ambient music and voice, with two channels and enough power for medium-sized rooms.

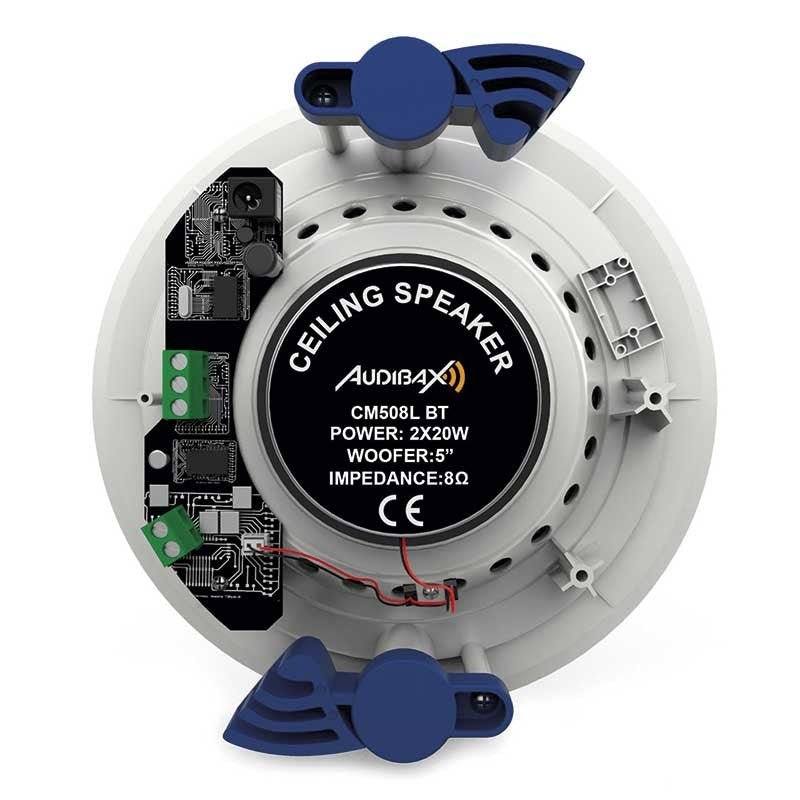

• Efficiency and safety : electronics integrated into the active speaker and powered by a 12V DC adapter.

Use cases

• Home : kitchen, living room, office or covered terraces.
• Retail and hospitality : shops, cafes, consulting rooms, waiting rooms.
• Multipurpose rooms : wellness gyms, classrooms and small meeting rooms.

Frequently Asked Questions

• Can I use multiple pairs simultaneously via Bluetooth? No. Due to protocol limitations, this model is designed to use one pair per zone .
• How are they powered? The active speaker is powered by 12V DC via a 220–240V AC power adapter (included as per kit); the cable runs from the active speaker to the passive speaker.
• Do they support external amplification? It's not necessary: ​​the active speaker integrates the amplifier for both speakers.
• Are they suitable for uncovered outdoor use? No. They are designed for indoor use; avoid direct moisture or splashes.

Installation Notes

• Respect the Ø 166 mm cut and leave 75 mm free behind the roof (68 mm of body + margin for wiring and ventilation).
• It is recommended to route the passive cable before attaching the active one and checking Bluetooth pairing.
• Avoid installing near heat sources or transformers that may induce noise.

Project description

Pair of 2-way Bluetooth ceiling speakers (active + passive), 2×20 W RMS power , 13.3 cm woofer , 13 mm mylar tweeter , 100 Hz–20 kHz response , 88 dB SPL (1 W/1 m) , 8 Ω impedance , Ø 166 mm cutoff , 68 mm body depth (recommended installation 75 mm), 202 mm outer diameter , ABS body and metal grille , 12 V DC power supply via 220–240 V AC adapter, white color.
