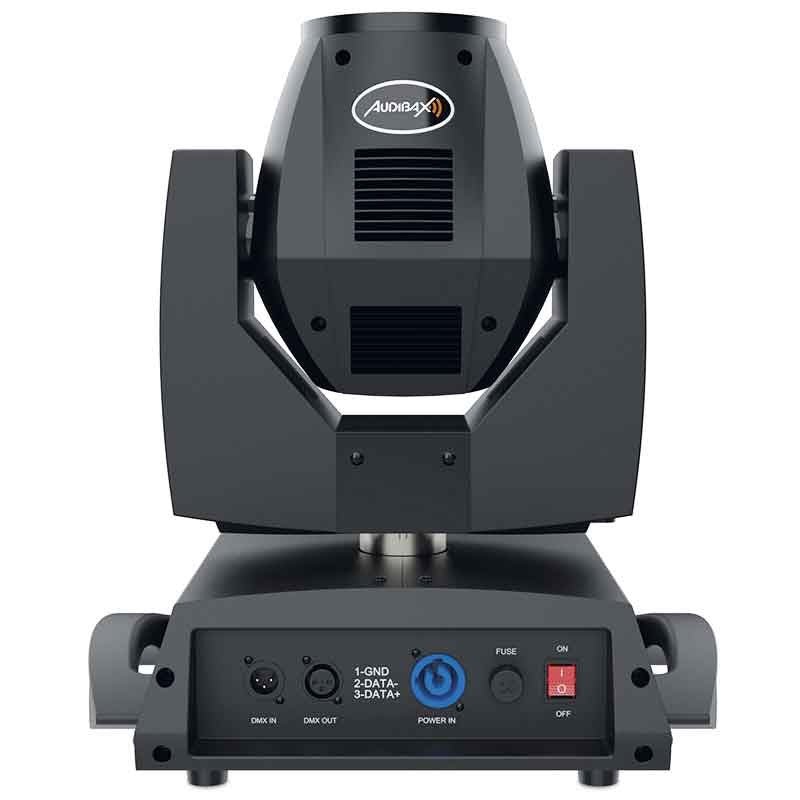

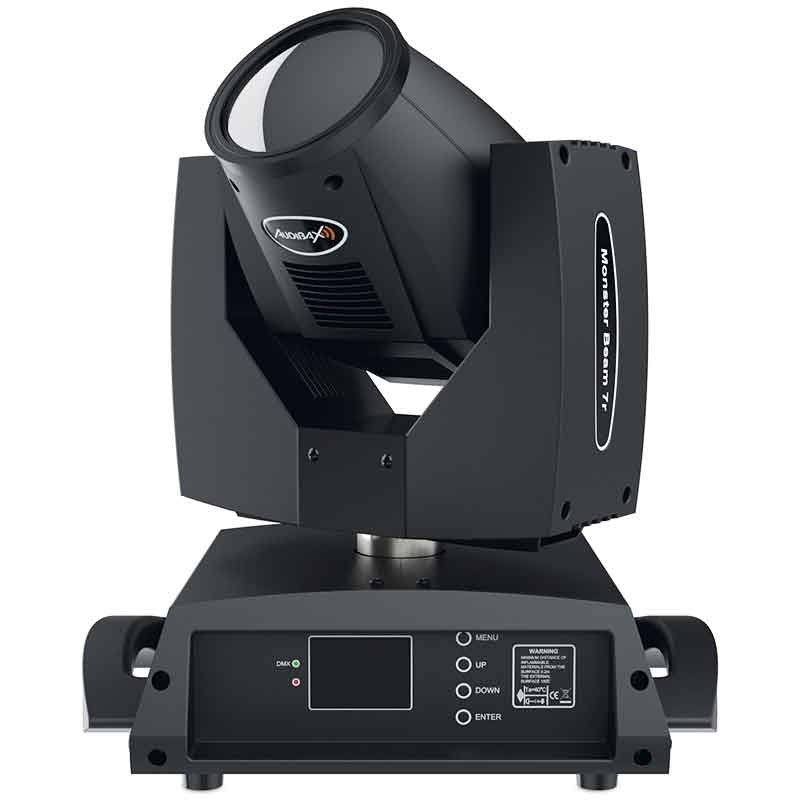

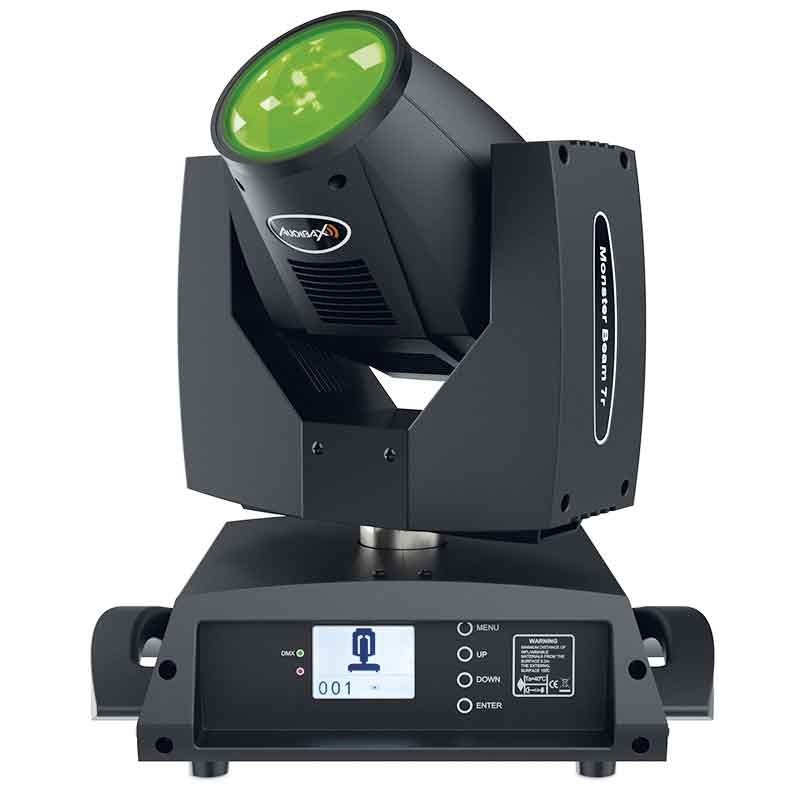

Audibax Monster Beam 7R (Double Pack + Flight Case) - BEAM 230W OSRAM Sirius Moving Heads, 14 Colors and 17 Fixed Gobos

Audibax Monster Beam 7R (Double Pack + Flight Case) - BEAM 230W OSRAM Sirius Moving Heads, 14 Colors and 17 Fixed Gobos

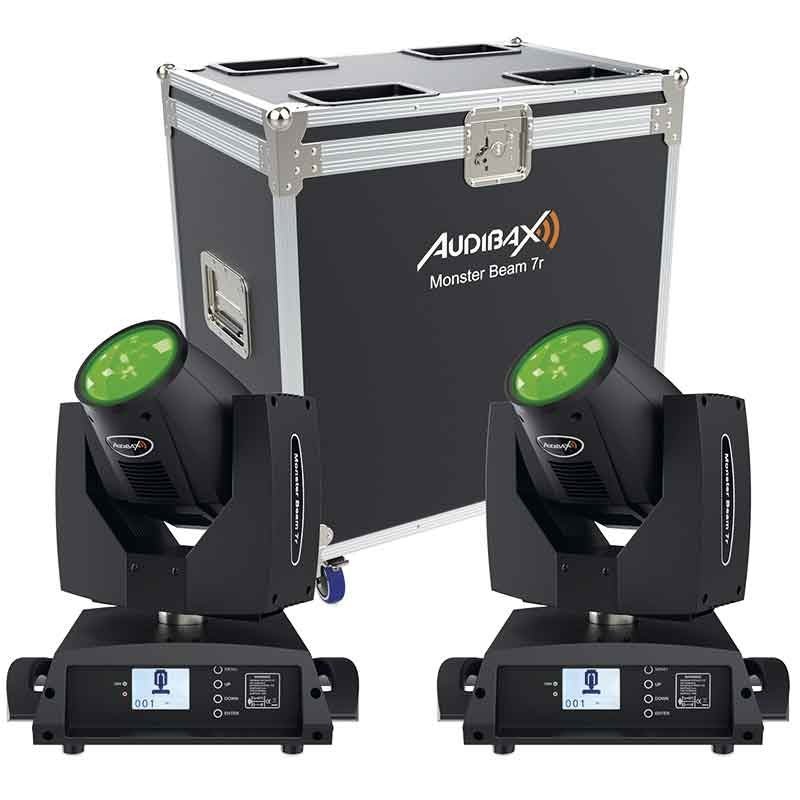

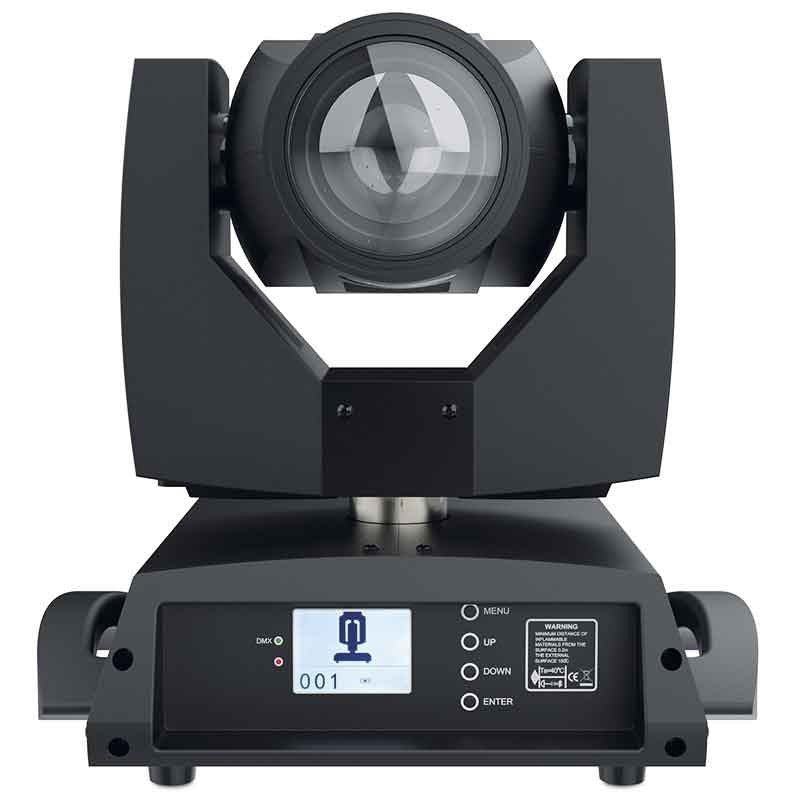

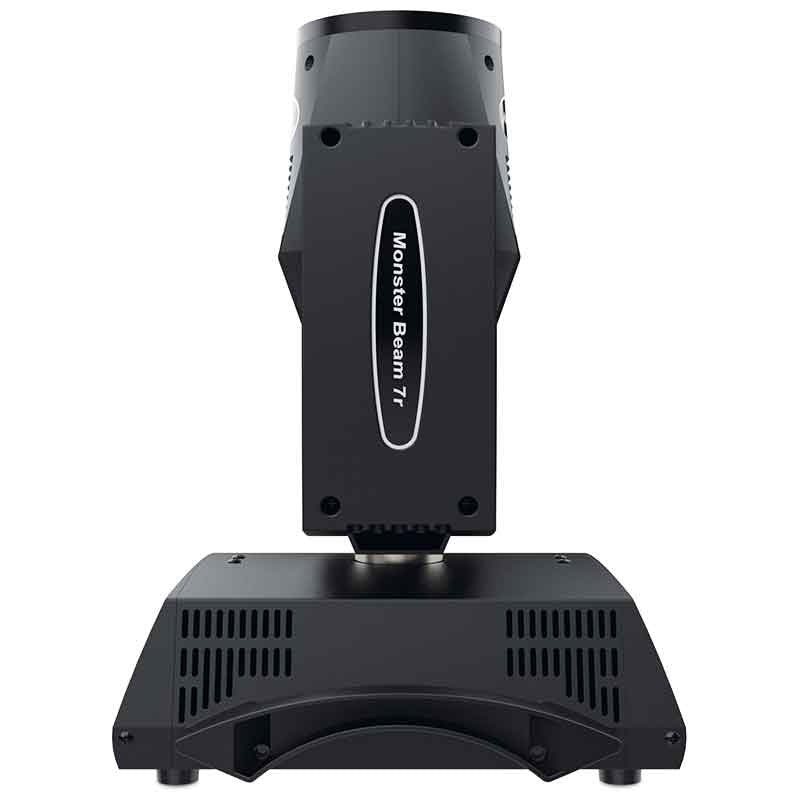

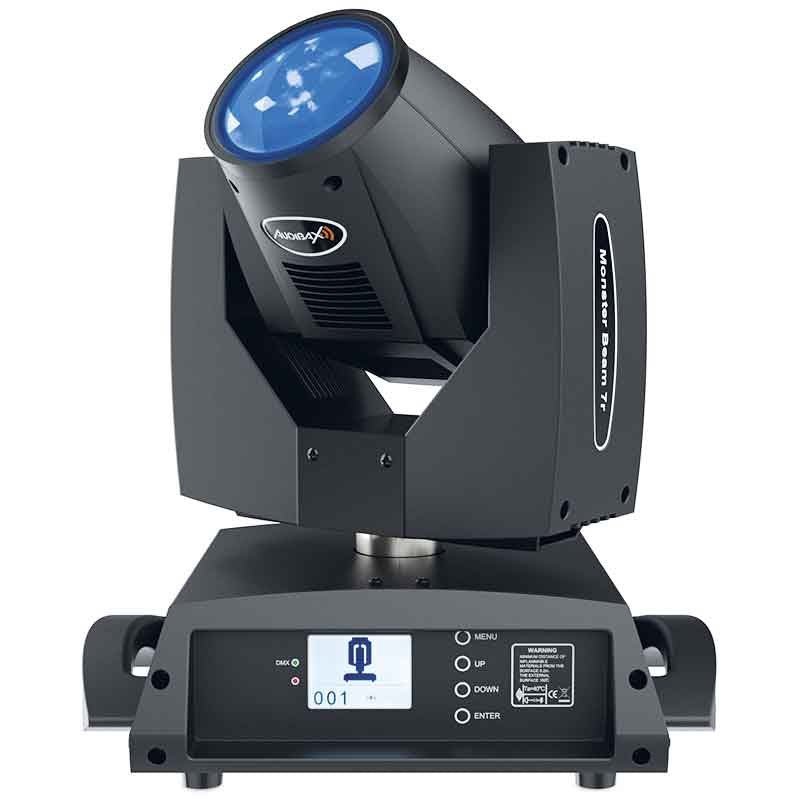

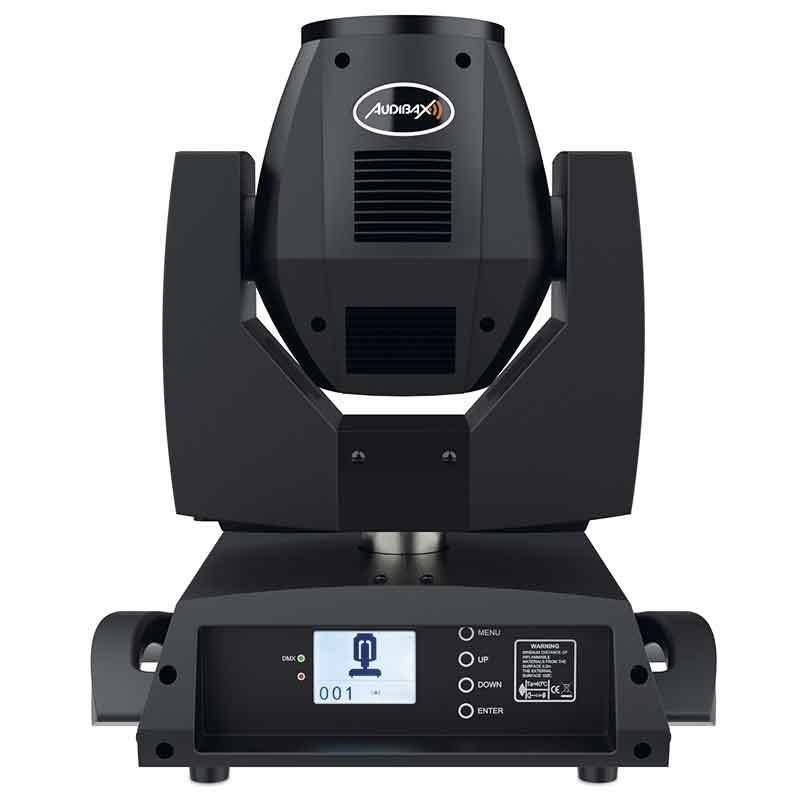

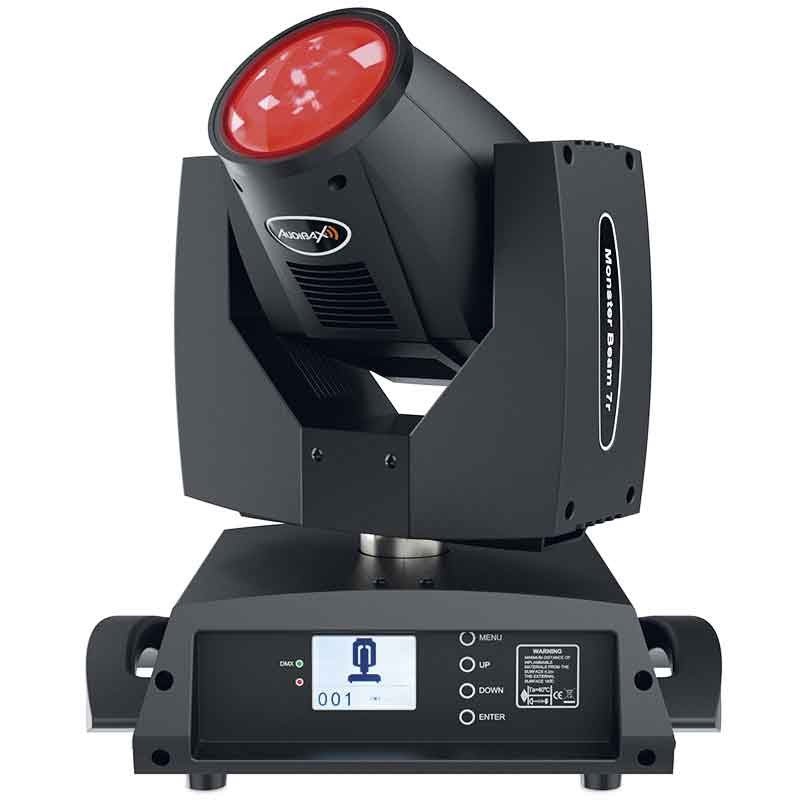

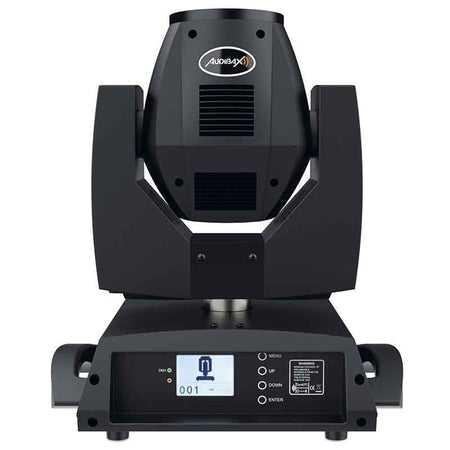

The Audibax Monster Beam 7R package includes two BEAM moving heads and a double flight case for transport and protection. Each unit features a 230W OSRAM 7R lamp and high-precision optics capable of projecting an extremely focused beam over long distances. With 14 colors plus white , 17 fixed gobos plus white , and an 8-facet prism with bidirectional rotation , it's a versatile solution for tours, clubs, festivals, and corporate events. It offers Auto, Sound, Master-Slave, and DMX (16/20 channels) modes ; 0-100% dimming; a dual strobe effect (1-12 Hz) ; and a touchscreen for streamlined workflow. It also includes a Frost function to expand the beam and create a wash effect when required by the design.

The movement system offers 540° pan and 270° tilt with automatic correction , speed adjustment, and fast scans. The beam's parallel range is 0–3.8° , and the axis angle is 8° , resulting in sharp, highly visible strokes in the air. Each light head operates on a universal 100–240 V~ 50/60 Hz power supply with a rated power of 500 W , a color temperature of 8000 K , and a lamp life of 2000 hours . The flight case organizes both units and includes a central compartment for power cables and mounting claws , simplifying truss installation.

Main features

• Pack: 2 × Monster Beam 7R + double flightcase.
• Source: OSRAM 7R 230 W discharge lamp (≈8000 K, 2000 h).
• Optics and effects: 14 colors + white; 17 fixed gobos + white; 8-sided prism with bilateral rotation; Frost ; focus ; double strobe 1–12 Hz; linear dimmer 0–100%.
• Movement: Pan 540° / Tilt 270° with auto-correction and speed adjustment.
• Beam: parallel beam 0–3.8° ; axis angle 8° (X/Y) .
• Control: Auto, Sound, Master-Slave and DMX 16/20 channels ; touch screen.
• Construction: IP20 protection class, silent motors and high-precision optics.
• Power supply and consumption: 100–240 V~ 50/60 Hz; 500 W nominal per unit.
• Safety and maintenance: thermal shutdown and overcurrent protection, vertical axis fan ventilation, lamp runtime and on-screen error analyzer.

Product benefits

• Long-distance visual impact: ultra-tight beam with great punch, perfect for beams in the air and defined strokes.
• Creative versatility: combination of colors, gobos, 8-sided prism and Frost to switch from beam to support wash .
• Tour-ready pack: includes double flight case and accessories located in a central compartment for quick assembly.
• Professional operation: DMX 16/20 CH control, master-slave and automatic/sound presets to cover everything from clubs to corporate.
• Reliability: electrical protections, hours monitoring and optimized ventilation system.

Use cases

• Live performances and festivals: strokes in the air, prisms and strobe bursts synchronized by DMX.
• Clubs and events: fast movements, sharp gobos and intense colorimetry with 14 + white.
• Corporate and theaters: stylized scenes; Frost to expand specific coverage.
• Rental and installation: robust pack, easy to transport and deploy with double flight case.

Frequently Asked Questions

Does it include the lamp? Yes, each unit comes with an OSRAM 7R 230W lamp installed.

How many DMX channels does it use? It has two DMX maps with 16 or 20 channels , selectable from the menu.

Can I use one unit as master and the other as slave? Yes, Master/Slave mode allows you to synchronize both printheads without a console.

Where are the cables and clips in the flight case? In the central compartment between the two openings of the case.

Usage recommendations

• For maximum beam visibility, use haze and program movements with 16-bit Pan/Tilt on the console for smoother operation.
• Activate Frost only when you want to widen the beam; with prism and gobos you will achieve more pronounced volumetric effects.
• Periodically check the condition of filters, lenses, and fans to maintain optical performance.

Project description

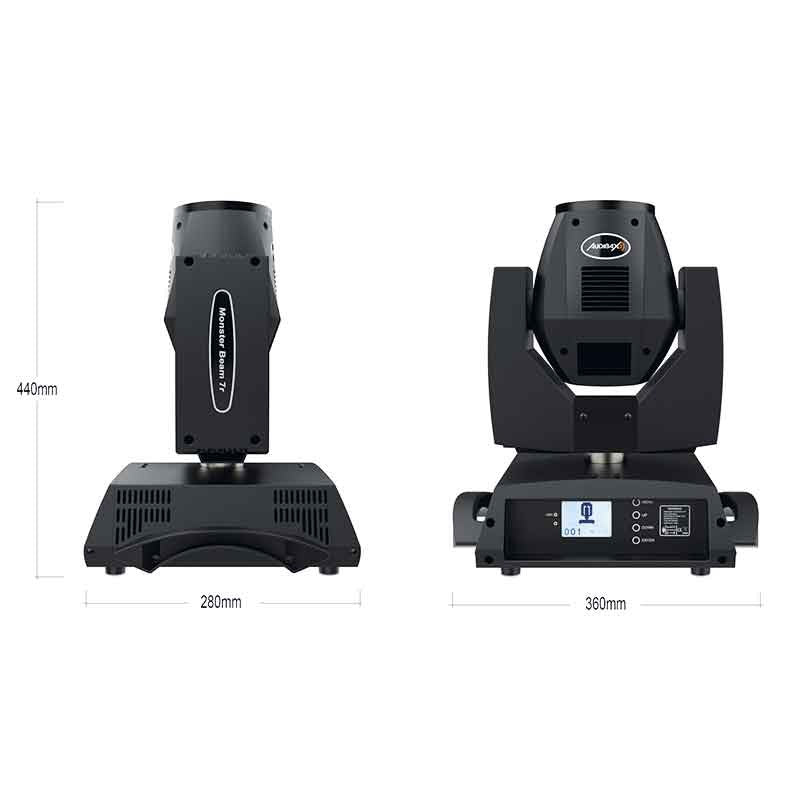

Audibax Monster Beam 7R lighting pack with 2 BEAM moving heads and double flight case . Specifications per unit: OSRAM 7R 230 W (8000 K, 2000 h lifespan), 14 colors + white , 17 fixed gobos + white , 8-facet prism (bilateral rotation), Frost , 0–100% dimmer, 1–12 Hz dual strobe , 16/20 channel DMX , Auto/Sound/Master-Slave/DMX modes, 540° Pan / 270° Tilt with correction, 0–3.8° beam angle, IP20 , 100–240 V~ 50/60 Hz power supply, 500 W rated power. Dimensions approx. 465 × 380 × 550 mm ; Net weight 17.5 kg (gross 21 kg ) per unit.
