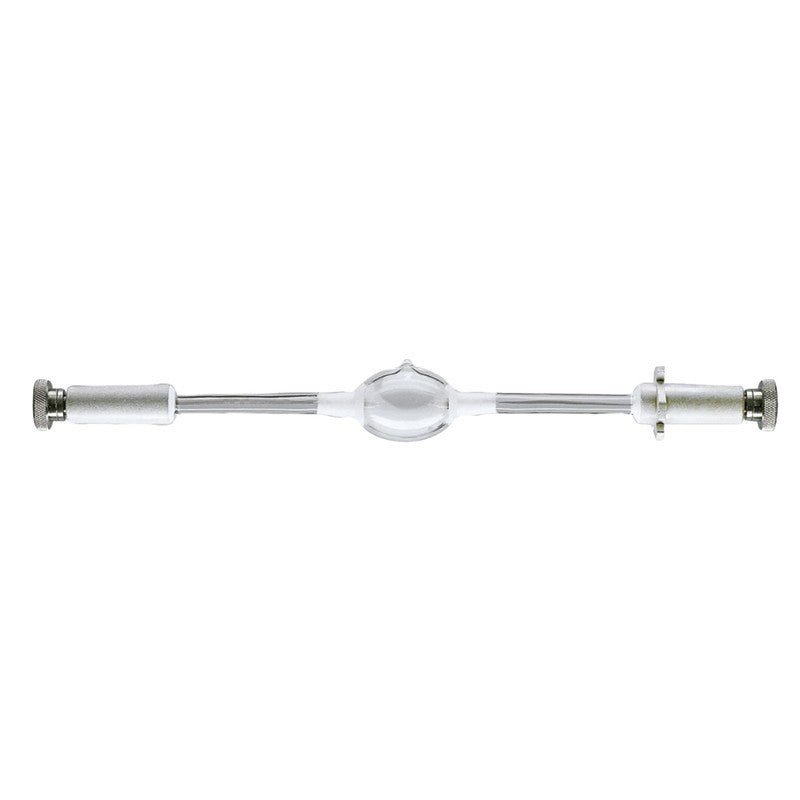

Philips MASTER MHN-SA 1800W/956 (P)SFC 400V – Short arc metal halide lamp for stadiums and architectural projection
The Philips MASTER MHN-SA 1800W/956 (P)SFC 400V is a quartz metal halide (double pinch) lamp designed for high-performance projectors in sports , architectural , and large-format lighting applications. It offers a stable daylight color temperature of 5,600 K (code 956) with a CRI of 86 , a P15 operating position (parallel ±15° or horizontal), and a 50% failure rate lifetime of 6,100 hours . With a nominal power consumption of 1,850 W and an efficacy of 86 lm/W , it delivers a nominal luminous flux of 160,000 lm , ideal for powerful and uniform beams with precision optics. It uses a double (P)SFC base and must always be used with an external ballast and ignitor in fully enclosed luminaires to ensure safety and performance.
Main features
-
High photometric performance: 160,000 lm (≈86 lm/W) at 1,850 W ; CRI 86 ; 5,600 K (code 956).
-
Short arc and optical control: 25 mm arc length for greater beam concentration and less light spill.
-
Base/socket: (P)SFC double end (industrial equivalent SFC20-6 ), robust clamping for professional projectors.
-
Dimensions: Ø 41 mm × length 364 mm ; TD40 shape (40 mm tube) with transparent bulb.
-
Operating position: P15 (parallel ±15° / horizontal), optimized for flow stability and life.
-
Electrical compatibility: lamp voltage 205 V ; requires external ballast and igniter (400 V systems).
-
Non-dimmable: This lamp does not support dimming .
-
Service life (L50/F50): 6,100 h (at 50% failure rate).
-
Safety and environment: Hg 234 mg ; use exclusively in enclosed luminaires .
Product benefits
-
High illuminance with 5600K daylight color, ideal for cameras and broadcasts.
-
Precise optics and great "punch" thanks to the short arc, facilitating uniformity and range.
-
Reliability in critical applications: double-pinch quartz construction and (P)SFC base.
Use cases
-
Sports lighting: fields, pavilions and stadiums with television requirements.
-
Architecture and large surfaces: facades, monuments, bridges and long-distance projections.
-
Shows and events: large format projectors and high flow wash screens .
Compatibility and assembly
- Install only in enclosed and approved luminaires for high-power metal halide lamps.
- Use with external ballast and igniter according to the manufacturer's specifications (400 V systems).
- Respect the P15 position to maximize life and color/flow stability.
Security
In case of breakage, ventilate the area for 30 minutes, collect the fragments wearing gloves, place them in a sealed bag, and take them to an authorized recycling center. Do not use a vacuum cleaner. Contains mercury (Hg).
Project description
Philips MASTER MHN-SA 1800W/956 metal halide lamp, (P)SFC double end, 1,850 W , 205 V , 5,600 K , CRI 86 , 160,000 lm , efficacy 86 lm/W , arc 25 mm , position P15 , non-dimmable ; dimensions Ø 41 × 364 mm ; use in enclosed luminaires; requires external ballast and igniter ; mercury content 234 mg ; life (F50) 6,100 h .
