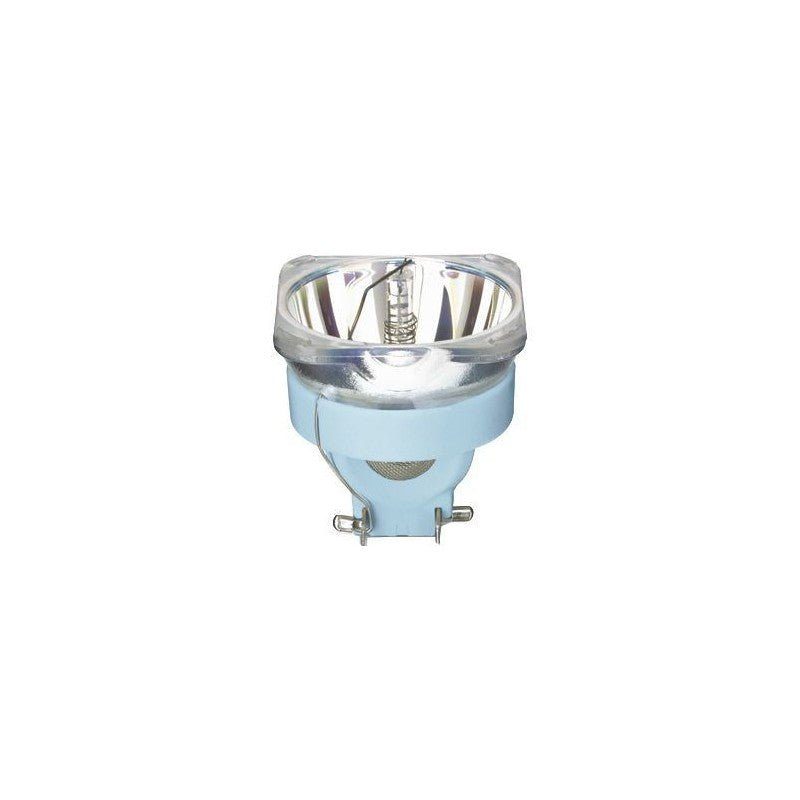

Philips MSD Platinum 20 R - 470W (8000K) Discharge Reflector Lamp for Entertainment
The Philips MSD Platinum 20 R is a discharge lamp with an integrated reflector designed for touring, stage, and event lighting . Its ultra-short arc of 1.2 mm and color temperature of 8,000 K produce a very intense and defined beam of 22,400 lm , maintaining a universal working position and dimming capability (depending on the equipment). Thanks to its compact size (≈ Ø 58.7 mm × 73.0 mm ) and Platinum technology, it allows for the creation of smaller and lighter luminaires without sacrificing performance or reliability on tour.
Main features
-
High-impact optical performance: 22,400 lm , 8,000 K and 1.2 mm arc for maximum beam intensity in beams, spots and hybrids.
-
Integrated reflector and flexible operation: adjustable (with compatible equipment) and universal position .
-
Verified dimensions: Ø 58.7 mm (2-5/16") × length 73.0 mm (2-7/8").
-
Base/socket: PGJX36 , standard in high-performance entertainment fixtures.
-
Family photometric parameters: CRI ≈ 80 and WD 31.4 mm (typical working distance) for clean colors and high “punch”.
-
Durability: 1,500 h (life at 50% failure rate) with max. pinch temperature 400 °C .
-
Professional packaging: sales unit 1 piece; usual outer packaging UNP/24 .
Product benefits
-
More creativity in less space: concentrated power in a compact format for lightweight luminaires.
-
Cool and consistent color: 8,000 K that enhances gobos and effects at a great distance.
-
Agile maintenance: reflector design that speeds up replacement and realignment.
-
Tour-ready: stable performance and long life in intensive rental/installation applications.
Outstanding compatibility
Used by top manufacturers in moving heads such as Clay Paky Mythos / SuperSharpy , Elation Platinum FLX , Acme XP-20R BSW/BEAM , among other benchmark models in the market.
Frequently Asked Questions
-
Is it dimmable? Yes, with compatible ballasts/electronics for discharge lamps.
-
Can it be mounted in any position? Yes, universal position .
-
What base does it use? PGJX36 , common in high-performance entertainment lights.
Safety and recycling
Contains mercury. In case of breakage, ventilate for 30 minutes, collect the fragments wearing gloves, place them in a sealed bag, and take them to an authorized recycling center . Do not use a vacuum cleaner.
Project description
Philips MSD Platinum 20 R discharge reflector lamp, 470 W , 8,000 K , 22,400 lm , arc 1.2 mm , CRI ≈ 80 , PGJX36 base , dimmable , universal position ; dimensions Ø 58.7 × 73.0 mm ; WD 31.4 mm ; max. pinch temperature 400 °C ; life 1,500 h ; unit 1 piece (outer packaging UNP/24).
