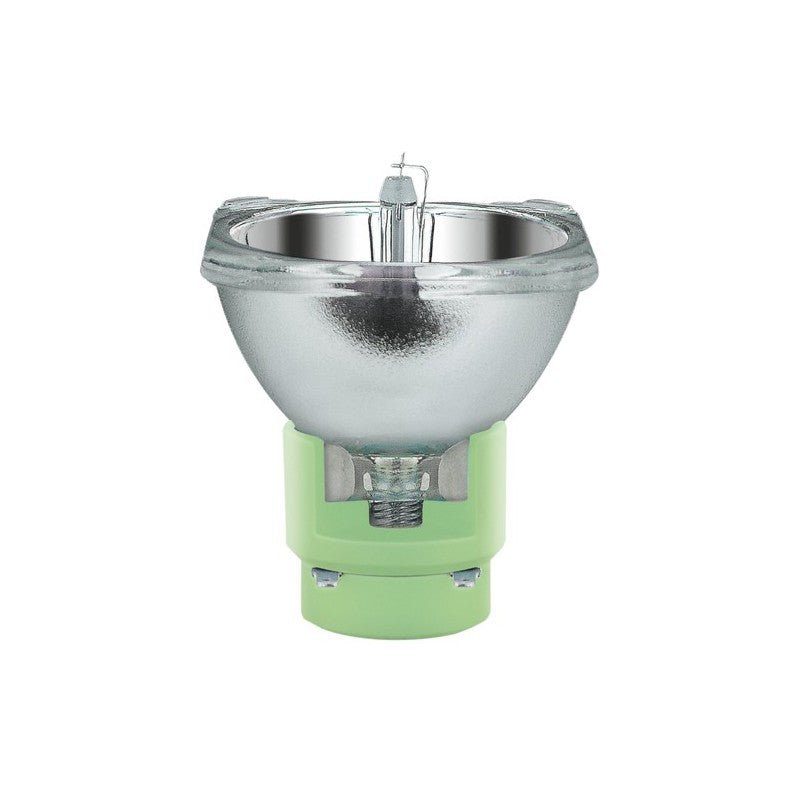

OSRAM - SIRIUS HRI 230W 7R Lamp

SIRIUS HRI 230W OSRAM lamp known as 7R lamp

• High luminosity thanks to its short arc and high pressure
• Duration 2000 hours
• Easy to assemble
• Stable luminous flux throughout its life

Description

With a highly efficient dichroic reflector optimized for entertainment lighting fixtures such as moving heads, scanners, and effects.

Electrical data

• Nominal power: 230 watts
• Nominal current: 3.3 amps
• Nominal voltage: 70 volts
• Ignition voltage: 2.5 kVp
• Lifespan: 2,500 hours
• Cooling: Forced cooling
• EEI, energy label: A

Lighting technical data

• Nominal luminous flux: 9500 lm
• Color temperature: 8000 k
• Color rendering index Ra: 75

Dimensions and weight

• Diameter: 51.0 mm
• Length: 54.5 mm
• Arc length: 1 mm
• Burning Position: Universal

• ID
  • Brand: Osram
  • Description: Sirius HRI 230W FS1 Osram
  • Osram Family: SIRIUS HRI Lamps

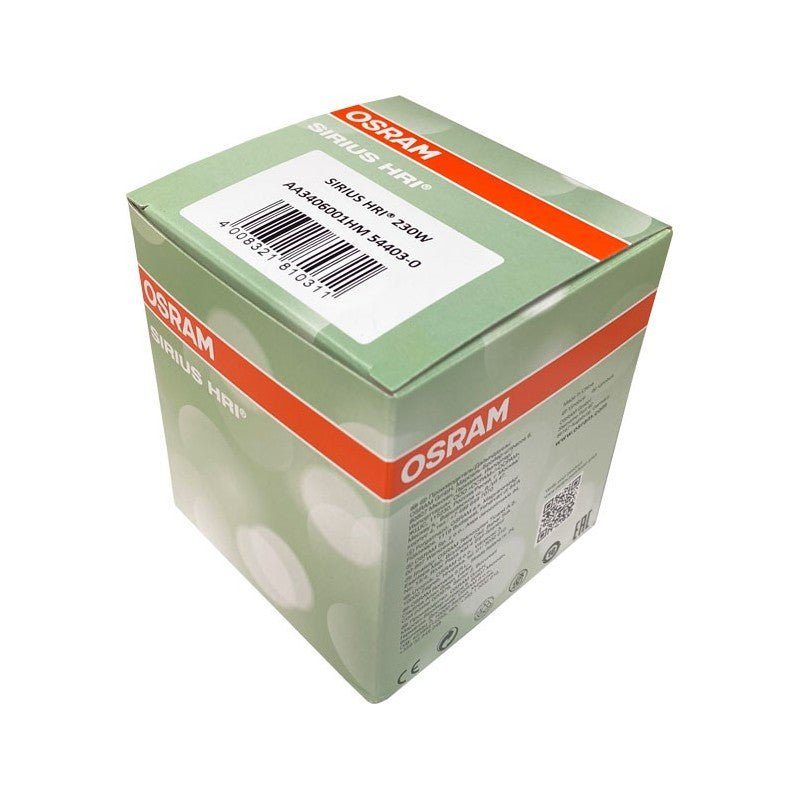

  • EAN code individual packaging: 4008321810311. Dimensions 87 x 87 x 103 mm. Weight 108 g
  • EAN code for packaging of 2 units: 4008321810328. Dimensions: 186 x 118 x 100 mm. Weight: 311 g.

This type of lamp is used by several manufacturers of lighting fixtures. The following list shows some manufacturers and models of fixtures in which this lamp model is used:

• Ablelite : EVA 230B
• Ablelite : EVA 230B LED
• American Pro : Ion 230B
• ACME : CH230RD
• APOLLO : SMART230 BEAM
• Chauvet : Legend 230SR Beam
• Chauvet : Rogue R2 Beam
• Cindy : PRO-7R
• Color Imagination : BEAM 230
• Color Imagination : Spot 230
• Color Imagination : SI054
• CT Lighting : EAGLE-2005 BEAM
• Fine Art : FINE-xtreme-230W
• Futurelight : PLB-230
• GTD : GTD-230 II BEAM
• GTD : GTD-230 II SPOT
• Highlite : Infinity iB-5R
• Lightsky : E230
• Lightsky : F230
• Lightsky : IP1000E
• Max Lighting : Color Beam 350
• PR light : XR 230 Spot
• SSP : Beam Spot 230
• Steinigke : Futurelight PLB-230
• Triton Blue : Triton Blue 7R-BEAM-PRO
