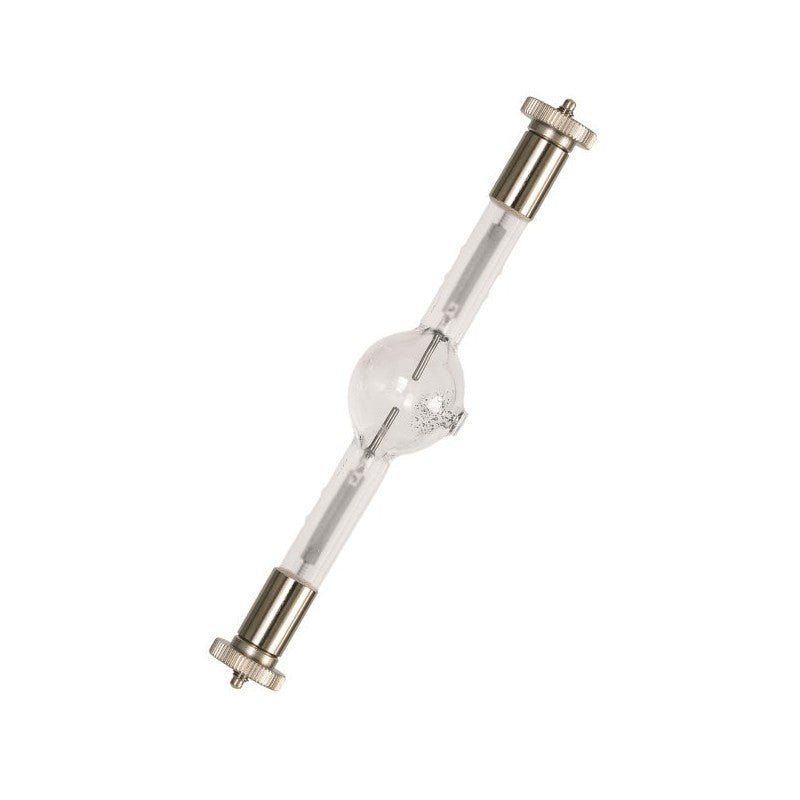

OSRAM SharXS HTI 1200 W/D7/60 – Double-ended metal halide lamp (SFc10-4) for moving heads and stages

OSRAM SharXS HTI 1200 W/D7/60 – Double-ended metal halide lamp (SFc10-4) for moving heads and stages

The OSRAM SharXS HTI 1200 W/D7/60 is a twin-cap , short-arc discharge lamp (SFc10-4) designed for professional entertainment applications (moving heads, theater, TV, concerts, and events). Thanks to its 7 mm arc and eXtreme Seal (XS) technology, it offers high luminance , hot restrike , excellent arc stability , and pinch resistance up to 450 °C . It delivers a nominal luminous flux of 110,000 lm in daylight (≈6,900 K) and a CRI of 85 , maintaining consistent output throughout its rated lifespan of 750 hours .

Main features

• Short arc and high “punch”: 7.0 mm electrode gap for very defined beams and high luminance ( 41,000 cd/cm² ).
• Photometric performance: 110,000 lm , ≈6,900 K (daylight), CRI 85 .
• Thermal robustness: XS technology with allowable pinch temperature up to 450 °C .
• Professional operation: hot re-ignition , burn position: any , and 5.0/35 kVp pulse ignition .
• Standardized dimensions: total length 136 mm , LCL 57.5 mm , diameter 21 mm for direct integration into compatible projectors.

Product benefits

• Very high luminance from a point source: concentrated beams and bright effects in large rooms.
• Stable daylight-like color and consistency between refills within the SharXS family.
• Easy maintenance: SFc10-4 double sleeve format and standardized lengths for quick replacements.
• Reliability on tour: robust design, hot restrictrike and high thermal resistance.

Use cases

• Live shows: concerts, festivals and touring with 1.2 kW moving heads spot/beam/wash .
• Theatre, TV and film: intense and neutral light for camera and audience.
• Corporate events and large venues: high-impact effects with stable coloring.

Typical compatibility (examples)

Commonly found in 1.2 kW moving head fixtures from brands such as Martin (MAC 2000) , Varilite (VL3000/VL3500) , Clay Paky , Coemar , JB/Varyscan , and others. Always verify the exact part number required by your fixture before purchasing.

Frequently Asked Questions

• Is it adjustable and does it support hot re-strike? Yes; adjustment and hot re-strike depend on the projector's electronic ballast.
• What is the operating voltage/current? Typically 96.6 V AC and 12.4 A (third-party documentation rounds it to 95–100 V and 12.7–13.8 A).
• Does it generate ozone or hazardous UV radiation? Like all high-pressure metal halide lamps, it must be used in enclosed spaces with UV filters and protective measures in accordance with the safety data sheet.

Safety and installation recommendations

• Operate only with compatible electronic ballast and pulse ignition system ( 5/35 kVp ).
• Install in a closed fixture with adequate ventilation; avoid direct UV exposure and fragmentation.
• Handle with PPE and do not touch the quartz; respect cooling times before replacement.

Project description

OSRAM SharXS HTI 1200 W/D7/60 Metal Halide Lamp; 1200 W ; ≈96.6 V AC ; 12.4 A ; luminous flux 110,000 lm ; ≈6,900 K ; CRI 85 ; luminance 41,000 cd/cm² ; SFc10-4 ; LCL 57.5 mm ; length 136 mm ; Ø 21 mm ; electrode gap 7.0 mm ; ignition 5.0/35 kVp ; burn-in position: any ; XS 450 °C; rated life 750 h .
