OSRAM CP89 64717 650 W 230 V GY9.5 – 3200 K Halogen Studio Lamp for Theatre, Film and TV

OSRAM CP89 64717 650 W 230 V GY9.5 – 3200 K Halogen Studio Lamp for Theatre, Film and TV

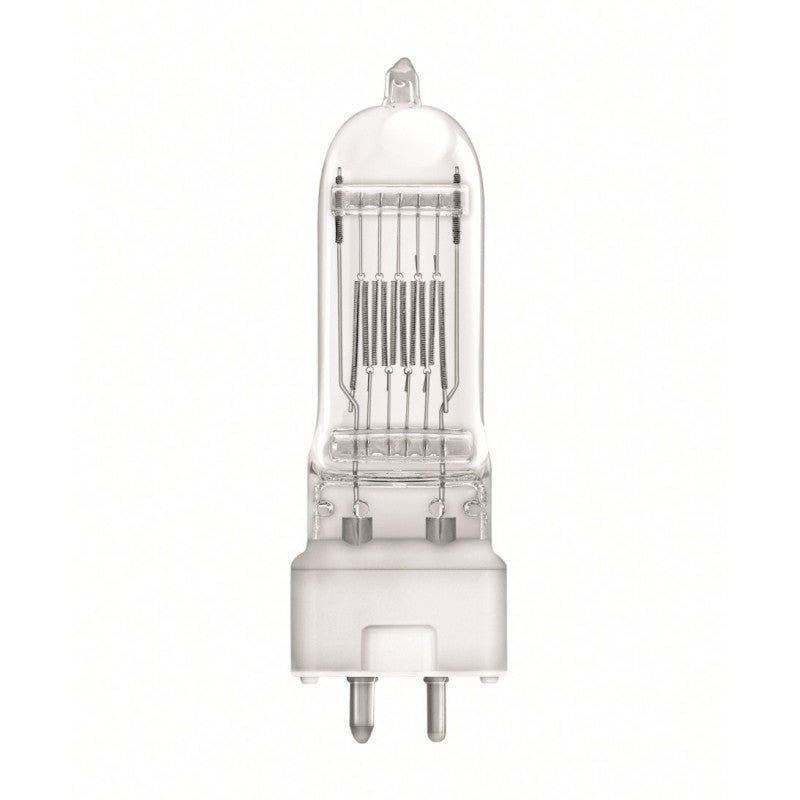

The OSRAM CP89 64717 is a single-cap halogen lamp with a GY9.5 base, designed for professional lighting in theater, film, television, and events . It delivers a luminous flux of 16,250 lm with a color temperature of 3,200 K (tungsten) and a CRI of 100, ensuring accurate skin tones and colors on camera. It operates directly on 230 V , is 100% dimmable with the characteristic amber shift , offers instant start , and maintains a virtually constant luminous flux throughout its 150-hour lifespan . Compact and robust ( Ø 23 mm , length 90 mm , LCL 46.5 mm ), it fits studio and trim fixtures for 650 W. Standard equivalents: LIF CP/89 and ANSI FRL .

Main features

• Power / nominal voltage: 650 W / 230 V (AC)
• Nominal luminous flux: 16,250 lm (Φ _use ≈ 16,415 lm)
• Color temperature: 3,200 K (tungsten)
• Color Rendering Index: Ra 100
• Base: GY9.5 (single bushing)
• Dimensions: Ø 23 mm; length 90mm; LCL 46.5mm
• Working position: s90
• Nominal lifespan: 150 h
• Regulation: Yes (with amber shift)
• Reference code: OSRAM 64717 · LIF CP/89 · ANSI FRL

Product benefits

• Professional image quality: CRI 100 and 3,200 K for precise colorimetry.
• Stable performance: virtually constant flow throughout its lifespan and instant start-up.
• Agile operation: widely used GY9.5 format and full regulation for creative control.
• Robust construction: designed for intensive use on set, stage and rental.

Use cases

• Television and cinema: 650W fresnel and cutout lights for key/fill or precise cutouts.
• Theatre and concerts: spotlights and spotlights for actors and stage elements.
• Events and photography: warm continuous light with excellent color rendering.

Frequently Asked Questions

Is it dimmable with a conventional dimmer? Yes, it is fully dimmable; when dimmed, the light becomes warmer ( amber shift ).

Does it need auxiliary equipment? No ballast is required; it operates at 230V . Use lamp holders and wiring suitable for 650W.

Are there any preferred working positions? The specified position is s90 ; please follow the luminaire's recommendations.

Installation and safety recommendations

• Check compatibility GY9.5 , power (650 W) and space for 90 × 23 mm and LCL 46.5 mm .
• Do not touch the quartz bulb with your hands; handle with clean gloves.
• Use enclosed light fixtures with glass/filters suitable for high temperatures.

Project description

OSRAM 64717 halogen lamp (LIF CP/89, ANSI FRL), GY9.5 base; 650 W; 230 V (AC); 3,200 K; CRI 100; luminous flux 16,250 lm (Φ _use ≈ 16,415 lm); LCL 46.5 mm; length 90 mm; diameter 23 mm; position s90; average life 150 h; dimmable.
