OSRAM CP/90 64754 - Halogen Studio Lamp 1200 W, 230 V, GX9.5 (3200 K) for Theatre, Film and TV

OSRAM CP/90 64754 - Halogen Studio Lamp 1200 W, 230 V, GX9.5 (3200 K) for Theatre, Film and TV

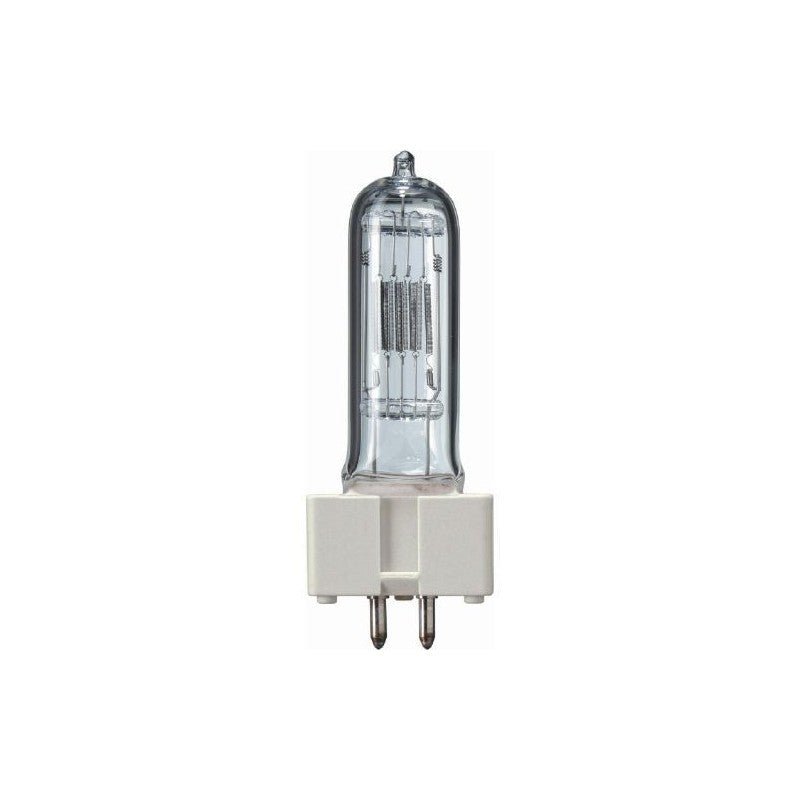

The OSRAM CP/90 64754 is a professional 1200W , 230V halogen lamp with a GX9.5 base, designed for cutaway, Fresnel, and PC lighting in theater , television , film , and events . It offers tungsten light calibrated to 3200K (correlated CCT ≈ 3137K ) with a CRI of 100 and a luminous flux of 30,000 lm , maintaining a uniform and easily controllable beam thanks to its compact filament ( illuminated field 13 × 15 mm). It operates directly from mains power, is dimmable , and its S90 burn-in position allows for vertical or horizontal operation. Optimized dimensions for studio lighting: Ø 27 mm , length 125 mm , LCL 67 mm ; weight approx. 50 g . Rated life: 200 h .

Main features

• Power/voltage: 1200 W · 230 V (direct mains operation).
• Color and light quality: 3200 K (CCT ≈ 3137 K) · CRI 100 · 30,000 lm · efficacy ≈ 25 lm/W.
• Precision optics: filament with illuminated field 13 × 15 mm for a clean beam and good clipping.
• Format and compatibility: GX9.5 base, LCL 67 mm , Ø 27 mm , length 125 mm , weight 50 g .
• Operation: adjustable with amber shift · burn position s90 .
• Durability: nominal life 200 h in professional use.

Product benefits

• Consistent studio color (3200 K) and perfect camera color reproduction ( Ra 100 ).
• Beam control : compact filament that improves focus and definition in cropping, Fresnel and PC.
• Easy integration : widely compatible dimensions and base in entertainment luminaires.
• Productivity : instant start-up and maintenance of virtually constant flow throughout its useful life.

Use cases

• Theatre and concert halls : fronts, backs and high-performance cutouts.
• Television and film : continuous tungsten lighting for sets and filming.
• Events and rental : stage fixtures with 1.2 kW GX9.5 lamps.

Frequently Asked Questions

Is it dimmable? Yes. It accepts dimmers for resistive loads; when dimming, the characteristic amber shift occurs.

Does it need a transformer? No. It is designed for 230V mains voltage.

What is the working position? s90 (valid from vertical to horizontal, ±90° from the vertical).

Useful life? 200 nominal hours under manufacturer's test conditions.

Installation and safety

• Operate only in suitable luminaires with protective coverings (glass/grids) that contain fragments and control UV/IR radiation.
• Do not touch the quartz with your fingers; assemble with gloves or a clean cloth.
• Ensure proper ventilation and heat dissipation; allow cooling before handling or replacing.

Project description

OSRAM CP/90 64754 halogen lamp, GX9.5 base, 1200 W , 230 V , 30,000 lm (Φ _use 29,685 lm), 3200 K (CCT ≈ 3137 K), CRI 100 , efficacy ≈ 25 lm/W , illuminated field 13 × 15 mm , LCL 67 mm , Ø 27 mm , length 125 mm , position s90 , dimmable , nominal life 200 h ; professional use in enclosed luminaires.
