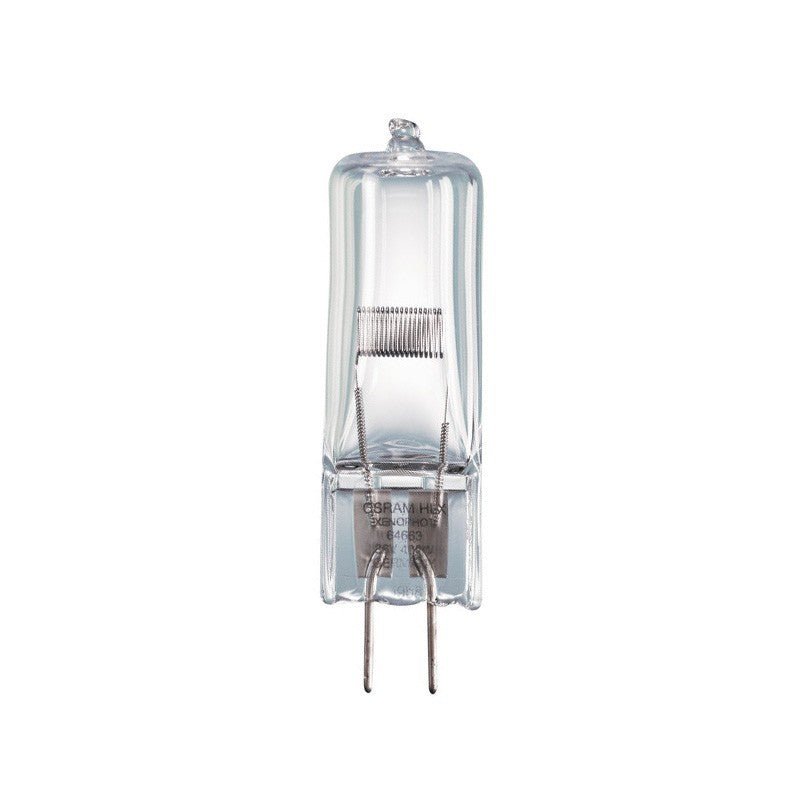

OSRAM - BI-PIN HLX LL 400W/36V 300HA1/166 64665 XENOPHOT Lamp

Lamp 64665. Bipin 400w/36v. OSRAM

• Product: 64665 HLX
• Voltage: 36W
• Power: 400V
• Base: G6.35
• Lifespan: 300h
• Luminous Flux: 12200 lm

64665 HLX LIF: A1/166

Electrical data

• Nominal voltage: 36.0 V
• Nominal power: 400.00 W

Photometric Data

• Color temperature: 3300 K
• Nominal luminous flux: 12800 lm

Dimensions and weight

• Diameter: 18.0 mm
• Length: 60.0 mm
• Long. Luminous center (LCL): 36.0 mm
• Filament length: 10.50 mm
• Illuminated field: 10.5*5.3 mm²
• Filament diameter: 5.3 mm
• Duration (according to manufacturer): 300 h

Additional product data

• Cap (standard designation): G6.35
• Min. diameter of the lamp envelope: 18 mm
• Capacities>> Adjustable: Yes
• Burning position: s 90
• Application: Others
• EEI – Energy label: B

Product Features

• Xenon gas instead of krypton as filling gas (XENOPHOT HLX versions)
• Up to 10% higher luminous flux with the same power consumption (XENOPHOT HLX versions)
• Low voltage halogen lamp with or without reflector
• Dimmable (HLX)

Product benefits

• Compared to standard lamps, up to 10% more luminous efficacy (HLX)
• Instant Light (HLX)

Areas of application

• Lamps for special luminaires
• Medical optical fiber (HLX)
