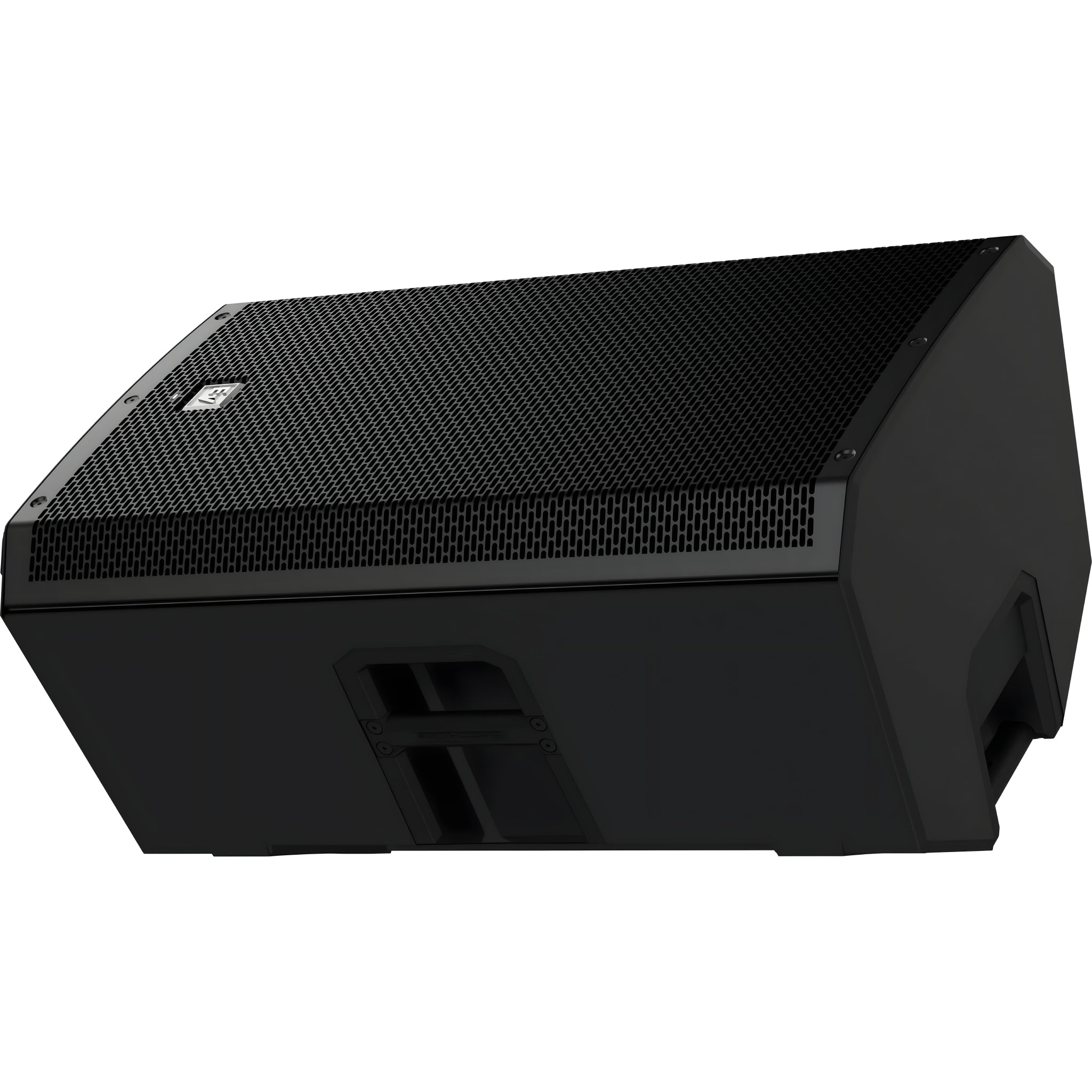

Electro-Voice ZLX-15P-G2 - 15" Powered PA Speaker (90°×60°, 1000 W, 129 dB SPL max.)

Electro-Voice ZLX-15P-G2 - 15" Powered PA Speaker (90°×60°, 1000 W, 129 dB SPL max.)

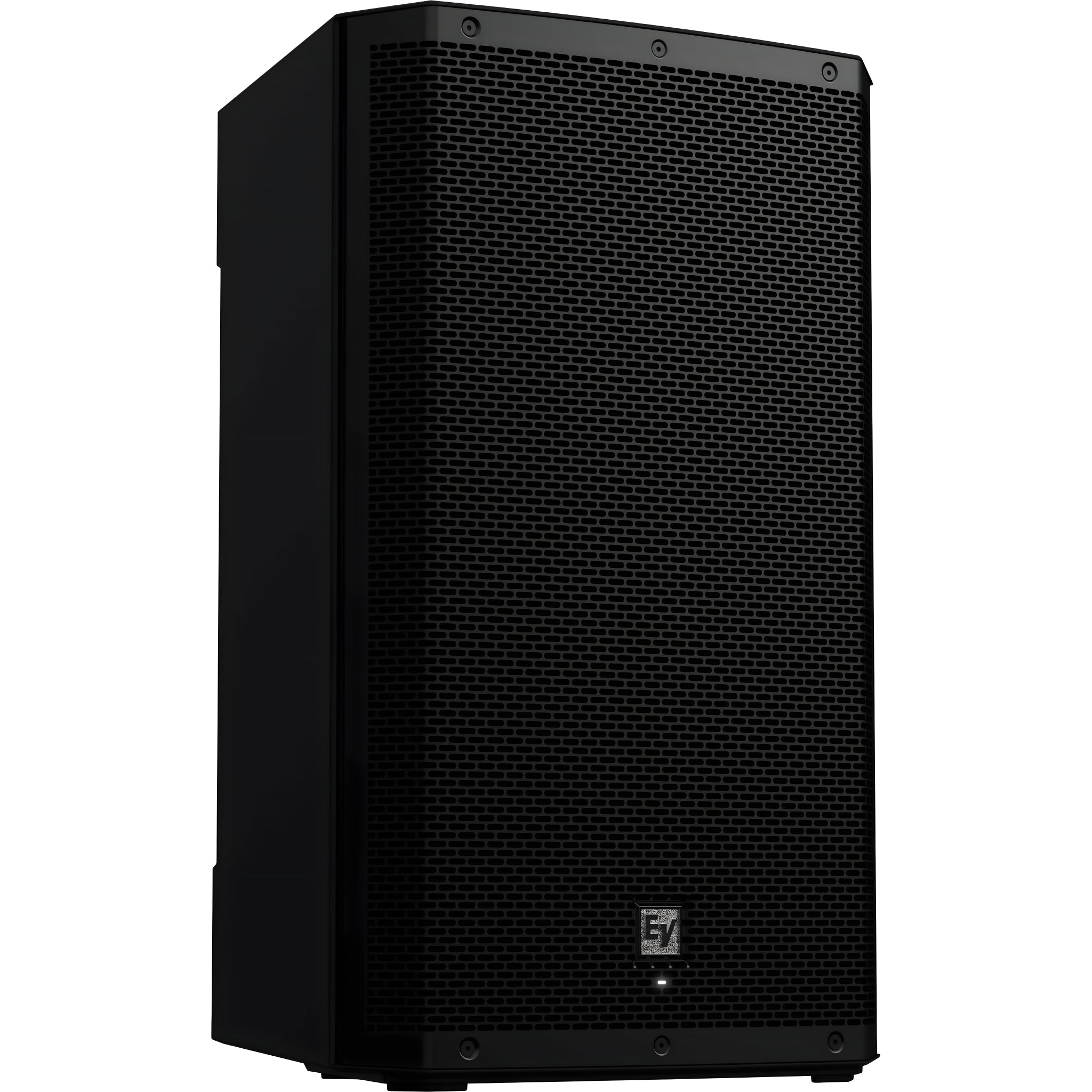

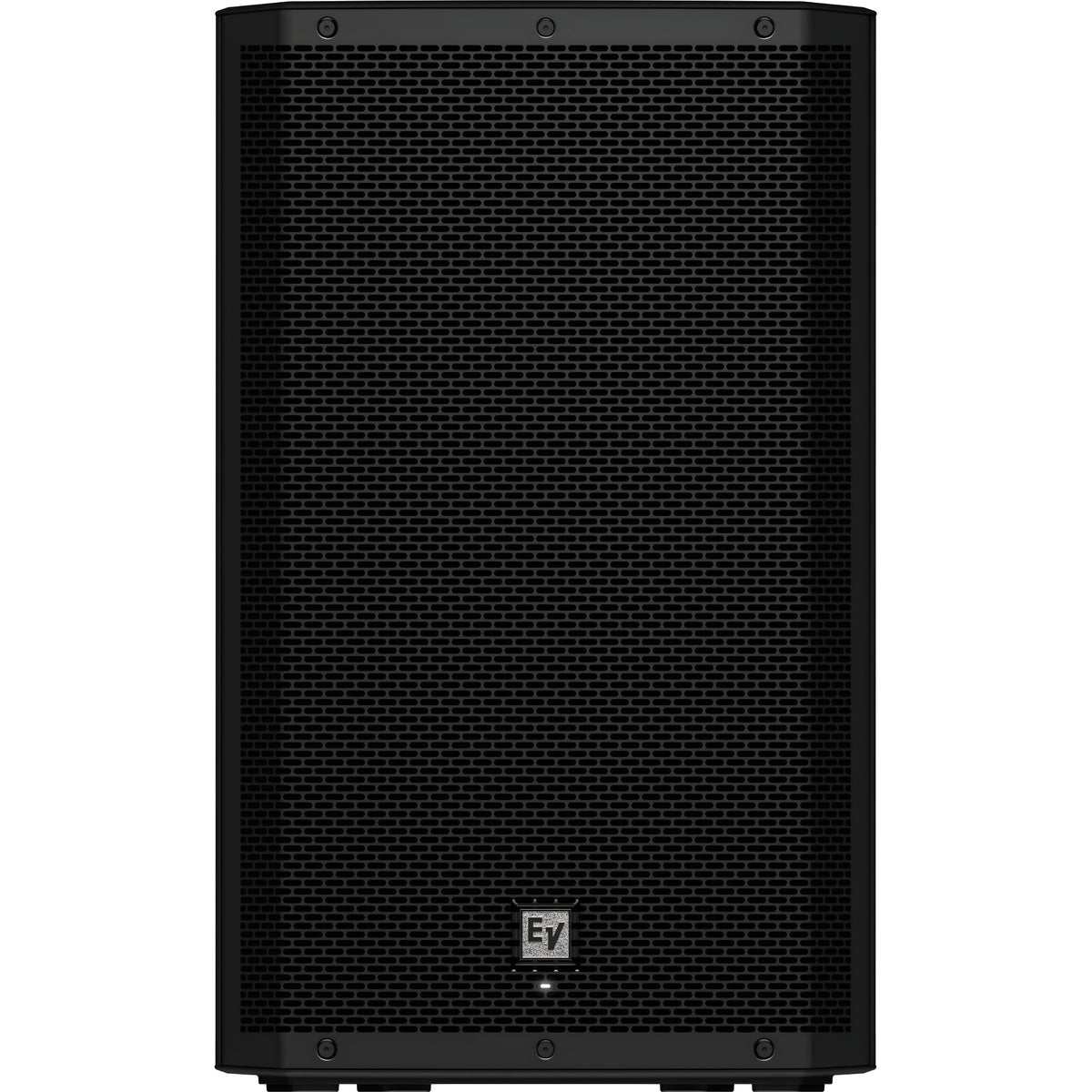

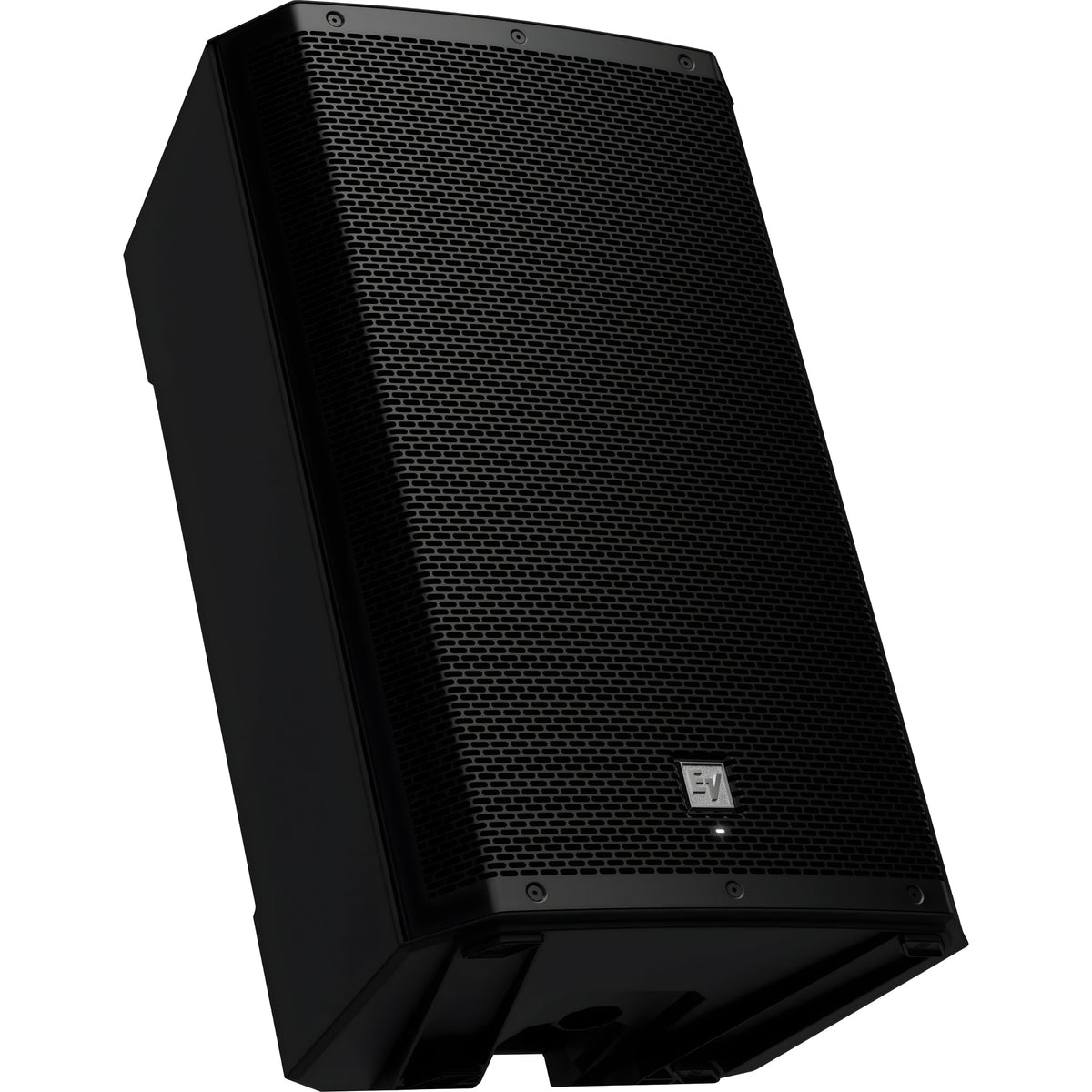

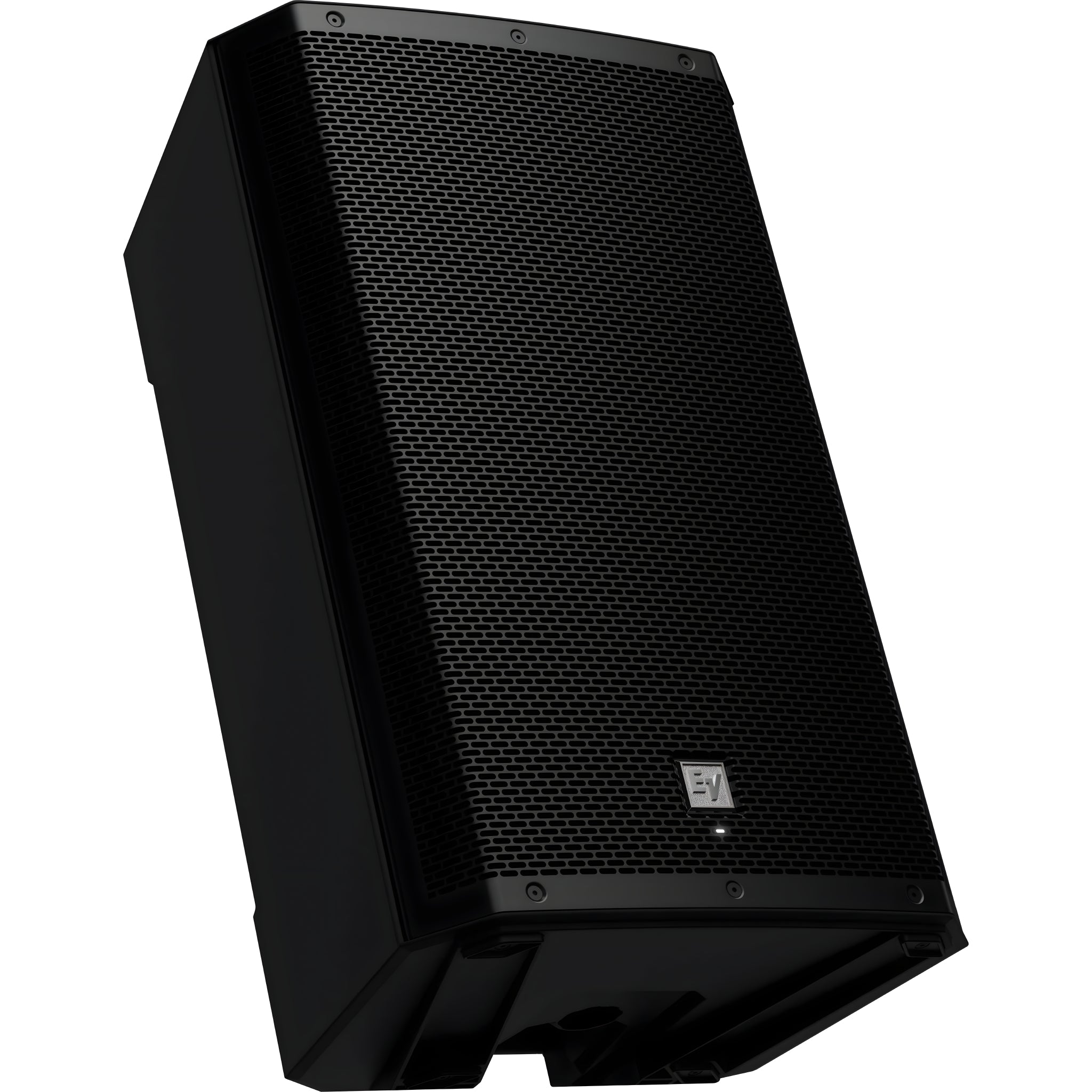

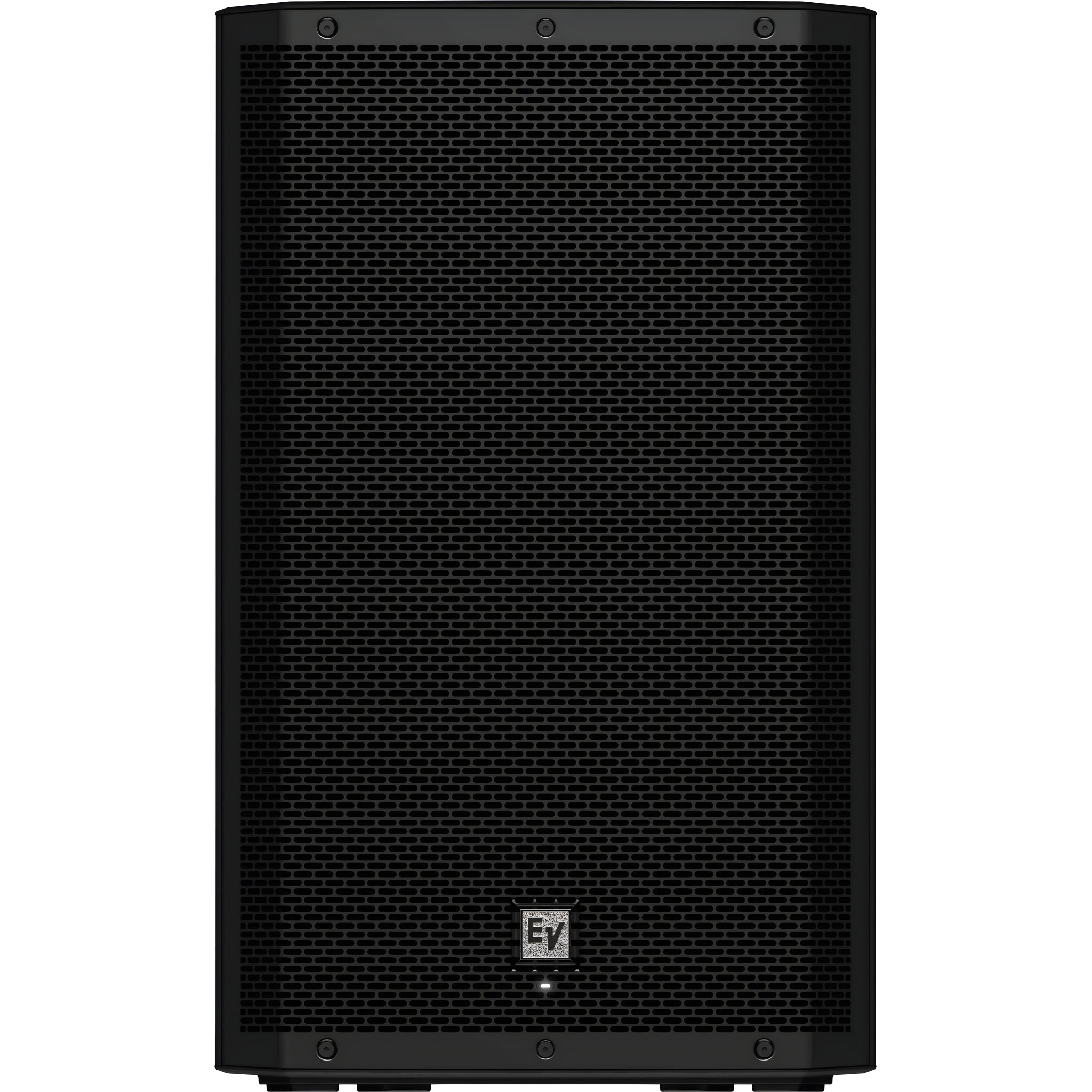

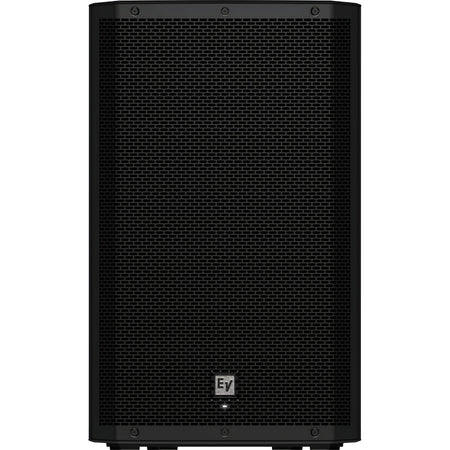

The Electro-Voice ZLX-15P-G2 is a 2-way full-range system with integrated 1000W amplification, designed for demanding portable PA and intensive use. It combines a 15" woofer (WECA2158) with a 1.4" compression driver (DECA2516, titanium diaphragm) behind the patented SST waveguide, achieving uniform 90° × 60° coverage, tighter bass and high intelligibility. The second generation ZLX adds Bluetooth with stereo streaming and QuickSmart Mobile app control, plus an integrated digital mixer “ Powered by Dynacord ” with FX , AFS (Automatic Feedback Suppression), ducker and PEQ . Its trapezoidal polypropylene enclosure (black) integrates three handles , a 35mm tripod/sub cup and two wedge angles ( 55° and 23° kickback ) for flexible monitoring.

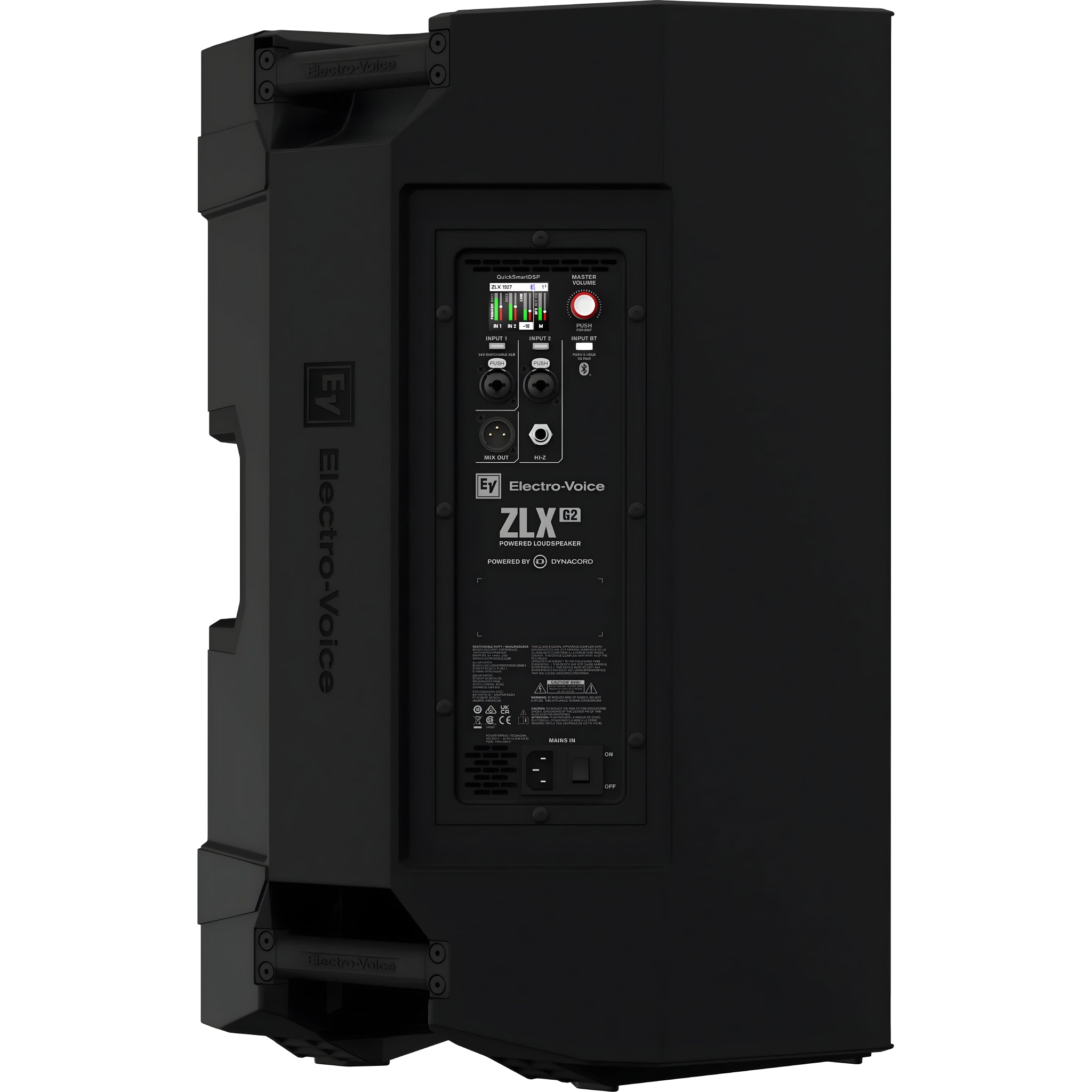

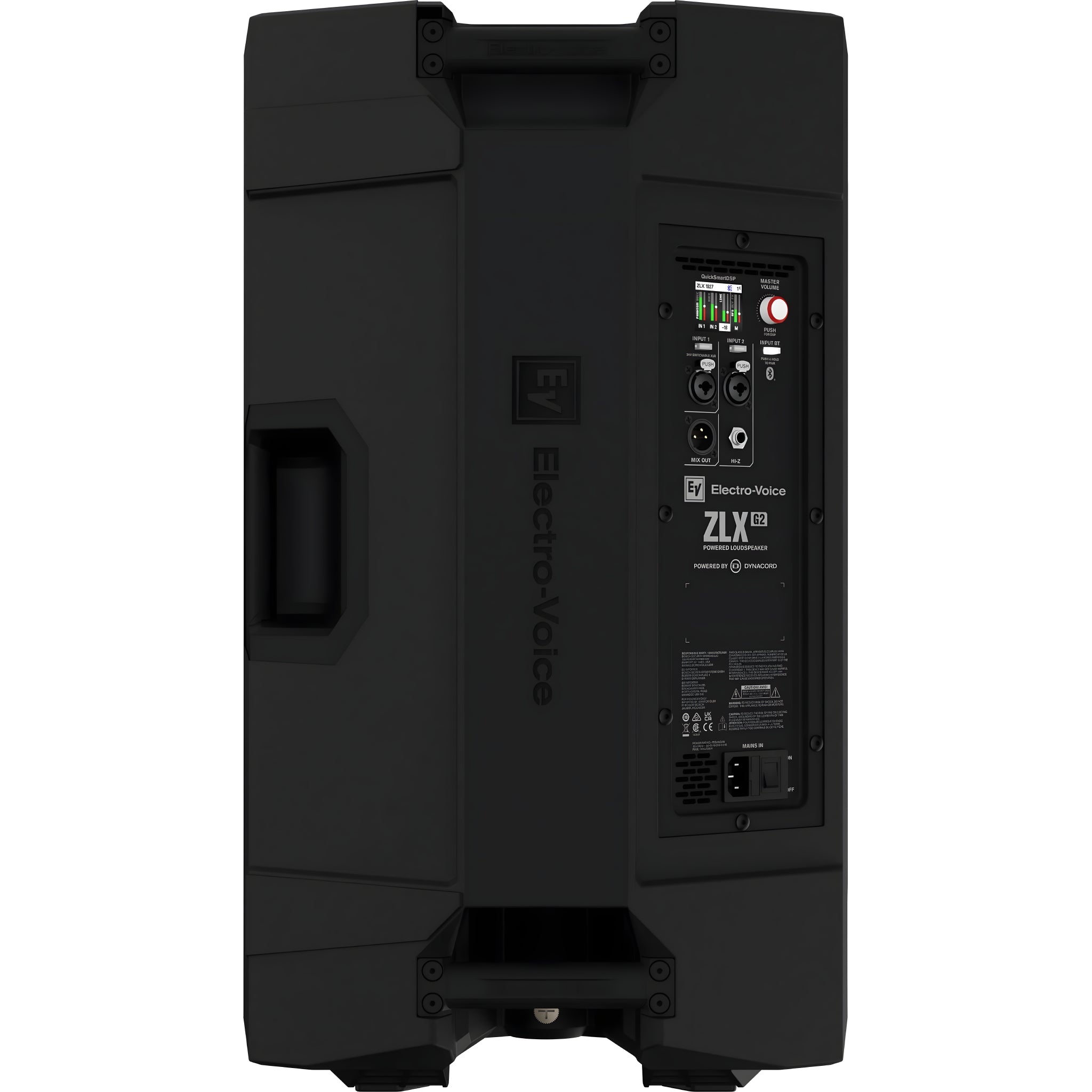

Delivering up to 129 dB SPL (1 m), with a (-10 dB) range of 42 Hz–20 kHz and a (-3 dB) response of 48 Hz–18 kHz . Rear panel features two XLR/TRS combo inputs (with +24 V phantom power on input 1) and a 1/4" Hi-Z direct instrument input , plus an XLR “Mix Out” for daisy-chaining systems. Dimensions (H × W × D): 697.6 × 422.8 × 383.1 mm ; weight : 16.78 kg . Powder-coated steel grille for maximum durability.

Main features

• 2-way architecture : LF 15" WECA2158 (ferrite) + HF 1.4" DECA2516 (titanium).
• SST waveguide for time alignment, increased bass loading and homogeneous dispersion.
• Amplification power : 1000 W Class-D ; max. SPL 129 dB; 90° × 60° coverage .
• Response : 42–20 kHz (−10 dB) / 48–18 kHz (−3 dB); xover 1.40 kHz.
• Integrated digital mixer (4 channels, 3 inputs) with FX , AFS , ducker , PEQ and presets (incl. FRFR mode for modelers).
• Connectivity : 2 × XLR/TRS combo (phantom +24 V in IN 1), 1 × 1/4" TS Hi-Z , 1 × XLR Mix Out .
• Bluetooth with stereo streaming and TWS pairing (stereo pair) + QuickSmart Mobile app control .
• Polypropylene enclosure , painted steel grille; 3 handles ; 35 mm cup; 55°/23° monitor .
• Power supply : 100–240 V~ 50/60 Hz.
• Dimensions/weight : 697.6 × 422.8 × 383.1 mm; 16.78 kg.

User benefits

• Powerful, consistent sound with increased bass extension and vocal clarity, even at high volumes.
• Modern operation : integrated mixing with FX/AFS/ducker, Bluetooth and app to adjust and monitor without touching the box.
• True versatility : main PA on tripod or on sub, monitor with 55°/23°, and Hi-Z input for guitar/bass without DI.
• Easy installation and logistics thanks to its three handles, lightweight enclosure and Mix Out output for chaining.

Use cases

• Portable PA for DJs , bands, rental companies and corporate events.
• Voice and music reinforcement in gyms, educational centers, and places of worship.
• Backline/monitoring with FRFR preset and 55°/23° wedge angles on medium stages.

Frequently Asked Questions

• Does it support phantom power? Yes, +24 V on the INPUT 1 XLR input, configurable from the menu.
• Can I connect another active speaker? Yes, using the XLR Mix Out or via Bluetooth TWS for wireless stereo.
• Does it include effects? Yes, the digital mixer integrates FX and control tools (AFS, ducker, EQ).

Description for projects

2-way 15" powered loudspeaker; 90°×60° coverage; range (−10 dB) 42 Hz–20 kHz; response (−3 dB) 48 Hz–18 kHz; max. SPL 129 dB; amplification power 1000 W; xover 1.40 kHz; transducers: LF 15" WECA2158 (ferrite) + HF 1.4" DECA2516 (titanium); inputs 2×XLR/TRS (phantom +24 V on IN 1), 1×1/4" TS Hi-Z; XLR Mix Out; Bluetooth with stereo/TWS streaming and QuickSmart Mobile app control; polypropylene enclosure with steel grille; cup 35 mm; wedge angles 55°/23°; dimensions 697.6 × 422.8 × 383.1 mm; weight 16.78 kg; color black; power supply 100–240 V~, 50/60 Hz.
