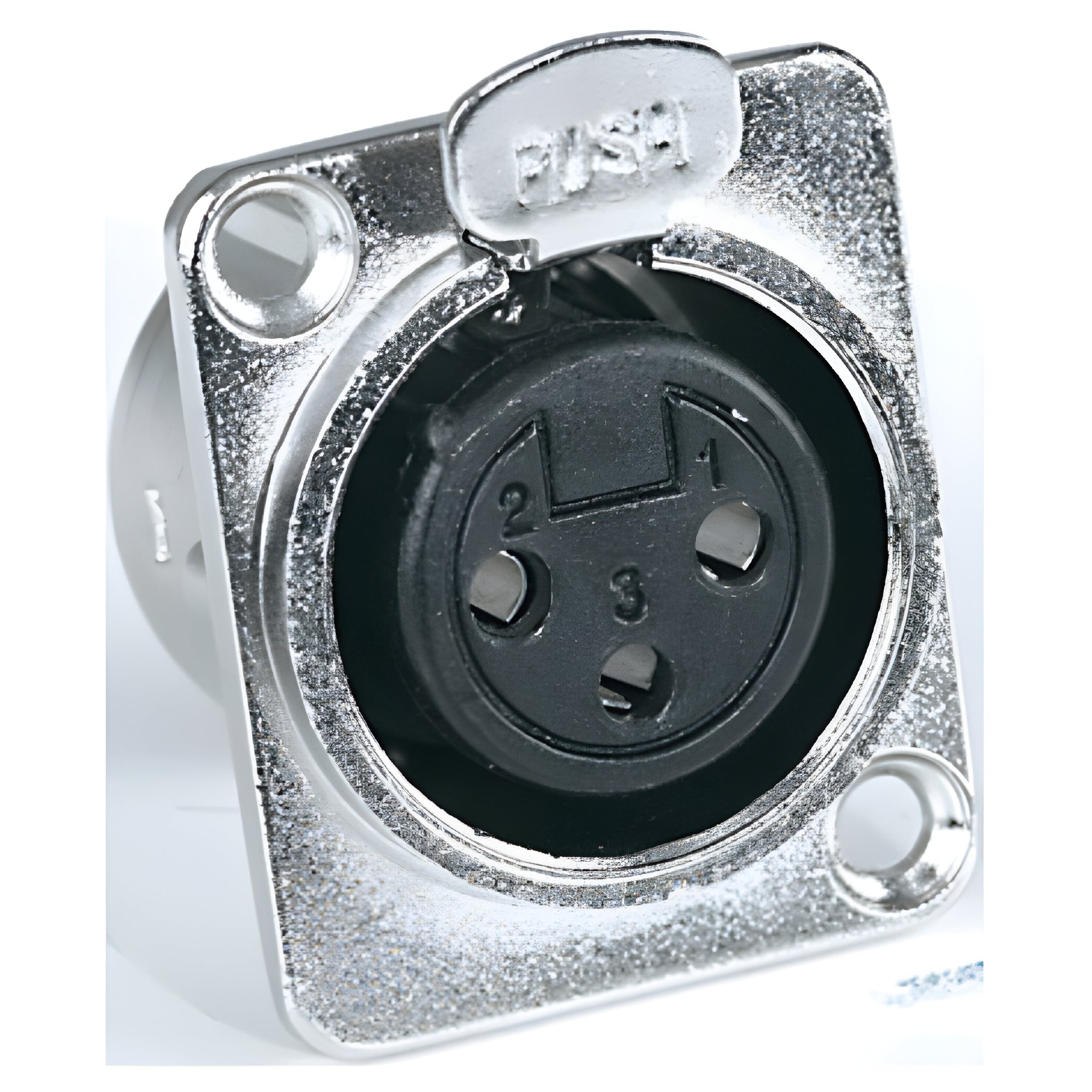

PROEL XLR3FDL - Female XLR Panel Connector with Clip and Aluminum Body
The PROEL XLR3FDL represents excellence in professional connectivity, designed specifically for system integrators, audio engineers, and technicians who cannot afford any signal chain failures. This 3-pole female XLR chassis connector stands out for its robust construction and reliability in demanding environments, from high-end recording studios to international tour stages.
Constructed with a durable aluminum body and finished in a sleek nickel-plated color, this connector not only offers a clean, professional aesthetic but also ensures superior mechanical durability and excellent shielding against electromagnetic interference (EMI) and radio frequency interference (RFI). Its standard panel design facilitates installation in racks, stage boxes, and wall plates, making it an essential component for any serious audio infrastructure.
Connection security is a priority for the XLR3FDL. It incorporates a high-precision latching mechanism that secures the male connector once inserted, preventing accidental disconnections caused by pulling or vibration during live use. The rear terminals are designed for clean and solid soldering , with solder cups to facilitate tinning and ensure optimal signal transfer free of unwanted noise.
Main features
-
Robust construction: Housing made of high-quality aluminum that withstands intensive use and protects internal contacts.
-
Safety mechanism: Locking system using a metal clip that ensures firm retention of the connected cable.
-
High conductivity contacts: 3-pole design optimized for balanced and transparent signal transmission.
-
Welding termination: Wide rear welding cups that facilitate manual assembly and ensure a permanent electrical bond.
-
Professional finish: Nickel-plated coating that offers corrosion resistance and a polished industrial appearance.
-
Standard format: Chassis design compatible with most dies and panels in the professional audio industry.
Benefits for the installer and the user
For the installer, the PROEL XLR3FDL offers the peace of mind of working with materials that withstand the heat of soldering without deforming, streamlining the assembly process. For the end user, the benefit lies in signal integrity : a connection that introduces no noise, doesn't accidentally disconnect, and withstands thousands of connection and disconnection cycles without losing mechanical strength.
Use cases
-
Stage Boxes: Ideal for building or repairing connection boxes on live music stages.
-
Patch Panels: Perfect for organizing microphone inputs in recording studios and control rooms.
-
Fixed installations: Conference rooms, theaters and auditoriums that require XLR connection points in walls or technical floors.
-
Rack equipment: Rear panel mounting of amplifiers, signal processors, and mixers.
Frequently Asked Questions
Does the connector include mounting screws?
Chassis connectors are generally supplied without screws, as the type of screw (M3, rivet, etc.) depends on the thickness and material of the panel where it will be installed.
Is it compatible with XLR connectors from other brands?
Yes, the PROEL XLR3FDL complies with the 3-pin XLR industry standard, so it is fully compatible with male connectors from any professional brand (Neutrik, Switchcraft, Amphenol, etc.).
What difficulty does the welding process present?
The soldering cups are designed to be accessible. With a fine-tipped soldering iron and good-quality solder, installation is straightforward even for technicians with intermediate experience.
Project description
PROEL XLR3FDL 3-pole female XLR chassis connector for panel mounting. Constructed with an aluminum body and corrosion-resistant nickel-plated finish. Features a locking mechanism to prevent accidental disconnections. Rear termination is provided by solder cups. Robust design suitable for professional audio applications, fixed installations, and stage cabinets, ensuring compatibility with the universal XLR standard.
