Ibiza Light & Sound XLR-EOL – DMX final connector 120 Ω

Ibiza Light & Sound XLR-EOL – DMX final connector 120 Ω

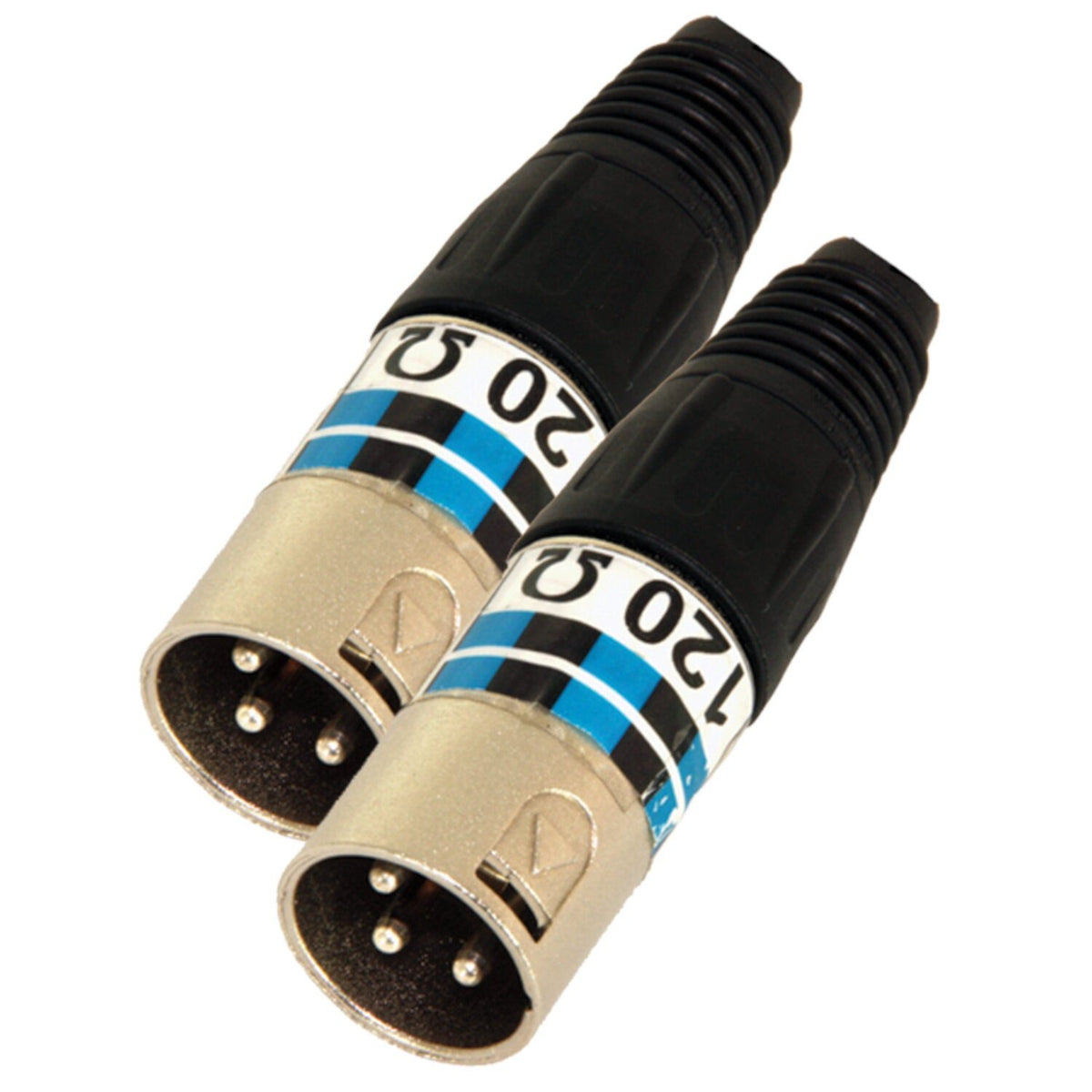

The Ibiza Light & Sound XLR-EOL is a DMX end-line terminator that ensures glare-free transmission in professional lighting installations. It is a 3-pin male XLR connector with a built-in 120 Ω resistor between pins 2 and 3, designed to be placed on the last fixture in a DMX512 chain to prevent signal interference.

Main features

• Connector: Standard DMX 3-pin male XLR.
• Integrated resistor: 120 Ω between pins 2 and 3 for line termination.
• Professional use: ensures a reliable end-of-line in DMX512 systems.
• Presentation: two-piece blister to keep each terminator protected until installation.
• Compatibility: Suitable for any device with 3-pin XLR DMX output.

Product benefits

• Stable signal: prevents signal reflections and dropouts in DMX communication.
• Easy installation: simply snap into the “Thru” outlet or last connection on each unit.
• Reduced cost: Avoid costly signal interruptions and lighting failures.
• Portability: Compact and durable design for mobile events and quick setup.

Use cases

• Termination of the last luminaire in DMX512 chains in live shows.
• Fixed installations in theaters, auditoriums and conference halls.
• Rental of professional lighting equipment with daily assembly and disassembly.

Frequently Asked Questions

• Why do I need a DMX terminator? Without one, the DMX signal can bounce off the end of the line, causing flickering or malfunctioning fixtures.
• Where do I install it? On the DMX “Thru” output of the last unit in the chain, or on the DMX end-of-line adapter.
• Is it compatible with 5-pin DMX? No, this model is specifically designed for the 3-pin XLR used in standard DMX512.
• Does each terminator come in a pack of two? Yes, it comes in a blister pack with two individual terminators.

Description for projects

3-pin male XLR connector with integrated 120 Ω resistor for DMX512 line termination; delivered in a two-piece blister pack.
