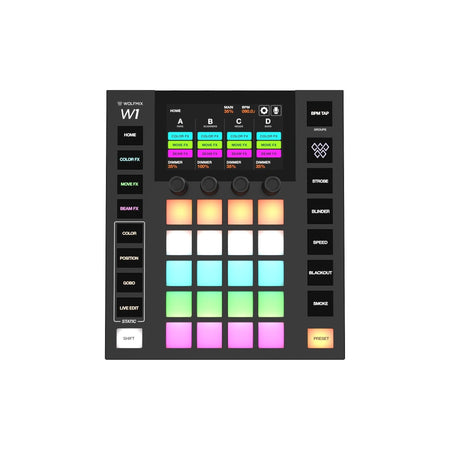

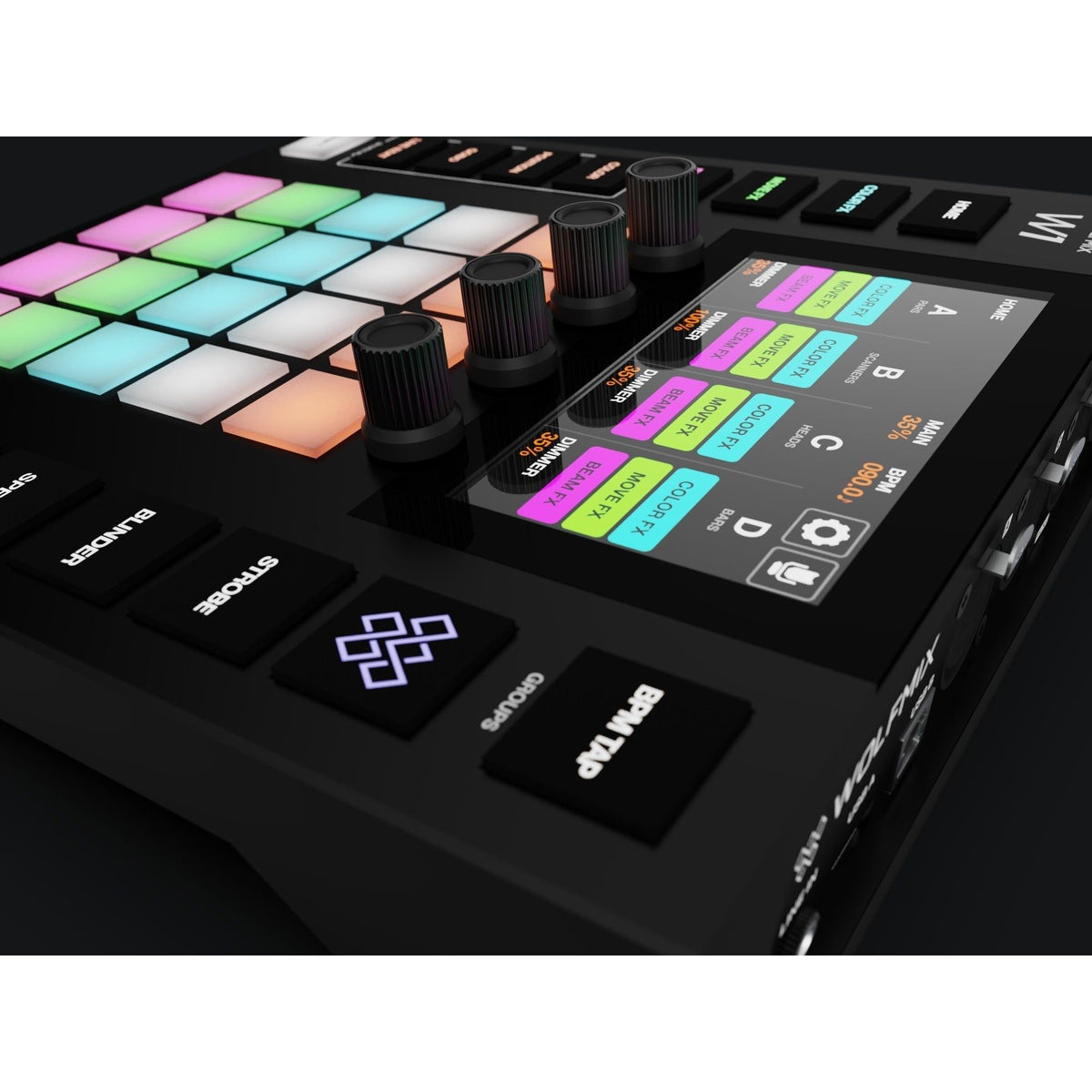

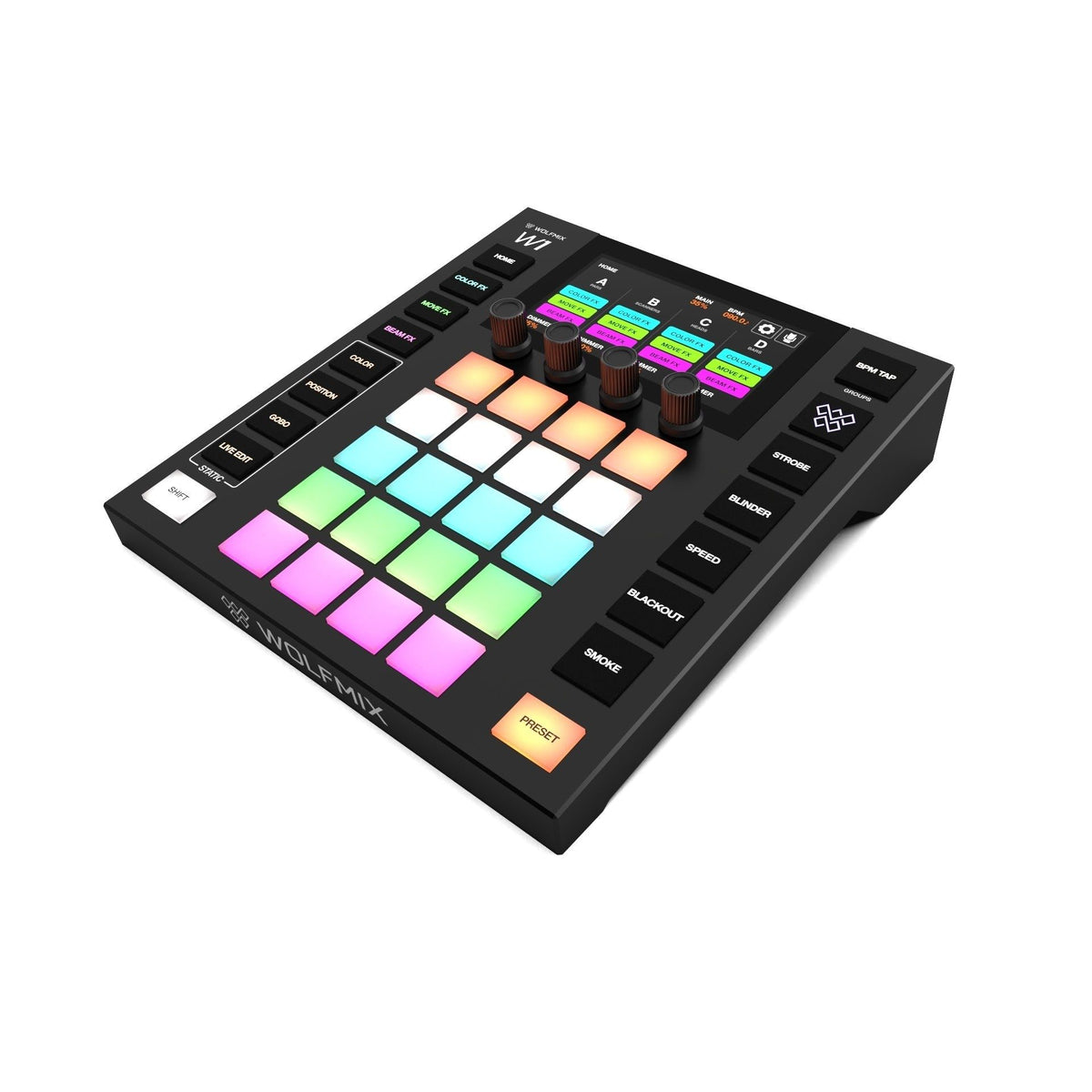

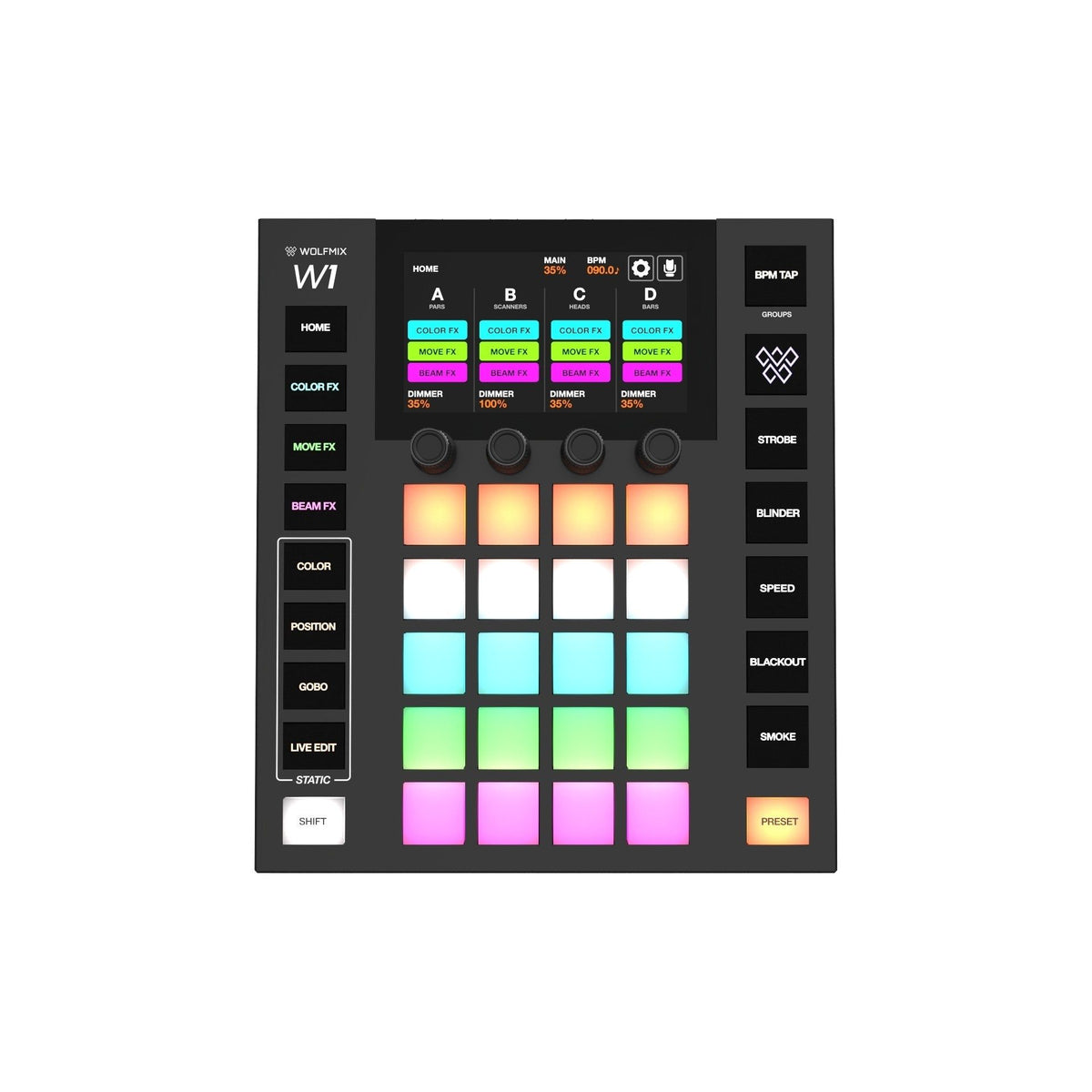

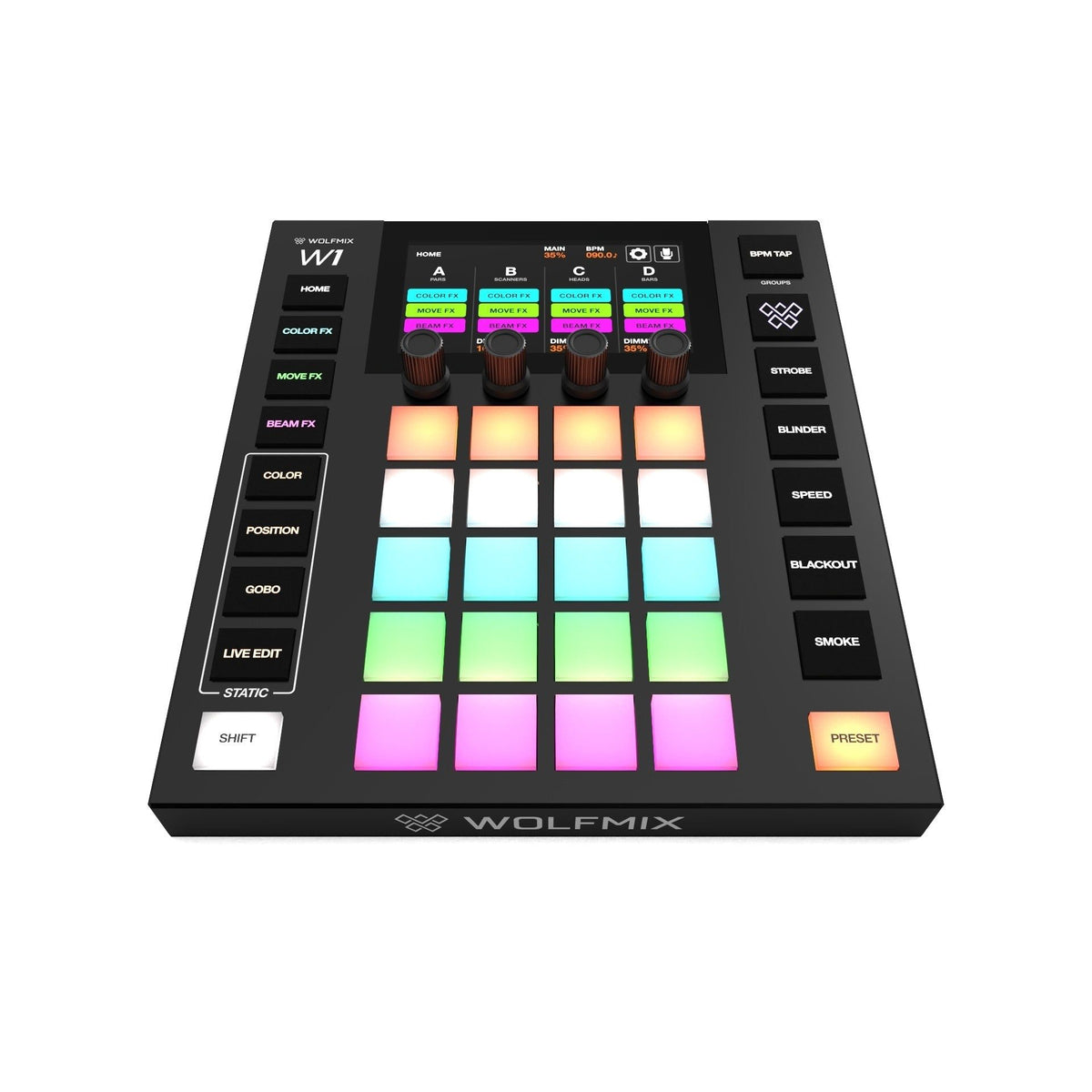

The Wolfmix W1 MK2 is a standalone DMX lighting controller designed for creating live light shows without a computer. Its 4.3" touchscreen , 37 backlit silicone buttons , and FX modules offer a fast workflow for clubs, events, tours, and concert halls. It features up to 4 DMX universes (2 included; 3 and 4 via add-on), sync to music via microphone or line input, and compatibility with Ableton Link and OS2L via computer. Its library includes over 15,000 fixture profiles and integrated tools such as Fixture Builder , color/position/gobo palettes, and an 8-step sequencer for creating patterns on the fly.

Main features

• Standalone, no PC required: Designed for live performance with touch control and direct access to FX.
• DMX Universes: Up to 4 (2 included; 3+4 universes as an add-on). Mapping to assign any universe to any XLR output and use as a DMX splitter .

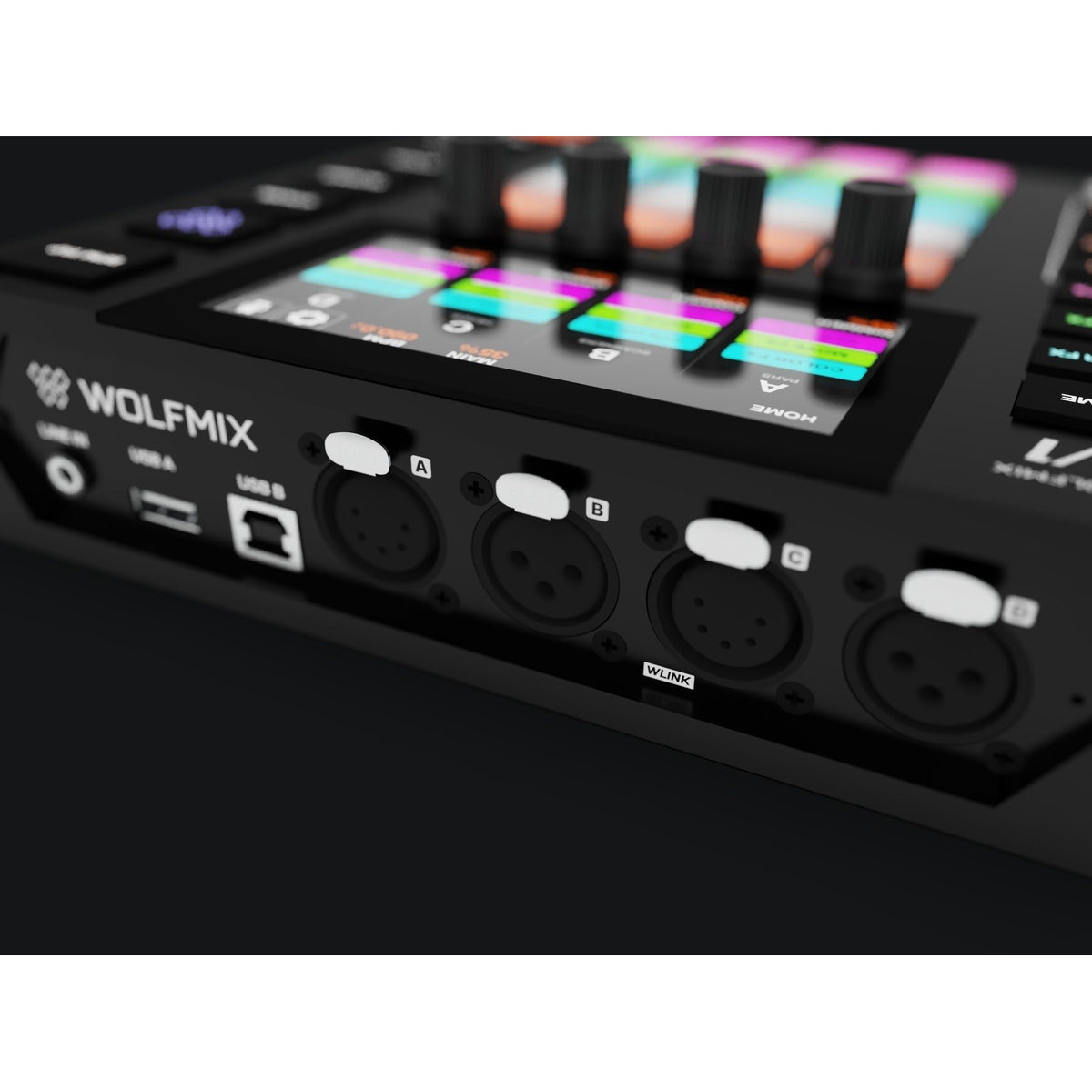

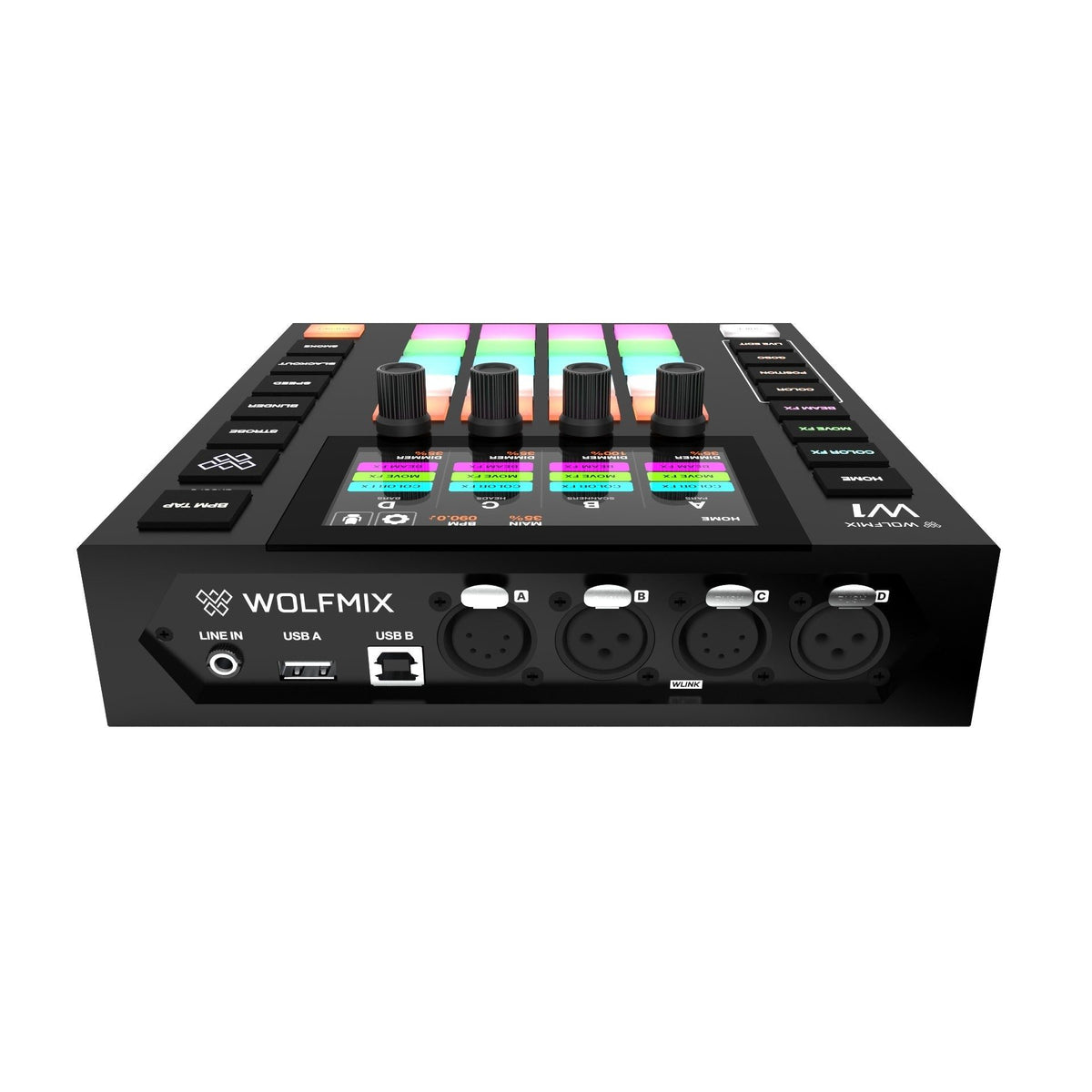

• Physical DMX connections: 2 x XLR 3-pin DMX OUT, 1 x XLR 5-pin DMX OUT and 1 x XLR 5-pin DMX IN/OUT (WLINK).
• Music sync: Omnidirectional microphone with automatic gain, 3.5 mm jack line input and analog peak detection circuit.
• Software BPM synchronization: Ableton Link and OS2L via computer, plus MIDI Clock , TAP and MIDI control.
• FX and creative control: Color FX, Move FX and Beam FX modules (up to 25 FX), 8 groups, 100 presets and 40 live edits.
• Library and compatibility: 15,000+ profiles available (3,500+ in the controller), up to 680 luminaires/beams and 50 types of fixtures per project.
• 3D Visualization: Integration with Easy View 3D (add-on) to preview the show without a DMX interface.
• WTOOLS and backups: Updates, add-on purchases and backup/restoration of projects and fixtures to USB memory.
• Robust construction: ABS chassis with painted steel base and rear; ultra-fast start and password lock.

Product benefits

• Live speed: Touch interface + dedicated buttons to program and trigger effects without complex menus or a computer.
• More musical shows: Audio, BPM, and MIDI synchronization keeps colors, movements, and strobes in rhythm.
• Real scalability: Start with 2 universes and expand to 3–4 as your rig grows, keeping the same hardware.
• Less cabling: Assign universes to XLR outputs and use the equipment as a splitter to simplify DMX runs.
• Efficient preparation: With the 3D visualizer and palettes, you get the show ready before assembly.
• Wide compatibility: Massive library and integrated fixture creator to cover everything from PARs and LED bars to moving heads.

Use cases

• Club and DJ booth: 4 universes for pixel mapping and BPM by Ableton Link/OS2L with synchronized effects.
• Mobile events: A universe divided into several XLR outputs as a splitter for faster assembly and disassembly.
• Theater and live shows: Control of dimmers/groups by external faders via DMX IN with WLINK.
• Studio pre-programming: Creation of presets and queues with Easy View 3D and USB backup.

Frequently Asked Questions

• Do I need a computer? Not for operation. A computer is required for extra features such as Ableton Link/OS2L, the 3D viewer, and purchasing/activating add-ons via WTOOLS.
• How do I expand to 4 universes? By purchasing the Universe 3 and 4 add-ons from WTOOLS. The assignment to XLR outputs is configurable from the controller itself.
• Can I synchronize two Wolfmix units? Yes, with WLINK (add-on) you can link two units or use DMX IN to map faders to groups or channels.
• Does it work as a DMX splitter? Yes, thanks to universe mapping you can use the XLR outputs as a distributor.

Other notable features

• Palettes: 10 static colors per group with gradient, 5 static positions per group with fade /fanning and 5 customizable gobos.
• 6 Flash buttons for special FX, strobe, blinder, speed, blackout and smoke.
• Live DMX level view, Beam Editor , motion limits, Flip / Split for multi-FX bars and password lock.
• Start in <2 s and DMX send in <1 s.

Project description

Wolfmix W1 MK2 standalone DMX controller with 2 built-in universes (expandable to 4 via add-on), connections: 2 x XLR 3-pin DMX OUT, 1 x XLR 5-pin DMX OUT, 1 x XLR 5-pin DMX IN/OUT (WLINK); 4.3" TFT touchscreen; 37 silicone buttons; omnidirectional microphone and 3.5 mm line input with analog peak detector; USB-B (5 V, 900 mA power) and USB-A (MIDI/MSD); 220 MHz ARM CPU, 8 MB RAM, 16 MB flash; dimensions 195 x 220 x 62 mm; weight 1.07 kg; 15,000+ libraries; integration with Easy View 3D, Ableton Link, OS2L and MIDI (some functions via add-on/WTOOLS).
