Vonyx VD715A - 15" Bi-Amplified Active Speaker with DSP and Bluetooth

Vonyx VD715A - 15" Bi-Amplified Active Speaker with DSP and Bluetooth

The Vonyx VD715A is a professional 15-inch active loudspeaker designed to meet the most demanding needs of musicians, DJs, and sound engineers. Part of the VD series, this speaker features a robust ABS construction, ideal for withstanding the rigors of transport and continuous use on tours and at events. Its bi-amplified system integrates two dedicated amplifiers, one for low frequencies (LF) and one for high frequencies (HF), managed by a two-way active crossover. This configuration, driven by a powerful Class D amplifier, ensures accurate, powerful, and balanced sound reproduction across the entire frequency spectrum, delivering distortion-free, high-fidelity audio.

At the heart of the VD715A is an advanced 24-bit Digital Sound Processor (DSP), which allows you to adapt the speaker's sound profile to different situations at the touch of a button. This versatility, combined with its modern connectivity and functional design, makes it the ultimate choice for live performances, club installations, corporate presentations, and any application that demands reliability and superior sound quality.

Main Features

Power and Acoustic Performance

Equipped with a high-efficiency Class D amplifier, the VD715A delivers a peak power of 900W (450W RMS), capable of generating a sound pressure level of up to 130 dB. Its component configuration includes a robust 15-inch woofer with a 2.5-inch voice coil and a 60 oz ferrite magnet, responsible for reproducing deep, punchy bass. High frequencies are handled by a 1.75-inch titanium compression driver, providing crystal-clear, detailed treble with a wide 90° x 60° dispersion.

DSP with 4 Intelligent Presets

The integrated DSP processor greatly simplifies sound equalization and optimization. It offers four carefully designed presets to suit different uses:

• Normal: Flat and balanced sound profile, ideal for faithful reproduction of the audio source.
• Monitor: Optimized for use as a stage monitor, reducing frequencies prone to feedback.
• DJ: Enhances bass and treble frequencies to deliver a powerful and vibrant sound, perfect for electronic music sessions.
• Voice: Increases clarity in the mid frequencies, ensuring that speeches, presentations, and singing voices are heard with total clarity.

Full Connectivity and Bluetooth TWS

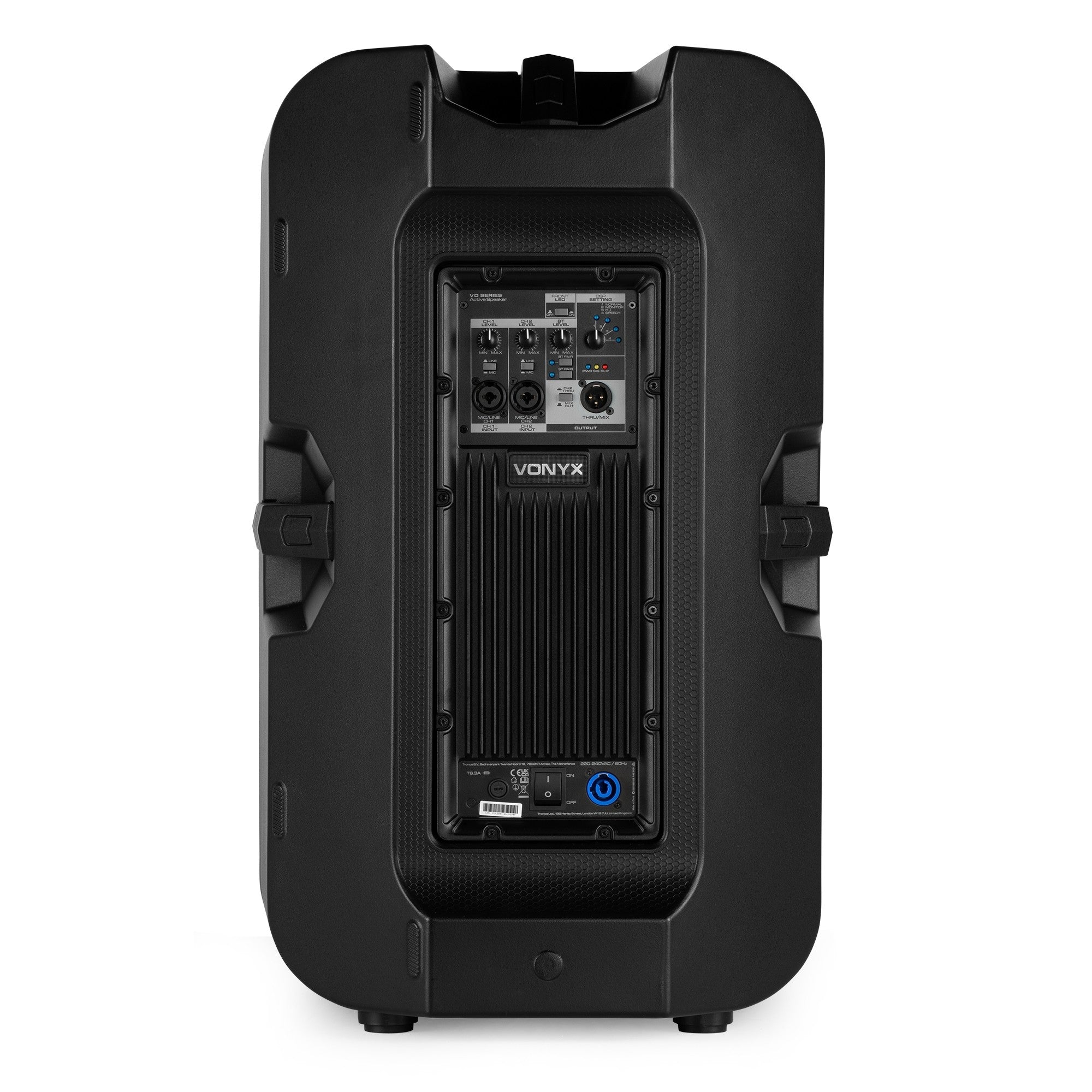

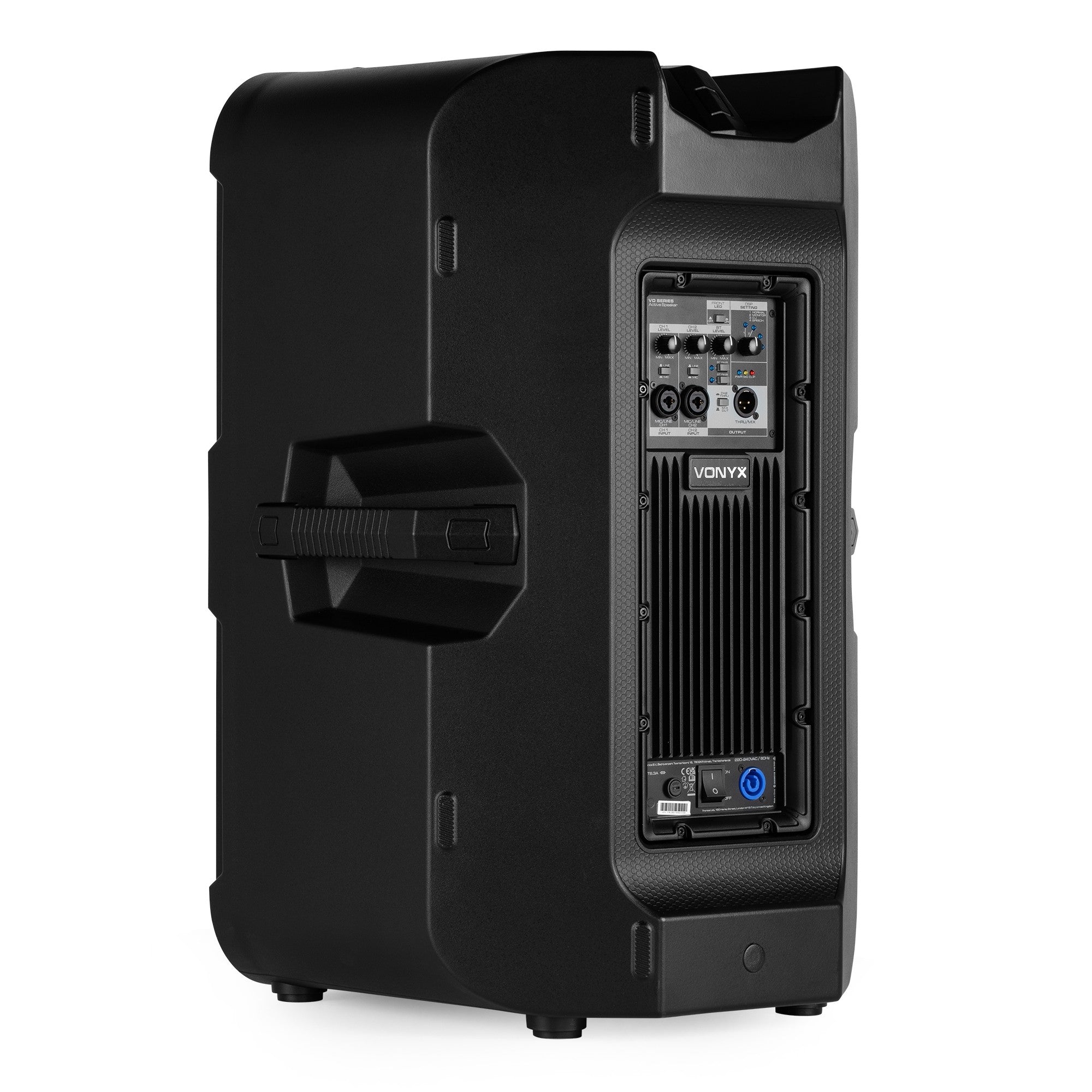

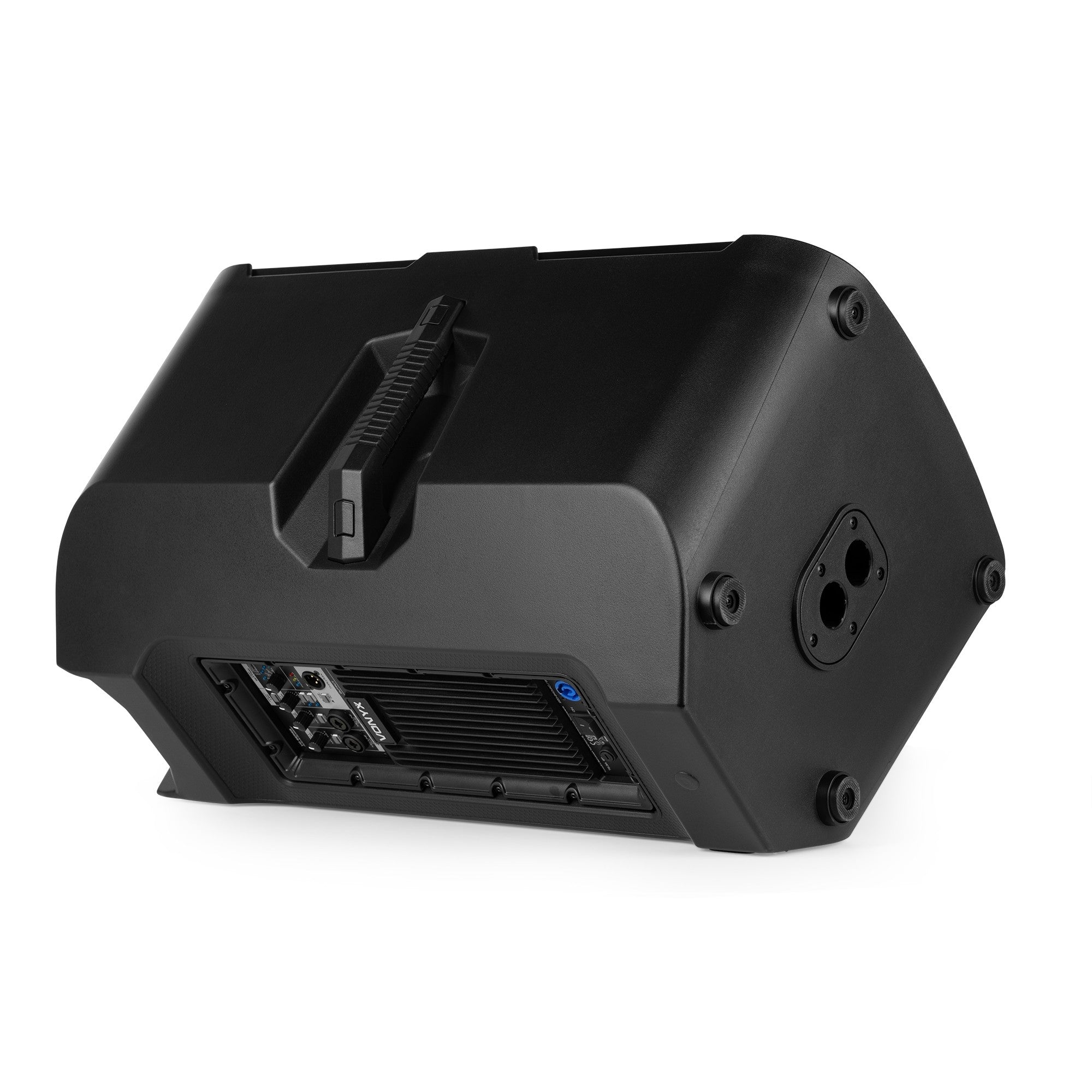

The VD715A offers versatile connectivity options. It features two input channels with combo connectors (XLR/6.3 mm jack), supporting both line-level and microphone-level signals. Additionally, it includes an XLR mix/thru output for daisy-chaining multiple speakers. The major innovation is its Bluetooth 5.0 connectivity, enabling wireless audio streaming from any compatible device. The True Wireless Stereo (TWS) function takes this a step further, allowing you to pair two VD715A speakers to create a true stereo system without any external cables.

Functional and Durable Design

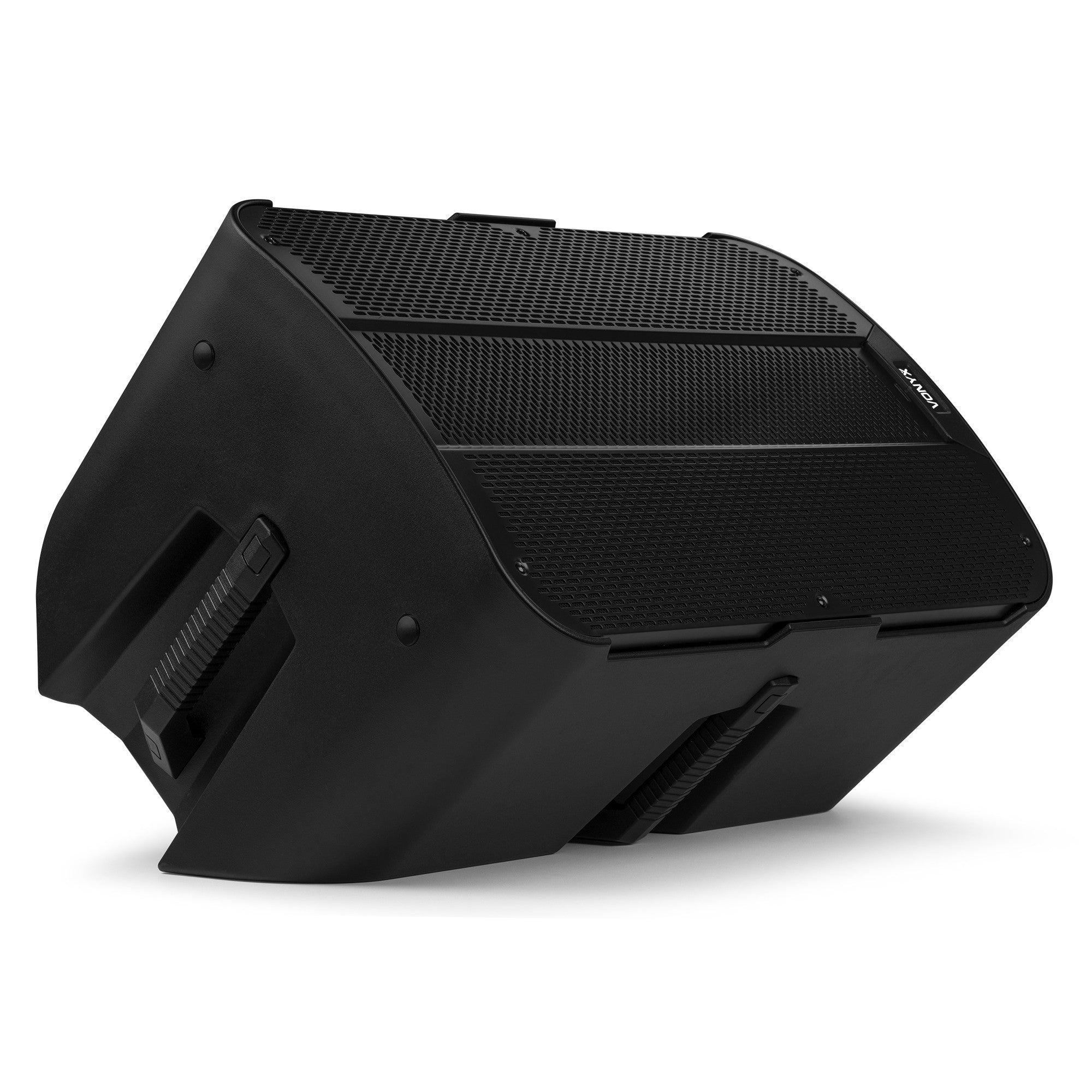

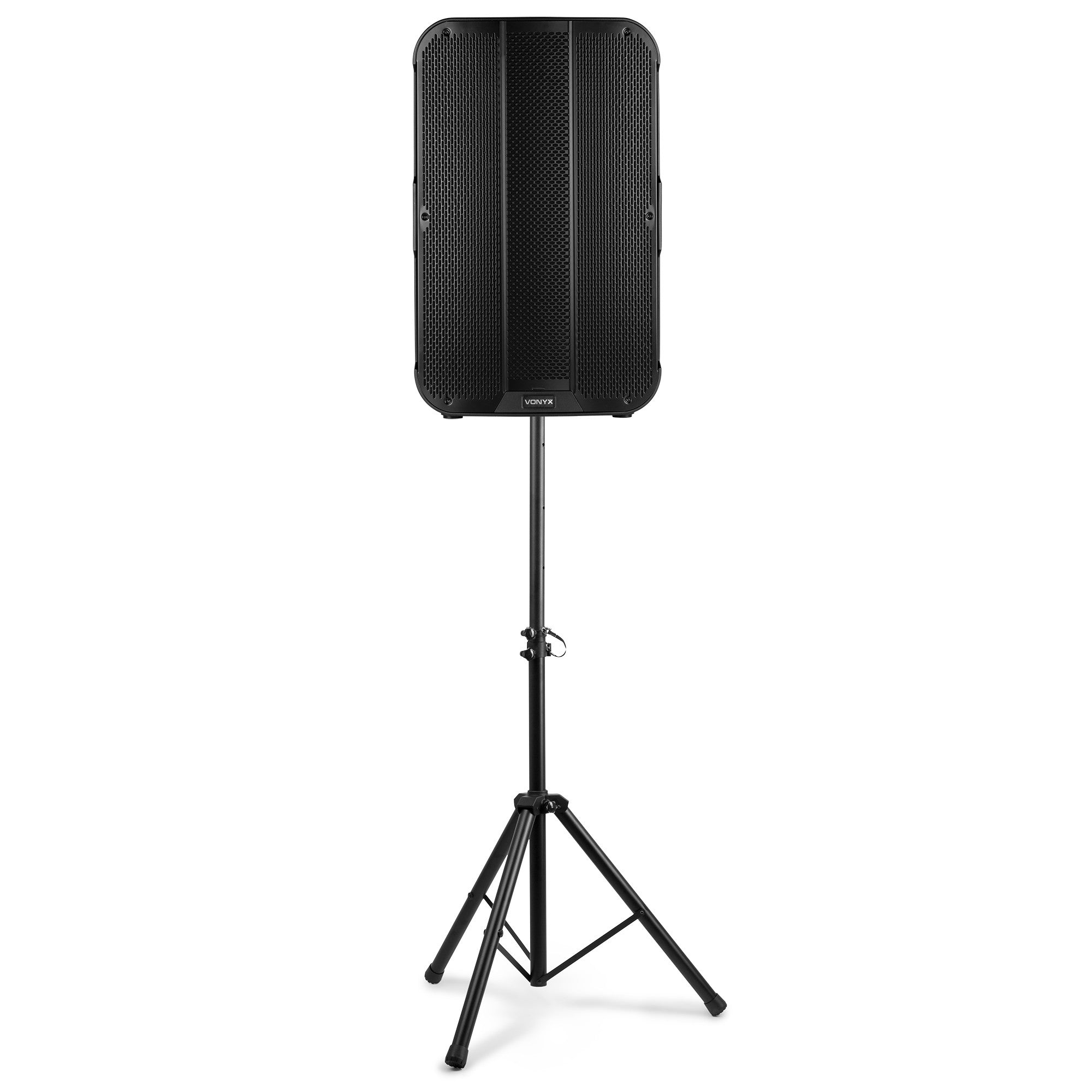

Built with a highly durable ABS chassis, the speaker is designed for heavy-duty use. Its asymmetrical design allows it to be positioned at an angle for effective use as a floor monitor on stage. For main mounting, it incorporates a 35mm pole with an innovative dual-tilt system that allows it to be mounted on a tripod in a straight position (0°) or with a slight downward tilt (5°), improving sound coverage for the audience in elevated setups.

Benefits for the Sound Professional

The Vonyx VD715A is designed to make life easier for professionals. Its combination of power, integrated DSP, and Bluetooth TWS connectivity dramatically reduces setup and adjustment time. The ability to instantly change the sound profile allows it to adapt to any event, from a conference to a concert, with predictable, high-quality results. Its robust construction ensures a long-lasting investment, while its versatile design maximizes its utility, functioning as a main PA, stage monitor, or part of a distributed sound system.

Use Cases

• Mobile DJs: Powerful system, easy to transport and with wireless stereo configuration thanks to TWS.
• Live Performances: Ideal for small and medium-sized bands, singer-songwriters and artists who need a clear and powerful main PA or a reliable stage monitor.
• Fixed Installations: Perfect for pubs, concert halls, gyms or places of worship that require a versatile, high-performance sound system.
• Rental Companies: A robust and versatile team that adapts to a wide variety of events, from private parties to conferences.

Frequently Asked Questions

What is TWS (True Wireless Stereo) mode?
This technology allows you to connect two VD715A speakers wirelessly via Bluetooth. One speaker acts as the master (receiving the signal from the device) and the other as the slave, creating a true stereo system (left and right channels) without any cables between them.

Can I connect a microphone and a music source at the same time?
Yes, the speaker has two independent combo inputs. You can connect a microphone to one and a mixer, DJ controller, or any other line-level source to the other.

What are DSP presets used for?
The DSP (Digital Sound Processor) presets are optimized equalizations for different applications. They allow you to quickly adapt the speaker's sound for optimal performance, whether for music (DJ), vocals (Voice), as a stage monitor (Monitor), or for general use (Normal).

Do I need an external amplifier for this speaker?
No, the Vonyx VD715A is an active speaker, which means it has its own built-in amplifier. You just need to plug it into a power outlet and your sound source.

What advantage does dual-tilt pole mounting offer?
The dual tilt mounting (0° or 5°) allows for more effective sound direction. The 5° downward tilt is useful when the speaker is mounted on a tall pole, ensuring that high frequencies reach the audience directly instead of passing over their heads.

Project description

Bi-amplified active loudspeaker with a maximum power of 900W (450W RMS) and a Class D amplifier. It features a 15-inch woofer with a 2.5" voice coil and a 1.75" titanium compression driver. It has a 24-bit digital sound processor (DSP) with four presets (Normal, Monitor, DJ, Vocal). Connectivity includes two combo microphone/line inputs (XLR/6.3mm jack), an XLR mix output, and Bluetooth 5.0 with TWS technology. The ABS enclosure allows for use as a stage monitor and 35mm pole mount with dual tilt (0°/5°). Frequency response is 45Hz to 20kHz, and it has a maximum SPL of 130dB.
