Vonyx VD712A - Professional 12" Bi-Amplified Active Speaker with DSP and Bluetooth

Vonyx VD712A - Professional 12" Bi-Amplified Active Speaker with DSP and Bluetooth

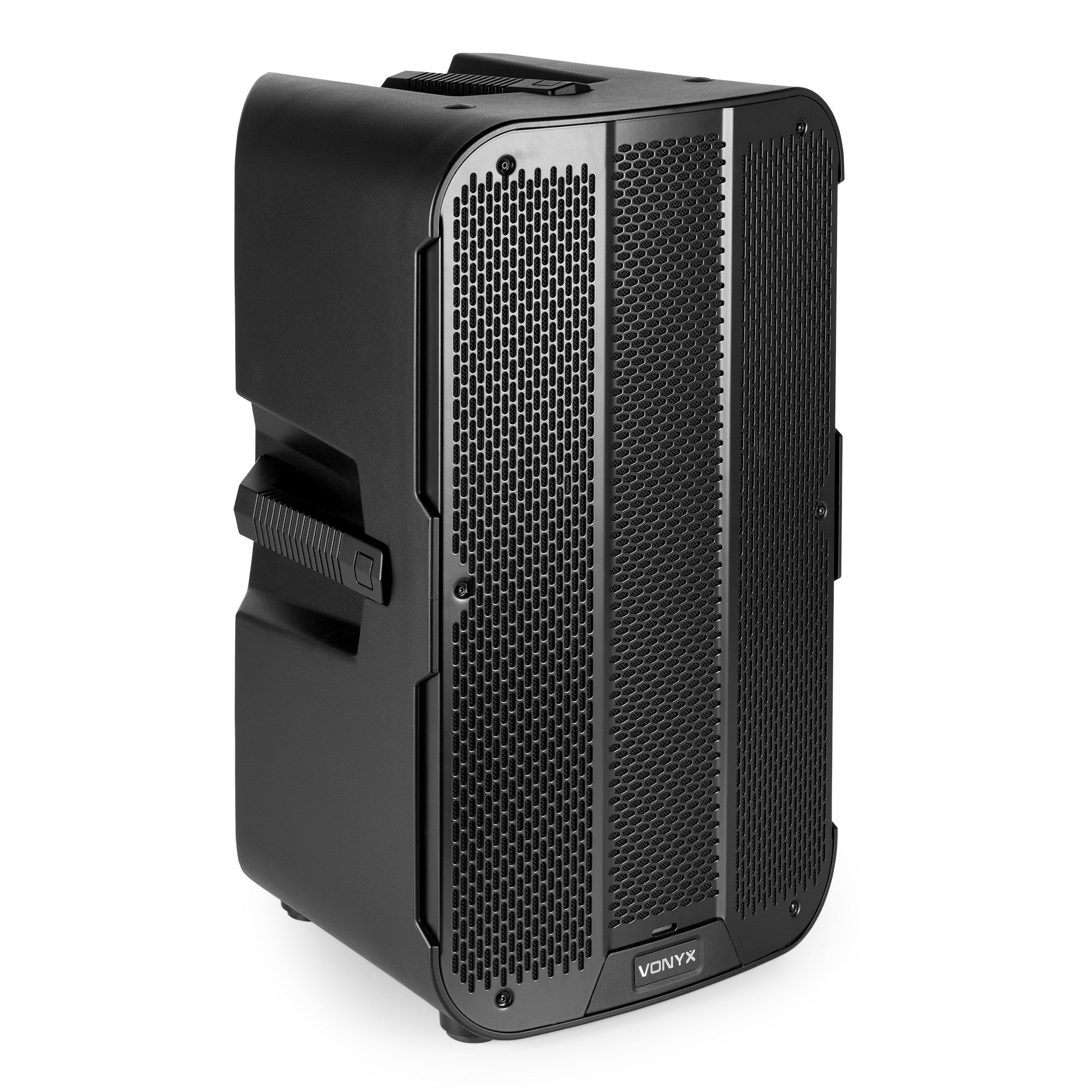

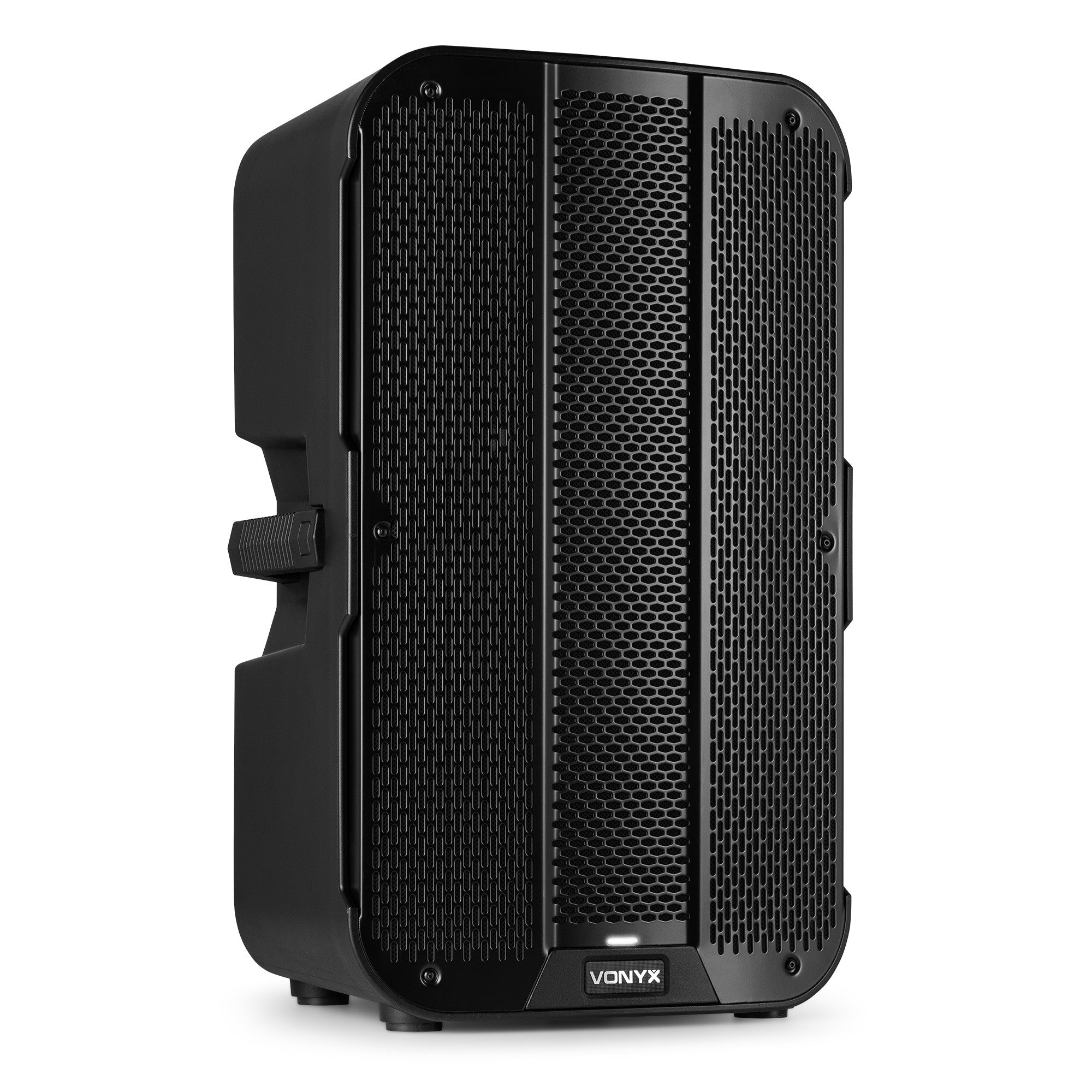

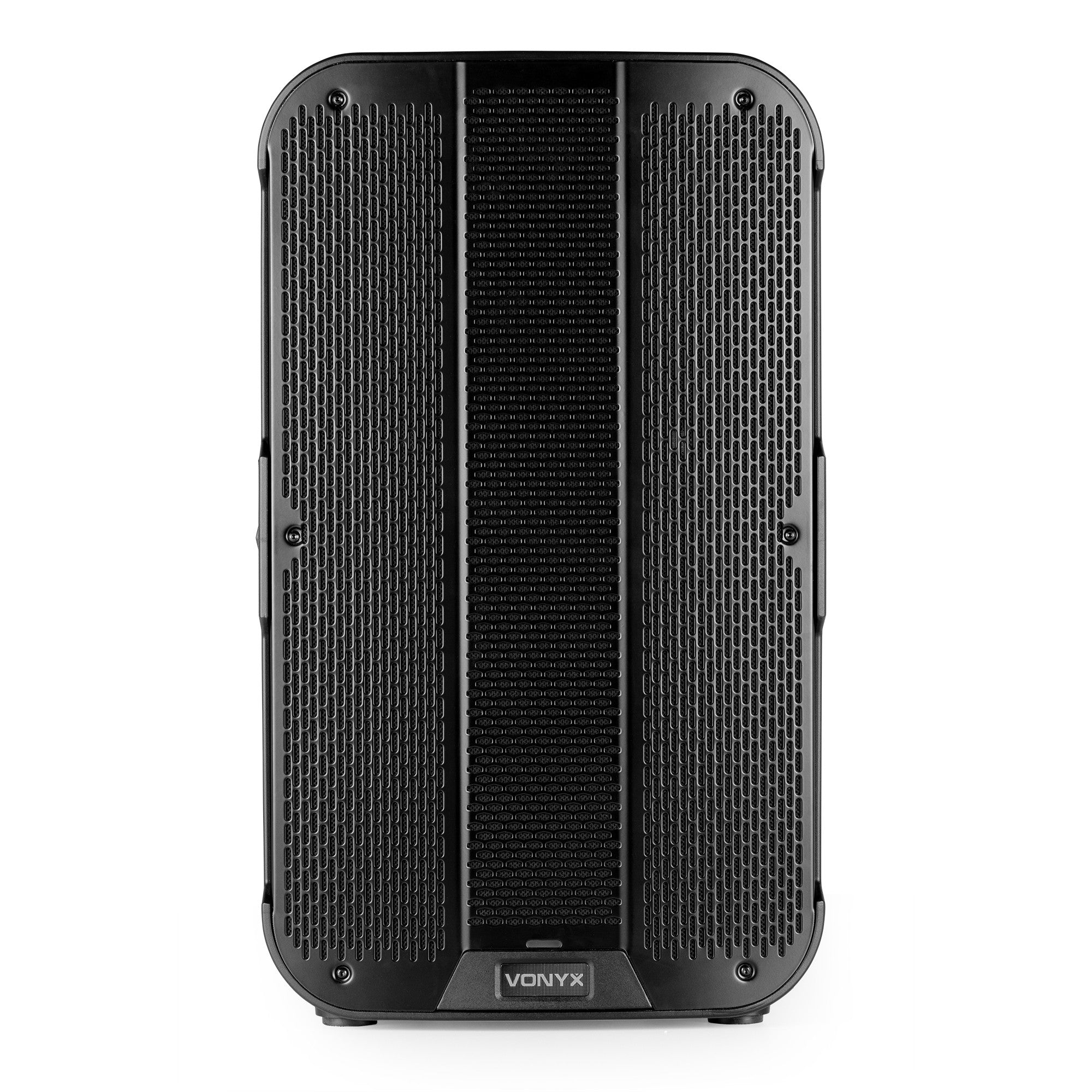

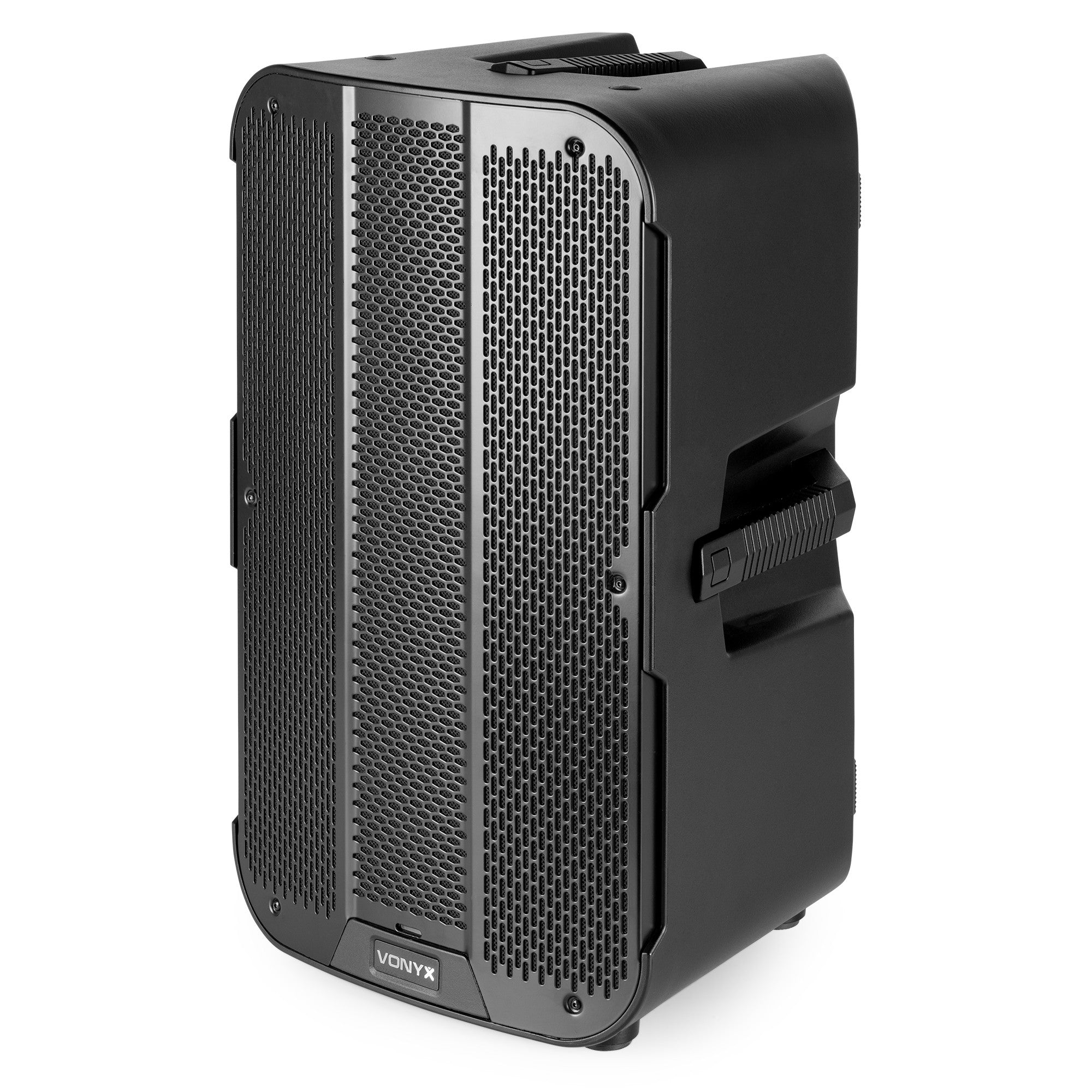

The Vonyx VD712A is a high-power active loudspeaker designed for uncompromising sound professionals. Part of the acclaimed VD series, this audio system delivers exceptional clarity and performance thanks to its advanced bi-amplification technology. Each unit incorporates two dedicated amplifiers: one for low frequencies (LF) and one for high frequencies (HF), powered by a robust 800W Class D amplifier. This configuration ensures accurate and balanced sound reproduction across the entire frequency spectrum, from the deepest bass to the clearest treble.

The heart of the VD712A is its integrated digital sound processor (DSP). With four selectable presets (Normal, Monitor, DJ, and Vocal), the speaker instantly adapts to different applications, optimizing the equalization to always deliver the best possible sound without the need for complex manual adjustments. Built with a robust ABS chassis, this speaker is designed to withstand the demands of continuous use on tours, at events, and during live performances, while its ergonomic design facilitates easy transport and setup.

Connectivity is another of its strengths. Equipped with Bluetooth 5.0, it allows for high-quality wireless audio streaming from any compatible device. Furthermore, the True Wireless Stereo (TWS) function enables pairing two VD712A speakers to create a stereo system without the need for additional cables. Its combo jack/XLR inputs offer great flexibility for connecting microphones, instruments, or mixing consoles, while the XLR mix/thru output allows daisy-chaining multiple speakers for larger sound systems.

Main features

• Power and Clarity: Equipped with a Class D bi-amplified amplifier that delivers a maximum power of 800 W (400 W RMS), guaranteeing a powerful and distortion-free sound even at high volumes.

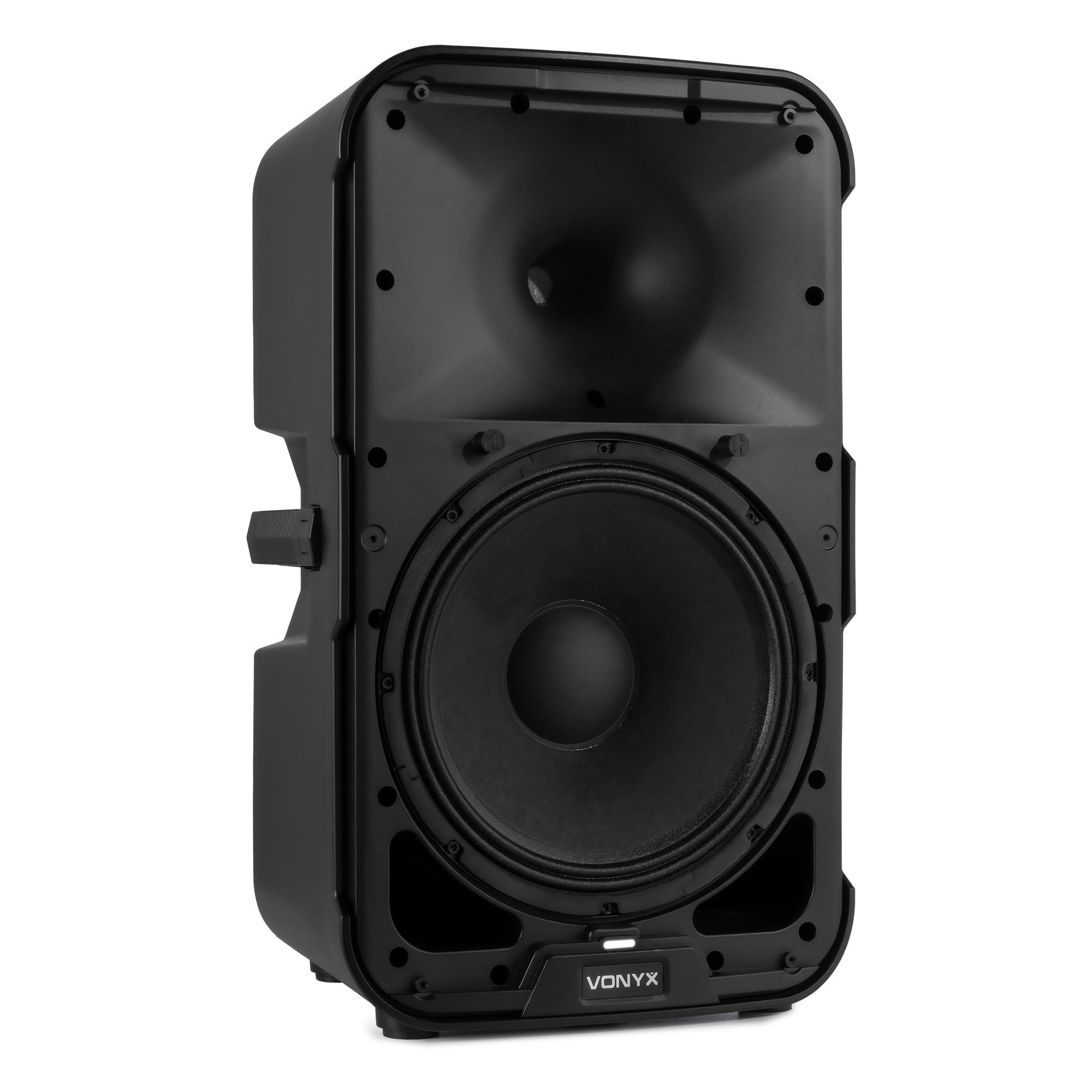

• High-Quality Components: It features a 12-inch woofer with a 2.5" voice coil and a 60 oz ferrite magnet for powerful bass, complemented by a 1.75" titanium compression driver for crisp, detailed highs.
• Digital Sound Processor (DSP): Includes 4 preset modes (Normal, Monitor, DJ, Voice) that optimize speaker performance for different situations, ensuring superior audio quality every time.
• Advanced Connectivity: Integrates Bluetooth 5.0 technology for wireless audio streaming and TWS (True Wireless Stereo) function to pair two units and create a wireless stereo system.

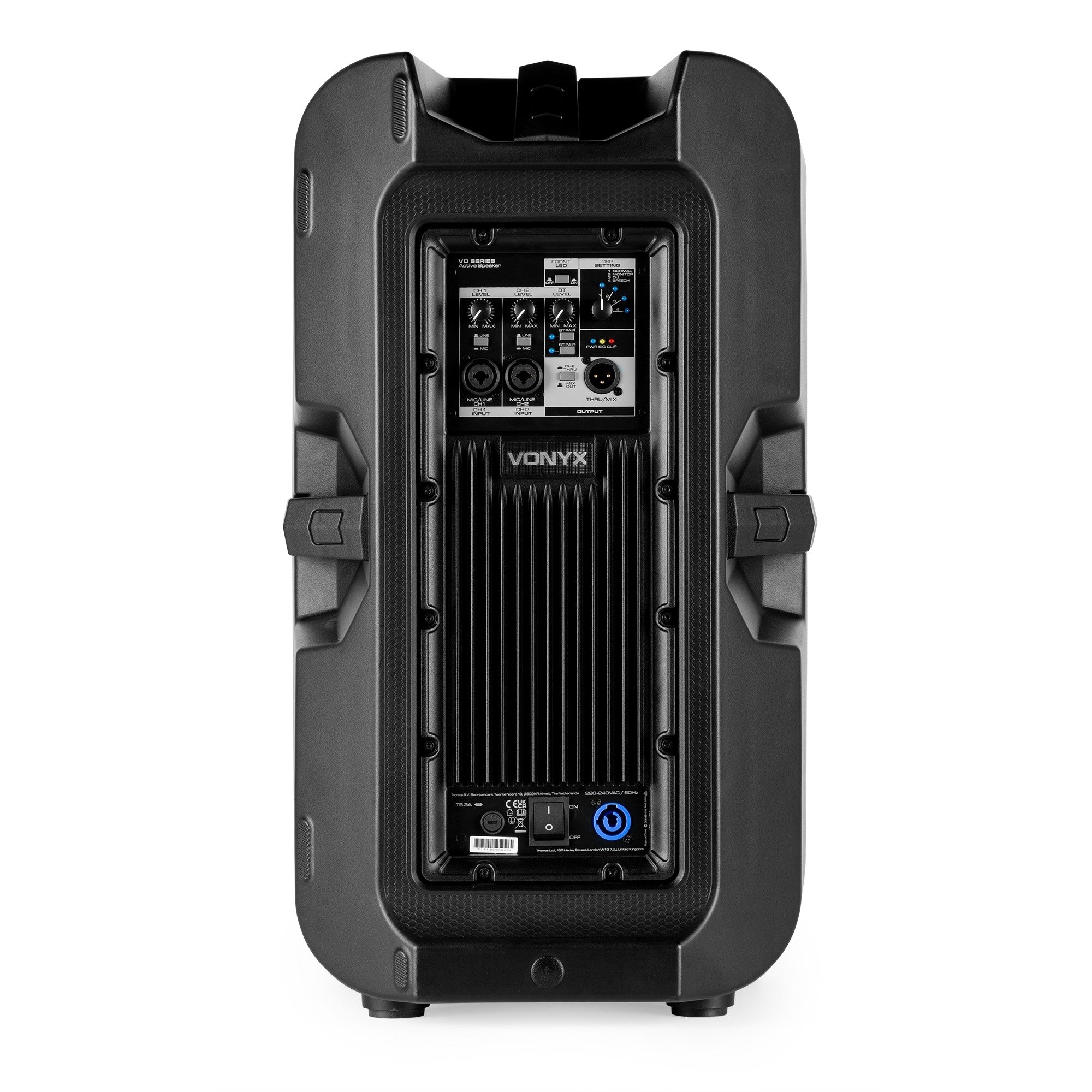

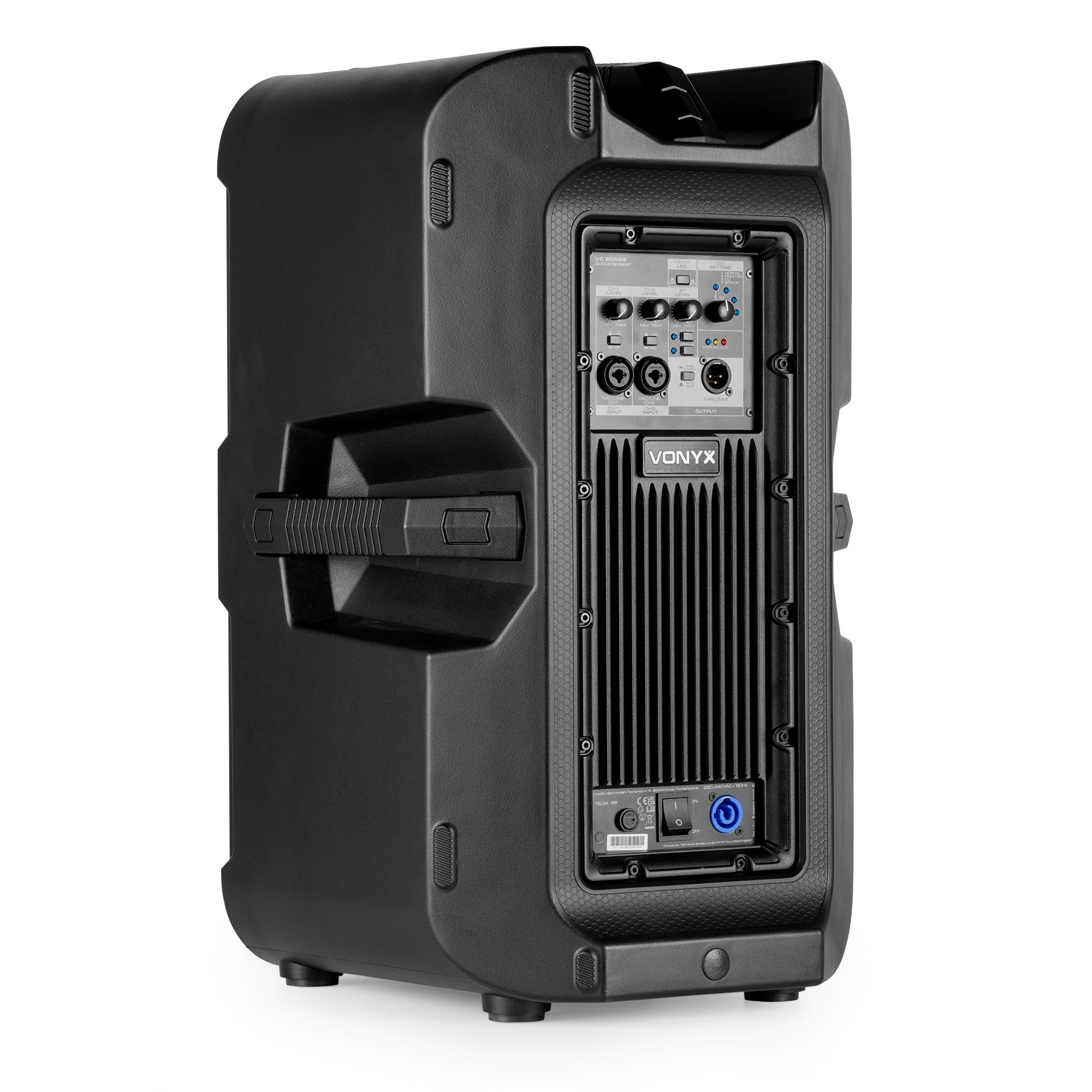

• Versatile Inputs and Outputs: It has two combined 6.3 mm Jack / XLR input connectors and an XLR mix output for easy integration into any professional audio setup.

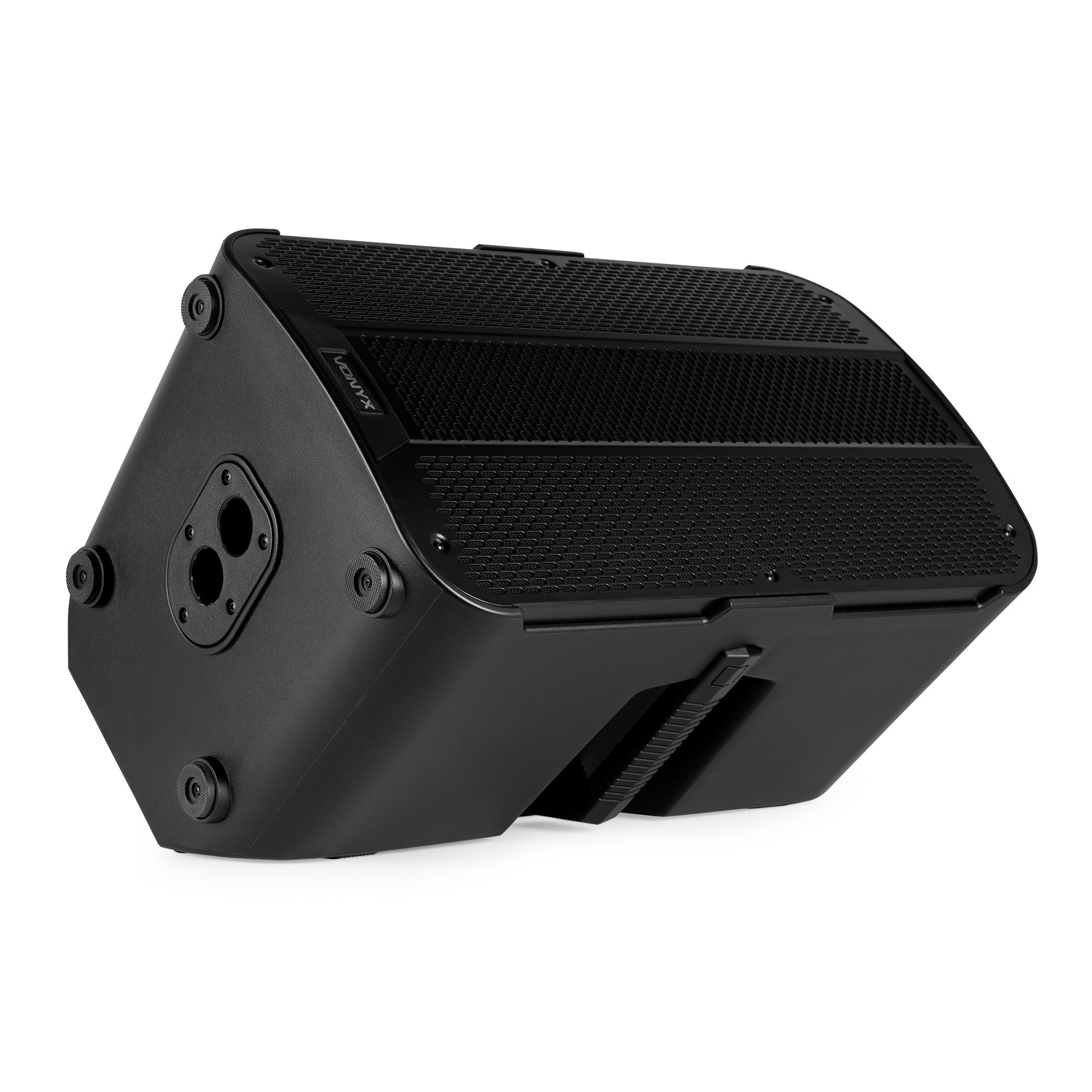

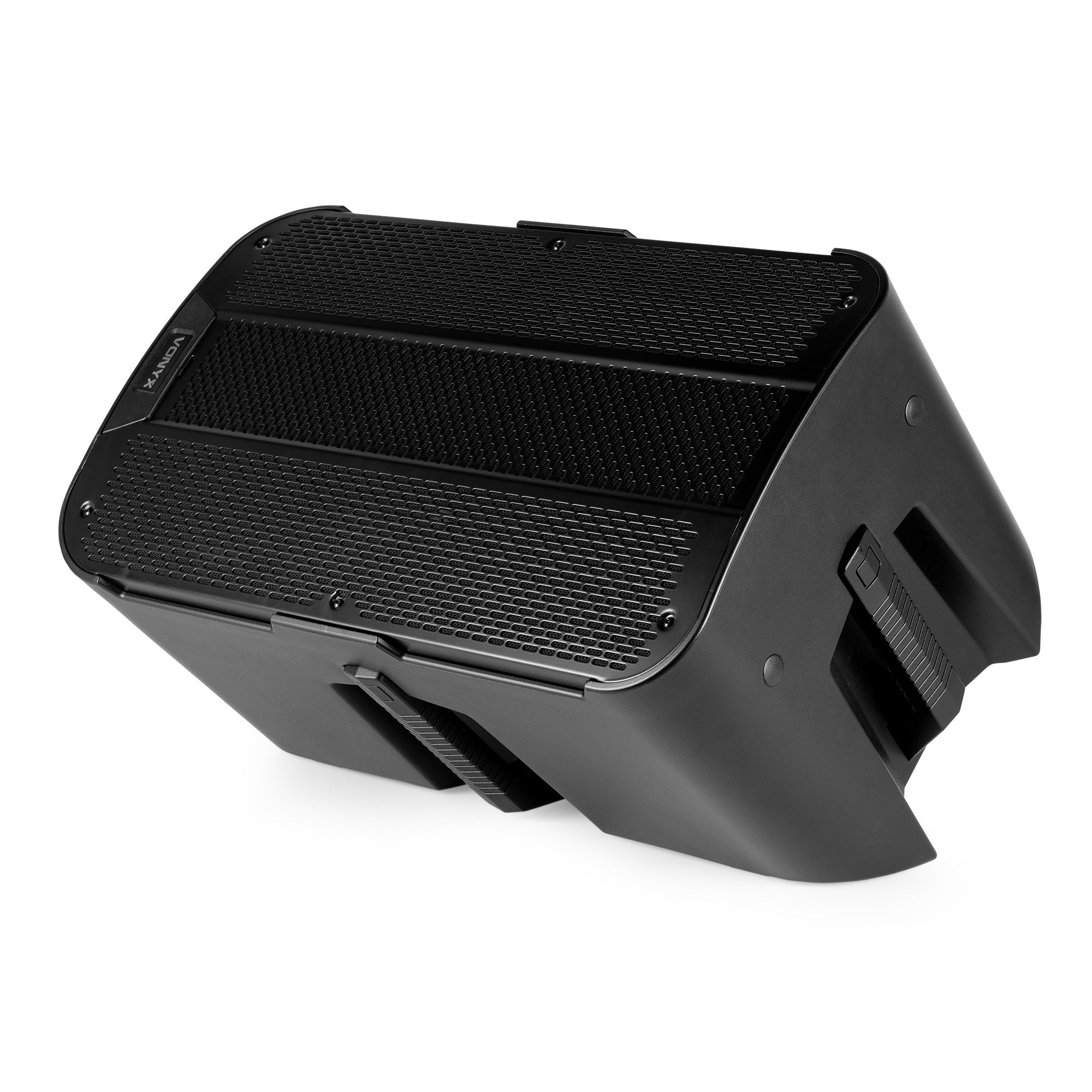

• Robust and Functional Design: Its durable ABS housing and angled design allow for use in both vertical and stage monitor formats. It incorporates a 35mm socket with dual tilt (0° or 5°) for optimized pole mounting.

Benefits for the sound professional

The Vonyx VD712A is designed for DJs, musicians, sound engineers, and event organizers who need reliable, powerful, and versatile equipment. Its bi-amplified system and integrated DSP eliminate the need for external processors, simplifying setup and ensuring high-quality sound in minutes. Its ability to be used as a stage monitor, its rugged construction, and TWS connectivity make it an all-in-one solution for a wide range of applications, from small venue gigs to conferences and outdoor events.

Use cases

This loudspeaker is the perfect choice for a wide variety of scenarios. It's ideal as a main PA (Public Address) system for mobile DJs and bands in small to medium-sized venues. Its wedge design makes it perfect as a floor monitor for musicians on stage. It's also an excellent solution for permanent installations in clubs, bars, gyms, or for sound reinforcement at corporate events and presentations where vocal clarity is essential.

Frequently Asked Questions

What does it mean that the speaker is "bi-amplified"?
This means it has two separate internal amplifiers. One is dedicated exclusively to boosting low frequencies (the woofer), and the other handles high frequencies (the tweeter). This results in a cleaner, more efficient sound with less distortion.

How does TWS (True Wireless Stereo) technology work?
TWS technology allows you to connect two Vonyx VD712A speakers wirelessly via Bluetooth. Once paired, one will act as the left channel and the other as the right channel, creating true stereo sound without the need for a signal cable between them.

Can I connect a microphone directly to the speaker?
Yes, the speaker has two combo inputs that accept XLR and 6.3 mm jack connectors, allowing direct connection of dynamic microphones or line-level sources such as mixing consoles or instruments.

What advantage does dual-tilt pole mounting offer?

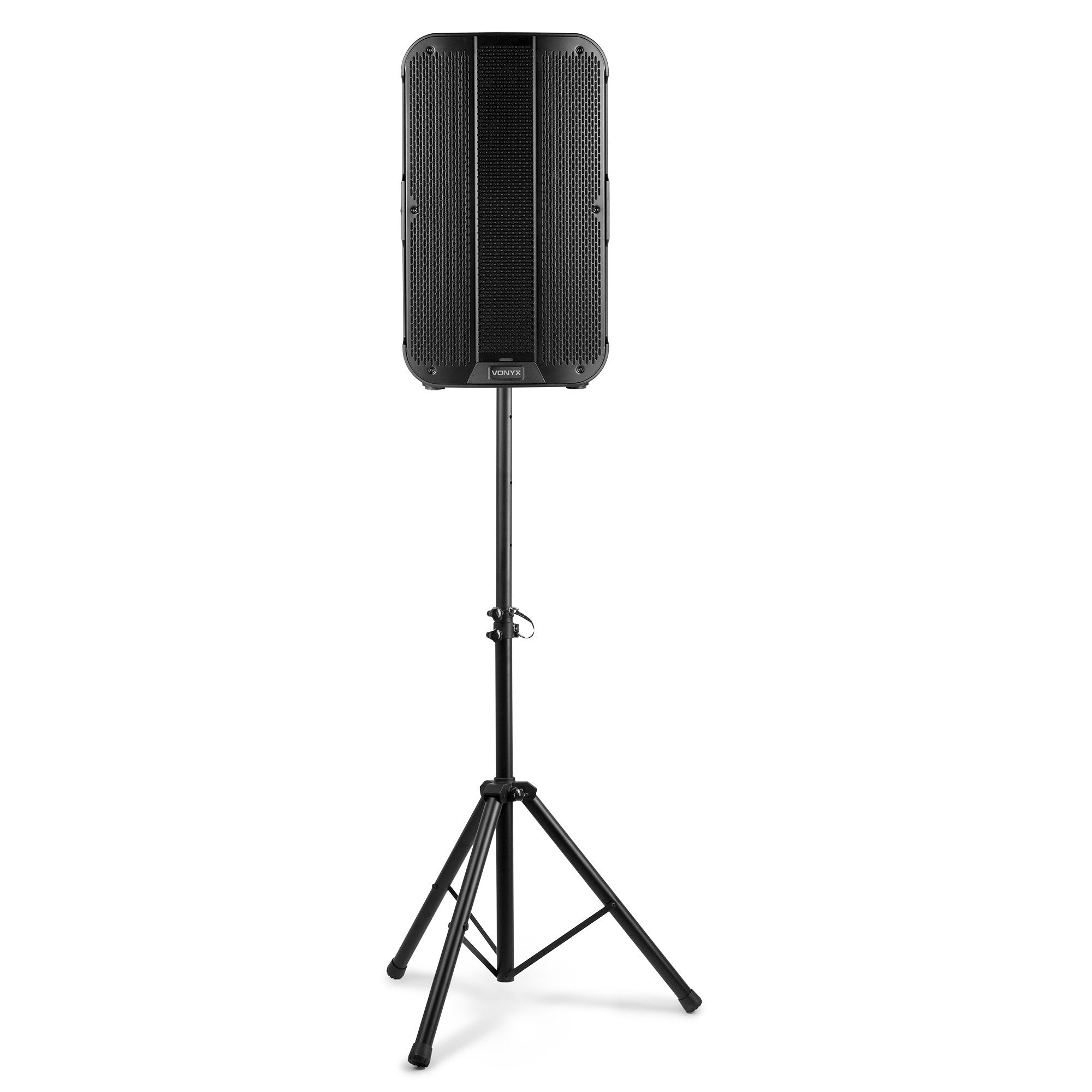

The 35mm pole socket allows for two mounting angles: 0° (straight) or 5° (tilted downwards). The 5° tilt is useful for directing sound towards the audience when the speaker is mounted on a tall tripod, improving coverage and clarity in the listening area.

Project description

Professional active speaker with Class D bi-amplification and a maximum power of 800W (400W RMS). It features a 12-inch woofer with a 2.5" voice coil and a 1.75" titanium compression driver. It includes a digital sound processor (DSP) with four presets, a two-way active crossover, and Bluetooth 5.0 connectivity with TWS. It offers a frequency response of 40Hz to 20kHz and a maximum SPL of 128dB. Connections include two XLR/6.3mm combo inputs and one XLR output. It is housed in an ABS enclosure with an angled design for use as a monitor and includes a 35mm pole piece with dual tilt (0°/5°).
