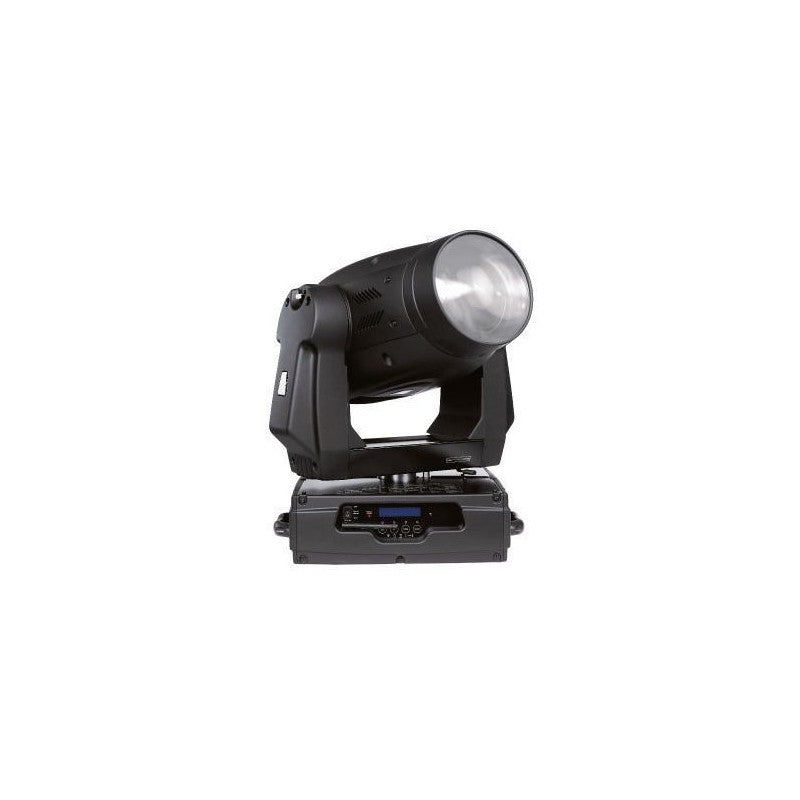

Triton Blue V300-BEAM - BEAM 300W Mini FastFit Moving Head with CMY, 2 Gobo Wheels, 19/27 Channels (No Lamp)

Triton Blue V300-BEAM - BEAM 300W Mini FastFit Moving Head with CMY, 2 Gobo Wheels, 19/27 Channels (No Lamp)

The Triton Blue V300-BEAM is the brand’s first Beam moving head , designed to deliver high brightness , sharp projections and fast, precise movements with a low noise level . It uses a 300W Mini FastFit lamp (not included), a quick-release cap technology for easy replacement and provides a colour temperature of around 8,400K for defined, high-impact beams. Its CMY colour module is combined with a fixed colour wheel for instant changes, while the effects engine incorporates two gobo wheels (7 interchangeable fixed and 6 rotating), motorised focus , 0–100% dimmer and frost to expand the creative possibilities.

In terms of rigging and operation, the V300-BEAM offers 630° PAN and 265° TILT , with 19-channel (normal) and 27-channel (extended) DMX modes for integrating the equipment into both rental and fixed installations. Its robust construction maintains a weight of 25.5 kg and a compact form factor of 429.26 × 447.04 × 508 mm , ideal for touring trusses and flightcases .

Main features

• Light source : Mini FastFit 300W lamp (not included; Philips lamps recommended).
• Color : CMY system + fixed color wheel .
• Gobos : 2 wheels — 7 fixed interchangeable and 6 rotating .
• Optics and effects : motorized focus , linear dimmer 0–100% and frost .
• Movement : PAN 630° / TILT 265° .
• Control : DMX-512 with 19 channels (normal mode) or 27 channels (extended mode).
• Power supply/electronics : electronic ballast for switching on and stable operation of the discharge lamp.
• Chassis : 25.5 kg ; dimensions 429.26 × 447.04 × 508 mm (L × W × H).

Product benefits

• Powerful beams with advanced color control : CMY mixing for fine gradients and color wheel for instant changes.
• Great versatility of effects : double gobo wheel (fixed and rotating), frost and motorized focus to transition from a hard beam to creative textures and projections.
• Easy integration : two DMX maps (19/27 channels) that adapt to consoles and shows of different complexity.
• Agile maintenance : Mini FastFit technology for fast and safe lamp replacements.
• Consistent performance : Electronic ballast for stability and reduced reliability from power failures.

Use cases

• High-impact tours and events : aerial beams , concert looks, and long-distance accents.
• Clubs and venues : instant color changes and dynamic gobos for sessions and shows.
• Theater and television : fine color control via CMY and smooth transitions with dimmer and frost.

Frequently Asked Questions

• Does it include a lamp? No. It works with 300W Mini FastFit lamps (Philips recommended).
• Does it have CMY? Yes, it includes CMY color mixing in addition to a fixed color wheel.
• How many DMX channels does it use? 19 channels (normal mode) or 27 channels (extended mode).
• What is the PAN and TILT range? PAN 630° and TILT 265°.

Description for projects

BEAM 300W Mini FastFit moving head (lamp not included) with CMY color mixing and fixed color wheel; two gobo wheels (7 fixed, 6 rotating), motorized focus, 0–100% dimmer and frost effect. Movement: PAN 630°, TILT 265°. Control: DMX-512 with 19/27 channels. Electronic ballast. Weight 25.5 kg. Dimensions 429.26 × 447.04 × 508 mm.
