Electro-Voice TX1122FM - 12" Passive Stage Monitor (90° × 50°, 500 W continuous, 99 dB)

Electro-Voice TX1122FM - 12" Passive Stage Monitor (90° × 50°, 500 W continuous, 99 dB)

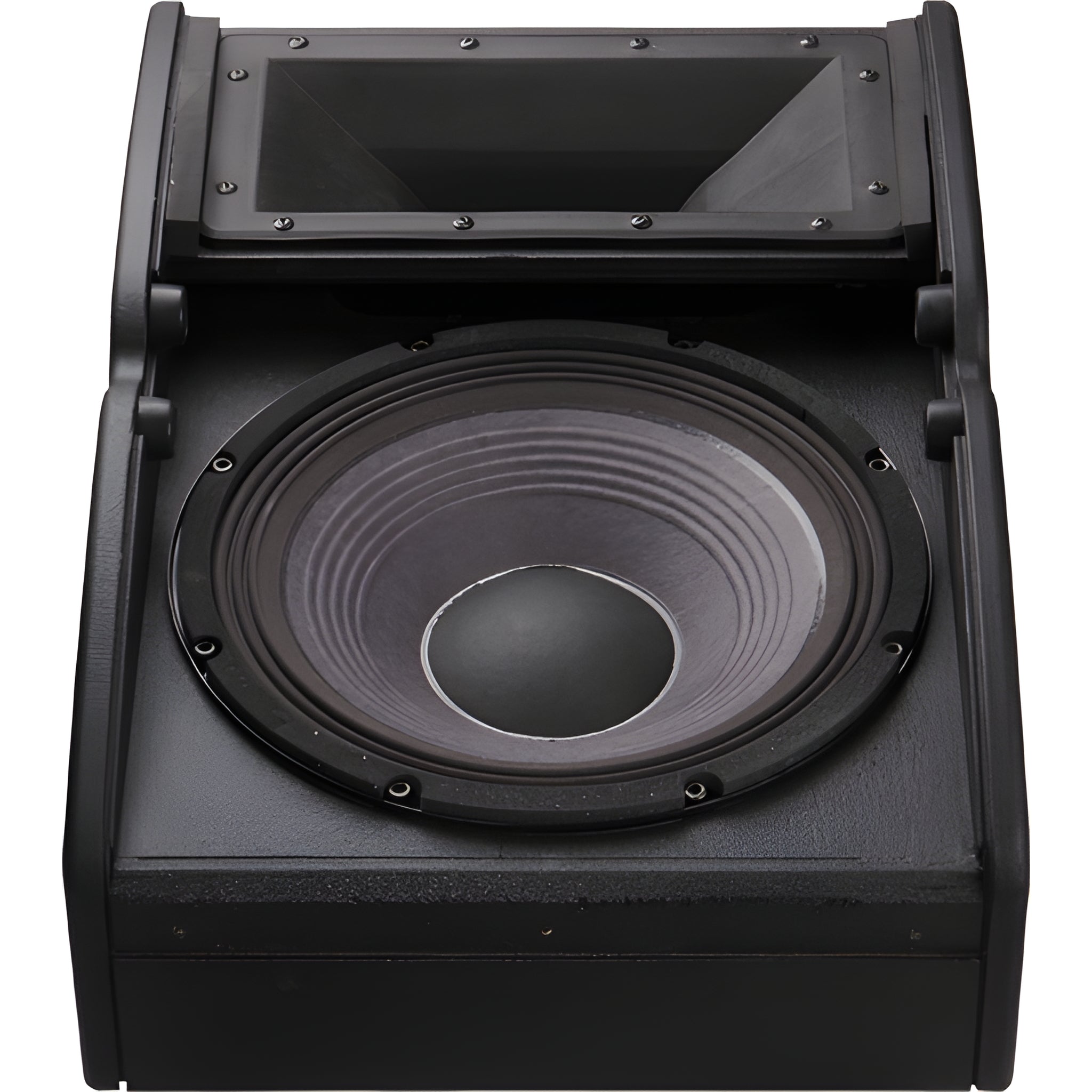

The Electro-Voice TX1122FM is a 2-way passive floor monitor from the Tour X series, designed to deliver high SPL , intelligibility , and tour durability in small to medium-sized venues. It features a 12" SMX2121 woofer with Fully Symmetric Drive (low distortion) and a 1.25" DH3 compression driver (titanium diaphragm) coupled to a 90° × 50° constant directivity horn. The result is controlled, coherent coverage with 70 Hz – 20 kHz (−3 dB) and 55 Hz – 20 kHz (−10 dB) response , 99 dB sensitivity , and a rated max SPL of 132 dB .

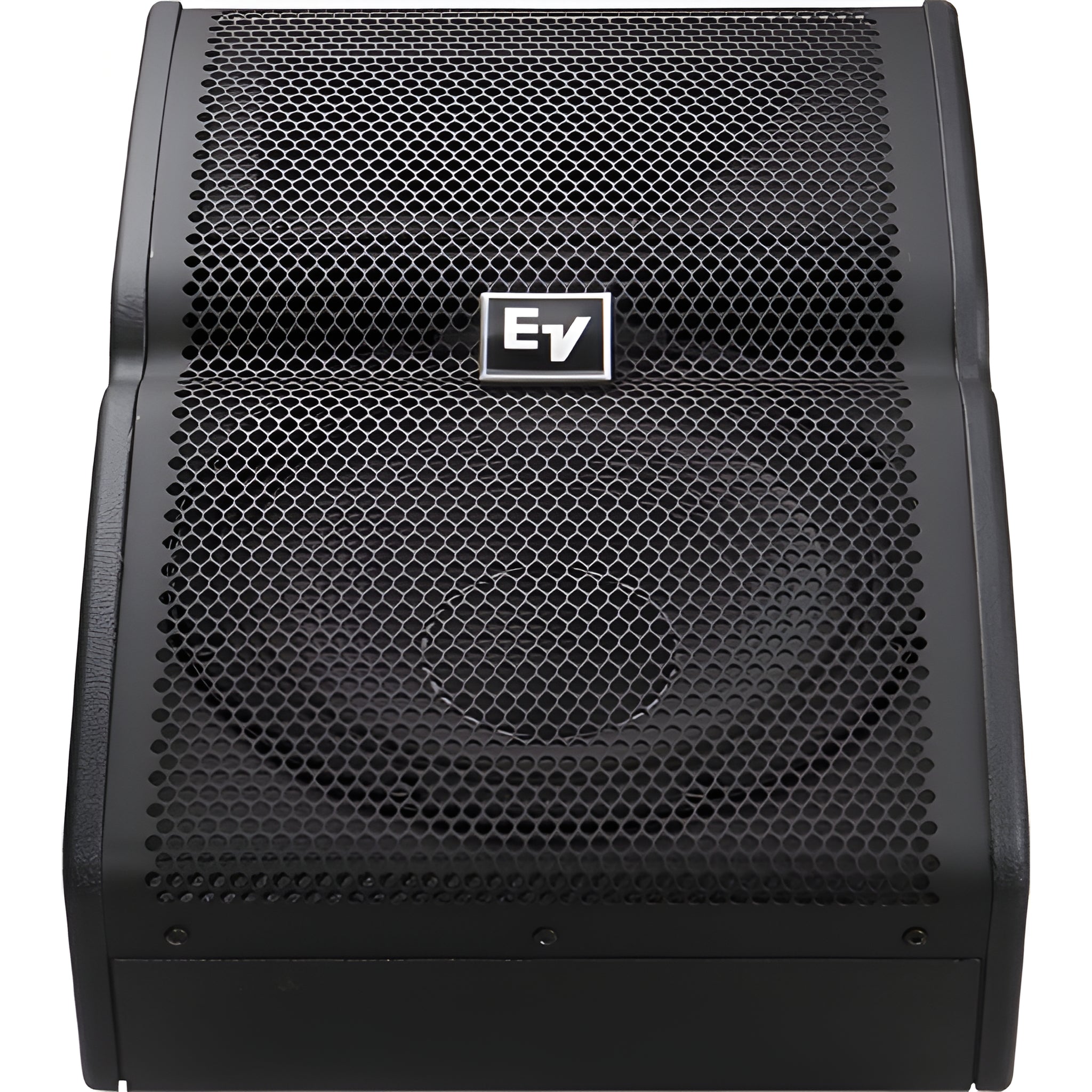

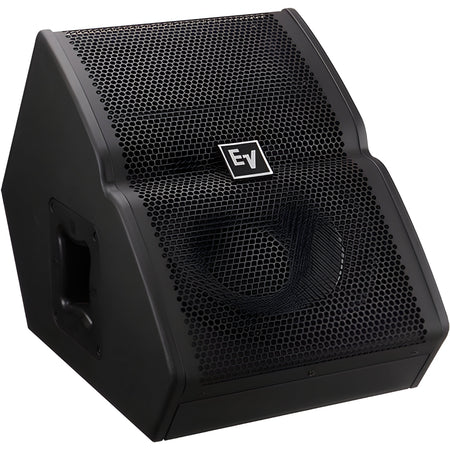

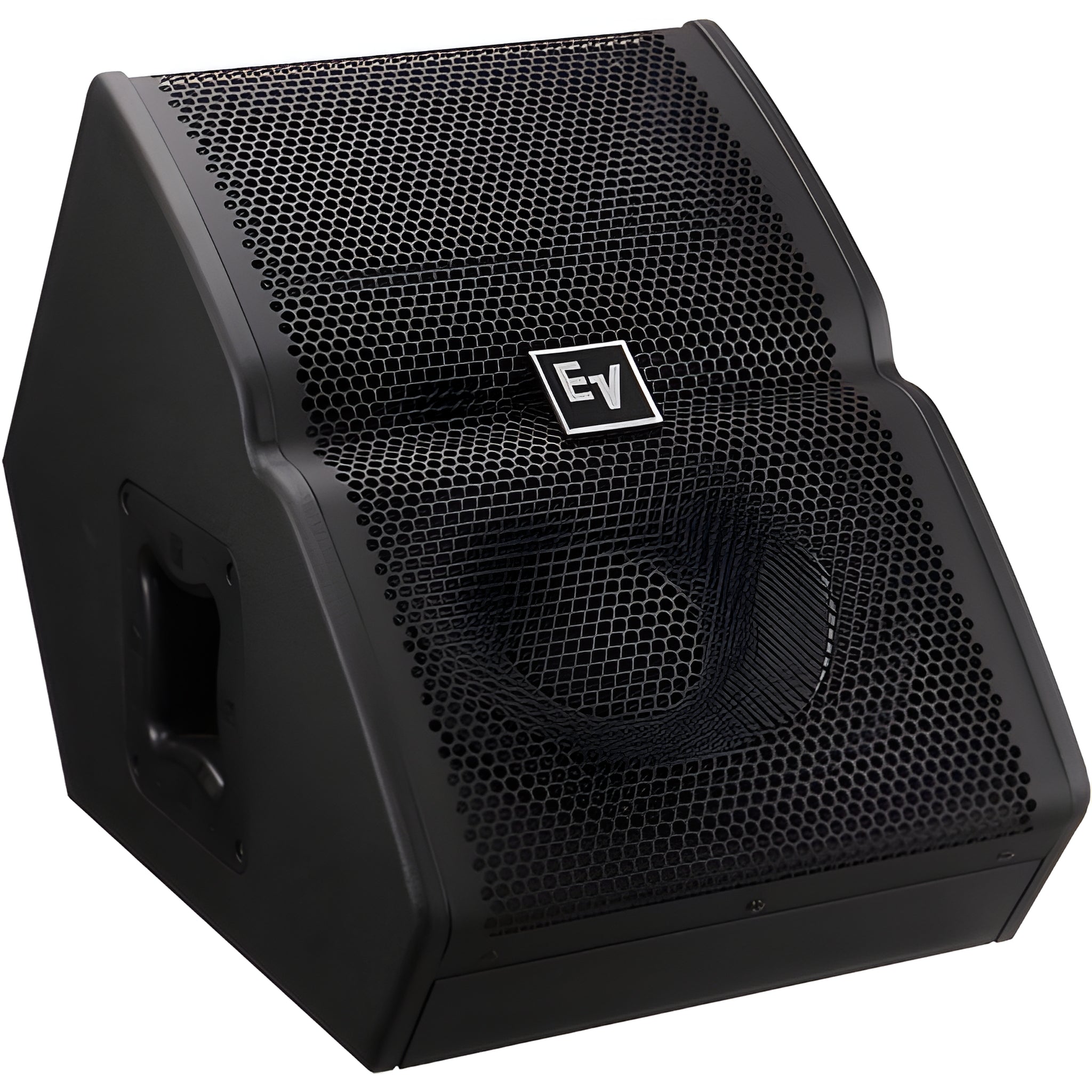

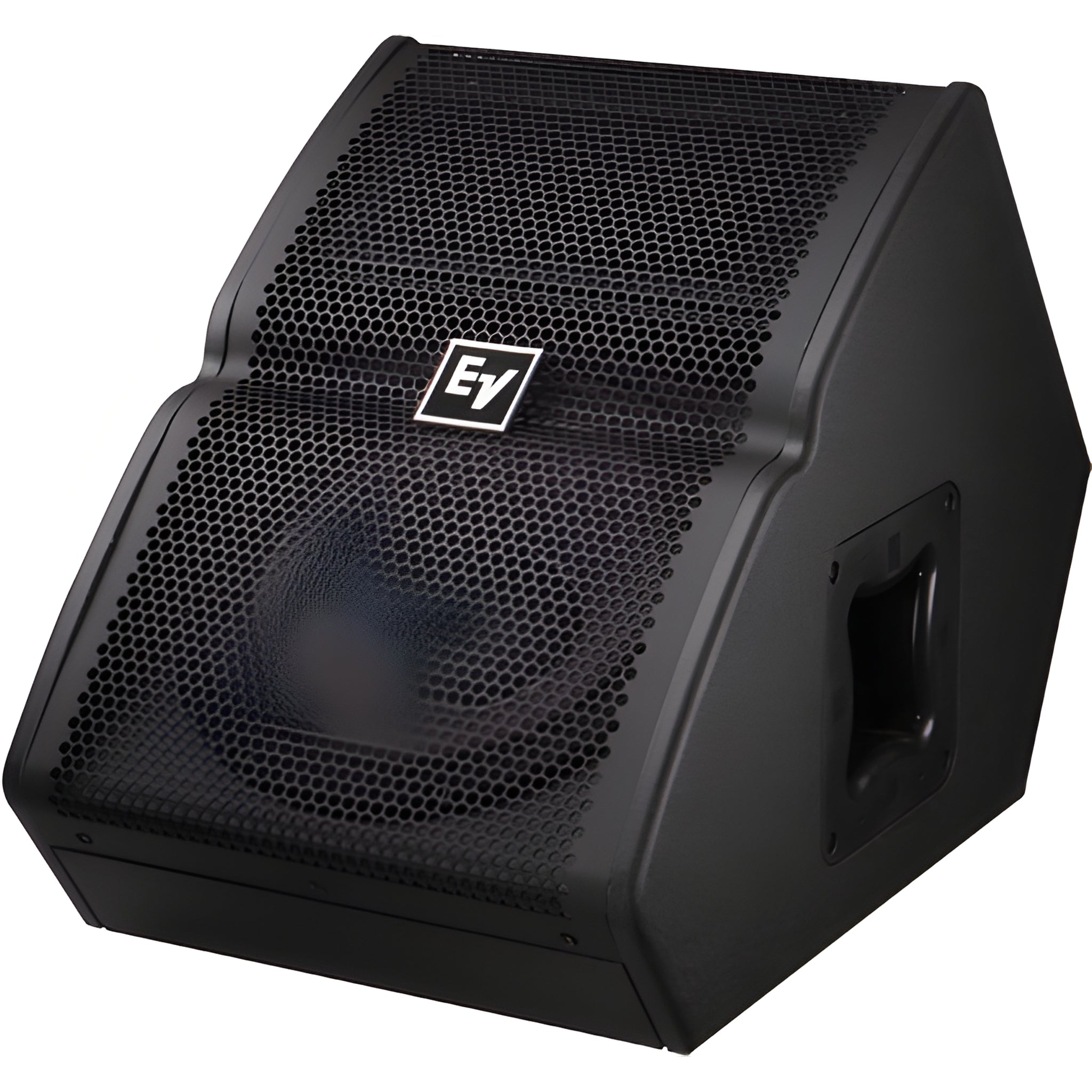

The wedge-shaped enclosure combines EVCoat- coated plywood and MDF , a 16 GA steel grille, and two integrated handles for secure handling. SST (Signal Synchronized Transducers) topology physically aligns the transducers to minimize phase distortion and maximize vocal clarity at high levels. It incorporates a 24 dB/oct passive crossover with HF protection and professional connectivity via 2 × Neutrik Speakon NL4 in parallel (input/link). With 500 W continuous ( 2000 W peak ) into 8 Ω and a minimum impedance of 6.4 Ω , the TX1122FM integrates seamlessly into existing riders and systems.

Main features

• Tour X Platform : 12" passive stage monitor with 2-way design optimized for vocals and instruments.
• EV Transducers : SMX2121 (12") low distortion + DH3 (1.25") with titanium diaphragm.
• Controlled Coverage : 90° × 50° horn to focus the mix on the performer.
• Performance : 99 dB (1 W/1 m), 132 dB SPL max. (calc.), 70 Hz – 20 kHz (−3 dB) .
• Power/impedance : 500 W continuous / 2000 W peak at 8 Ω ; minimum impedance 6.4 Ω .
• SST and 24 dB/oct crossover with HF protection for maximum reliability.
• Tour construction : MDF + plywood enclosure with EVCoat , 16 GA steel grille and two handles .
• Connectivity : 2 × NL4 in parallel (input/chained). Recommended HPF: 60 Hz .
• Format : 440 × 364 × 573 mm ; 19.8 kg .

Product benefits

• Vocal clarity and feedback resistance thanks to the 90° × 50° waveguide and SST alignment.
• Powerful output with 99 dB sensitivity and up to 132 dB SPL for demanding scenarios.
• Simple operation : standard 8 Ω impedance and NL4 in parallel for daisy chain wiring.
• Touring durability thanks to robust materials, EVCoat finish and integrated HF protection.

Use cases

• Stage monitoring for lead vocals, guitars, keyboards, and brass on tours and rentals.
• Theaters and cultural centers looking for reliable, high-SPL, and easy-to-integrate ads.
• Backline of venues and festivals with a need for consistency between artists.

Frequently Asked Questions

• Can I link multiple wedges? Yes. The two NL4s are in parallel for quick linking .
• Which high-pass filter (HPF) is recommended? 60 Hz (24 dB/oct) to protect the LF and gain headroom.
• Does the horn rotate? No, the diffuser doesn't.

Description for projects

Electro-Voice TX1122FM passive stage monitor (2-way, wedge): SMX2121 12" + DH3 1.25" (tit.); 90° × 50° coverage; response 70 Hz – 20 kHz (−3 dB) , range 55 Hz – 20 kHz (−10 dB) ; sensitivity 99 dB ; max. SPL 132 dB (calc.); power 500 W continuous / 2000 W peak ; impedance 8 Ω (min. 6.4 Ω ); crossover 1.6 kHz , 24 dB/oct slope with HF protection; 2 × Neutrik Speakon NL4 in parallel; DM + plywood enclosure with EVCoat , 16 GA steel grille, 2 handles ; 440 × 364 × 573mm ; 19.8 kg .
