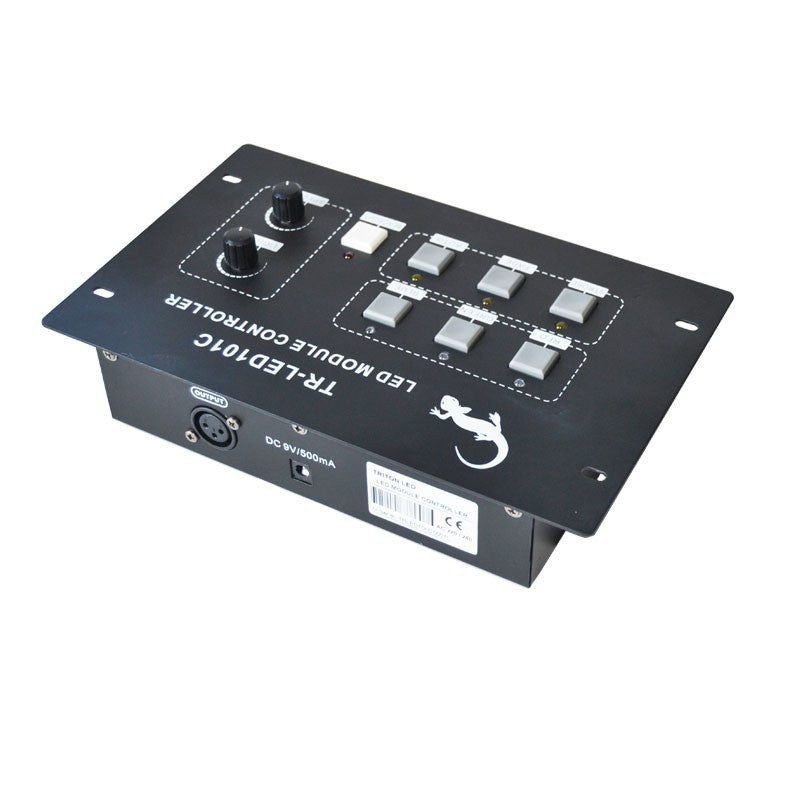

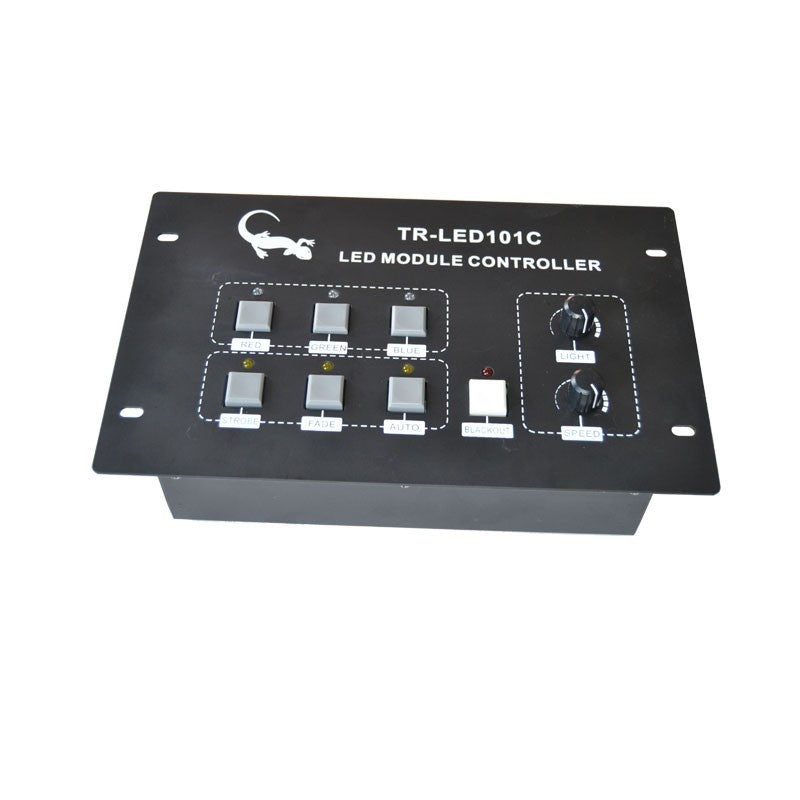

Triton Blue TR-LED101C - TRITON LED STRIP CONTROLLER

Control for RGB LED strips

• LED strip control.
• Access to RGB colors via direct push buttons
• Strobe function
• Fade Function
• Auto Function
• Front potentiometer for direct control of speed and dimmer
• Includes power supply
  • AC 100-240V input. 50/60 Hz. 0.18A
  • DC output 9V. 0.8A

Characteristics

• POWER SUPPLY: 230/240v, 50-60Hz, using the supplied adapter.
• CONSUMPTION: 5W.
• FUSE: 1 Amp.
• CONTROL: DMX, Automatic, Manual,

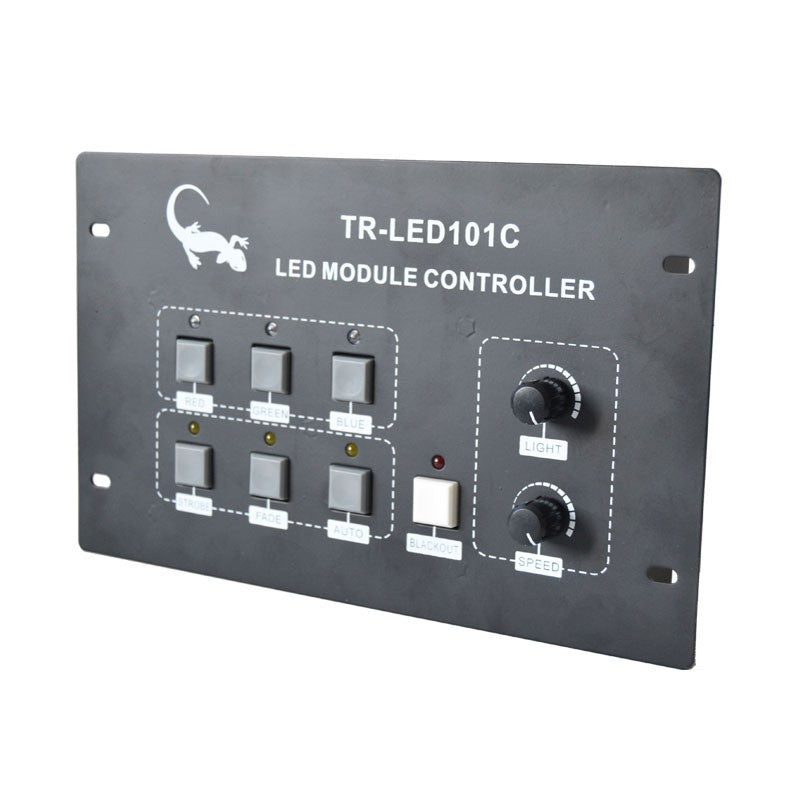

• CONTROL: controls colors Red, Green, Blue, stobo, fade, automatic, Blackout key, intensity potentiometer, and speed potentiometer.

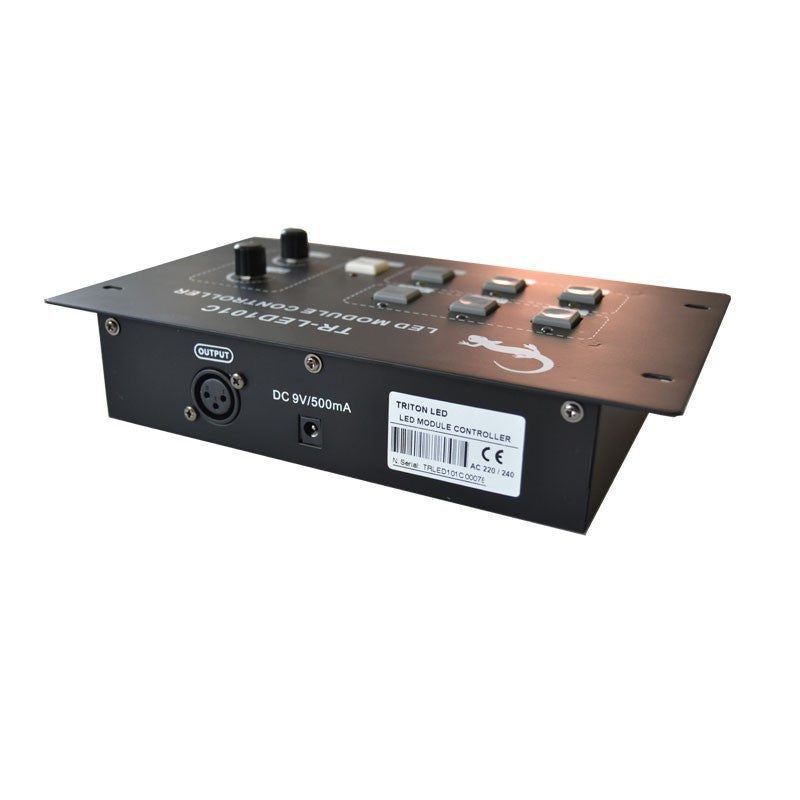

• OUTPUT: DMX via 3-pin XLR.
• WORKING TEMPERATURE: between -20 and +45 degrees.
• HUMIDITY: between 0% and 90%.
• DIMENSIONS: 260mm x 160mm x 75mm.(Length x Width x Height)
• WEIGHT: 1.3 kg.
• It can control up to 30 power modules.

• This controller is a direct match for other Triton Blue brand products.
  • TR-LED101L: LED Strips
  • TR-LED101D: LED Driver
