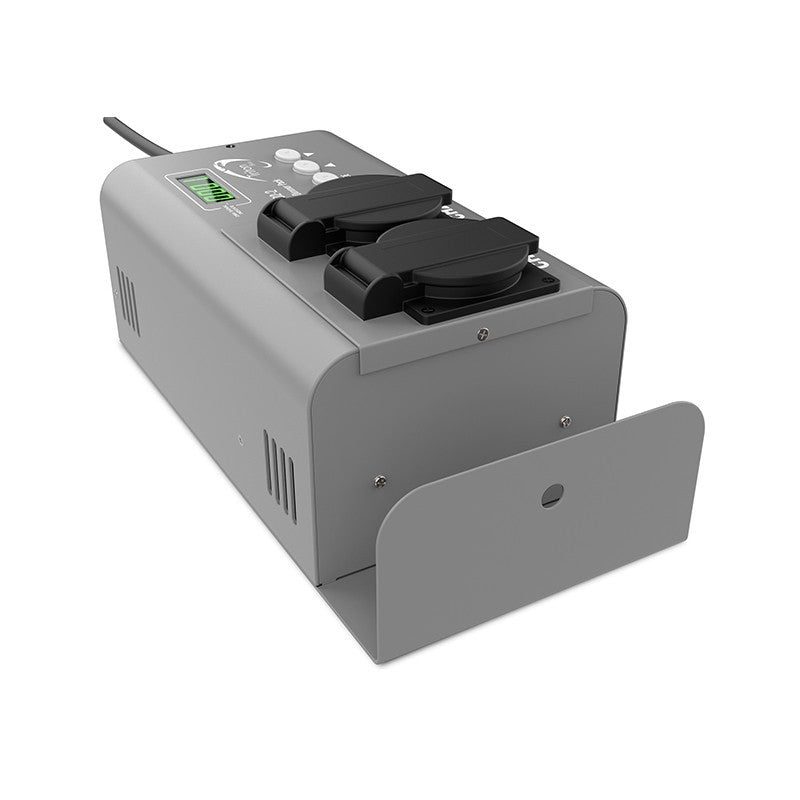

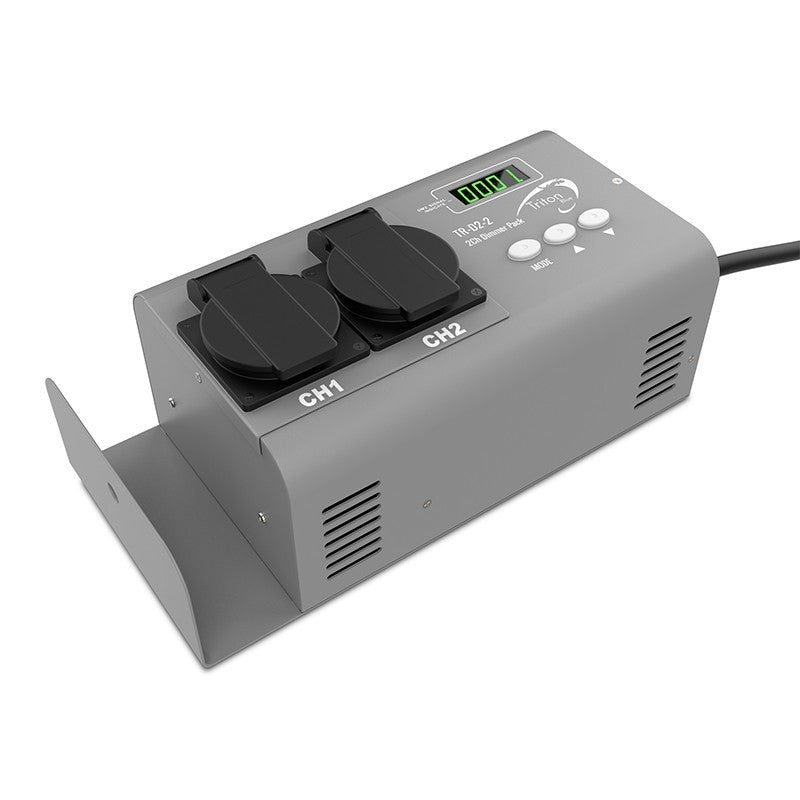

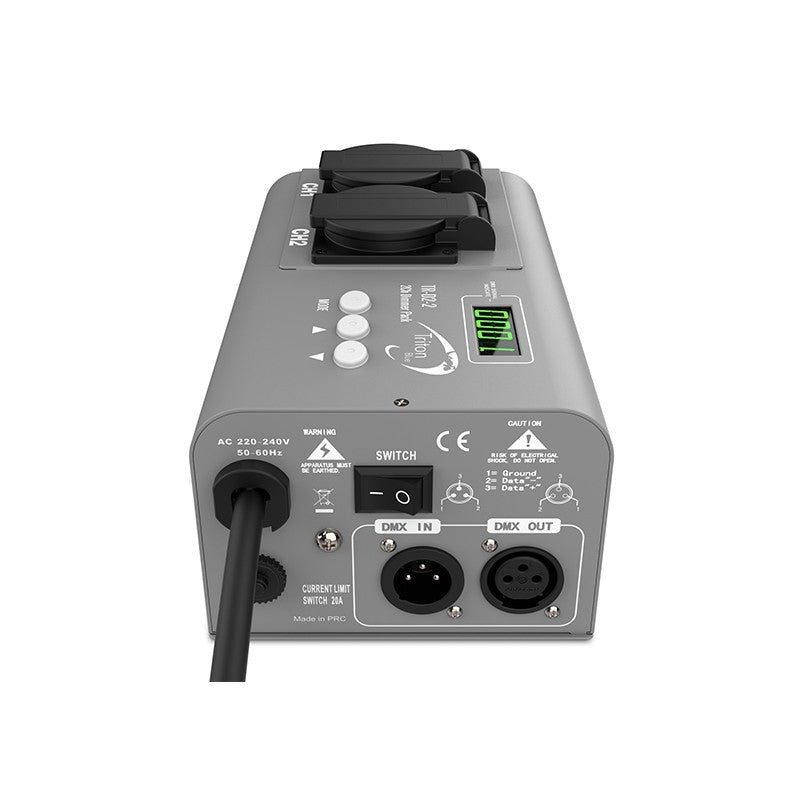

Triton Blue TR-D2-2 - TRITON-BLUE DM2 DIMMER 2 DMX CHANNELS

4-channel DMX dimmer with Schuko output per channel. TR-D2-2 Triton-Blue

• Stand-alone operation or via DMX control
• The TR-D2-2 is a compact yet powerful dimmer for dimming incandescent lamps.
• It has 2 channels for a maximum of 3,680W
• It has a 16A schuko connector for power input.

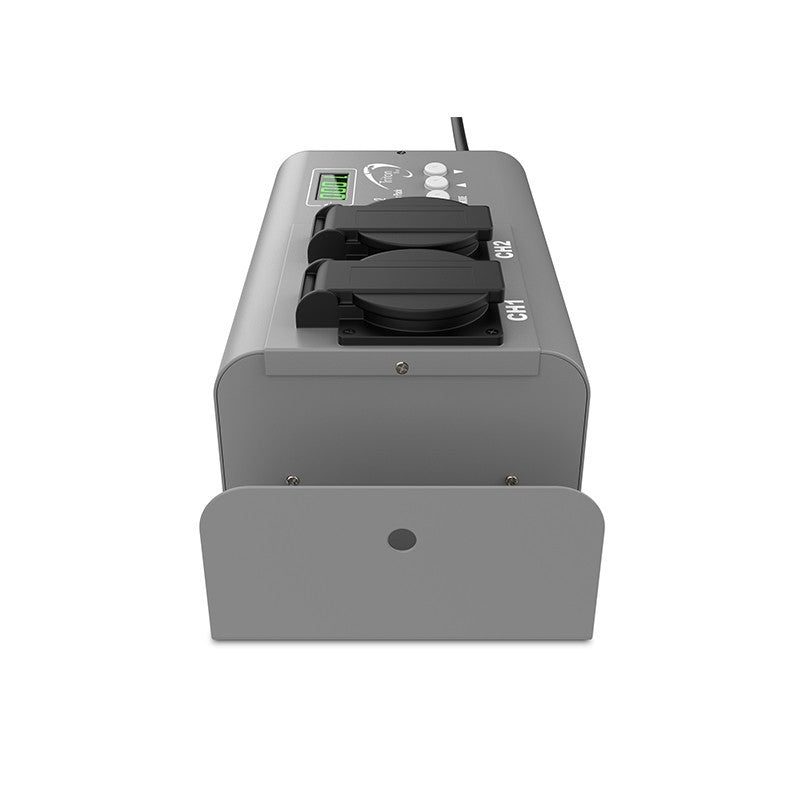

• Housing design makes it ideal for fixed or mobile applications.

• Two Schuco connectors with a total of 16A for the dimmed channel output. Female and male XLR connections for DMX compatibility.
• For small installations where a DMX dimming channel is required, it can be used for shop windows, art galleries, Christmas lighting, theater companies, lighting equipment rental companies, etc.

• Characteristics
  • 2-channel DMX dimmer
  • AC 230V / 50 Hz power input via Schuko connector
  • Output power: Max. 3,680W
  • Output current: Max. 16A
  • Power output via 2 x 16A Schuko connectors
  • Control via DMX signal or directly on the equipment

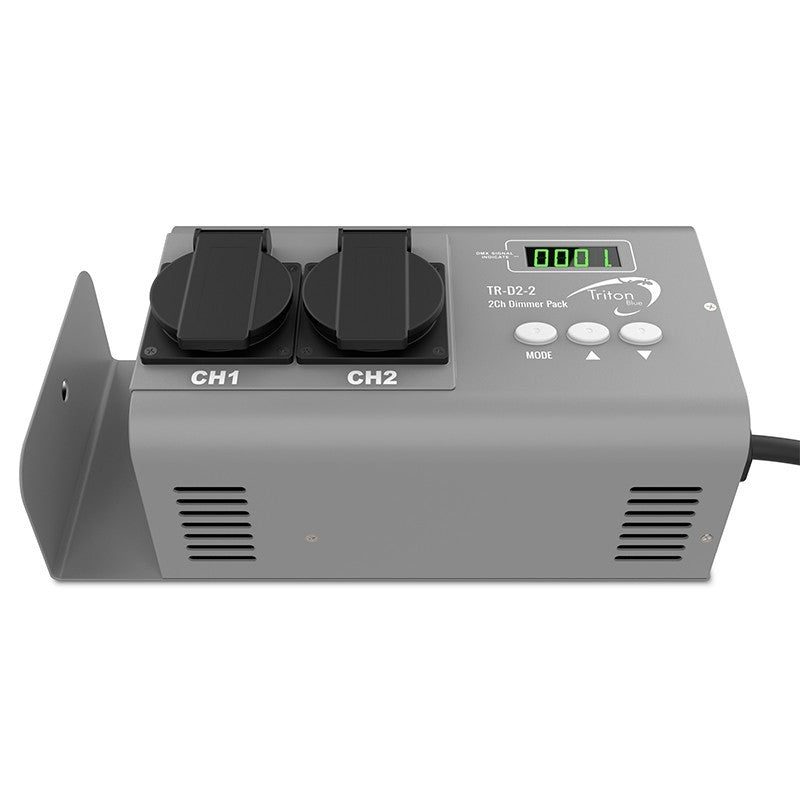

  • Display with 4 digits and 4 buttons for parameter assignment (Up, Down, Mode and Menu)

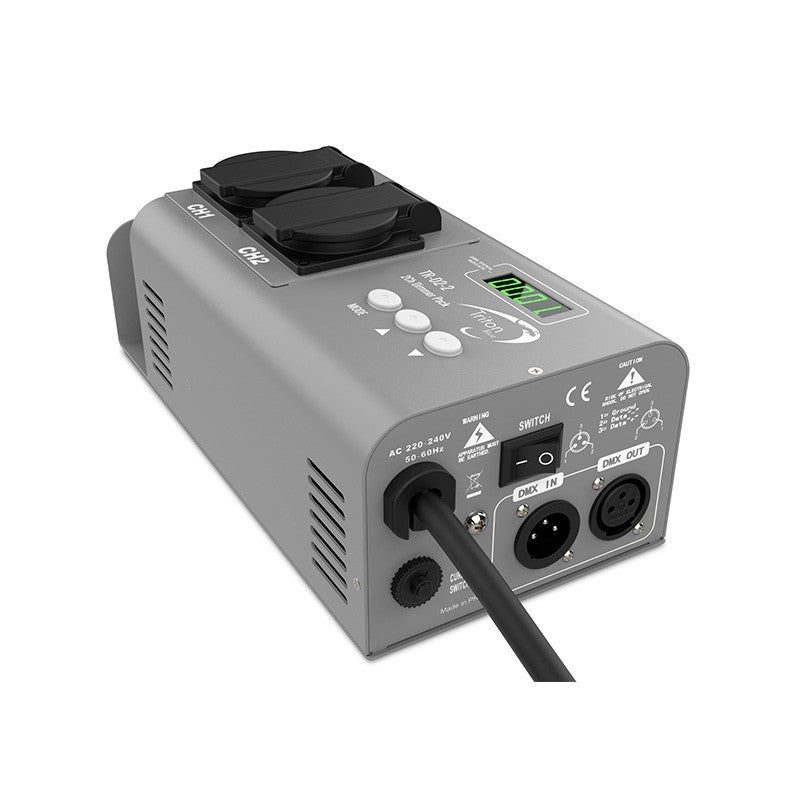

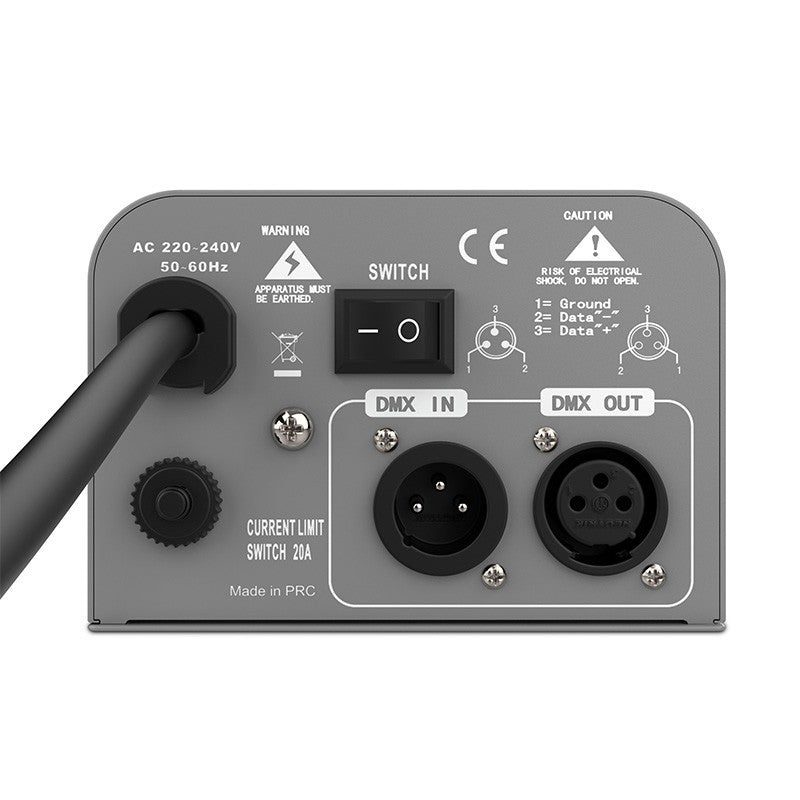

  • DMX inputs and outputs
    • DMX input: 1 3 Pin male XLR
    • DMX Output: 1 3-Pin Female XLR
  • Equipment on/off switch
  • 1 20A protection fuse

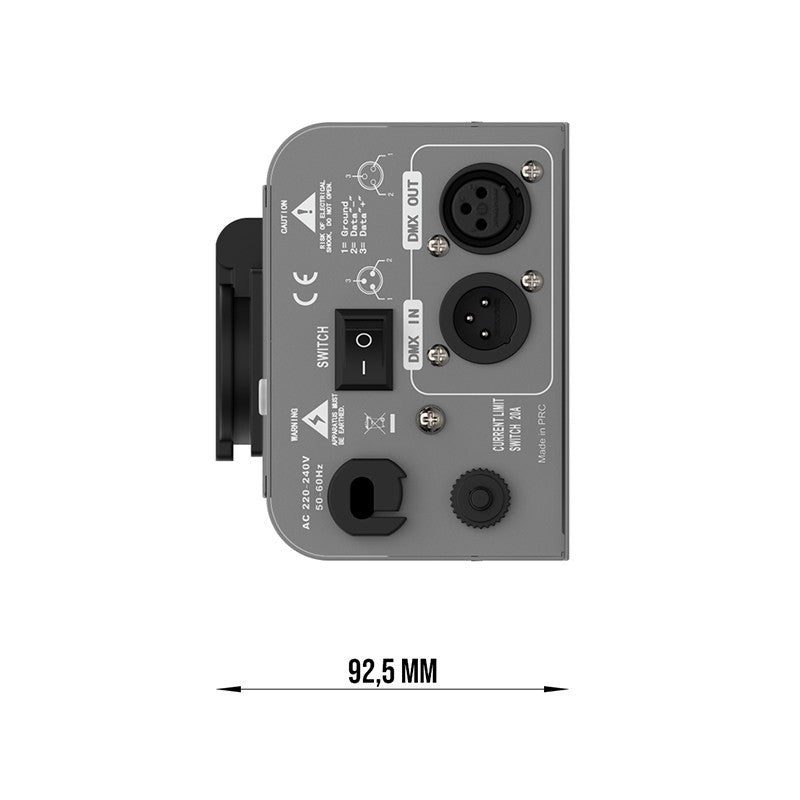

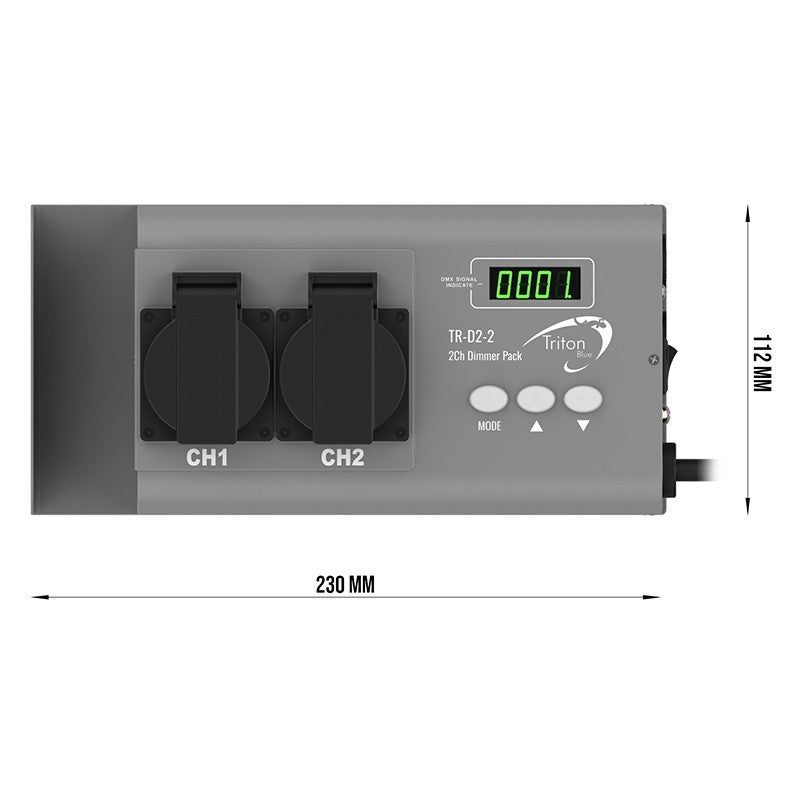

  • Dimensions: 210 x 110 x 160 mm
  • Weight: 1.8 kg

• ID
  • Brand: Triton Blue
  • Triton Blue Family: Control Electronics
  • Model: TR-D2-2
  • EAN code: 8474407180191

• Description for projects
  • 2-channel Triton-Blue TR-D2-2 dimmer with stand-alone operation via on-board pushbuttons and monitored via integrated 4-digit LED display or via DMX 512 signal, DMX signal input and output via 2 x 3-pin male and female XLRs and a power output of up to 16 Amps (3,680 Watts) via 2 x 16 Amp Schuko connectors. Dimensions 210 x 110 x 160 mm and a weight of 1.8 kg. Includes power cable with 16 Amp Schuko cable connector.
