beamZ TP46 - Compact RGB+UV LED Par Light for Truss Structures and Uplighting
Transform any structural setup into a lighting centerpiece with the beamZ TP46 , an LED PAR spotlight meticulously designed to seamlessly integrate into triangular and square truss structures. This compact fixture is the ultimate solution for mobile DJs, rental companies, and lighting technicians seeking professional, clean uplighting with no visible cables dangling outside the towers.
The heart of this system lies in its four 4W LEDs with 4-in-1 technology , which combine the primary colors red, green, and blue with a powerful UV (black light) channel. This addition of ultraviolet light allows for spectacular fluorescent effects, making the truss's metal structure or nearby decorative elements glow in the dark—something impossible to achieve with conventional RGB spotlights. With a 19° beam angle, the light is projected precisely along the pillar, bathing the metal in color without unnecessarily scattering the illumination throughout the room.
Designed for maximum operational versatility, the TP46 features a 0-100% linear electronic dimmer and an adjustable strobe of up to 20 flashes per second, ideal for high-energy moments on the dance floor. Its physical design is its greatest strength: with its compact dimensions and wedge shape, it fits inside the truss crossbeams, acting as an internal wall washer. It also includes a key component: the glare guard , a visor that prevents the light source from directly dazzling the audience or cameras, ensuring much cleaner photos and videos of events.

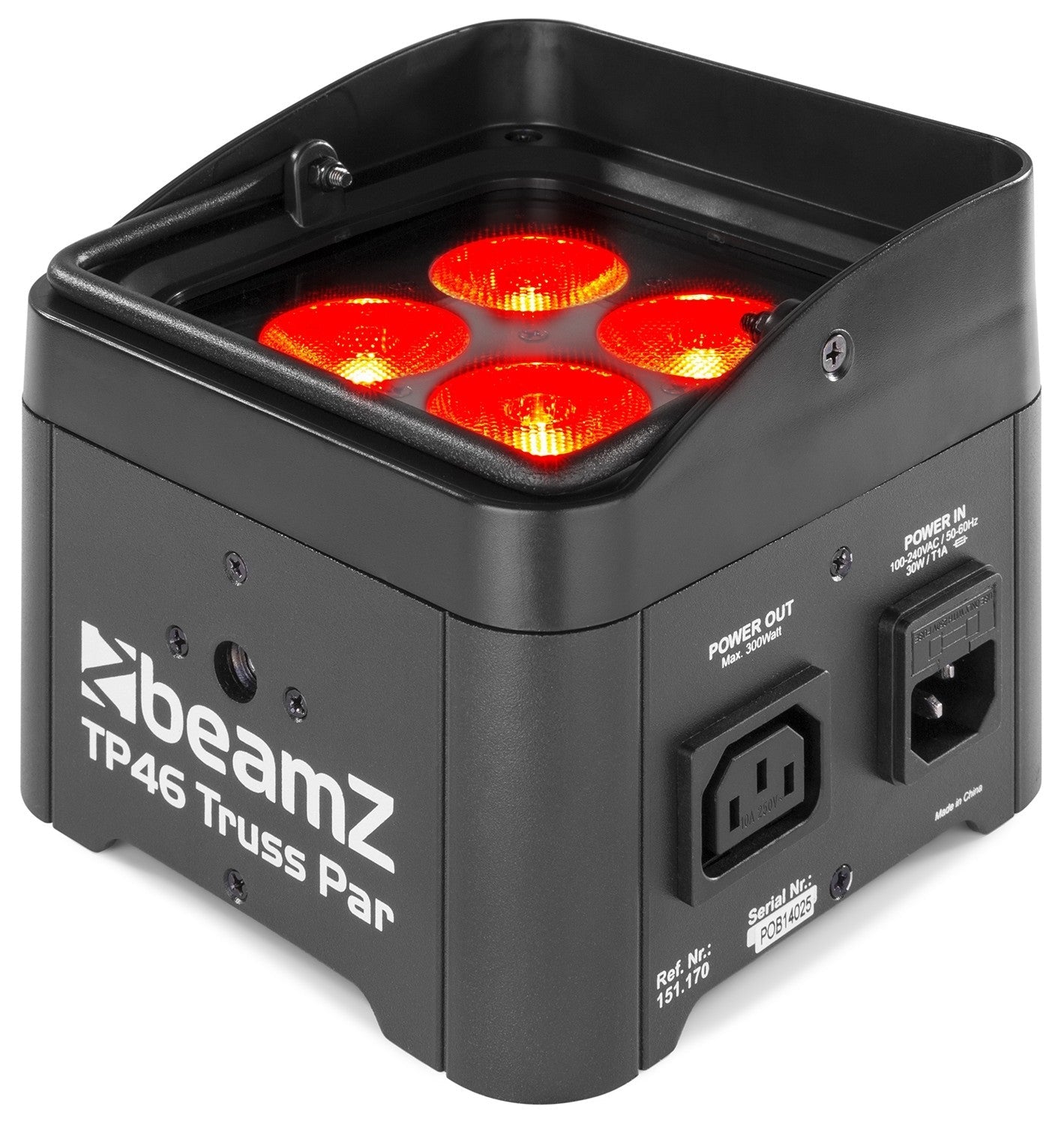

The control is complete and flexible. You can operate it via DMX (with 3, 4, or 8-channel modes) for integration into professional consoles, use the included IR remote control for quick setups without a mixer, or let it run in automatic, sound-activated mode thanks to its adjustable internal microphone. For easy installation in large setups, the TP46 features IEC power in/out connections, allowing multiple units to be daisy-chained to a single power outlet.
Main features
The beamZ TP46 stands out for its balance between power, size and specific functionality for structures:
-

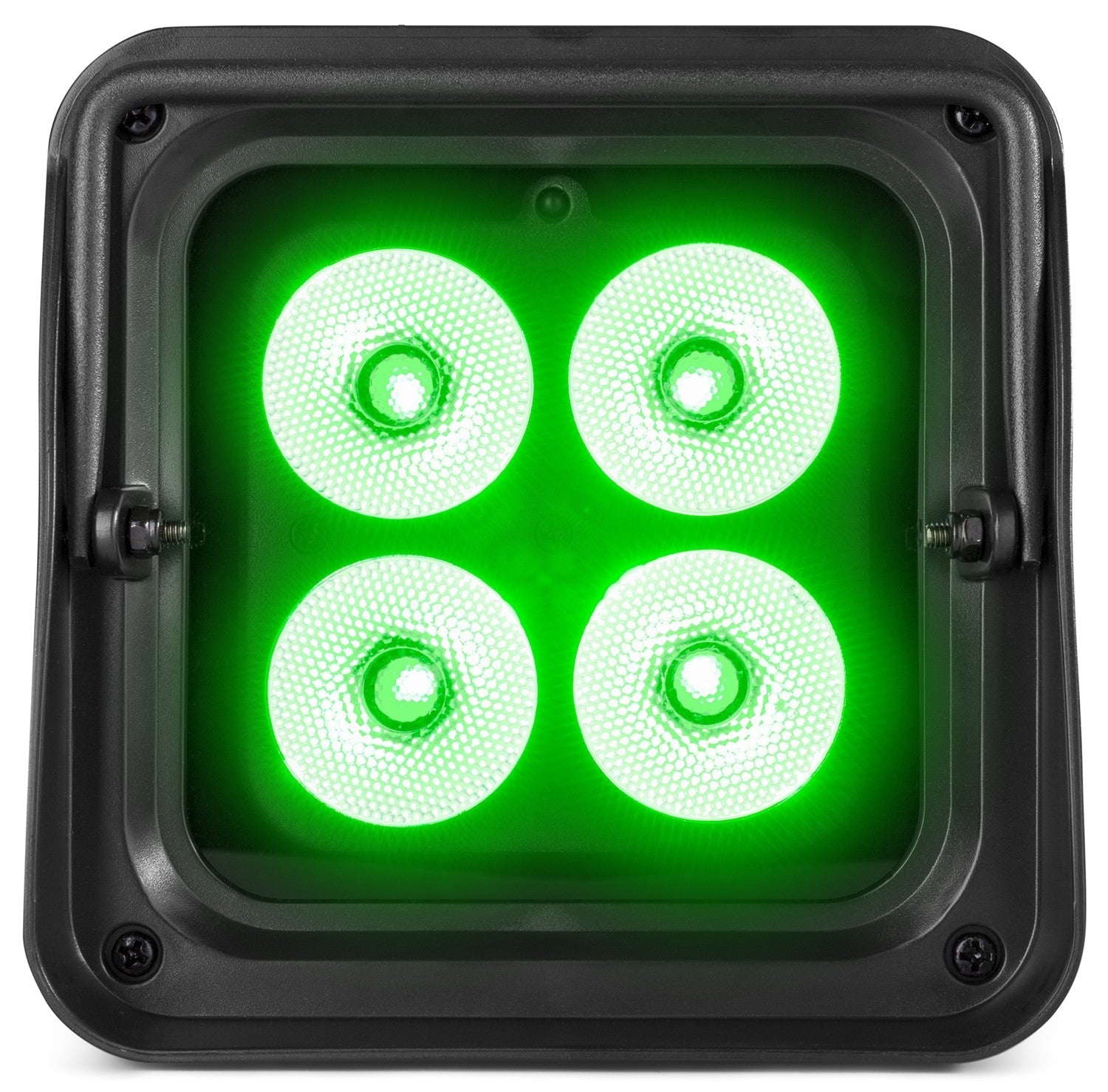

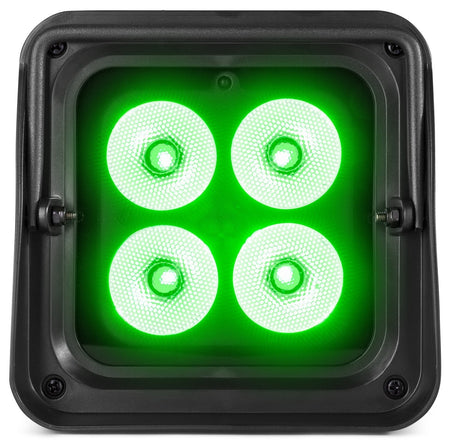

Advanced Color Technology: Light source composed of 4 x 4W 4-in-1 LEDs (RGB+UV), capable of generating millions of colors and the unique black light effect.
-

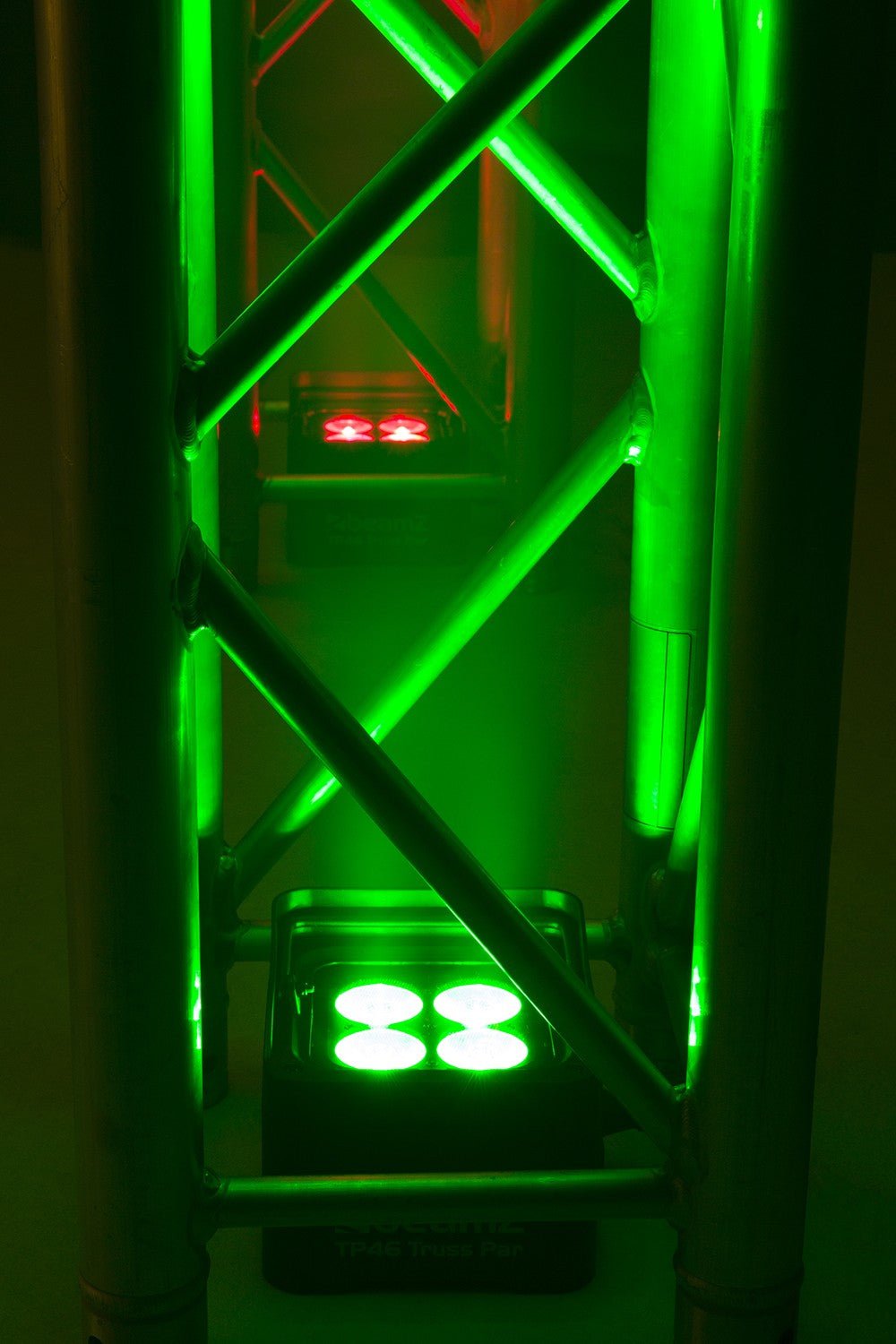

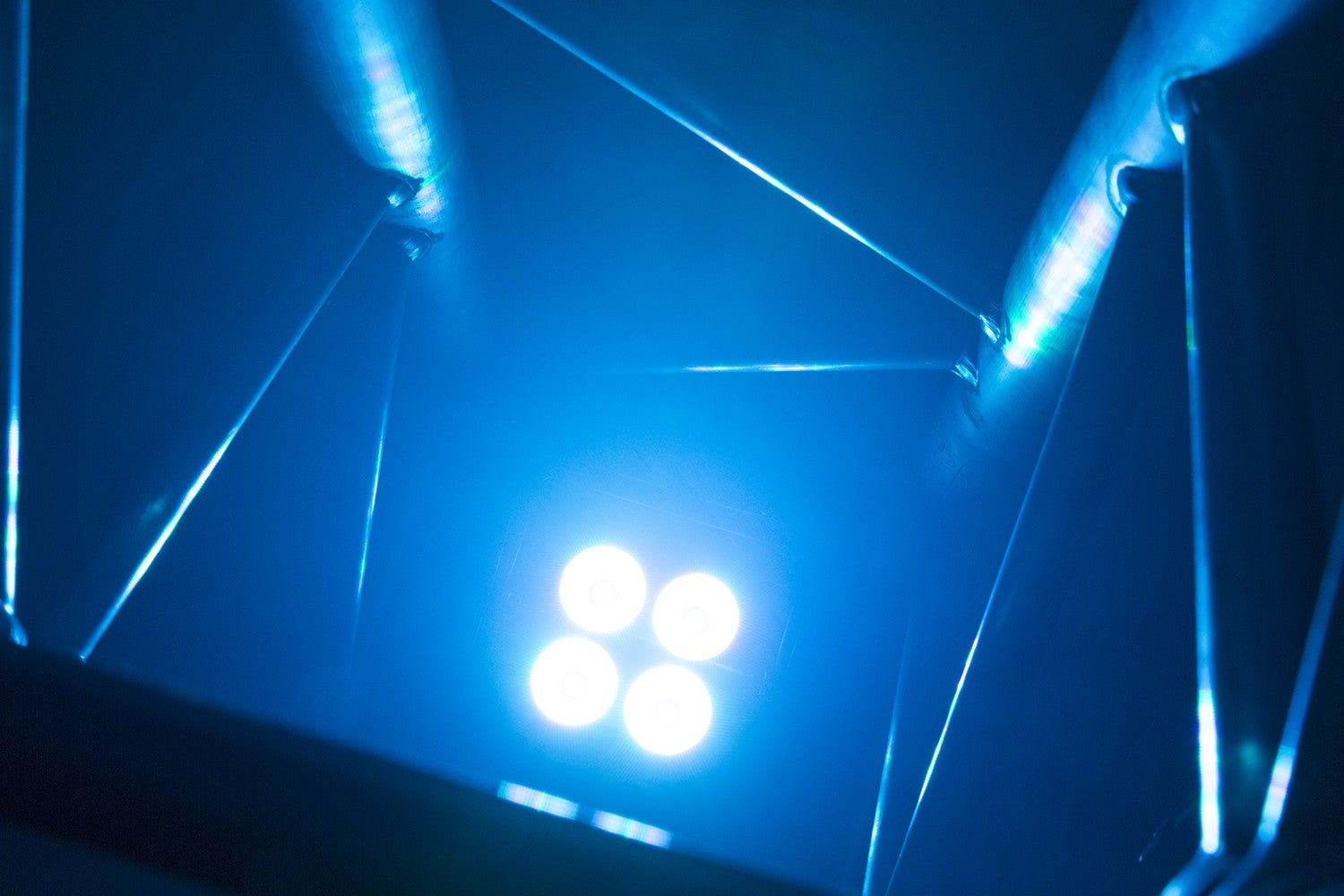

"Truss Fit" design: Its compact, triangular shape allows for internal installation in standard quad and triangular structures without protruding, protecting the equipment from impacts.
-
Precision Optics: 19° beam angle and 34° field angle, optimized to travel the length of the truss while maintaining intensity.
-
Control Versatility: Compatible with DMX512 protocol (3, 4, 8 channels), Master/Slave mode, sound activation and wireless remote control.
-
Visual Protection: Includes a detachable "Glare Guard" (visor) for a superior aesthetic finish and protection against glare.
-

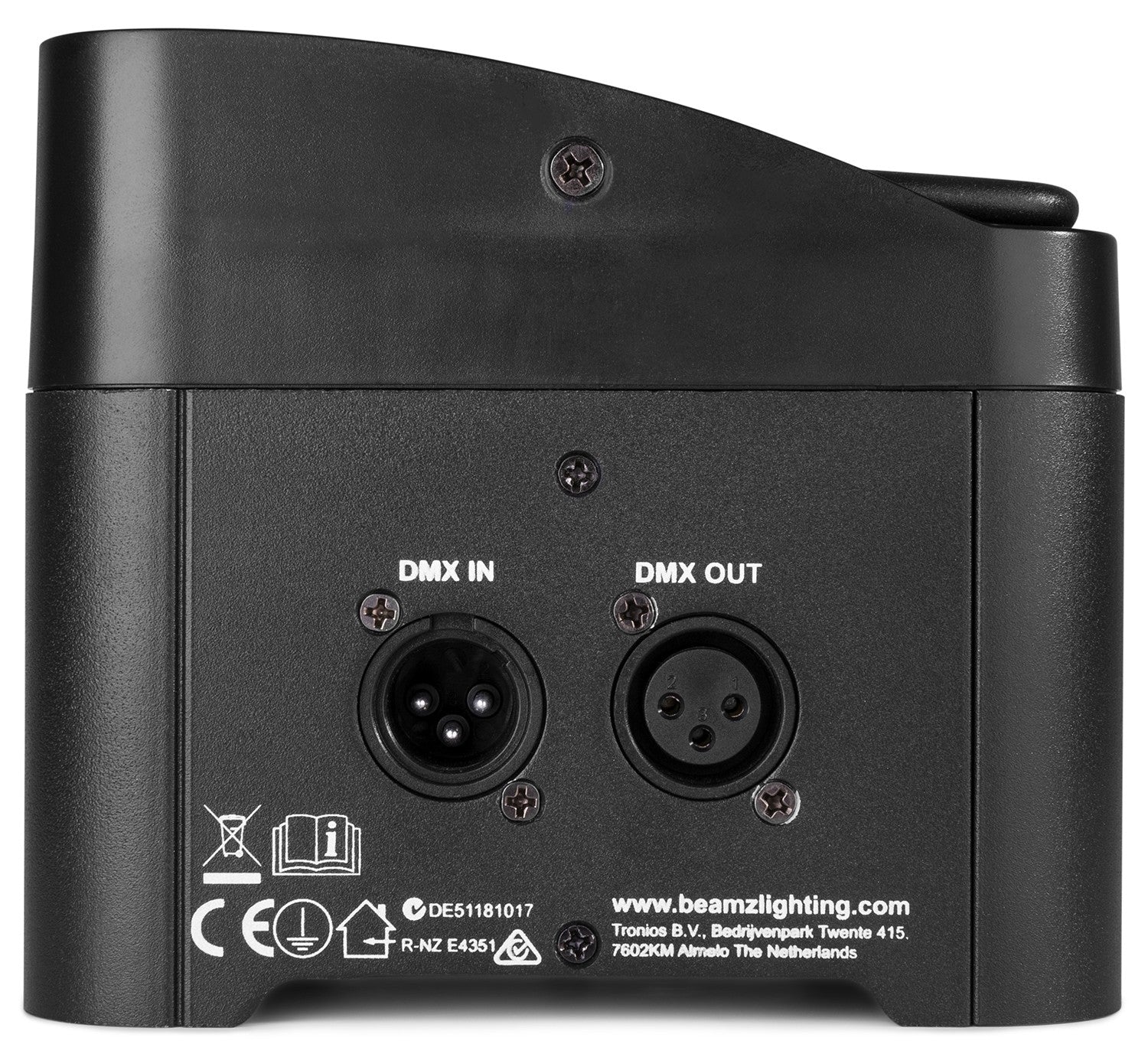

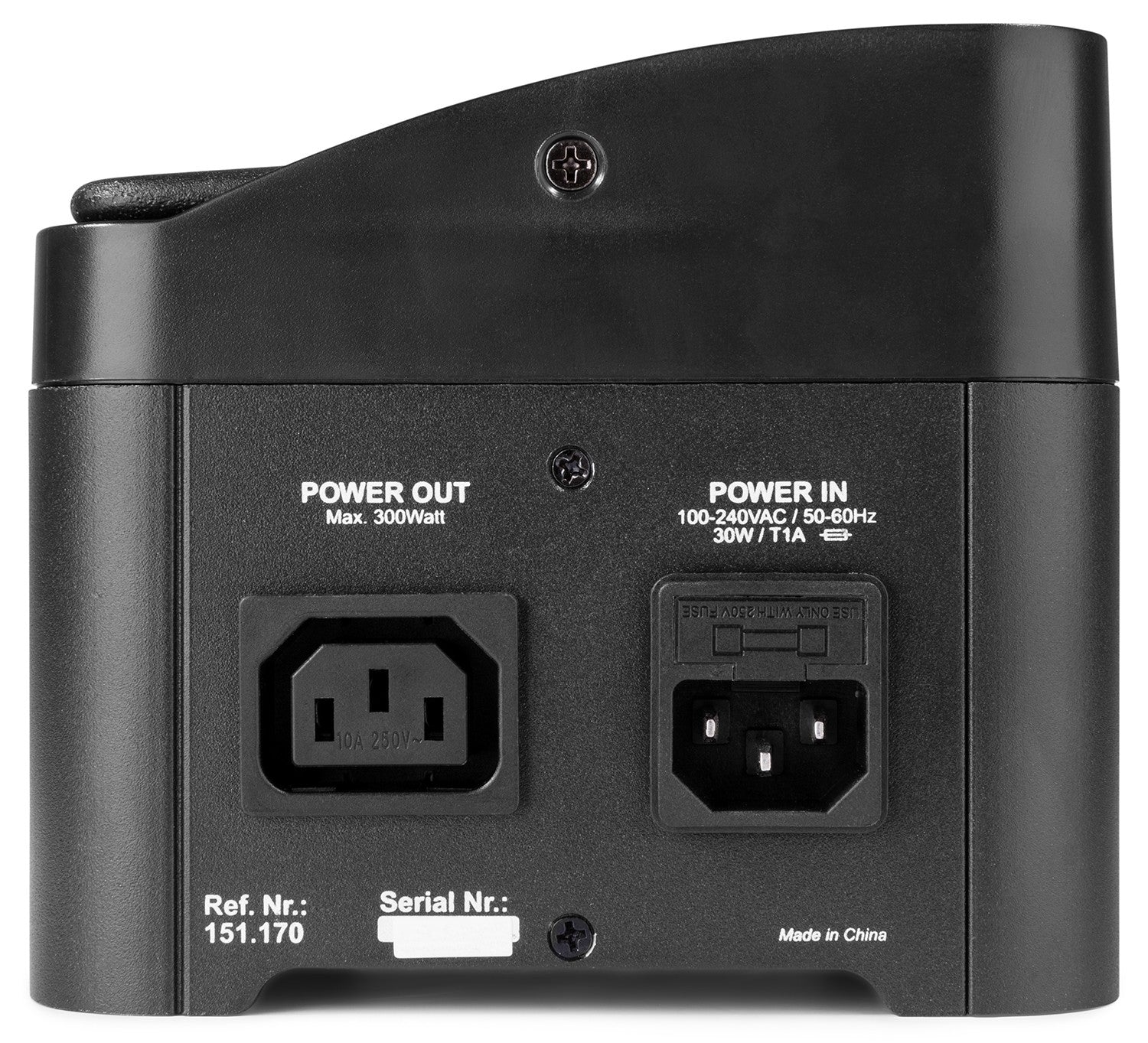

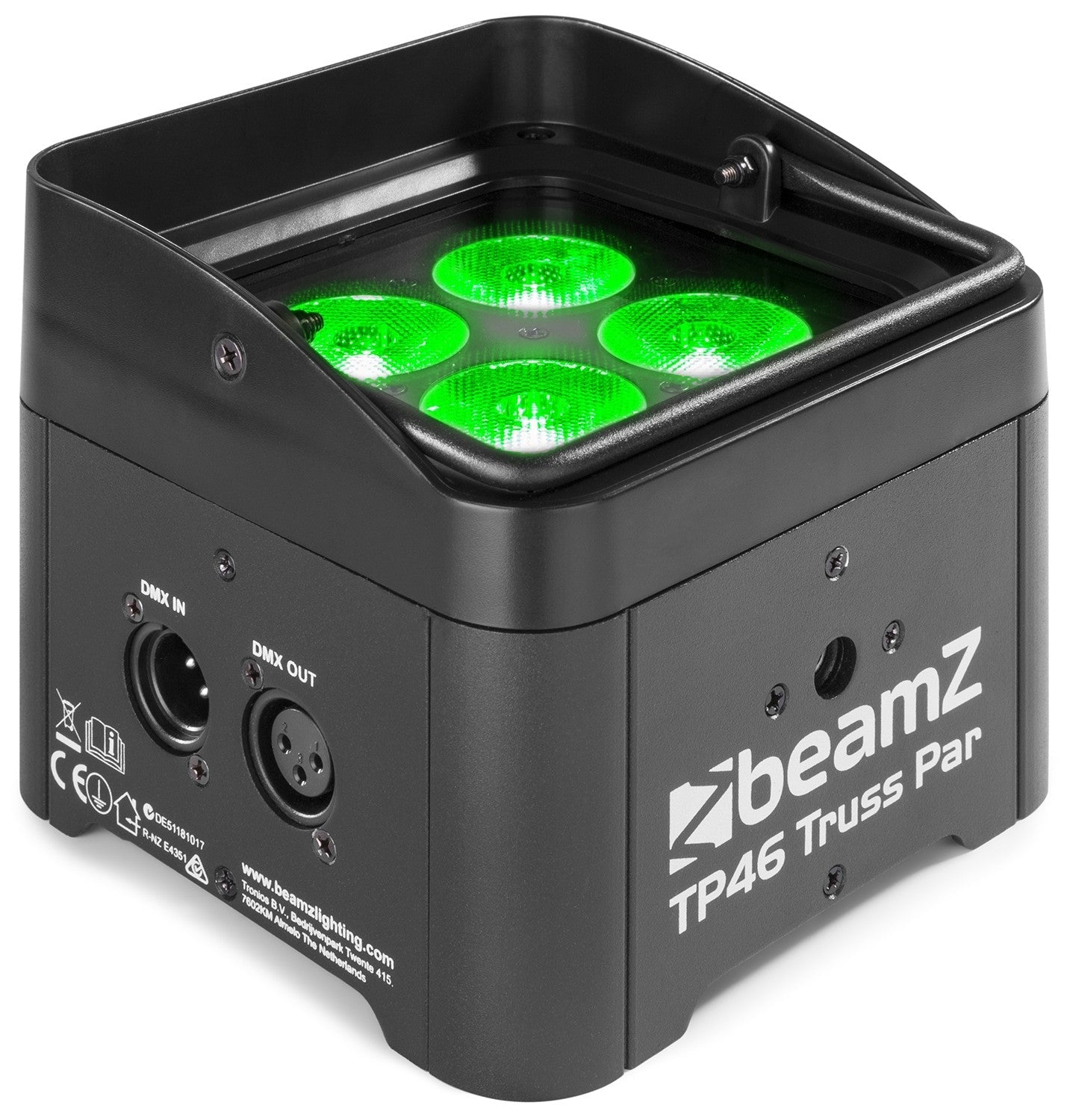

Professional Connectivity: 3-pin XLR inputs and outputs for data and IEC sockets for daisy chain power.
-

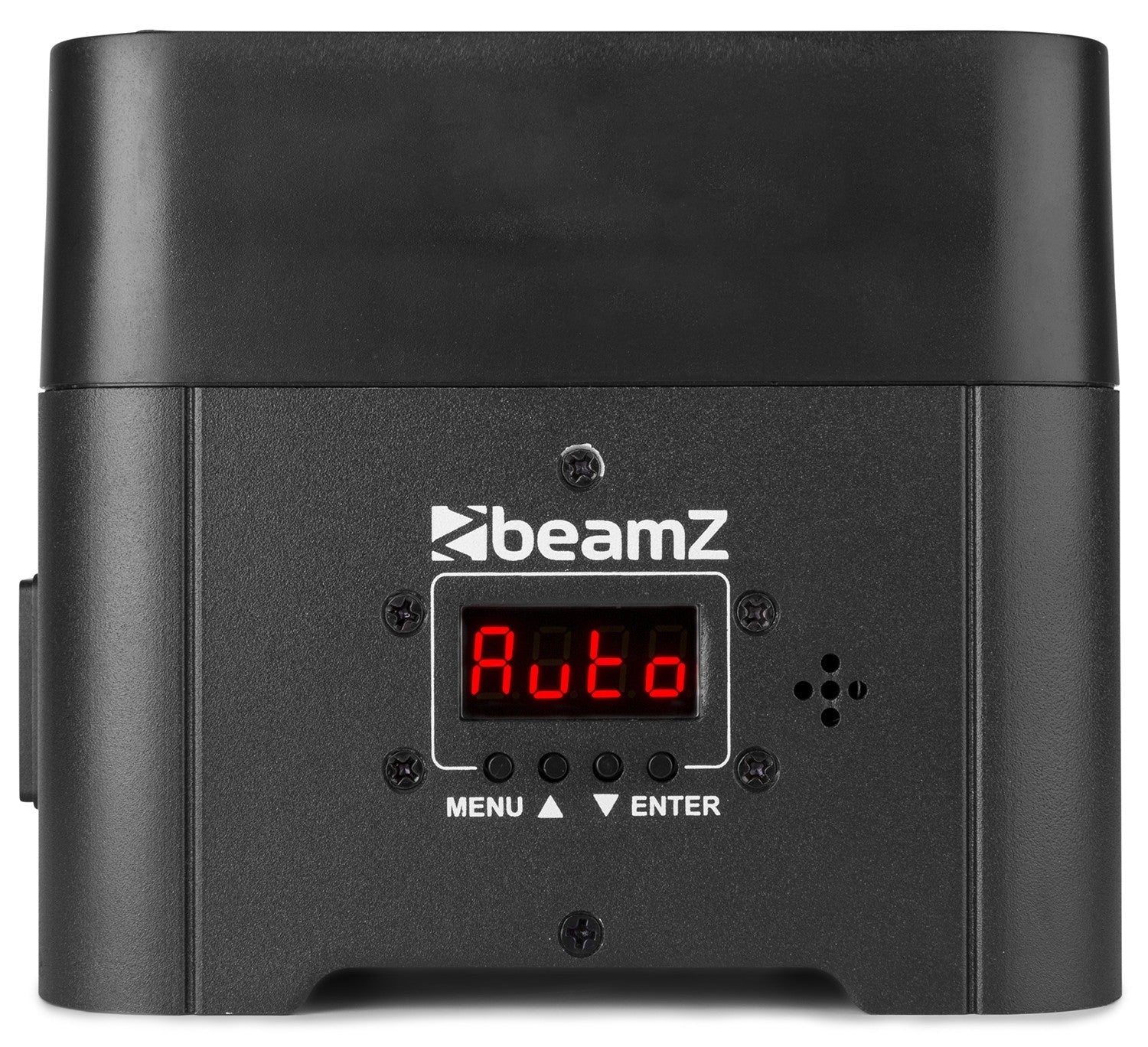

Intuitive Interface: Rear panel with LED display and four buttons for quick and easy manual setup.
Product benefits
Integrating the beamZ TP46 into your lighting inventory offers clear competitive advantages:
-
Impeccable Aesthetics: By being placed inside the truss, it eliminates the need for external tripods or spotlights on the floor that can be kicked by guests, offering a "clean" and elegant setup.
-
Differentiating UV Effects: The ability to emit ultraviolet light adds an extra dimension to themed parties and weddings, highlighting white dresses and reactive decorations.
-
Time Savings in Assembly: Thanks to the possibility of interconnecting the power supply and the use of the IR remote control, the wiring and configuration time before the event is drastically reduced.
-
Adaptability: It works equally well as static decorative lighting (uplighting) during a dinner party as it does as a dynamic strobe effect during dancing.
Use cases
This focus is an essential tool in various scenarios:
-

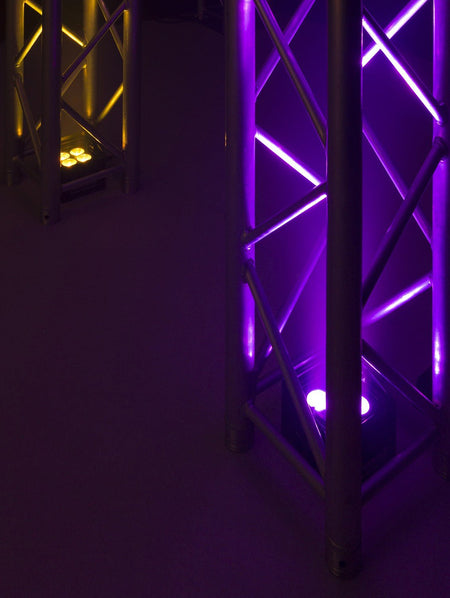

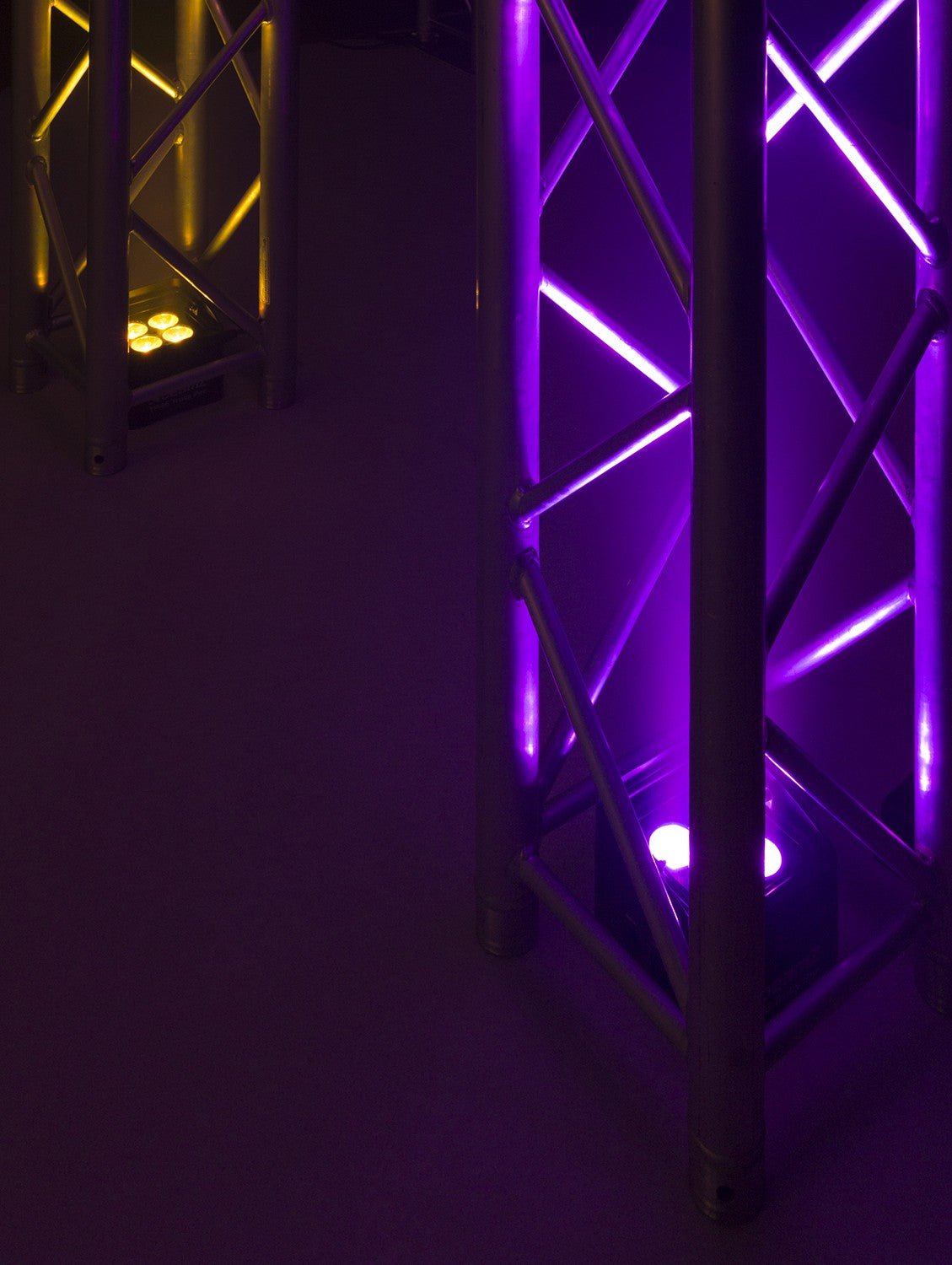

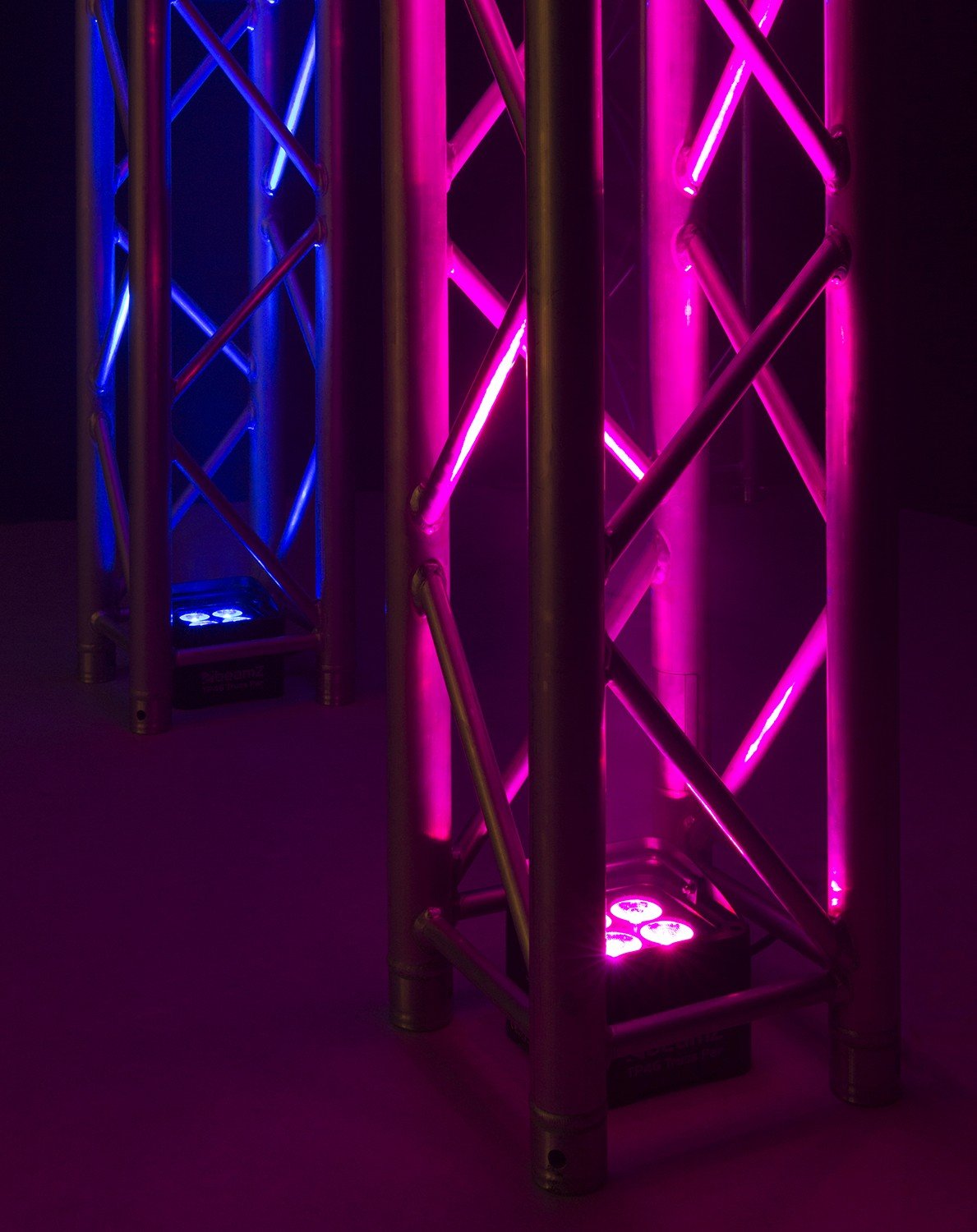

Truss Totems at Weddings: Internal lighting of vertical columns covered with white lycra or exposed, creating elegant columns of light.
-
DJ booths: Mounting on porticos or light bridges to add color to the structure without blinding the artist.
-
Trade Fair and Exhibition Stands: Highlight the corporate stand structure with the brand colors, occupying zero usable floor space.
-
Concert Stages: Use as truss "warmers" so that the structure becomes part of the stage design.
Frequently Asked Questions
-
Does the beamZ TP46 fit any type of truss?
It is designed to fit most standard 290mm square and triangular trusses (a common size at events). Its compact size of 144mm facilitates this integration.
-
Is it necessary to use a DMX console to control it?

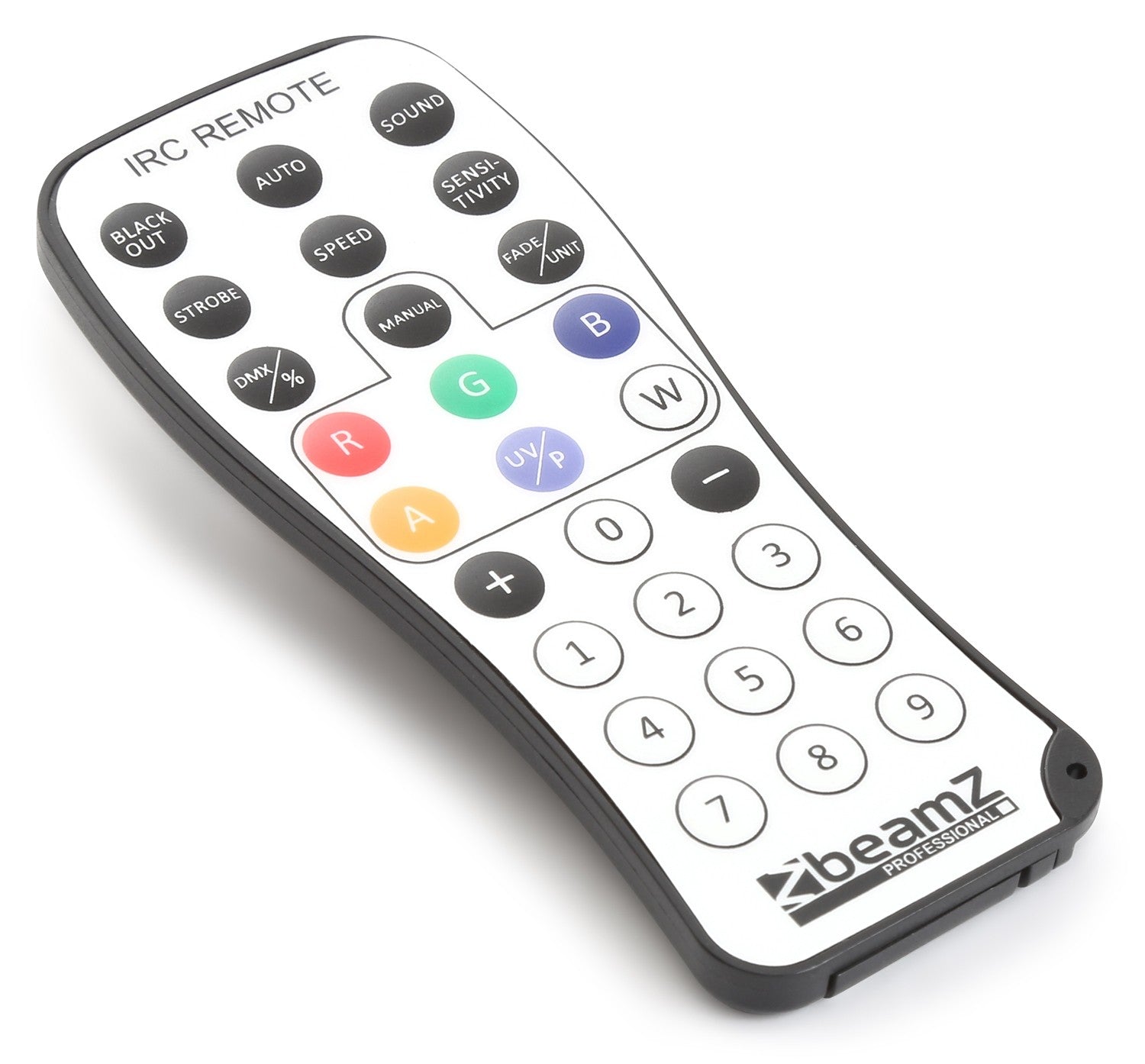

It's not strictly necessary. Although it has DMX for professional control, it includes an IR remote control and automatic/rhythmic modes ideal for users looking for simplicity ("plug and play").
-
Can it be used outdoors?
The device has an IP20 rating, meaning it is not waterproof or moisture-resistant. Its use should be limited exclusively to indoor or covered, dry outdoor areas.
-
How many units can I daisy-chain?
Thanks to the IEC in/out connections, you can link the power supply of several units. It is recommended to consult the manual for the exact maximum number, which depends on the line voltage, but generally allows for connecting several lights without problems.
Project description
Compact LED PAR projector specifically designed for indoor installation on truss structures (Truss PAR). The device incorporates four 4W LEDs with a 4-in-1 RGB+UV (Red, Green, Blue, and Ultraviolet) configuration, offering a homogeneous color mix and black light effects. Its optical system provides a 19° beam angle and a 34° field angle. It includes a glare guard, 0-100% electronic dimmer, adjustable strobe effect (0-20Hz), and an LED display for configuration. It offers DMX512 connectivity via 3-pin XLR (3, 4, or 8 channels), as well as automatic, rhythmic, master/slave modes, and control via the included IR remote. It features IEC power input and output for electrical connection. Dimensions: 144 x 144 x 121 mm. Weight: 1.6 kg. Black finish and IP20 rating.
