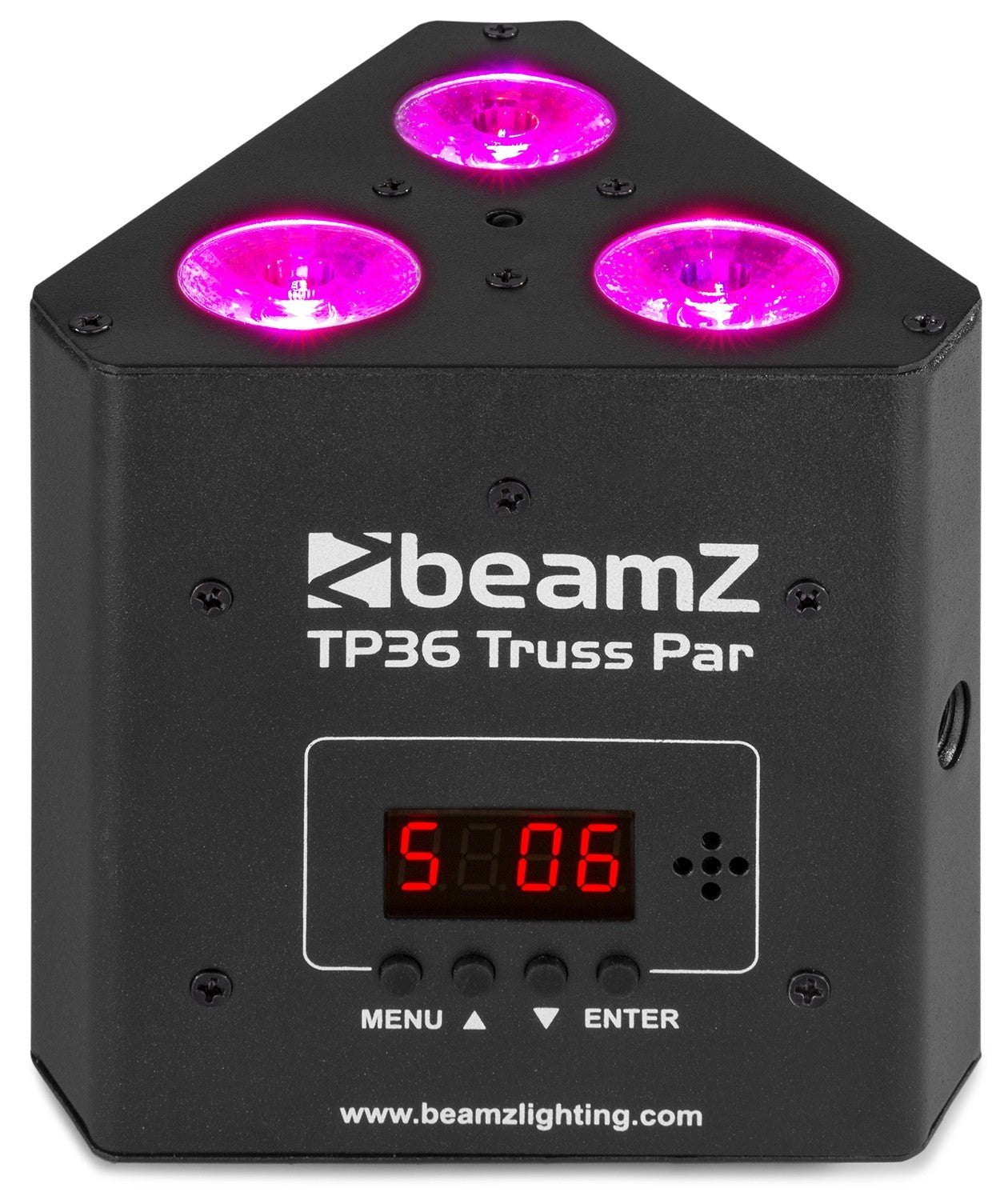

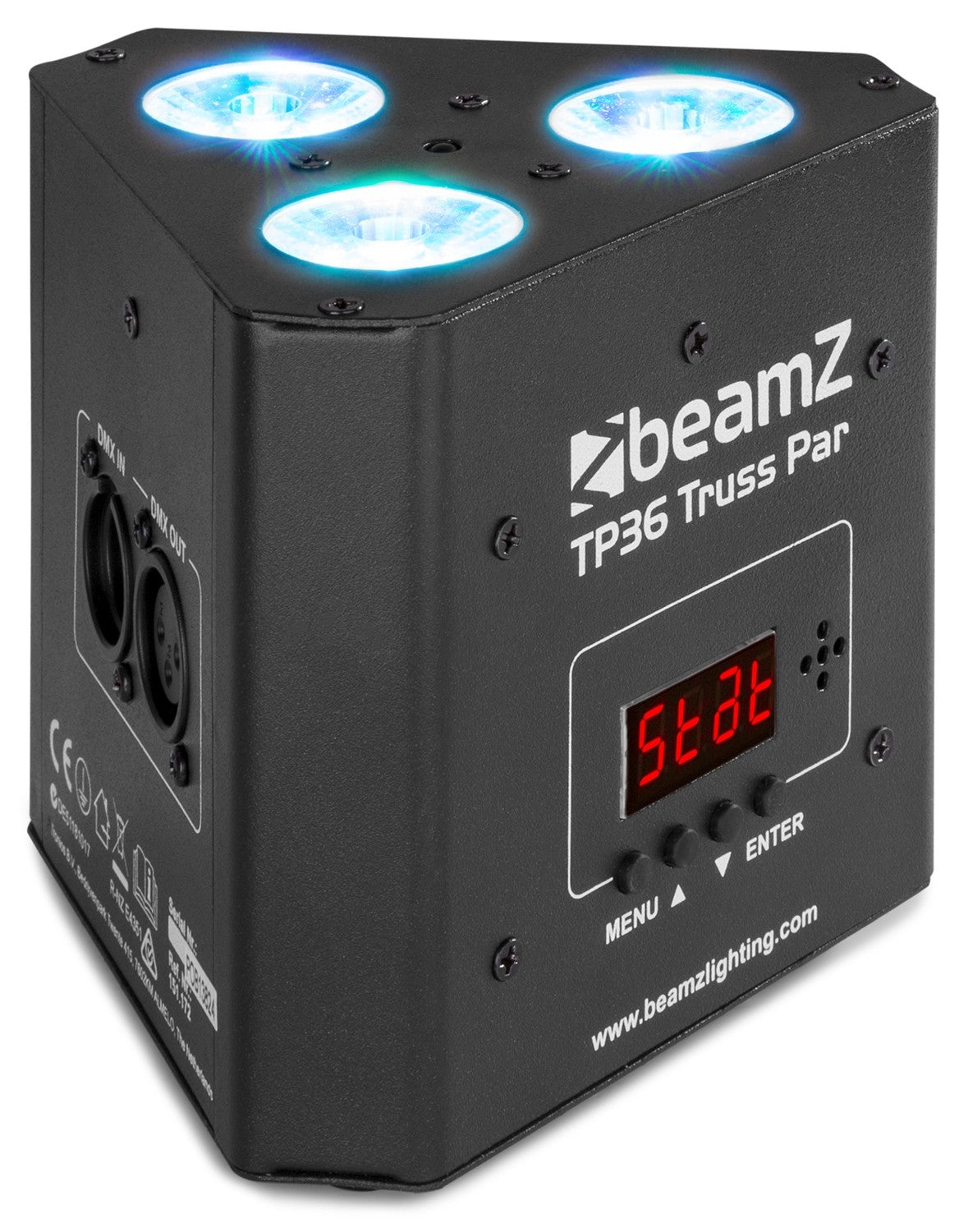

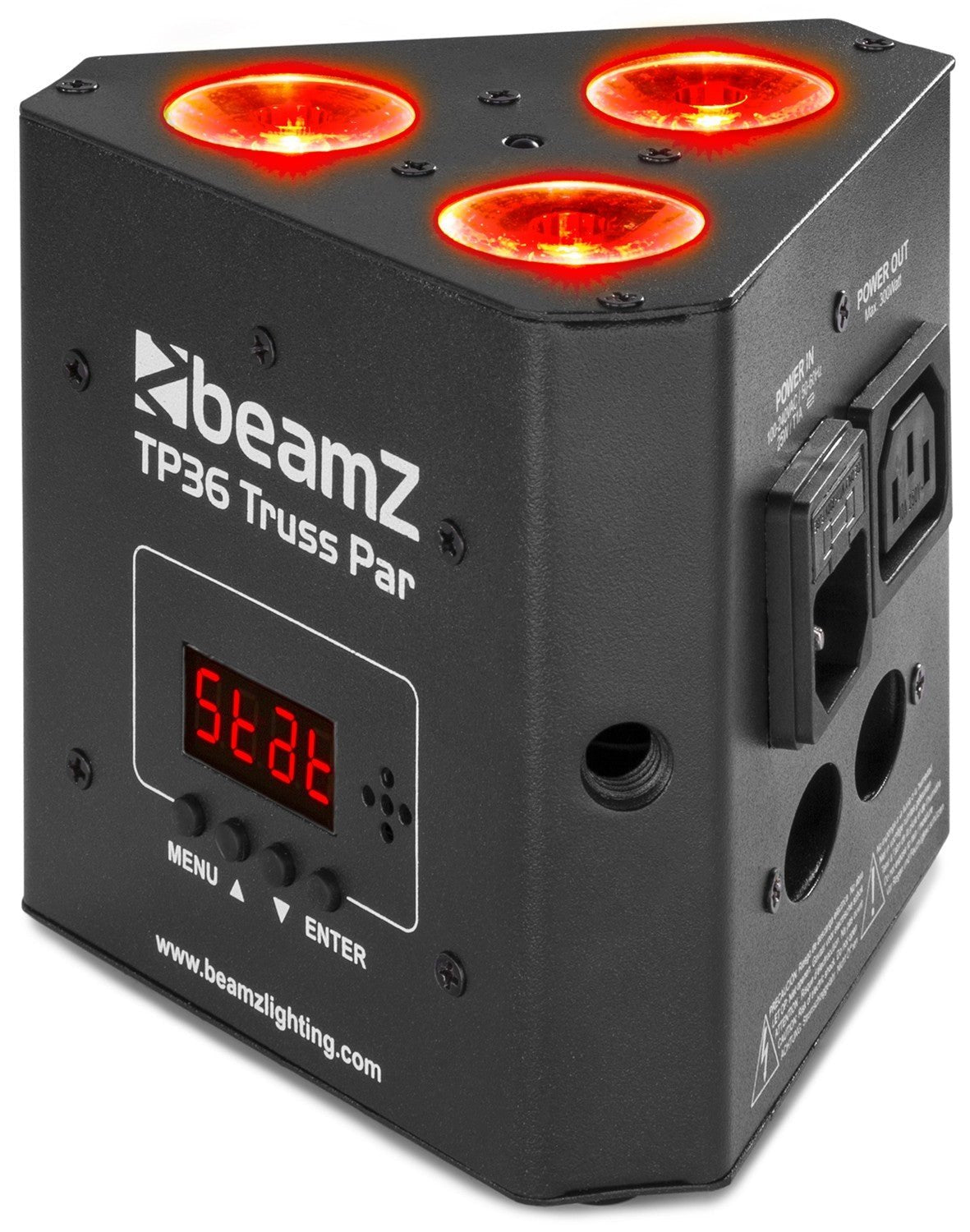

beamZ TP36 - RGB+UV LED Par for triangular truss with DMX and IR control
The beamZ TP36 is a compact PAR light specifically designed for mounting within triangular trusses , enhancing their structure with clean, uniform illumination. It incorporates three 4W 4-in-1 LEDs (RGB+UV) that offer precise color mixing—including true UV —a 0–20 Hz strobe function, and 0–100% electronic dimming. Thanks to its small size and DMX in/out (3-pin XLR) and IEC input/output connections, it integrates and daisy-chains easily into temporary or permanent installations. It features Auto, Sound-activated with adjustable sensitivity, Master/Slave , and DMX 512 control (3/4-1/4/8 channels) , as well as an IR remote control and LED display for quick setup. With a 19° beam angle and a 37° field angle , its coverage is perfect for truss washing, stage spotlights, trade shows, and indoor events ( IP20 ).
Main features
-

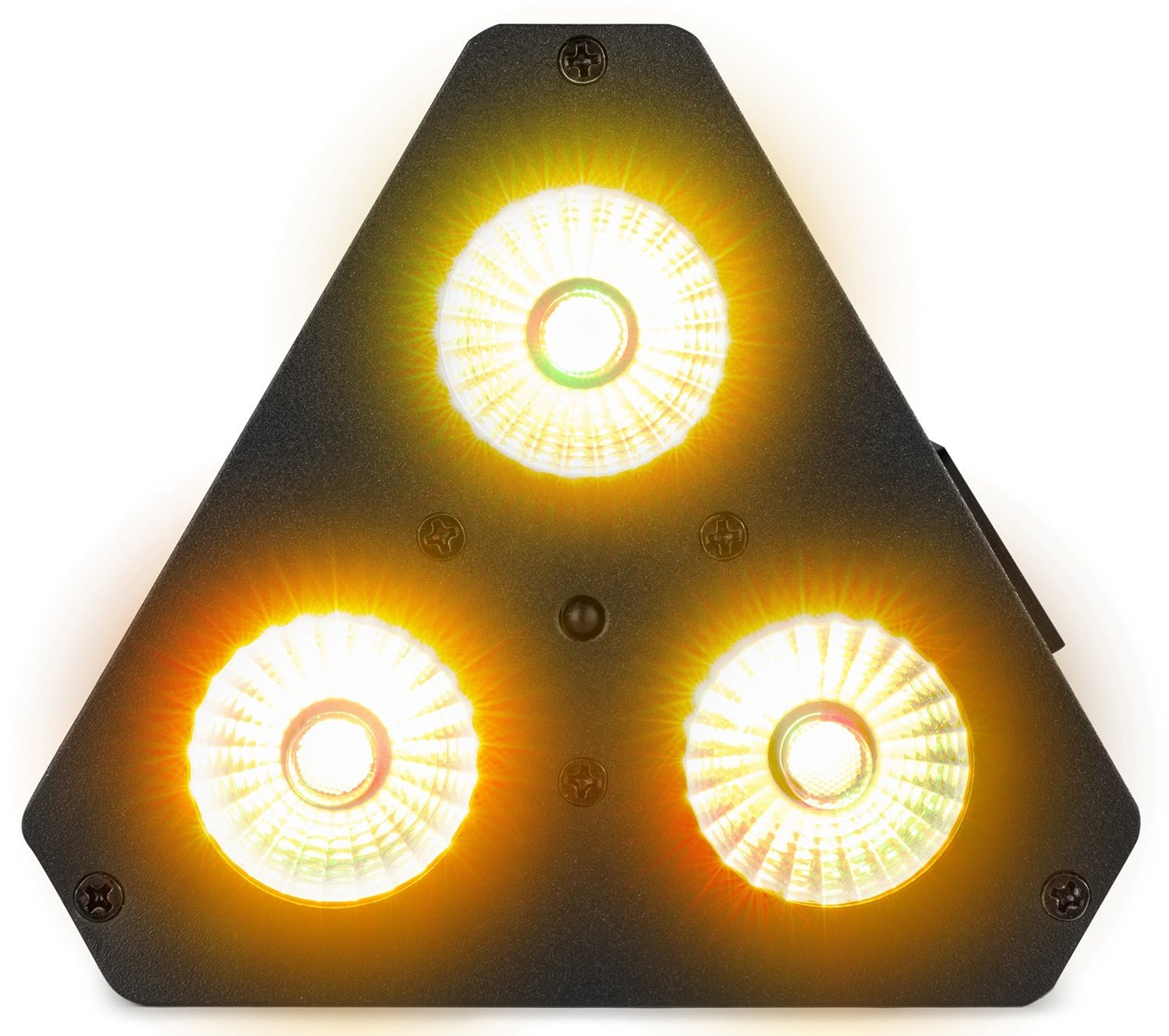

Light source: 3 x 4W 4-in-1 LEDs (RGB+UV) for homogeneous mixing and black light effects.
-
DMX profiles: 3, 4-1, 4 or 8 channels to choose the level of control required.
-
Operating modes: Automatic, Sound with adjustable sensitivity, Master/Slave and DMX 512.
-

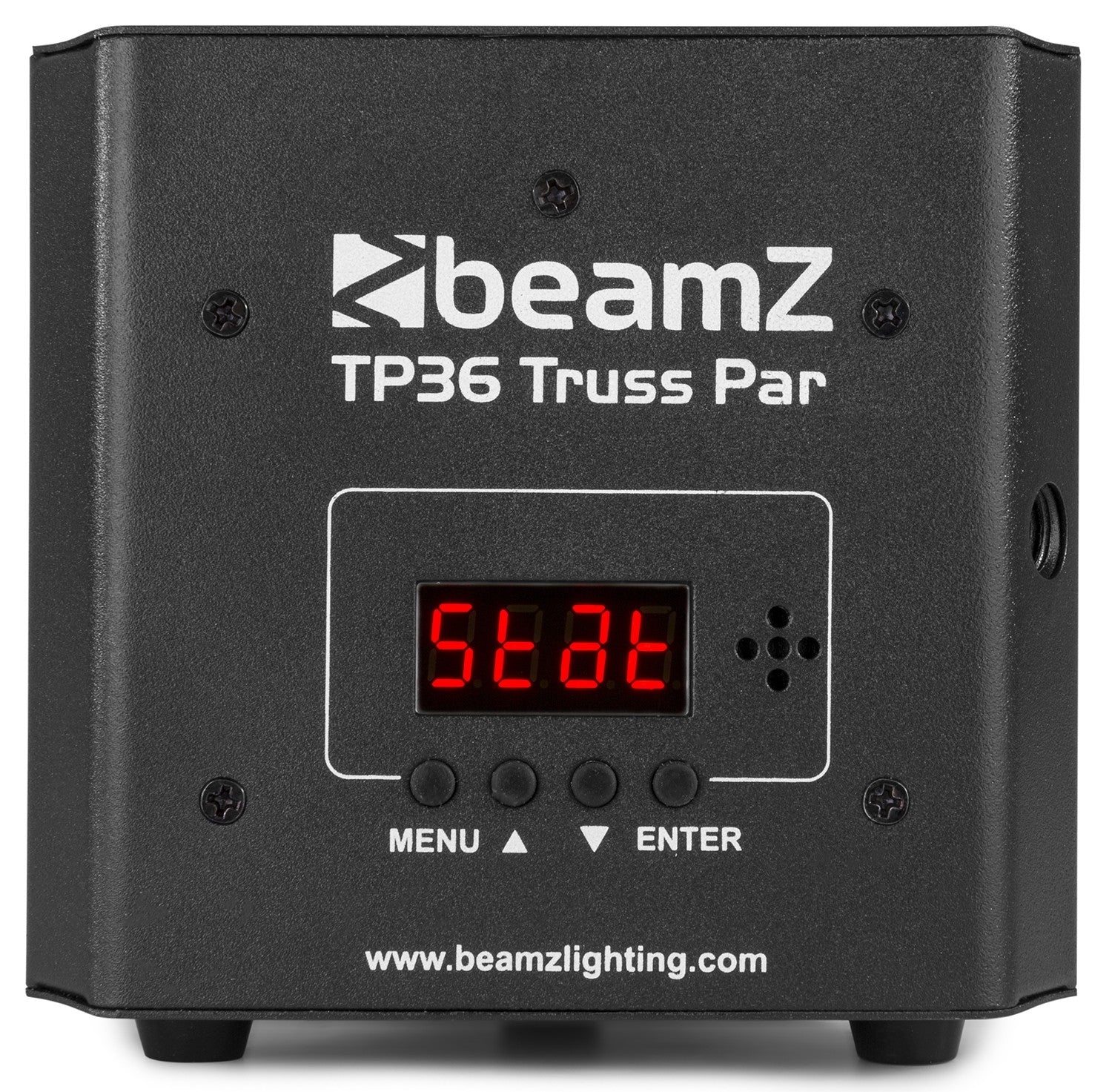

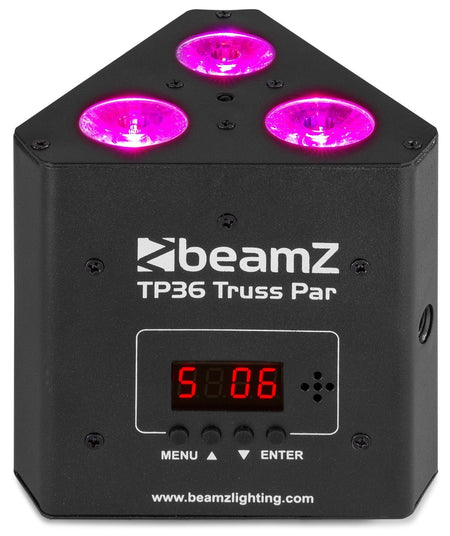

Direct control: IR remote control included and panel with LED display.
-
Optics: Beam angle 19° and field angle 37° for effective truss coating.
-
Effects: Strobe 0–20 Hz and electronic dimmer 0–100%.
-

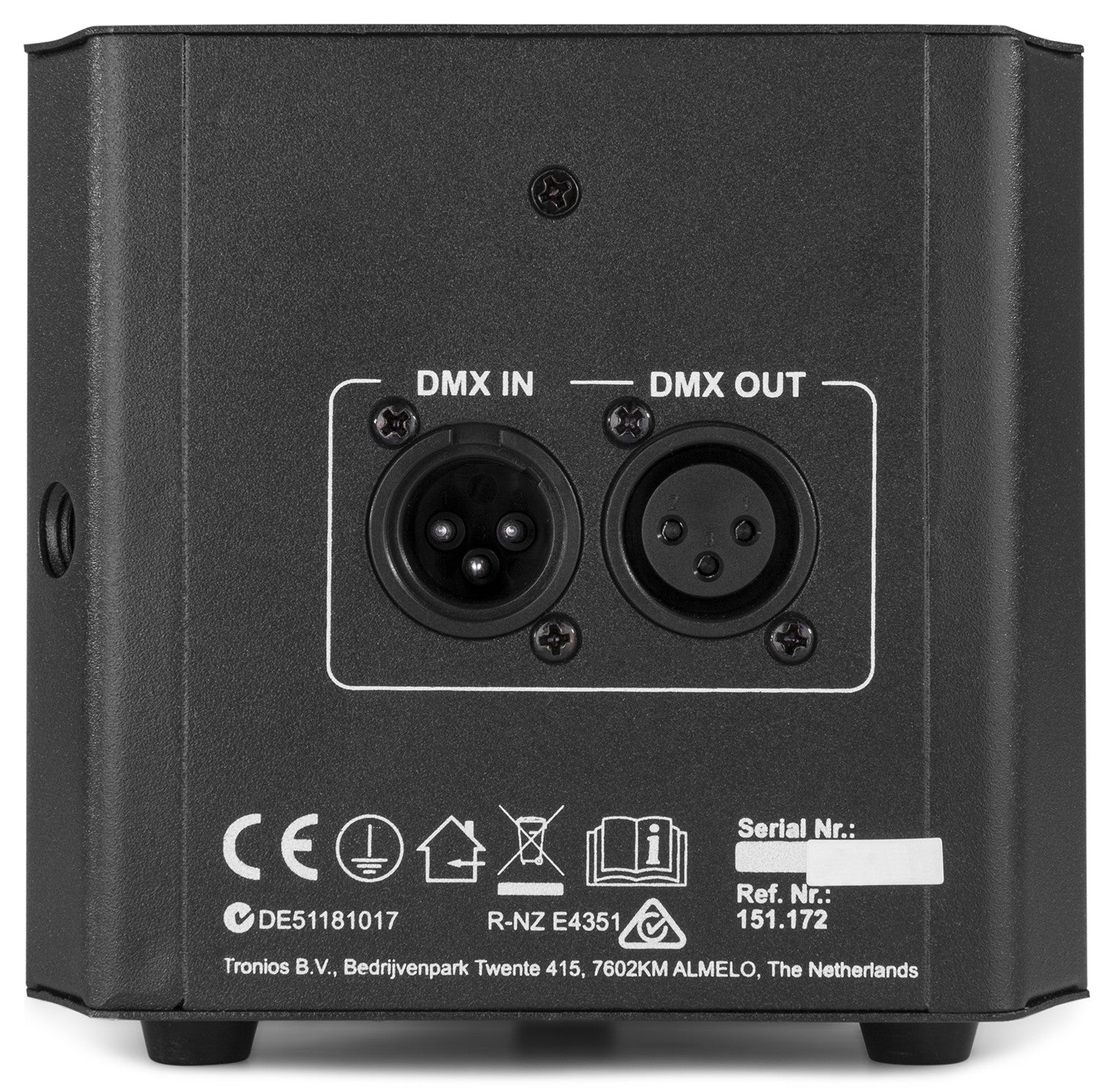

Connectivity: DMX in/out via 3-pin XLR; IEC power supply with input/output for daisy-chaining equipment.
-
Truss design: compact chassis that fits easily into triangular trusses; discreet black color.
-
Indoor use: IP20 rating.
Product benefits
-
Clean installation on truss: its size and arrangement of connectors allow it to be hidden inside the truss triangle, improving the aesthetics of the assembly.
-
Color versatility: the RGB+UV combination creates everything from intense solid colors to black light environments to highlight fluorescent materials.
-
Control tailored to your needs: DMX profiles from 3 to 8 channels, plus standalone and audio modes for quick events without a console.
-
Quick setup: IR remote control and LED display simplify setup for live performances and mobile setups.
-
Efficiency and chaining: 25W consumption and power linking by IEC to reduce current runs in long trusses.
Use cases
-
Triangular truss lighting for stages, trade fairs and corporate events.
-
DJ and band environments : reinforcement of structures, backgrounds and decorative elements with fixed colors or to the rhythm of the music.
-
Stage or set uplighting to highlight columns, totems and equipment stands.
-
Social events : UV light for fluorescent effects at themed parties.
Frequently Asked Questions
-

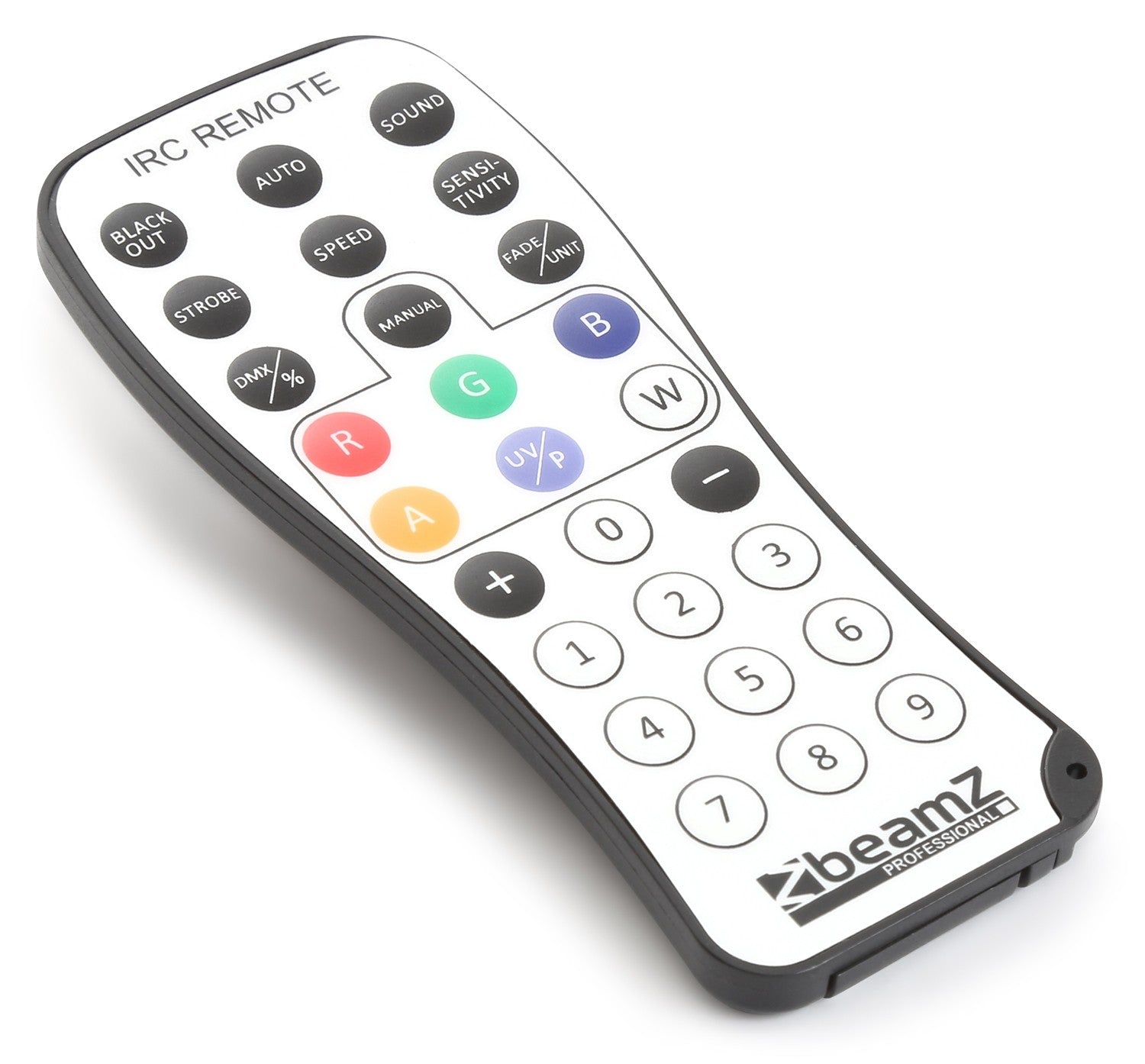

Does it include a remote control? Yes, it comes with IR control to select colors, programs, speed, microphone sensitivity, and dimming.
-

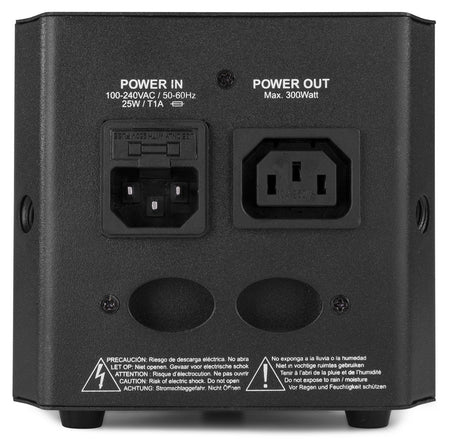

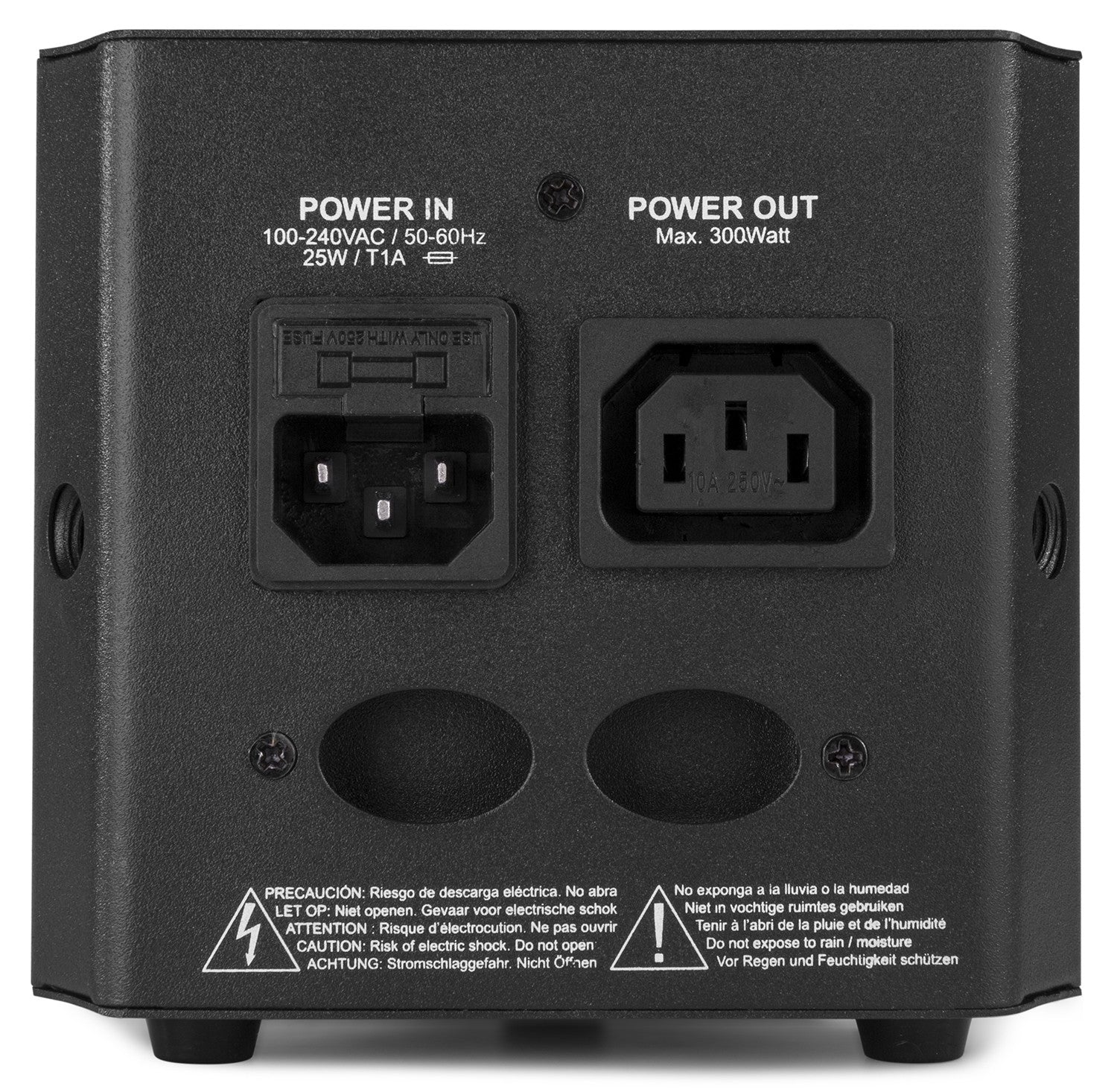

Can it be daisy-chained by power supply? Yes, it has IEC input/output connectors to link several TP36 units on the same power line within its maximum load.
-
What DMX profiles does it have? 3 CH, 4-1 CH, 4 CH and 8 CH, with dimmer control, strobe, color macros and individual R/G/B/UV channels depending on the profile.
-
Is it suitable for outdoor use? No, it is an indoor device with IP20 protection.
Installation tips
- For uniform truss coating, place one TP36 for every 1–1.5 m of span depending on the desired color and intensity.
- In sound mode, adjust the microphone sensitivity from the panel or IR to adapt the response to the actual sound pressure of the event.
- Always terminate the DMX line with a 120 Ω terminator at the last light to improve stability.
Project description
Compact LED PAR for triangular truss. Power source: 3 x 4-in-1 4W LEDs (RGB+UV); DMX profiles: 3/4-1/4/8 channels; modes: Auto, Sound, Master/Slave, and DMX; strobe: 0–20 Hz; dimmer: 0–100%; beam angle: 19°, field angle: 37°; connectivity: DMX XLR 3-pin in/out; power supply: IEC in/out, 100–240 VAC 50/60 Hz; power consumption: 25 W; dimensions: 122 x 108 x 117 mm; weight: 1.1 kg; IP20; color: black.
