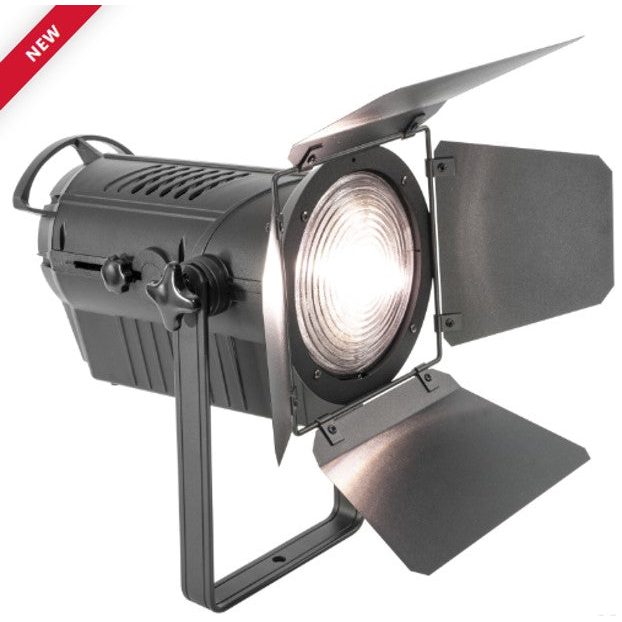

AFX Light TLIGHT-WWCW-ZOOM - Fresnel WW/XW theater spot with electric zoom 200W

AFX Light TLIGHT-WWCW-ZOOM – Fresnel WW/XW theater spot with electric zoom 200W

The AFX Light TLIGHT-WWCW-ZOOM is a professional 200W Fresnel spotlight designed for theatrical, studio, and event environments where high-precision lighting is required. It incorporates dual Warm White (3,200K) and Cool White (5,600K) LEDs with CRI ≥ 92, delivering uniform, flicker-free light quality for film, video, and theater. Its continuously adjustable electric zoom from 15° to 50° allows for everything from narrow beams to wide washes, while the electronic focus and dimmer ensure smooth transitions. Thanks to its active fan cooling system, it maintains stable performance even during extended sessions.

Main features

• Light source: Warm White (3,200 K) and Cool White (5,600 K) LEDs, CRI ≥ 92.
• Power: 200 W.
• Continuous electric zoom from 15° to 50°.
• 5 DMX512 channels for independent control of warm light, cold light, dimming, strobe and zoom.
• Flicker-free electronic dimmer (0%–100%).
• Electronic focus for precise beam definition.
• Low-noise fan cooling.
• Universal power supply 100–240 V AC, 50/60 Hz; consumption 200 W.
• Dimensions: 450 × 259 × 240 mm; weight: 6.5 kg.
• LED lifespan: approx. 30,000 hours.

Product benefits

• Professional color quality: WW/XW blend with high CRI to faithfully reproduce warm and cool tones.
• Beam Versatility: Wide zoom to suit accent spots or full stage washes.
• Precise control: 5 DMX channels allow you to separately manage color temperature, intensity and effects.
• Silent operation: fan optimized to dissipate heat without interfering with live productions.
• Continuous reliability: Rugged construction ensures consistent performance in fixed or mobile installations.

Use cases

• Lighting for plays, musicals and opera.
• Television and film productions on set.
• Setting for conferences and corporate presentations.
• Art exhibitions and cultural spaces.
• Conference rooms and auditoriums.

Frequently Asked Questions

• How do you adjust the color temperature? Using the dedicated WW and CW DMX channels, which can be adjusted independently.
• Is it suitable for video and film? Yes; its flicker-free operation and high CRI make it ideal for cameras.
• Does the fan require maintenance? It is advisable to occasionally clean the grille with compressed air.
• Does it allow master-slave control? Yes, in addition to DMX, it can be configured in master-slave mode to synchronize multiple units.

Description for projects

200 W Fresnel projector with WW (3,200 K) and CW (5,600 K) LEDs, CRI ≥ 92; electric zoom 15°–50°; 5 DMX channels; electronic dimmer and focus; fan-cooled; power supply 100–240 V AC; consumption 200 W; dimensions 450 × 259 × 240 mm; weight 6.5 kg; service life 30,000 h.
